Removal & Installation (LS)

  1. Apply the parking brake. If equipped with an automatic transmission, place the selector lever in neutral. Disconnect the battery ground cable. Remove the ashtray finish panel. See Fig 1.
  2. Disconnect the harness connectors. If equipped with a manual transmission, remove the gearshift lever knob. If equipped, disconnect the cellular phone harness connectors. Remove the console finish panel assembly by pulling upward from the front first. See Fig 2.
  3. If equipped, disconnect the traction control switch harness connector. If equipped, release the cellular phone wiring harness from the console finish panel assembly. To install, reverse the removal procedure.

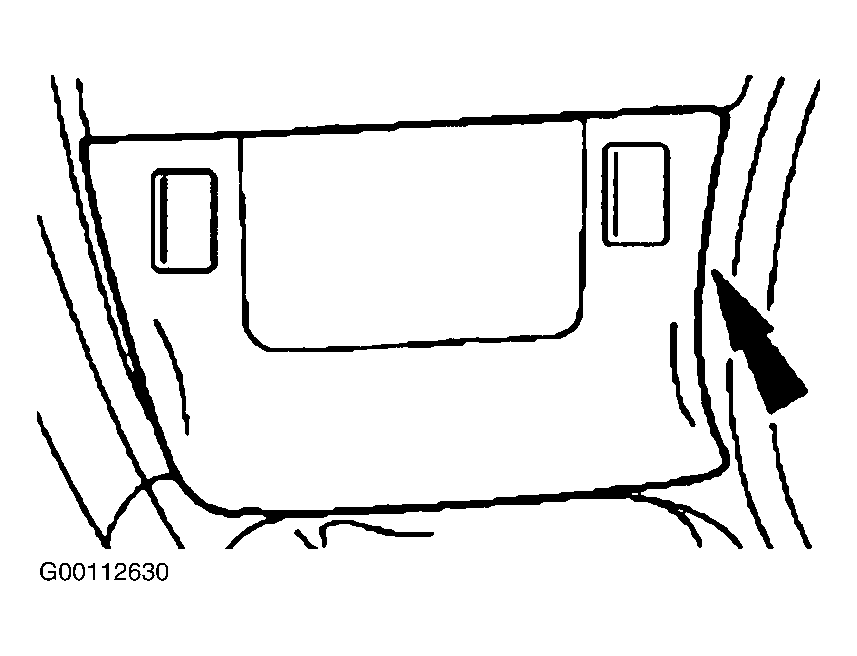

Fig 1: Removing & Installing Ashtray Finish Panel
G00112630Courtesy of FORD MOTOR CO.

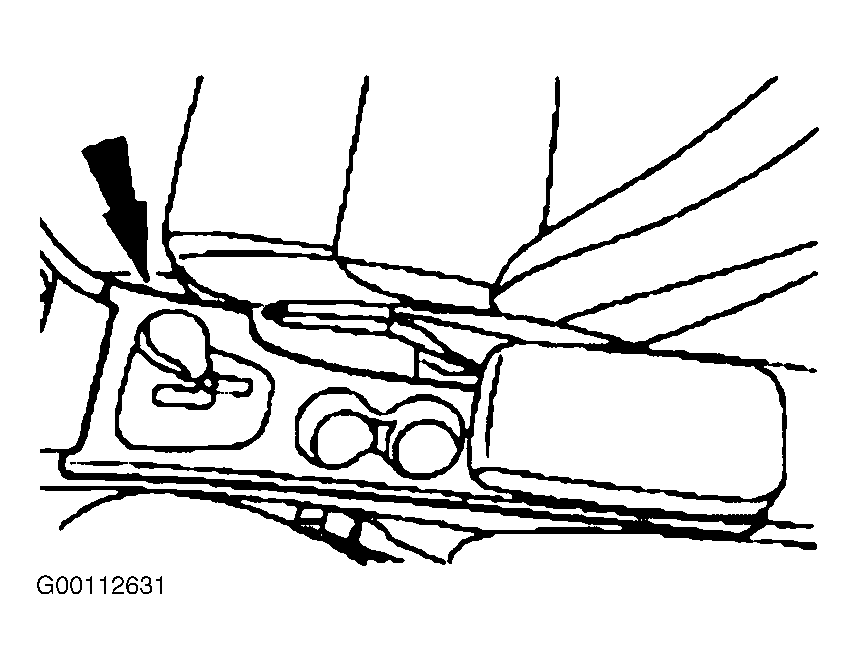

Fig 2: Removing & Installing Center Console
G00112631Courtesy of FORD MOTOR CO.
