Disassembly & Assembly Of Subassemblies: Differential: Assembly

NOTE: Whenever a bearing has been removed, a new bearing must be installed.

Use a (A) press and (B) Differential Bearing Cone Replacer to install the (C) speedometer drive gear and the (D) bearing.

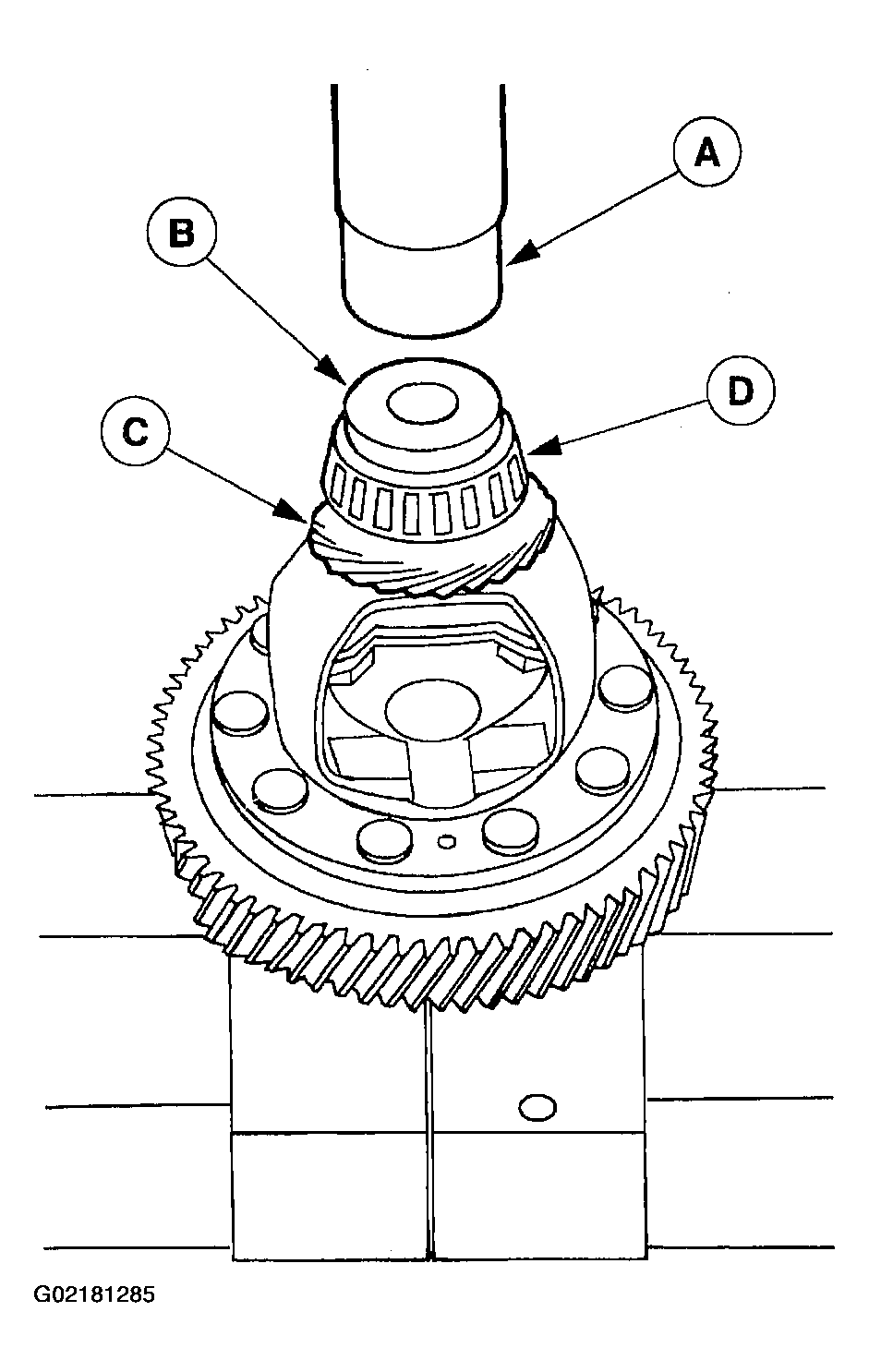

Fig 1: Installing (C) Speedometer Drive Gear & The (D) Bearing
Install the differential bearing.
1. Align the Differential Bearing Cone Replacer.
2. Position the arbor press.
3. Press on the differential bearing.

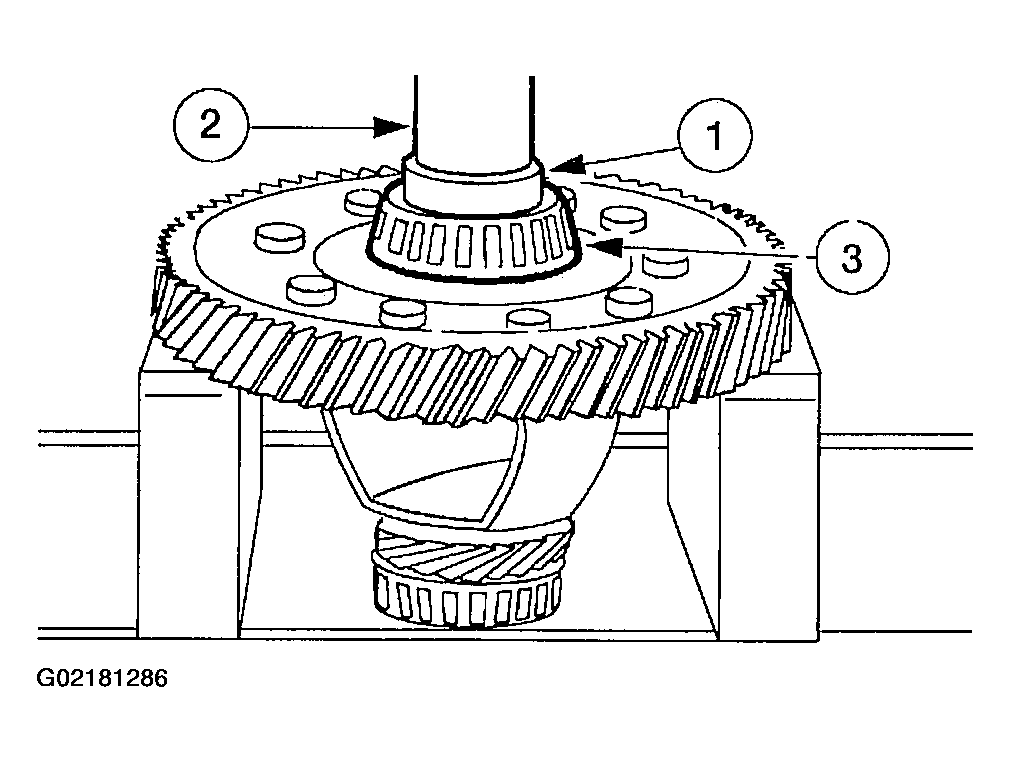

  Fig 2: Installing Differential Bearing
Install the differential side gear thrust washers and differential side gears.

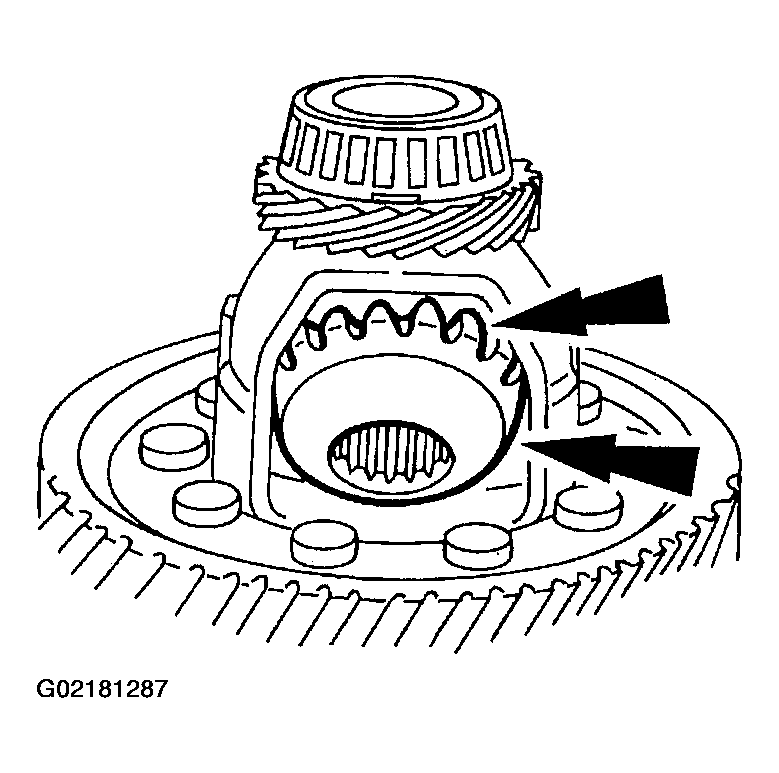

Fig 3: Installing Differential Side Gear Thrust Washers & Differential Side Gears
Install the differential pinion thrust washers and differential pinion gears.

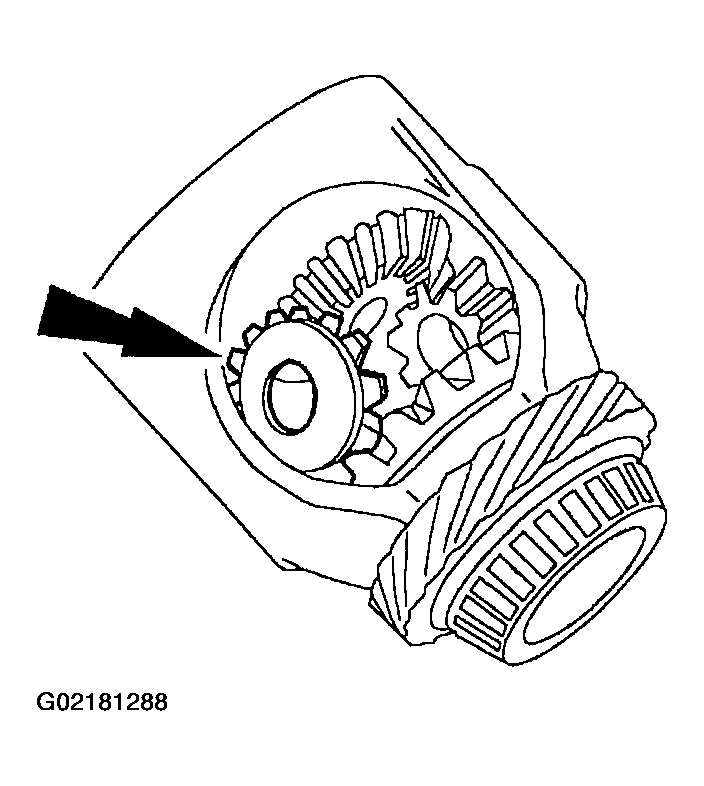

Fig 4: Installing Differential Pinion Thrust Washers & Differential Pinion Gears
Install the differential pinion shaft.

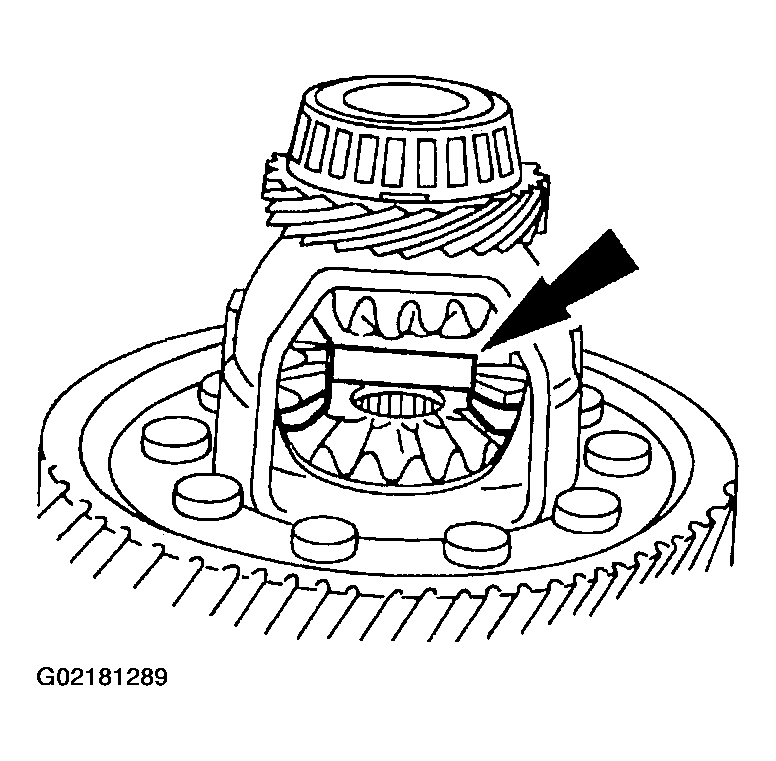

Fig 5: Installing Differential Pinion Shaft
Install and crimp the pinion shaft lock pin.

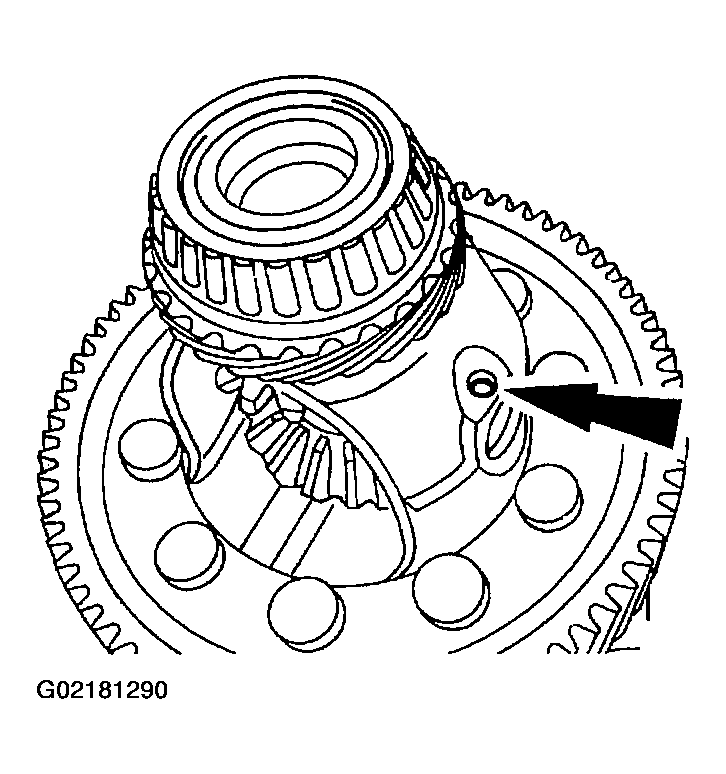

Fig 6: Install & Crimp The Pinion Shaft Lock Pin
