Disassembly & Assembly Of Subassemblies: Synchronizers: Assembly

    NOTE: Align the index marks during assembly.
  1. Assemble the synchronizer.
    1. Position the synchronizer hub and sleeve together.
    2. Install the synchronizer hub inserts.
    3. Install the synchronizer blocking springs.

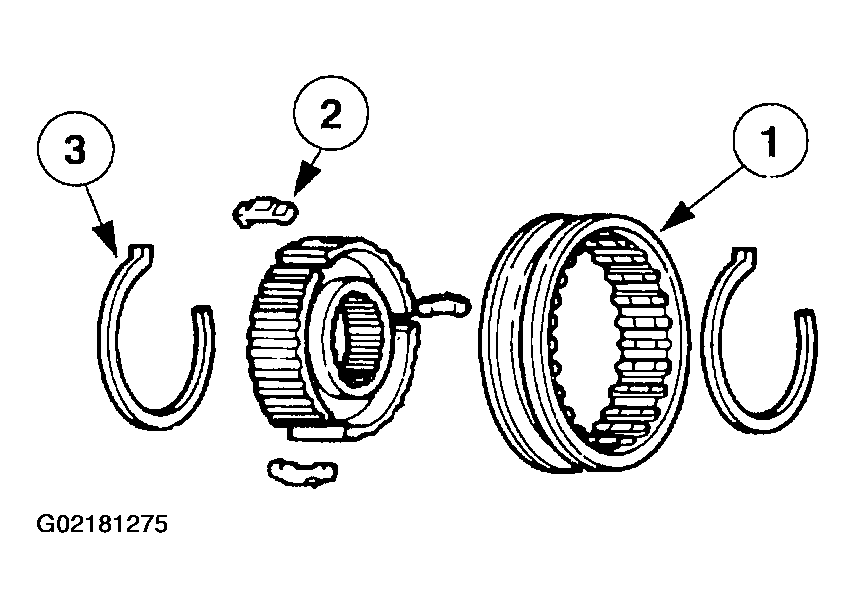

      Fig 1: Assembling Synchronizer Assembly
      G02181275
