Drain Procedure

  1. Raise and support the vehicle.
  2. Remove the drain plug and drain the fluid.

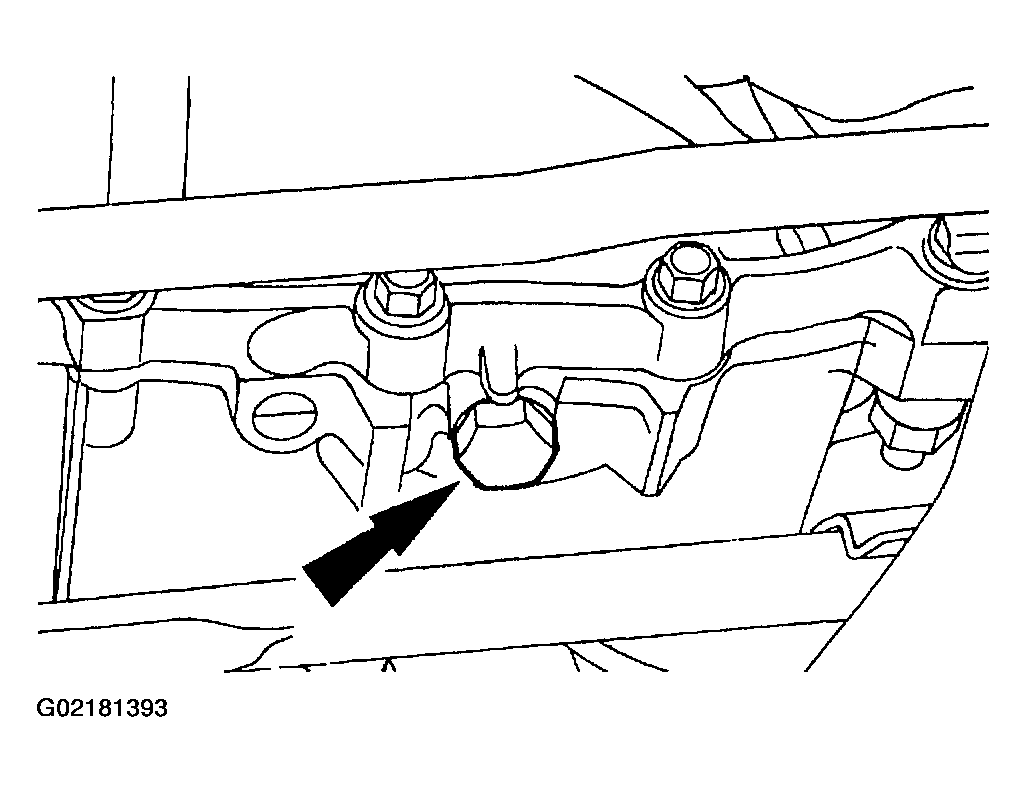

    Fig 1: Removing Drain Plug
    G02181393
    3. NOTE: Use a new gasket on the drain plug.

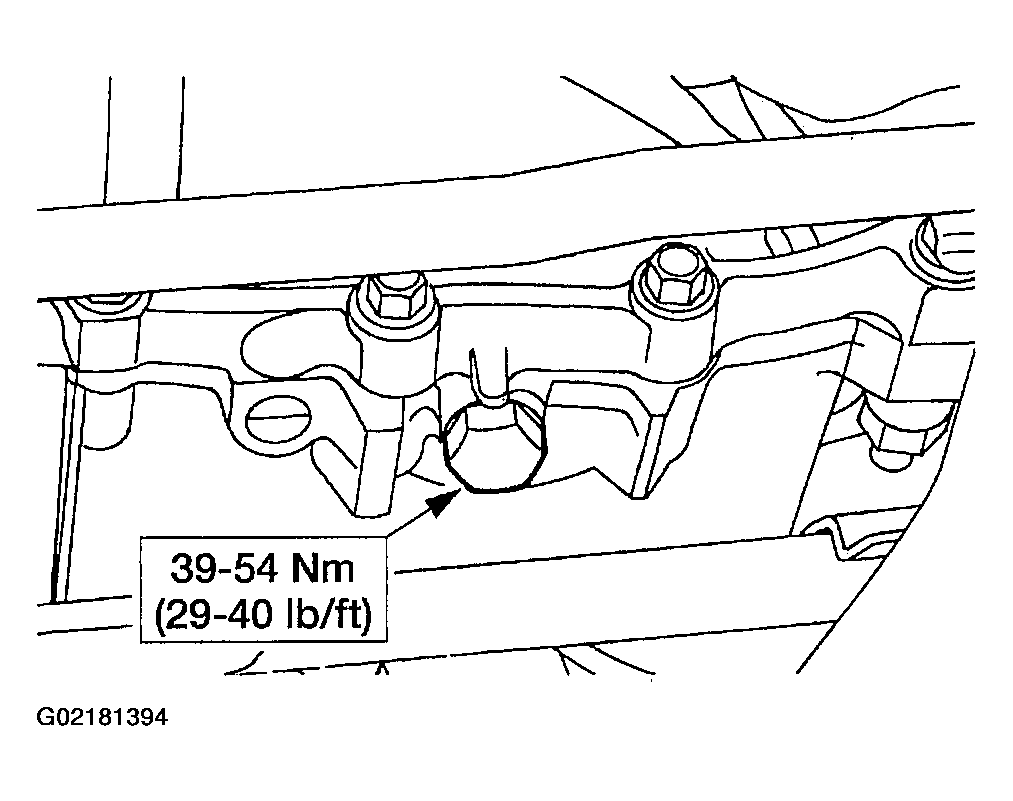

    Fig 2: Installing Drain Plug
    G02181394
  3. Install the drain plug.
  4. Lower the vehicle.
