Fill Procedure

Park the vehicle on level ground and apply the parking brake.
Disconnect the vehicle speed sensor (VSS) electrical connector.

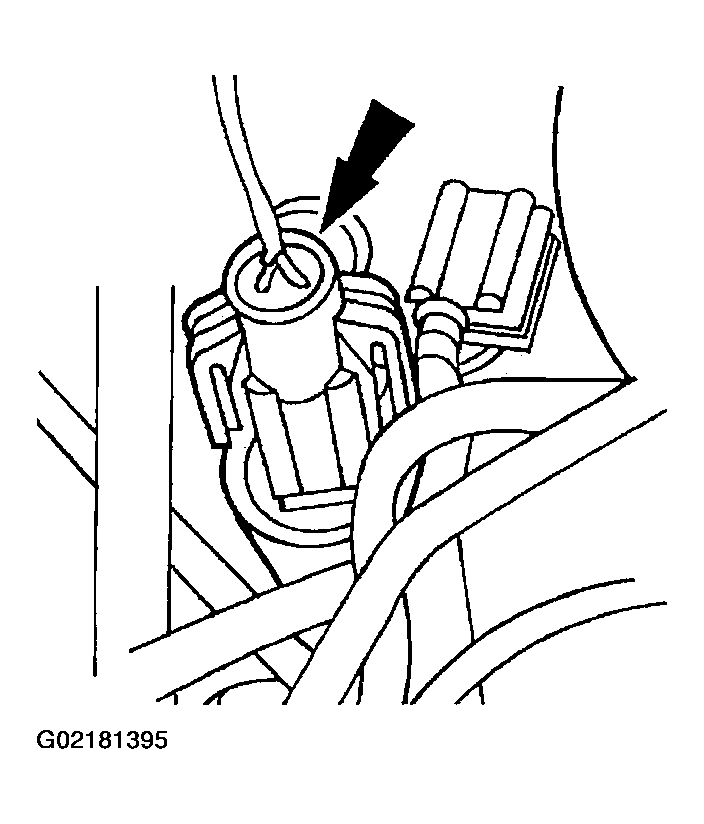

Fig 1: Disconnecting Vehicle Speed Sensor (VSS) Electrical Connector
Remove the bolt and the VSS.

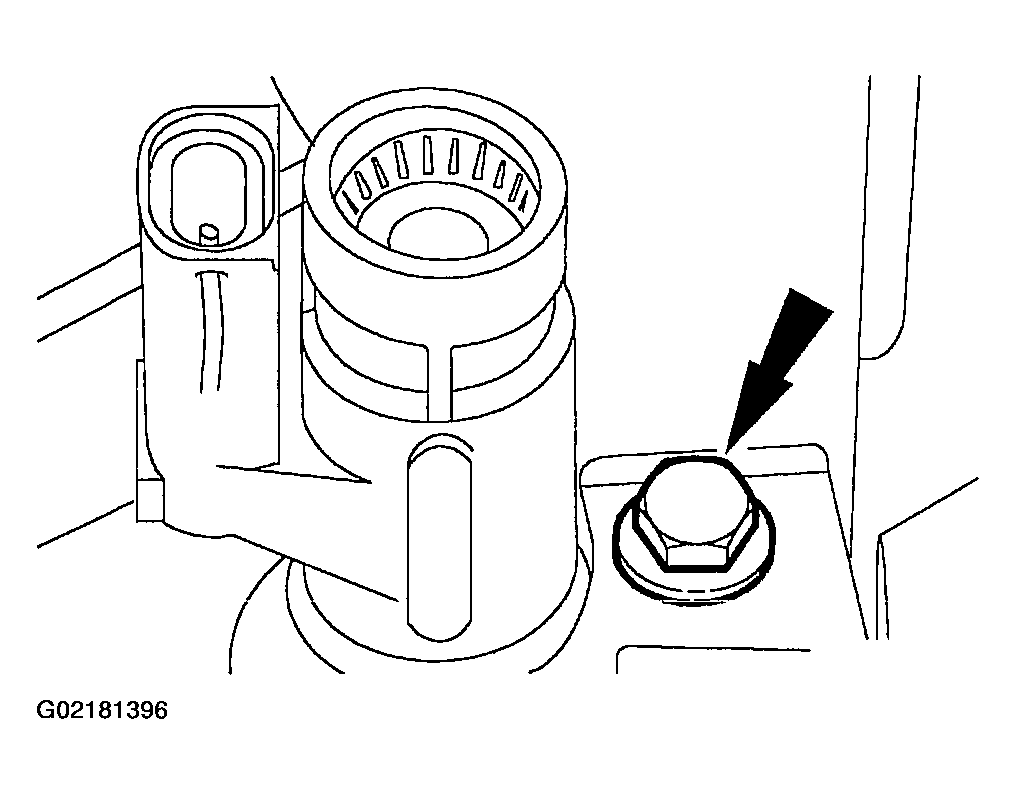

Fig 2: Removing Bolt & VSS
Place a funnel into the VSS hole.

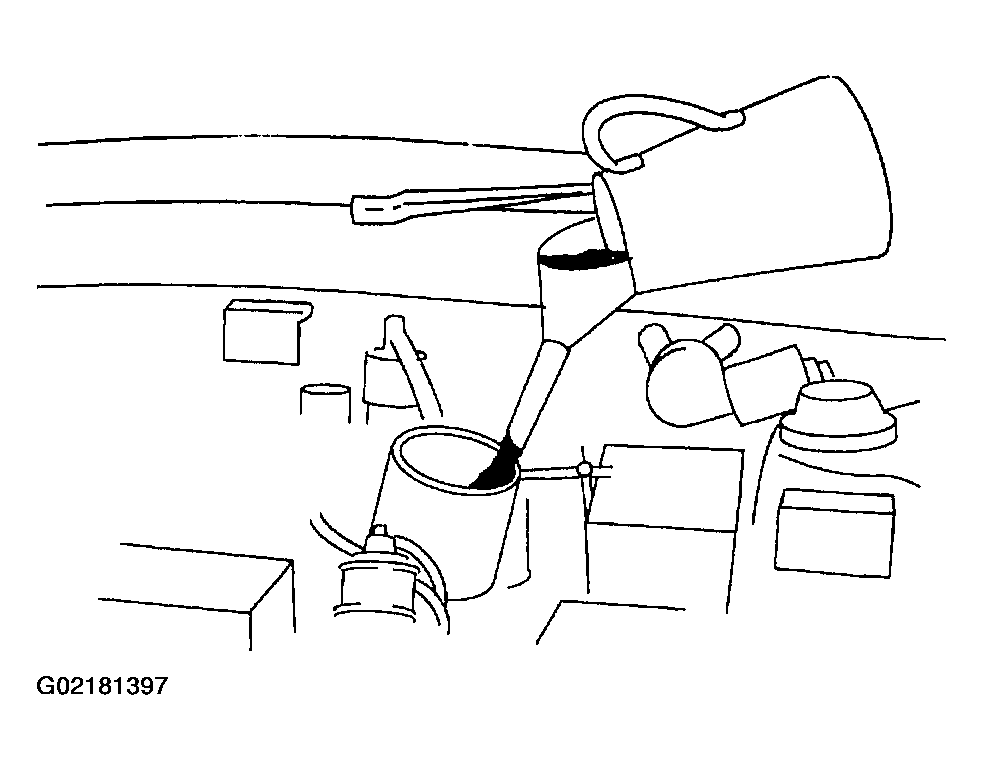

Fig 3: Placing Funnel Into VSS Hole
Add the specified transaxle fluid until the full level on the VSS is reached.

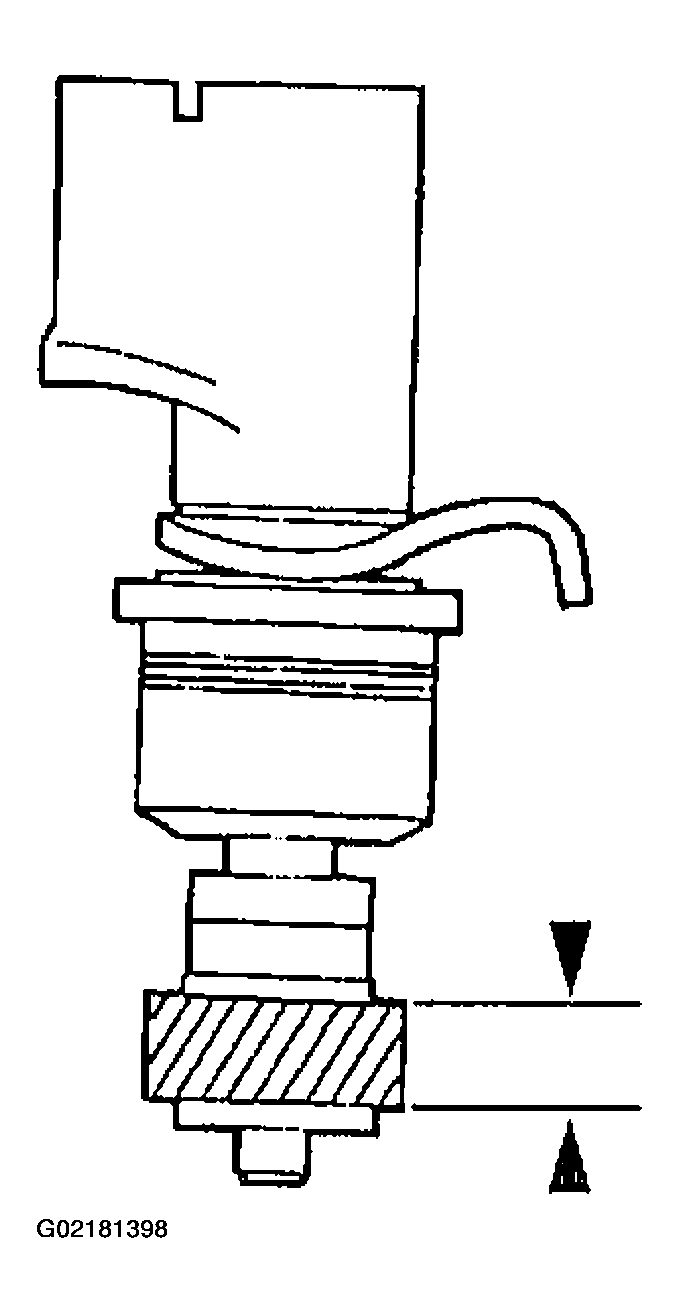

Fig 4: Identifying Transaxle Fluid Full Level On VSS
Install the VSS and the bolt.

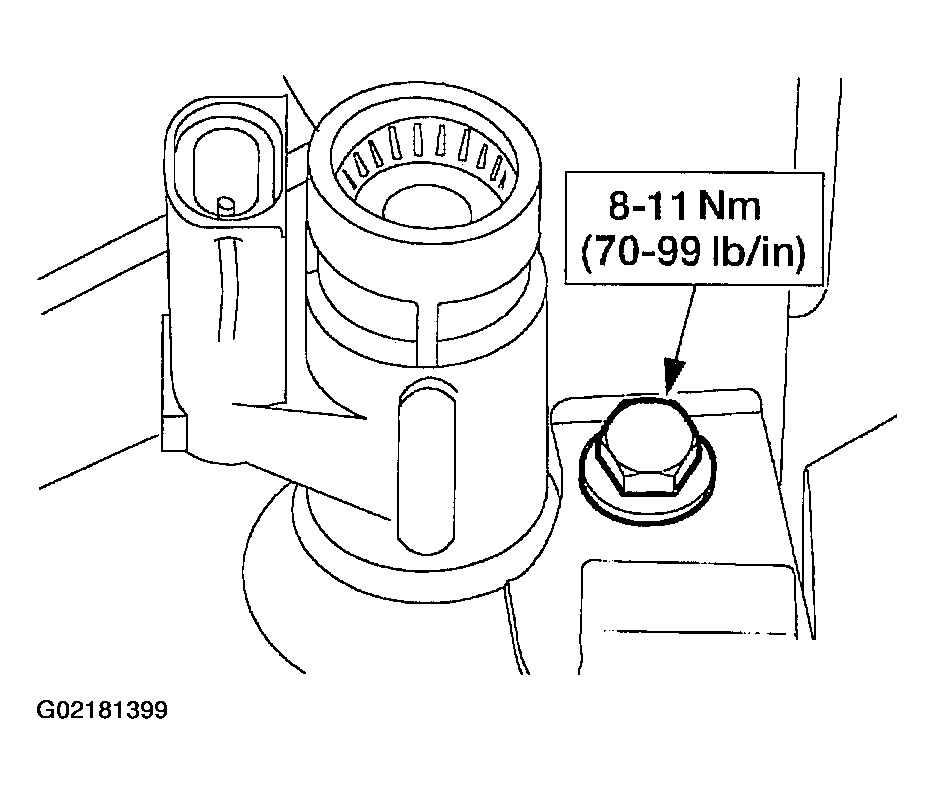

Fig 5: Installing VSS & Bolt
Connect the VSS electrical connector.

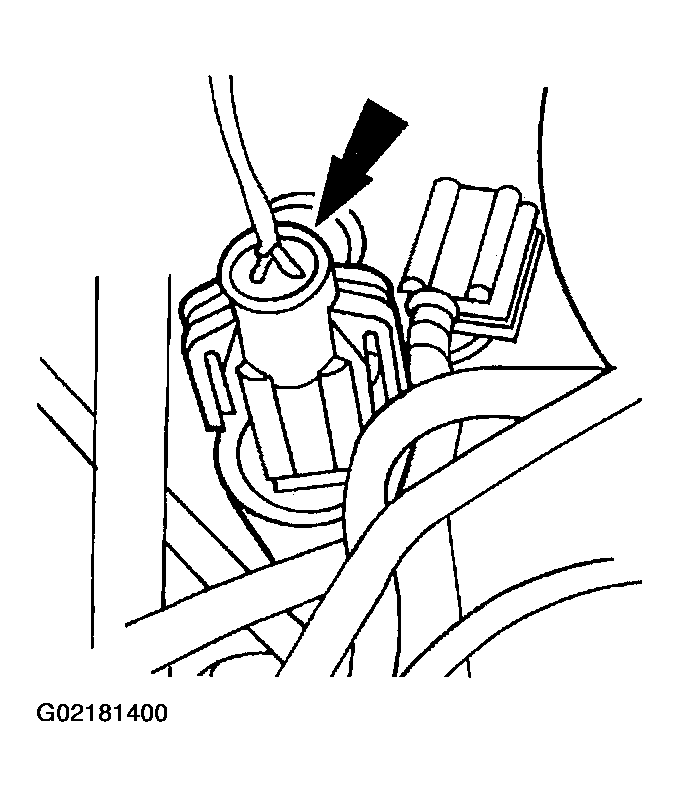

Fig 6: Connecting VSS Electrical Connector
