Component Locations

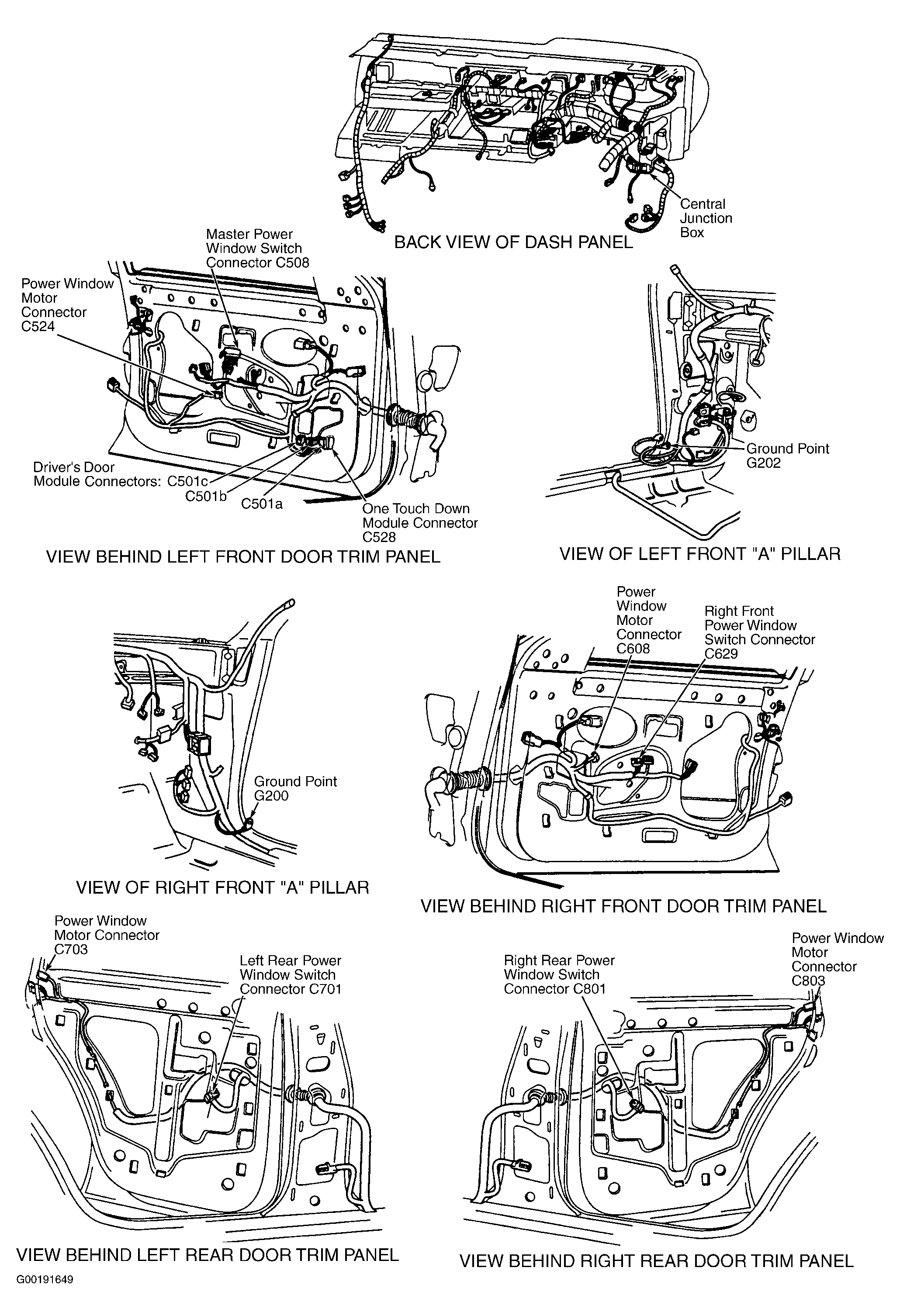

For power windows system components and harness connector location, see Fig 1. See COMPONENT LOCATIONS table.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Central Junction Box | Below Left Side Of Instrument Panel |
| Data Link Connector | Behind Left Side Of Instrument Panel |
| Driver's Door Module | Behind Driver's Door Panel |
| Lighting Control Module | Behind Instrument Panel, Right Of Steering Column |
| One-Touch Down Module | Behind Driver's Door Panel |
| Power Distribution Box | Right Front Of Engine Compartment Next To Battery |
| Powertrain Control Module | Left Rear Corner Of Engine Compartment, In Firewall |
