Left Front Power Window/Door Lock Switch

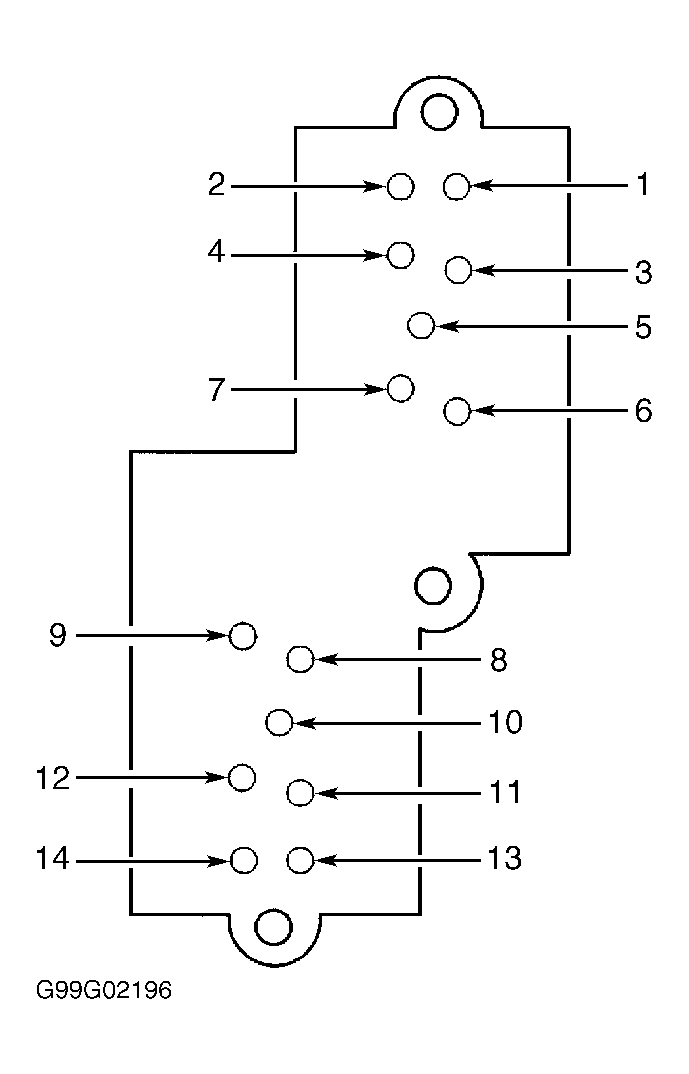

Remove left front window/door lock switch. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Check continuity between specified switch terminals with switch in appropriate position. See LEFT FRONT WINDOW/DOOR LOCK SWITCH TEST table. If continuity is not as specified, replace left front power window/door lock switch.
LEFT FRONT WINDOW/DOOR LOCK SWITCH TEST
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Neutral | ||
| Window Circuit | 8 & 9; 11 & 12 | |
| Door Lock Circuit | 3 & 5; 4 & 7 | |
| Down | 8 & 9; 10 & 12 | |
| Up | 8 & 10; 11 & 12 | |
| Lock | 3 & 5; 6 & 7 | |
| Unlock | 3 & 6; 4 & 7 | |
