Master Power Window Switch

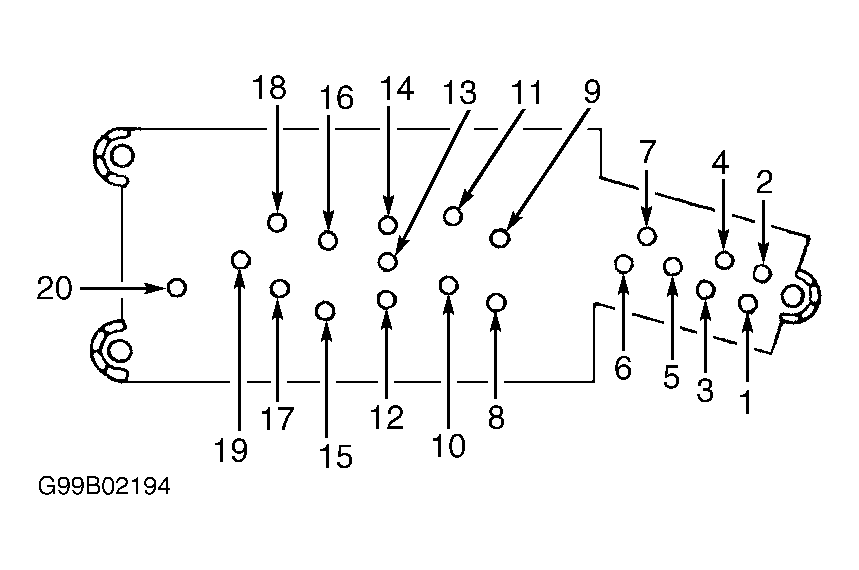

- Remove master power window switch. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION. With all switches in NEUTRAL position and lock-out switch in OFF position, continuity should exist between terminals No. 19 and 20. See Fig 1. Continuity should also exist between terminal No. 13 and all other terminals except terminal No. 19. If continuity is as specified, go to next step. If continuity is not as specified, replace master power window switch.
- Check continuity between specified switch terminals with switch in appropriate position. See MASTER POWER WINDOW SWITCH TEST table. If continuity is not as specified, replace master power window switch.
MASTER POWER WINDOW SWITCH TEST
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Left Front Window | ||
| Down | 8 & 13; 10 & 19 | |
| Up | 8 & 19; 10 & 13 | |
| Left Rear Window | ||
| Down | 13 & 17; 15 & 19 | |
| Up | 13 & 15; 17 & 19 | |
| Right Front Window | ||
| Down | 9 & 13; 11 & 19 | |
| Up | 9 & 19; 11 & 13 | |
| Right Rear Window | ||
| Down | 13 & 18; 16 & 19 | |
| Up | 13 & 16; 18 & 19 | |
