Connector Circuit Reference

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

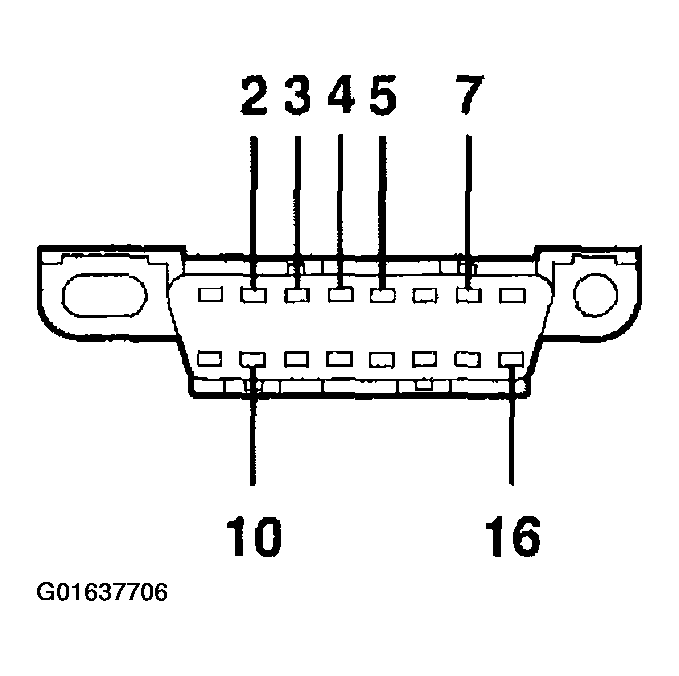

Fig 1: Identifying Data Link C251 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

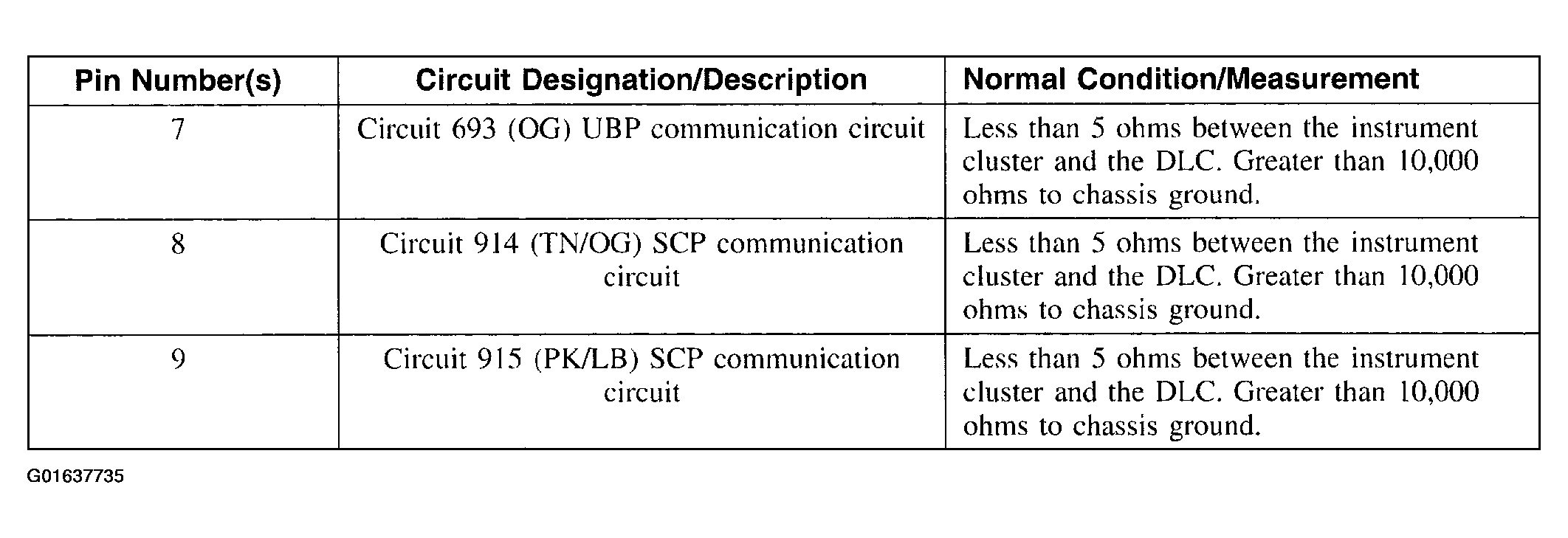

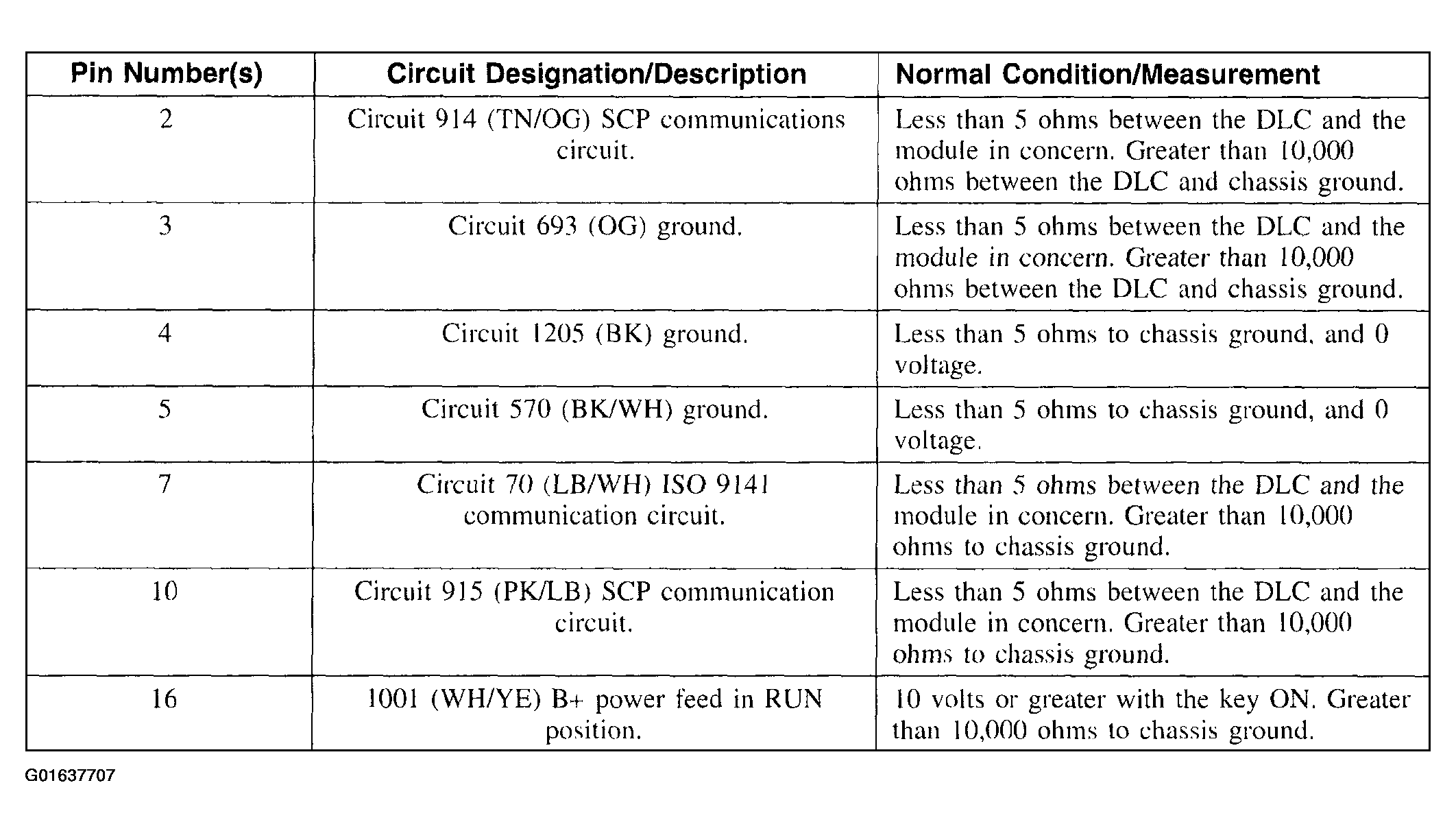

Fig 2: Identifying Data Link C251 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

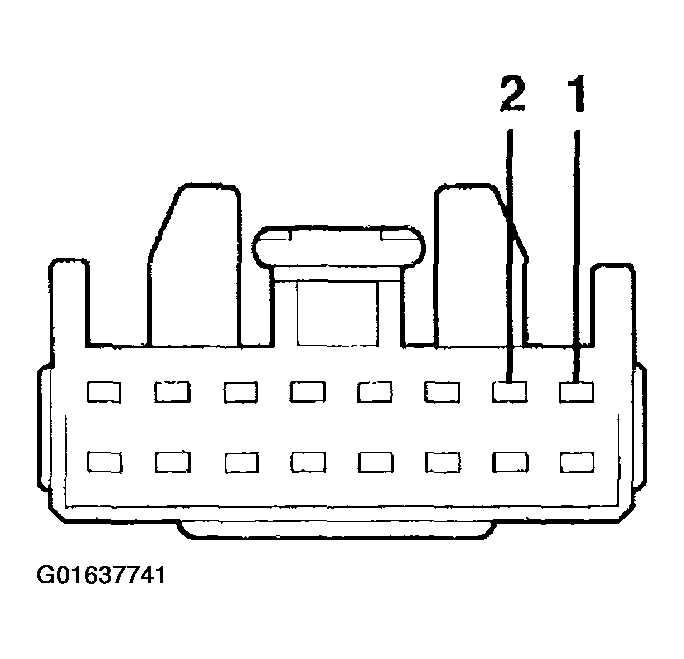

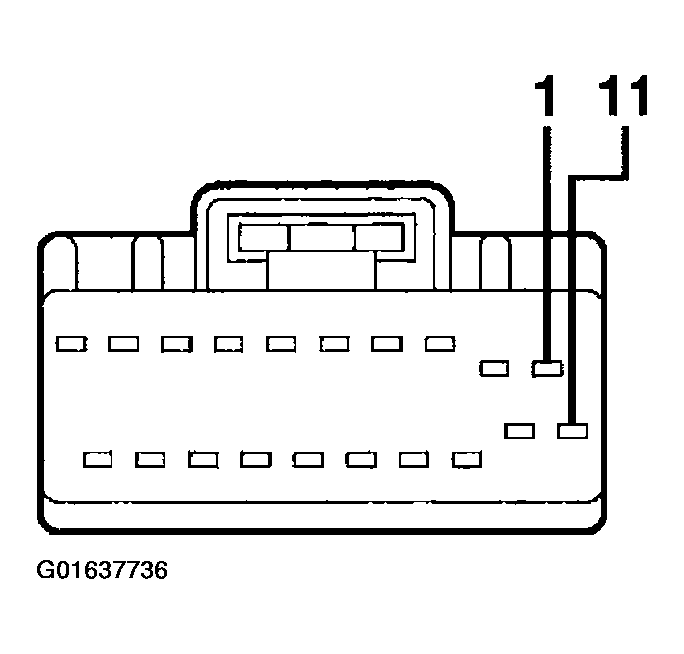

Fig 3: Identifying Vehicle Security Module C3008f Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

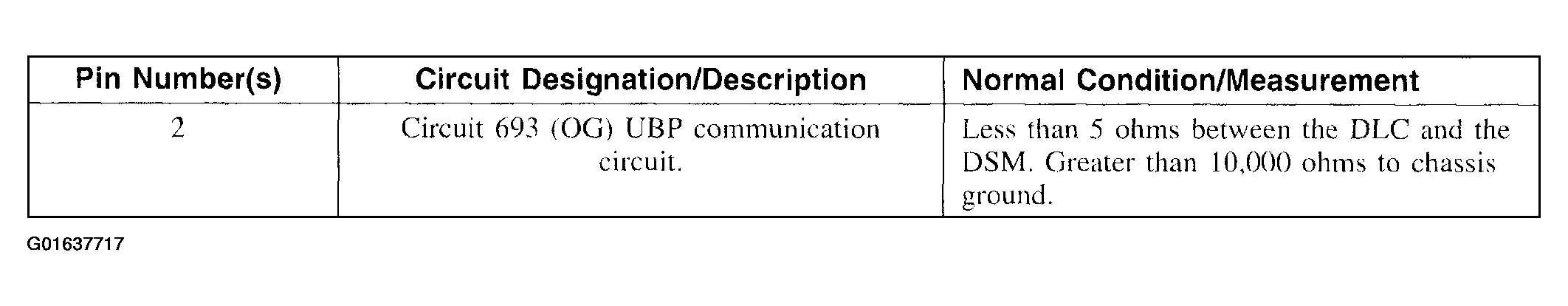

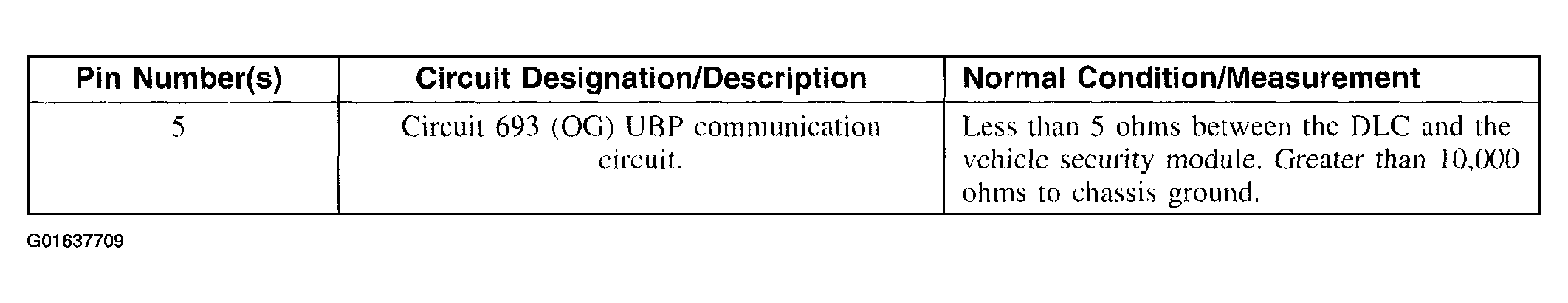

Fig 4: Identifying Vehicle Security Module C3008f Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

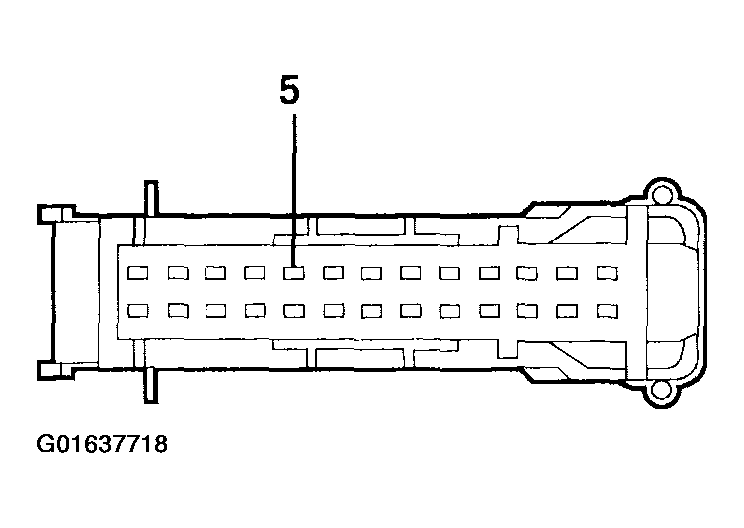

Fig 5: Identifying Four-Wheel Drive (4WD) Control Module C281b Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

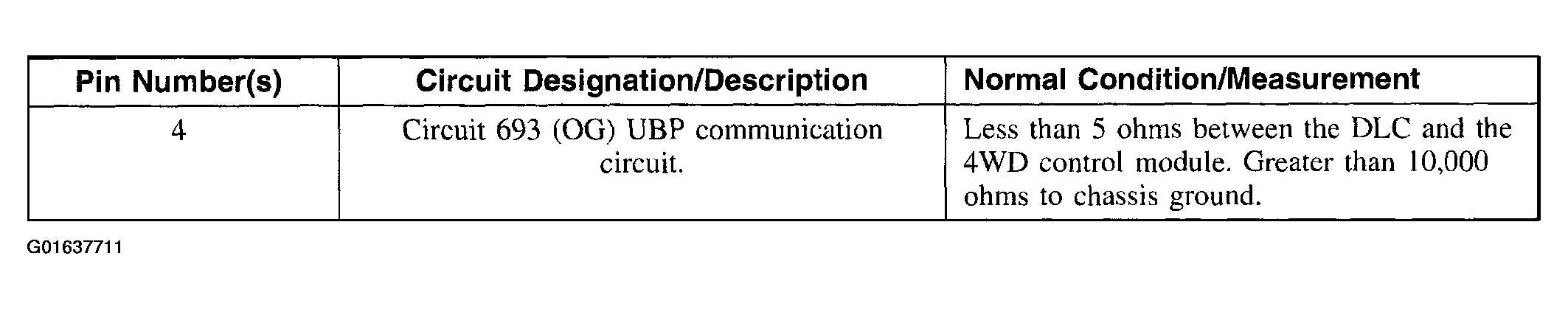

Fig 6: Identifying Four-Wheel Drive (4WD) Control Module C281b Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

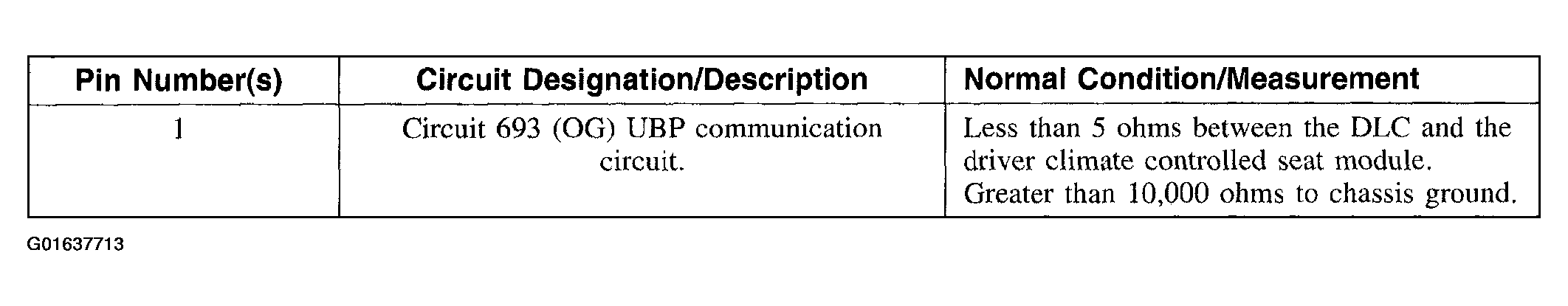

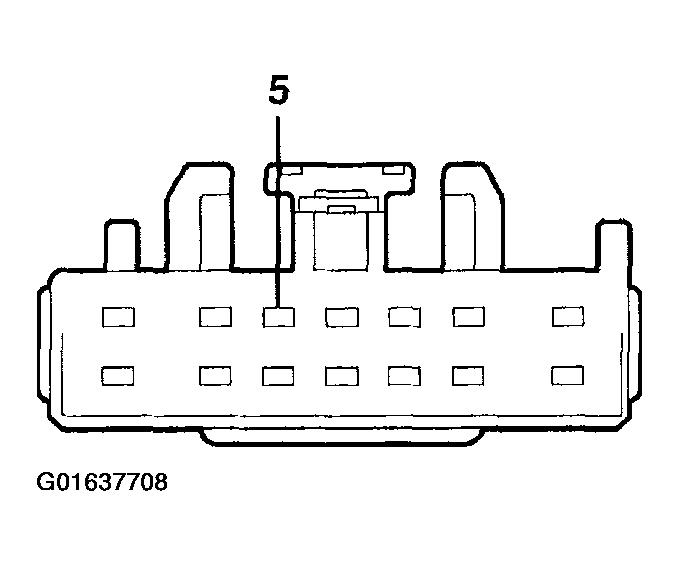

Fig 7: Identifying Driver Climate Controlled Seat Module C3031b Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 8: Identifying Driver Climate Controlled Seat Module C3031b Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 9: Identifying Passenger Climate Controlled Seat Module C3036b Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

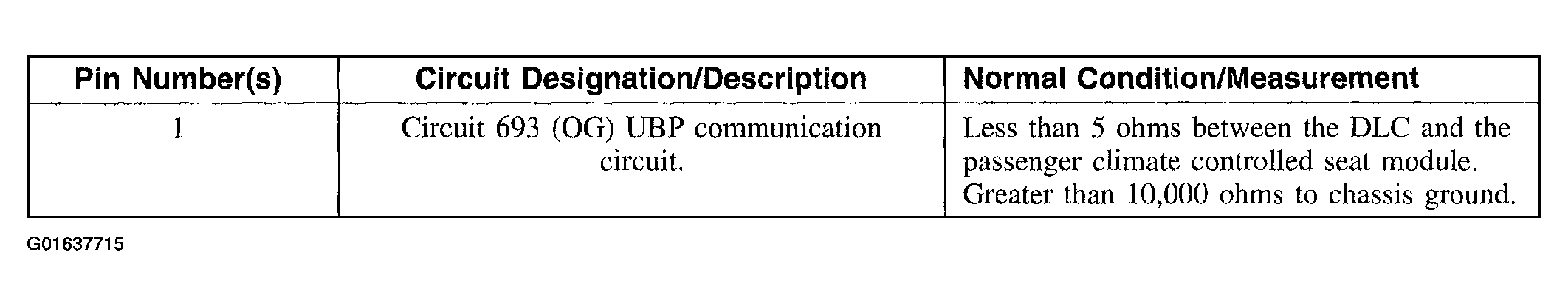

Fig 10: Identifying Passenger Climate Controlled Seat Module C3036b Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 11: Identifying Driver Seat Module C341g Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

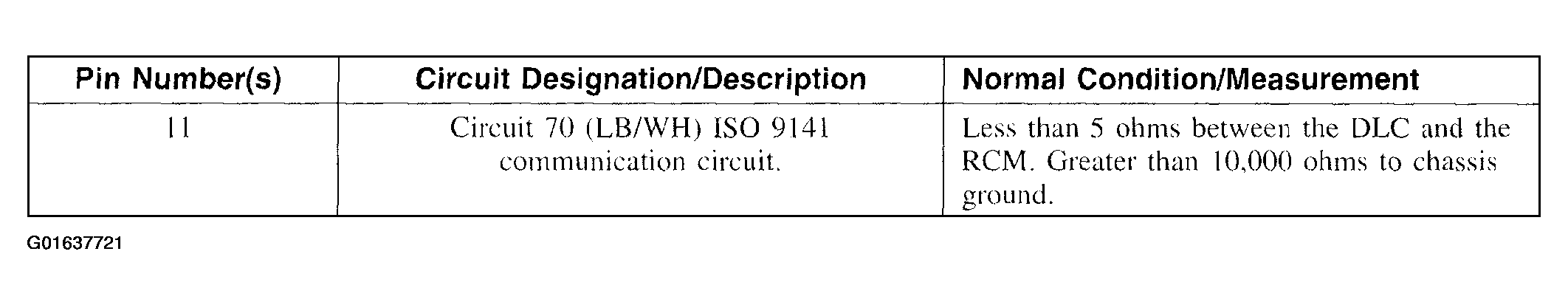

Fig 12: Identifying Driver Seat Module C341g Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

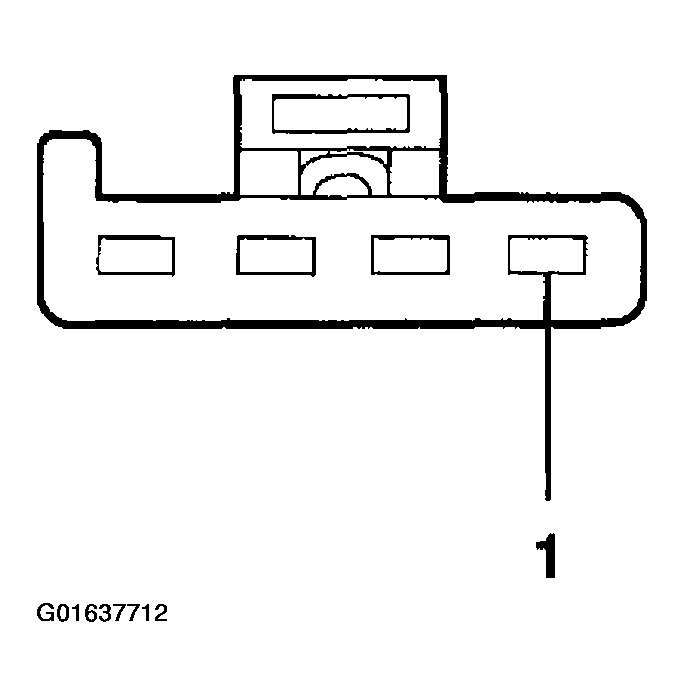

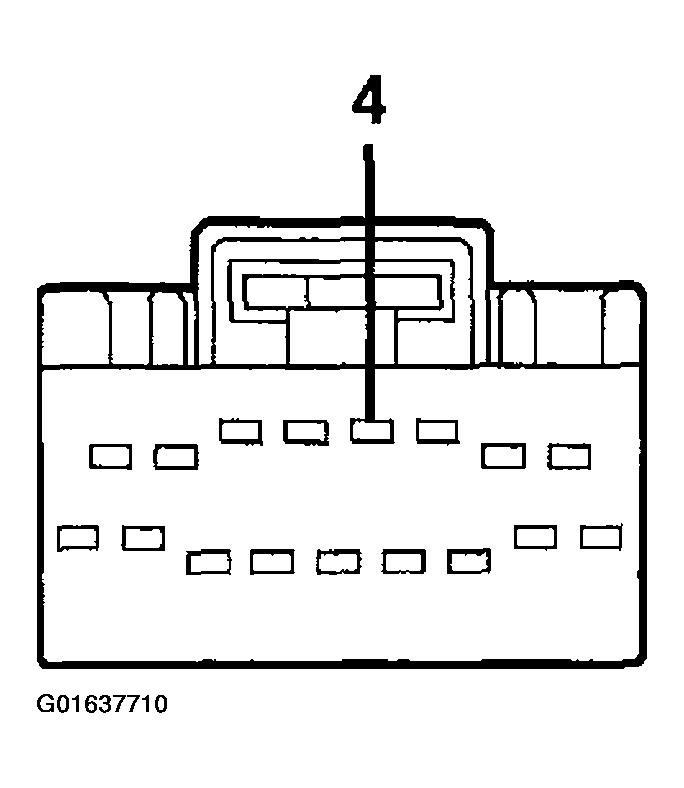

Fig 13: Identifying Parking Aid Module C4014 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

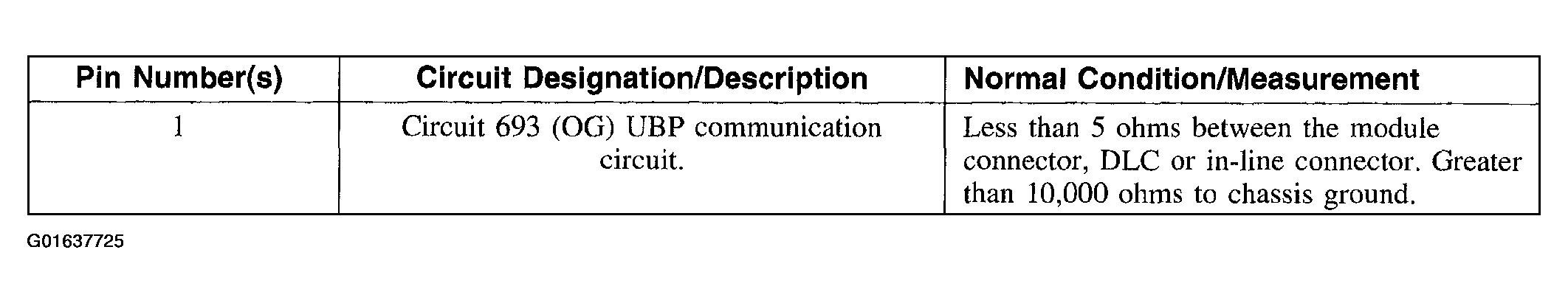

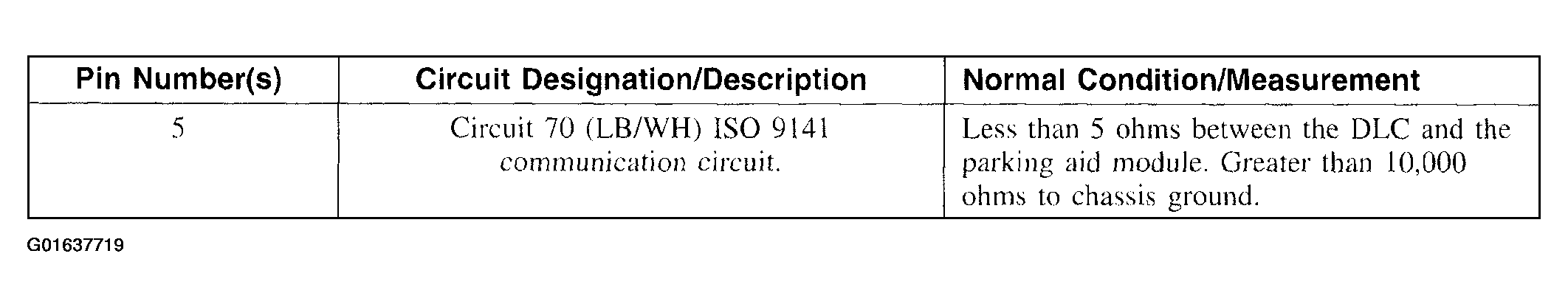

Fig 14: Identifying Parking Aid Module C4014 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

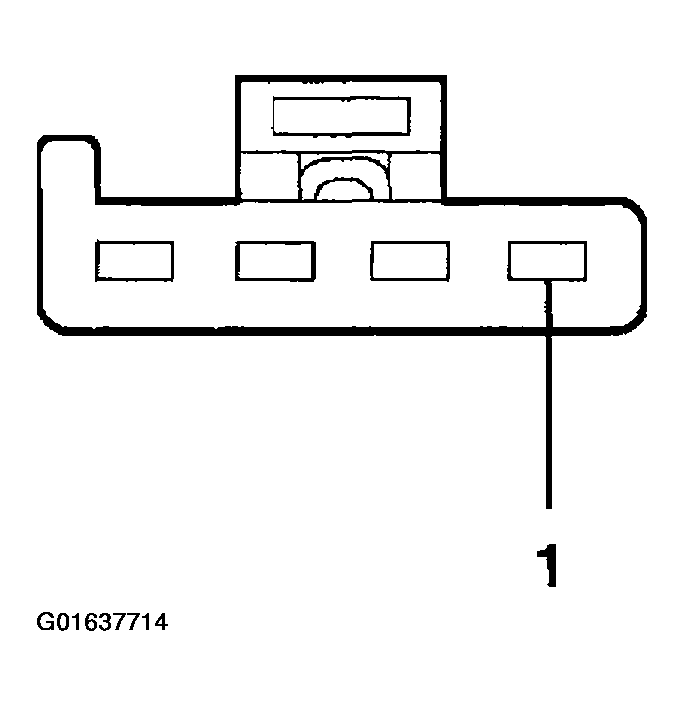

Fig 15: Identifying Parking Aid Module C4014 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 16: Identifying Parking Aid Module C4014 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

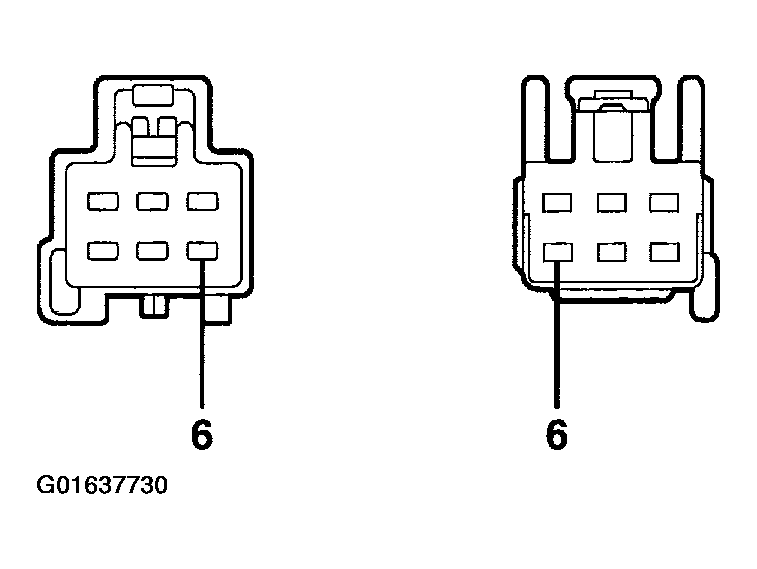

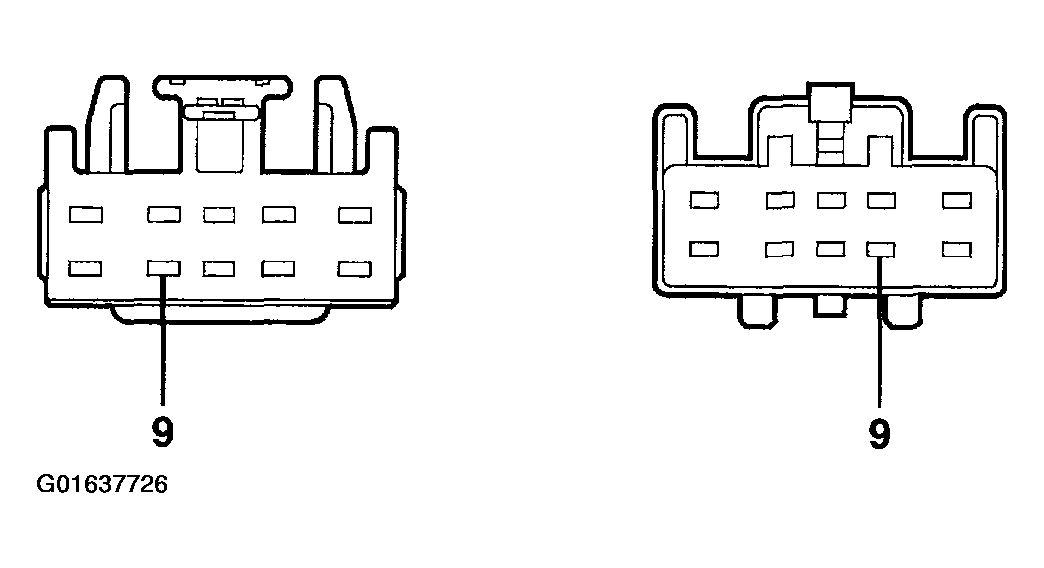

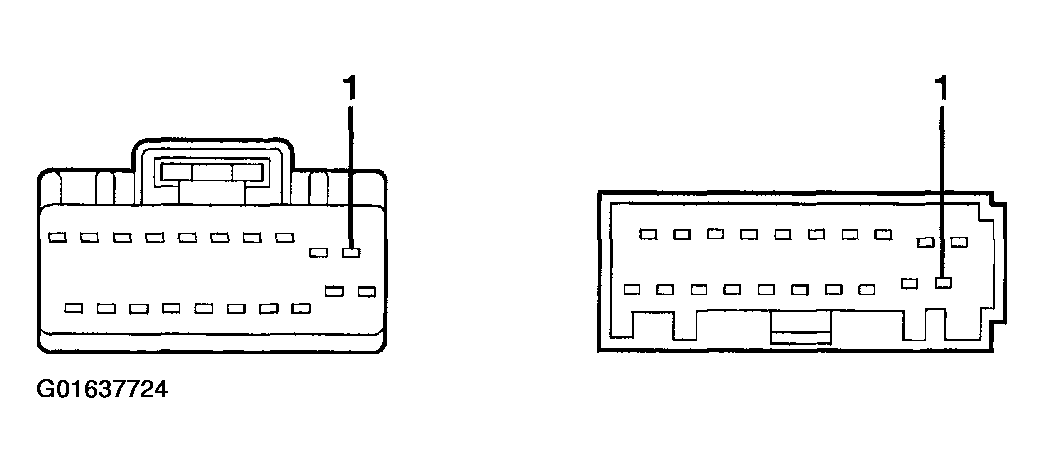

Fig 17: Identifying In-line C311M,C311F Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

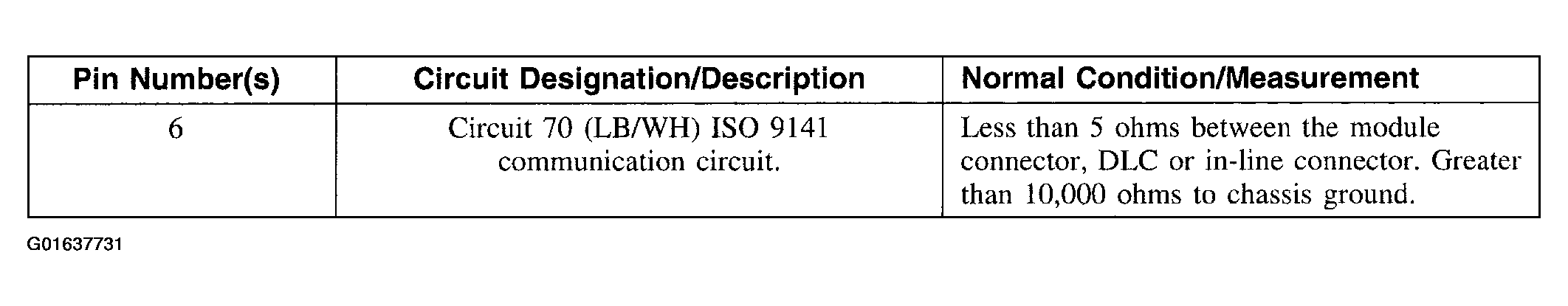

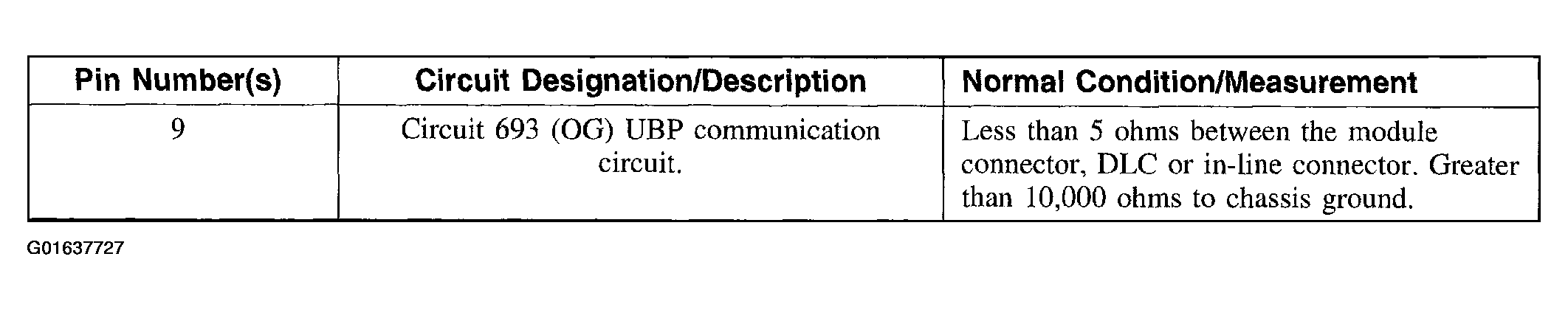

Fig 18: Identifying In-line C311M,C311F Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

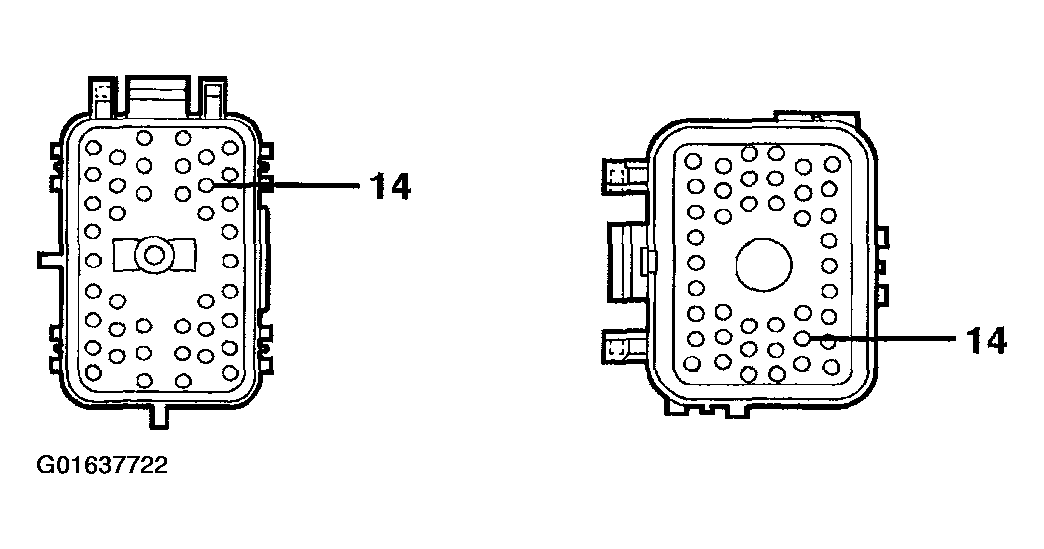

Fig 19: Identifying In-line C328M,C328F Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

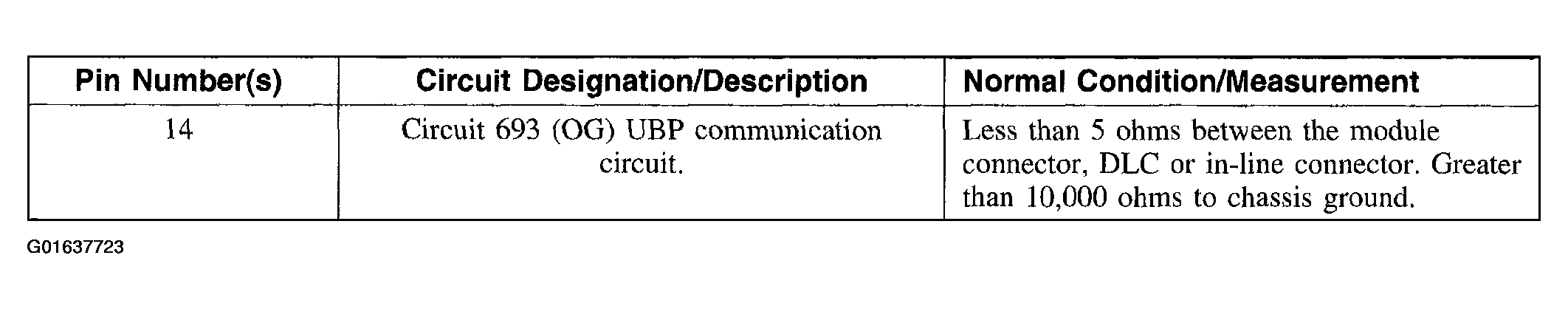

Fig 20: Identifying In-line C328M,C328F Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 21: Identifying In-line C316M,C316F Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 22: Identifying In-line C316M,C316F Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 23: Identifying In-line C263M, C263F Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 24: Identifying In-line C263M, C263F Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 25: Identifying In-line C408M,C408F Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 26: Identifying In-line C408M,C408F Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 27: Identifying In-line C212M,C212F Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 28: Identifying In-line C212M,C212F Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

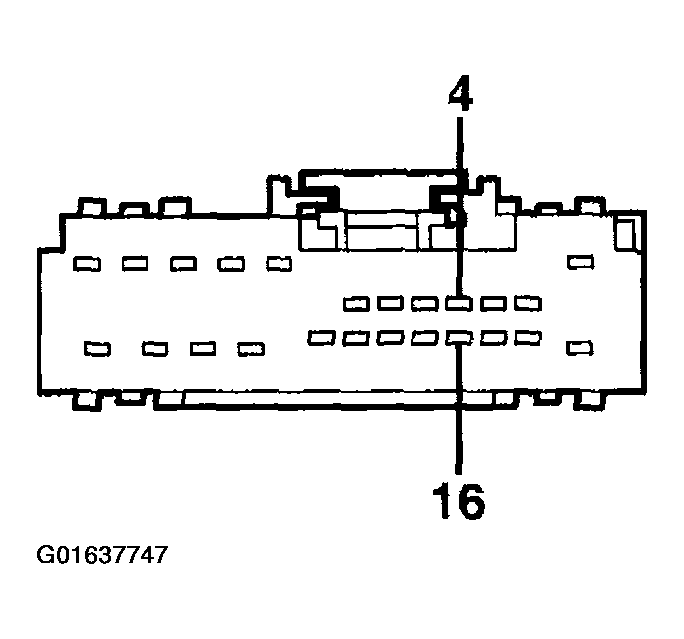

Fig 29: Identifying Instrument Cluster C220b Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

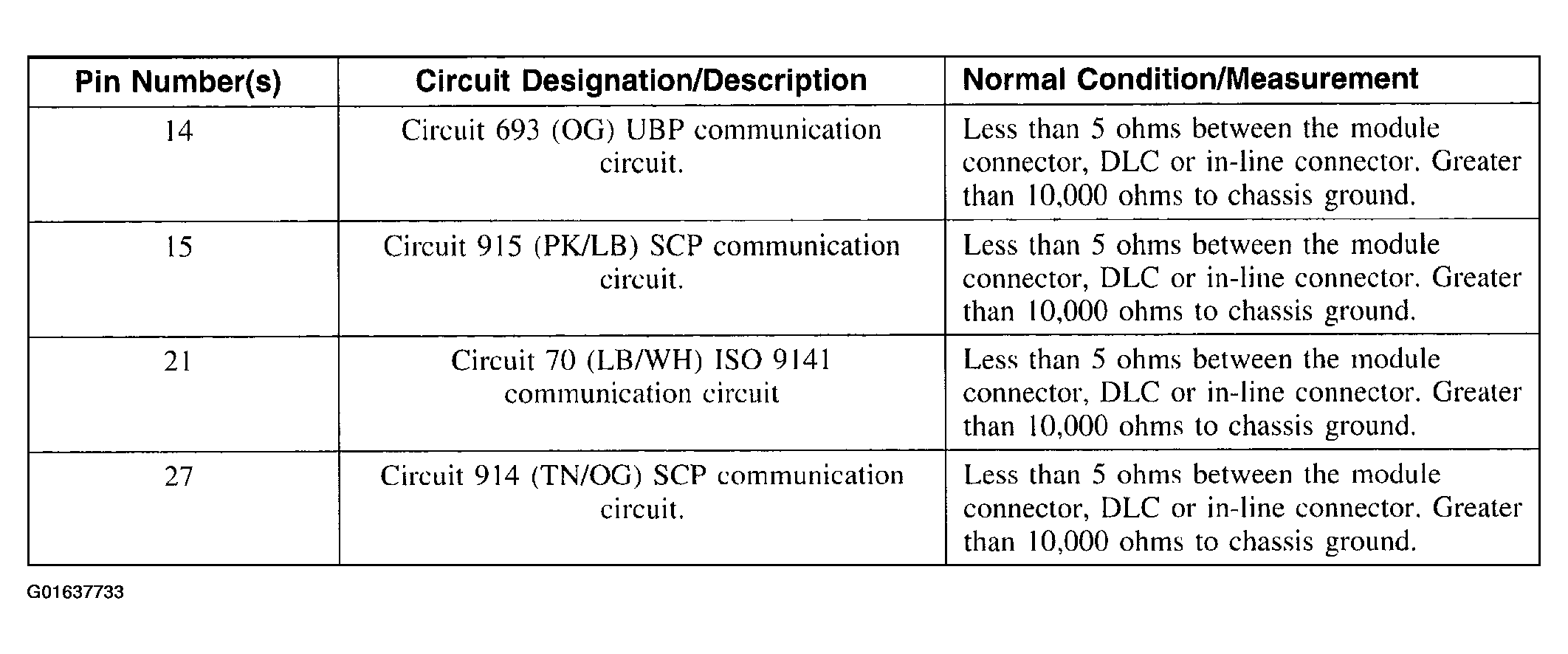

Fig 30: Identifying Instrument Cluster C220b Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

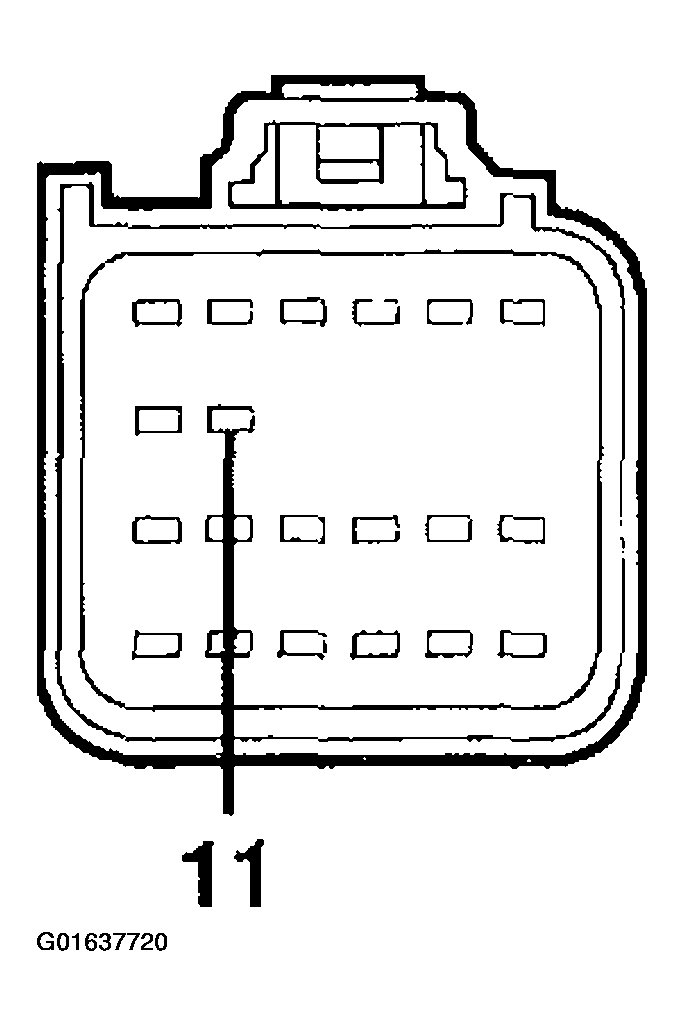

Fig 31: Identifying Dual Electronic Automatic Temperature Control C228b Connector Terminals And Specification (1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 32: Identifying Dual Electronic Automatic Temperature Control C228b Connector Terminals And Specification (2 Of 3)

Courtesy of FORD MOTOR CO.

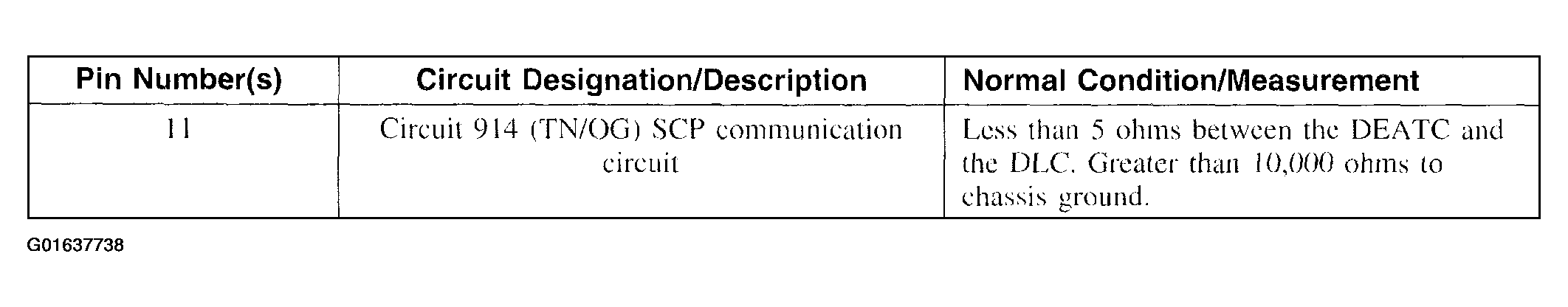

Fig 33: Identifying Dual Electronic Automatic Temperature Control C228b Connector Terminals And Specification (3 Of 3)

Courtesy of FORD MOTOR CO.

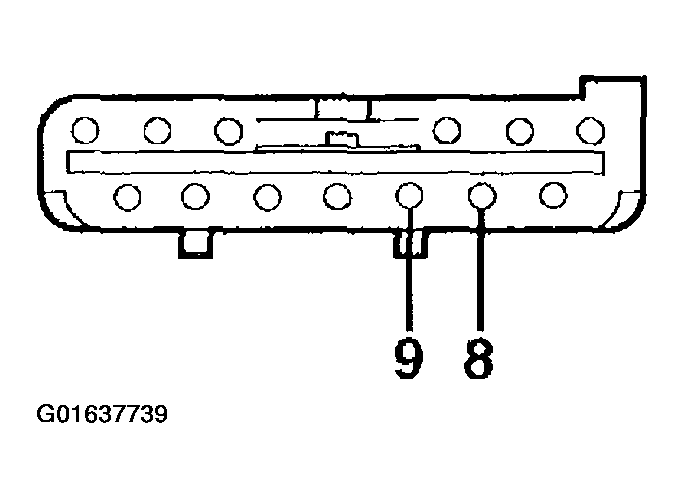

Fig 34: Identifying Variable Assist Power Steering Module C2231b Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

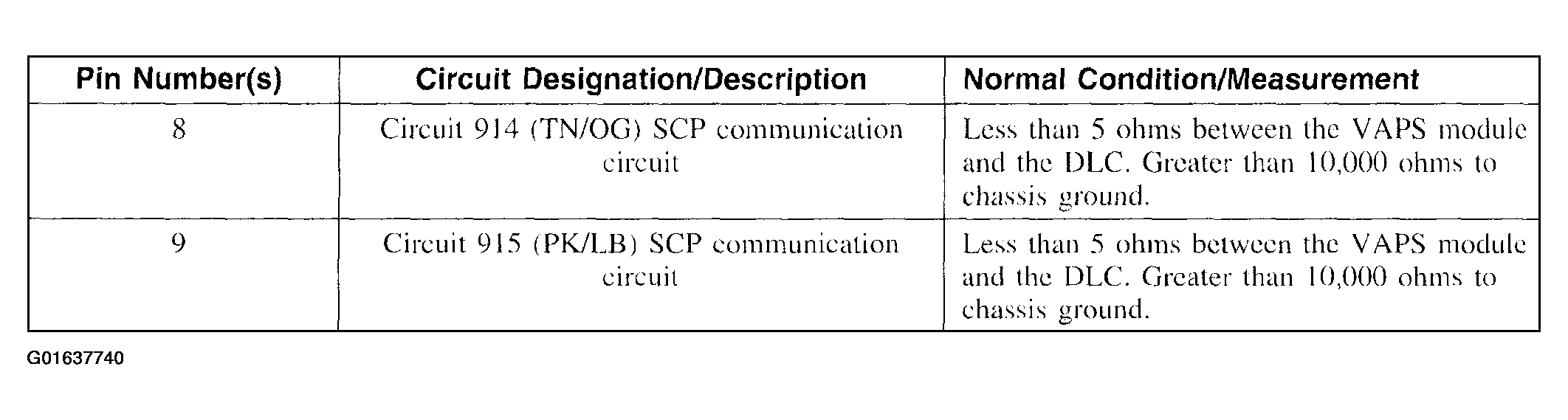

Fig 35: Identifying Variable Assist Power Steering Module C2231b Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 36: Identifying Tire Pressure Monitor Module C3183 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

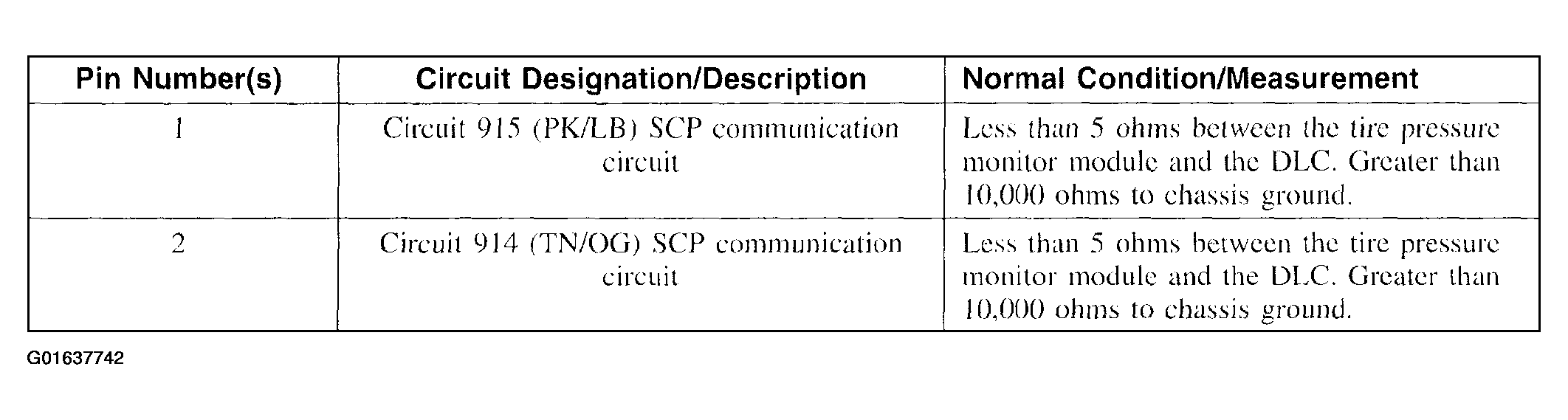

Fig 37: Identifying Tire Pressure Monitor Module C3183 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

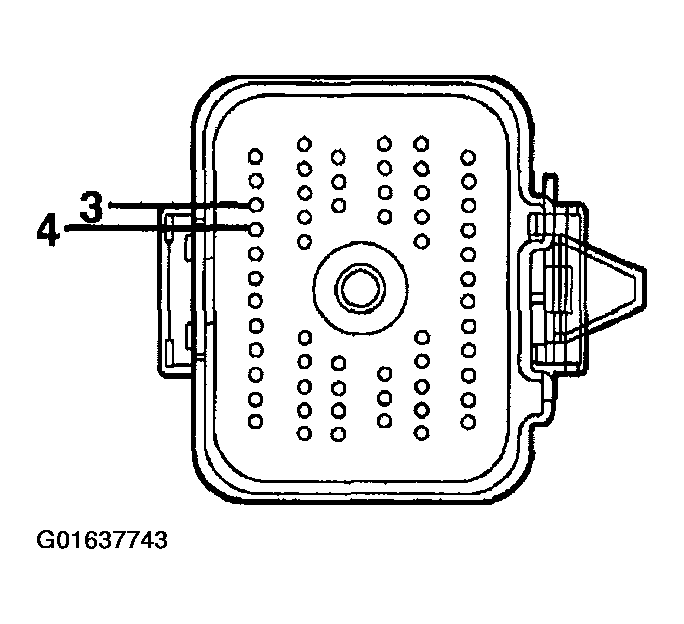

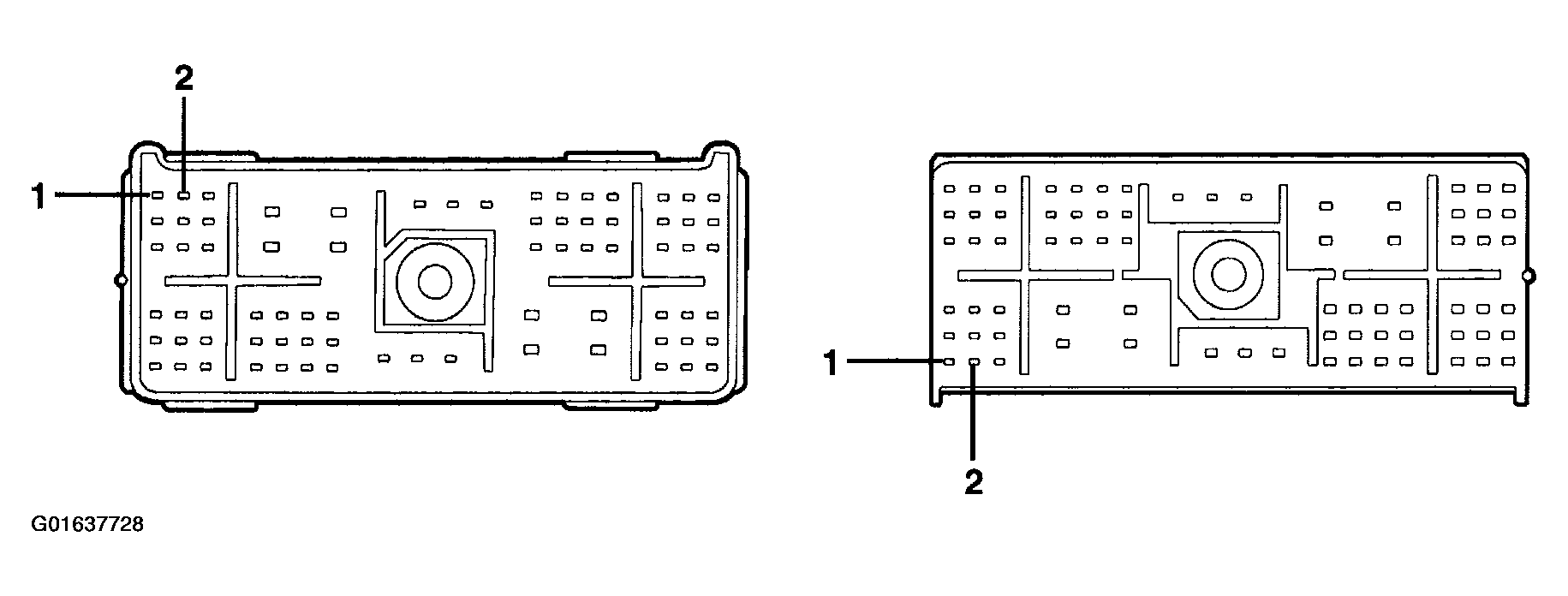

Fig 38: Identifying Powertrain Control Module C175b Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

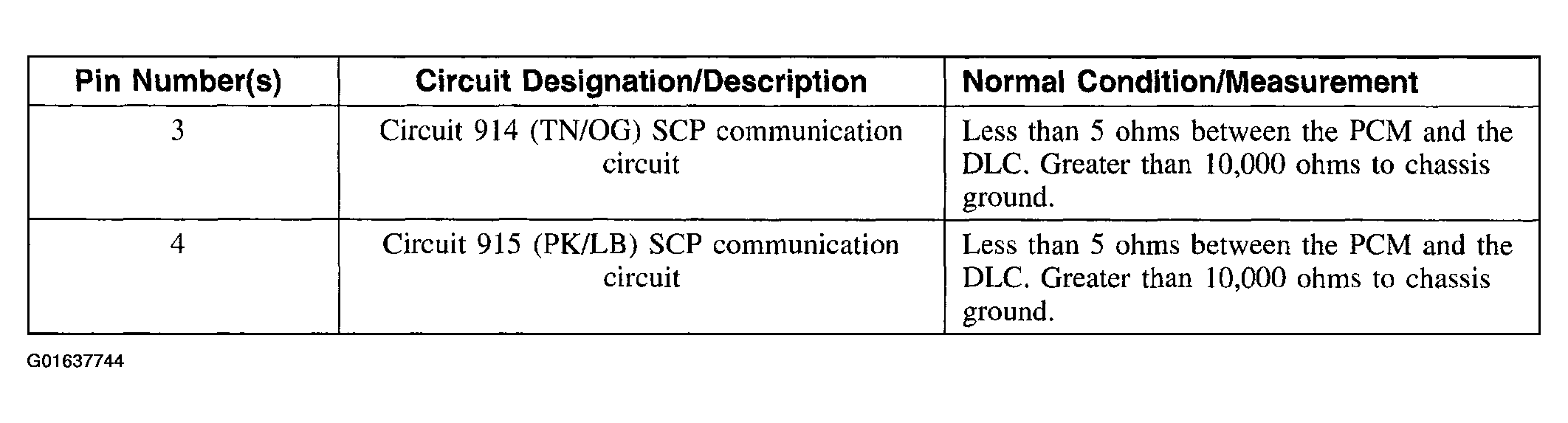

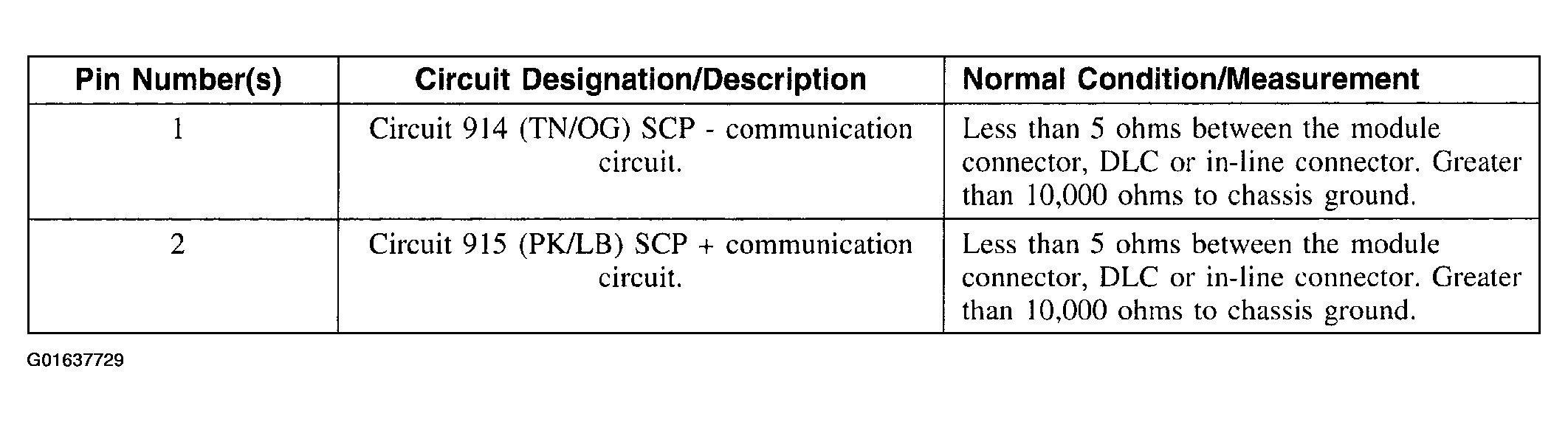

Fig 39: Identifying Powertrain Control Module C175b Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

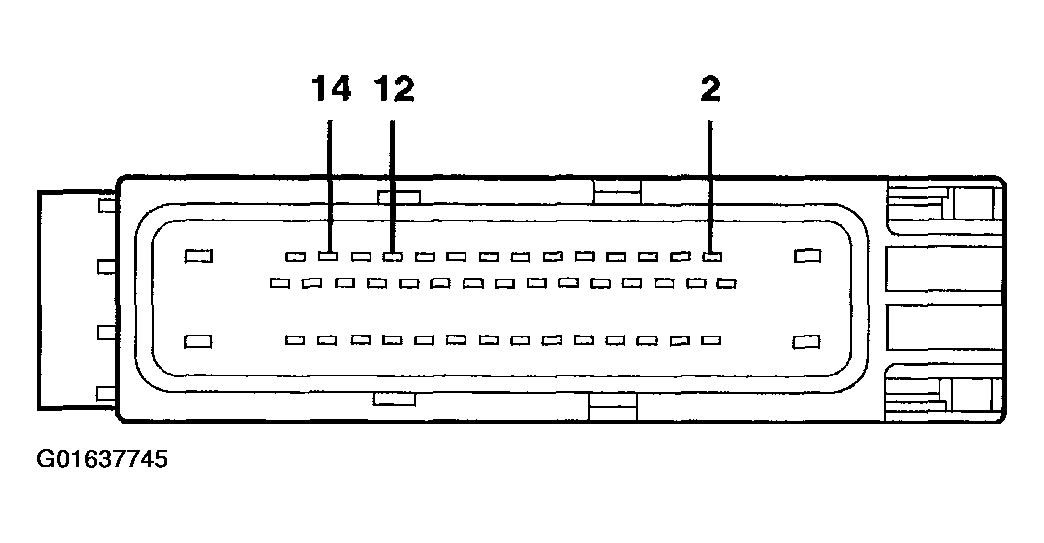

Fig 40: Identifying ABS/TC Module or Stability Assist Module C155 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

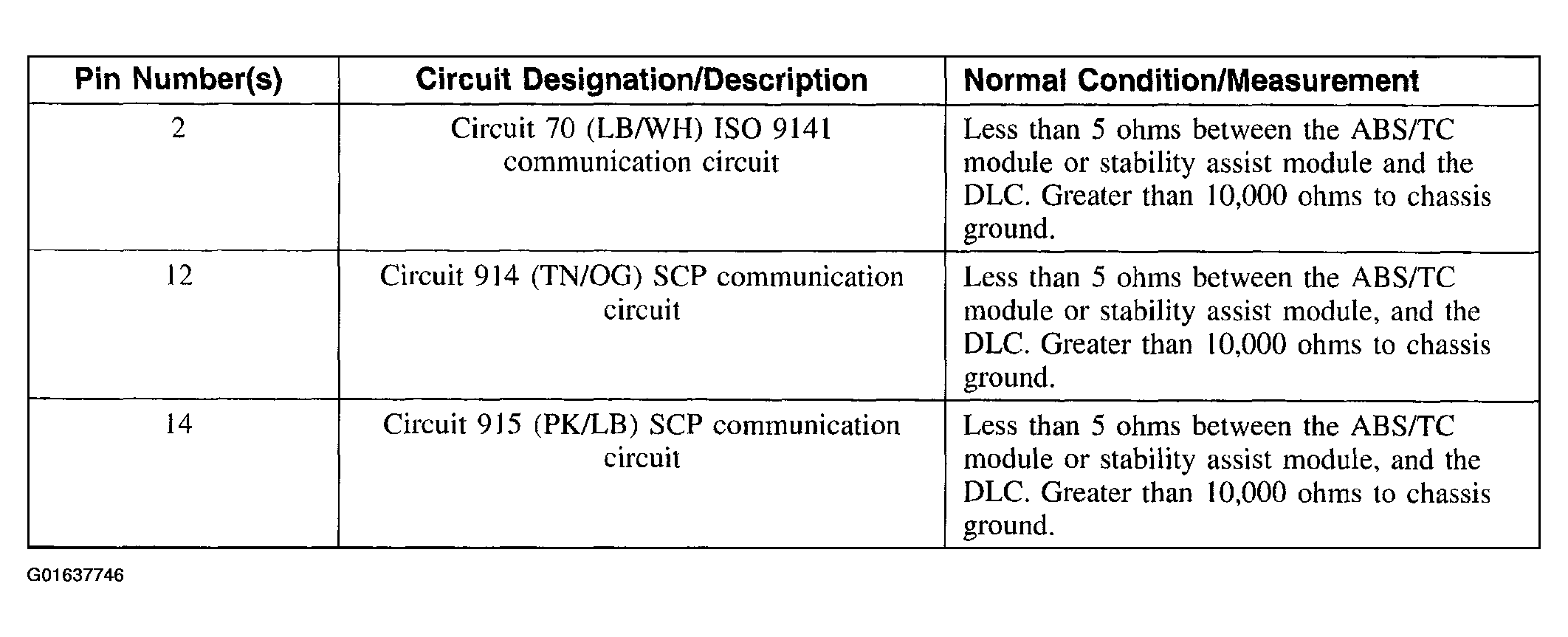

Fig 41: Identifying ABS/TC Module or Stability Assist Module C155 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

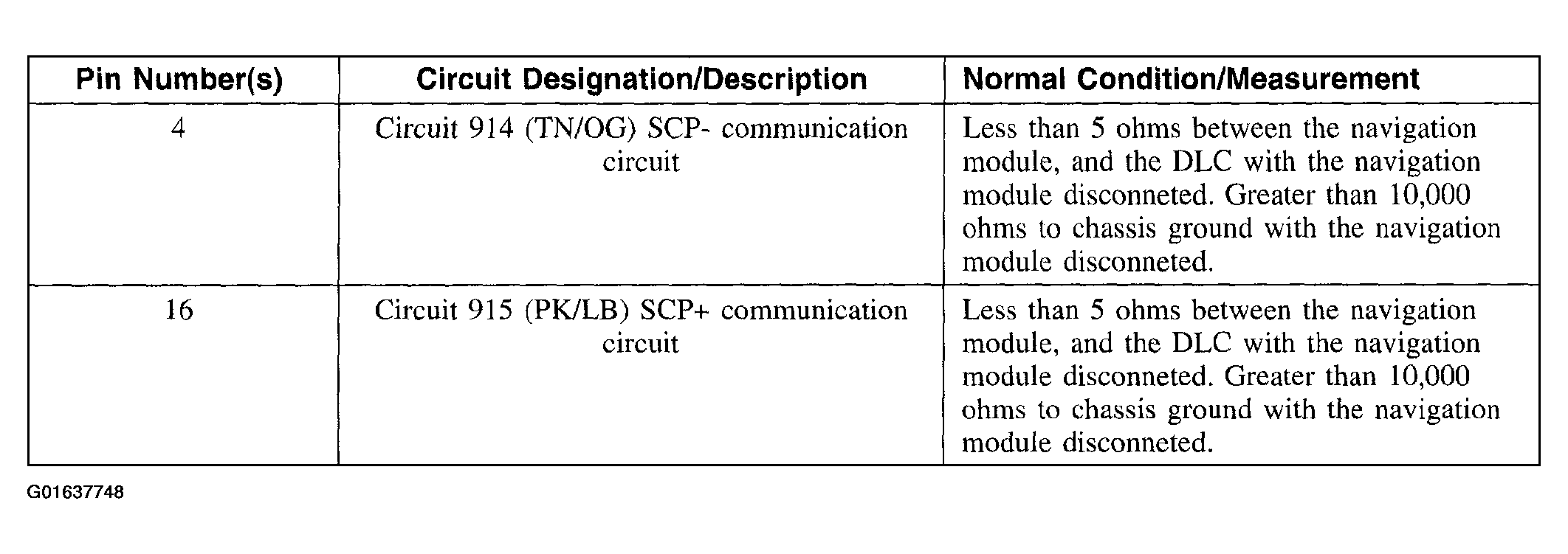

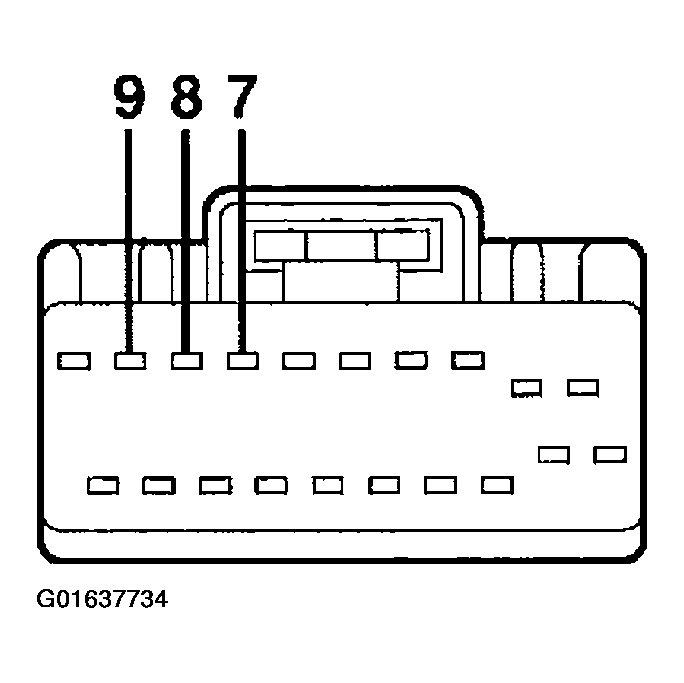

Fig 42: Identifying Navigation Module C4209 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 43: Identifying Navigation Module C4209 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.
