Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

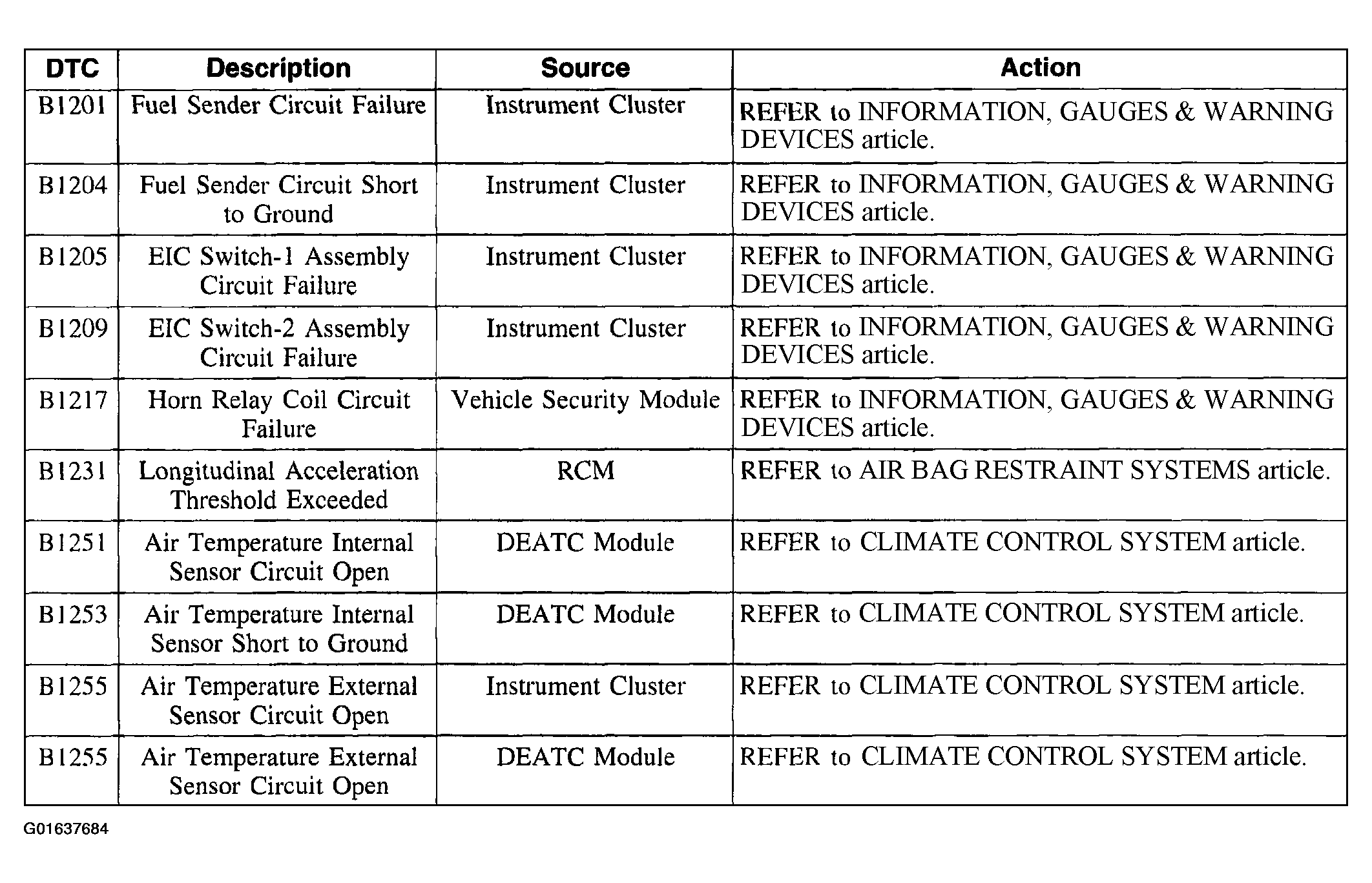

Fig 1: Diagnostic Trouble Code Chart (1 Of 17)

Courtesy of FORD MOTOR CO.

Fig 2: Diagnostic Trouble Code Chart (2 Of 17)

Courtesy of FORD MOTOR CO.

Fig 3: Diagnostic Trouble Code Chart (3 Of 17)

Courtesy of FORD MOTOR CO.

Fig 4: Diagnostic Trouble Code Chart (4 Of 17)

Courtesy of FORD MOTOR CO.

Fig 5: Diagnostic Trouble Code Chart (5 Of 17)

Courtesy of FORD MOTOR CO.

Fig 6: Diagnostic Trouble Code Chart (6 Of 17)

Courtesy of FORD MOTOR CO.

Fig 7: Diagnostic Trouble Code Chart (7 Of 17)

Courtesy of FORD MOTOR CO.

Fig 8: Diagnostic Trouble Code Chart (8 Of 17)

Courtesy of FORD MOTOR CO.

Fig 9: Diagnostic Trouble Code Chart (9 Of 17)

Courtesy of FORD MOTOR CO.

Fig 10: Diagnostic Trouble Code Chart (10 Of 17)

Courtesy of FORD MOTOR CO.

Fig 11: Diagnostic Trouble Code Chart (11 Of 17)

Courtesy of FORD MOTOR CO.

Fig 12: Diagnostic Trouble Code Chart (12 Of 17)

Courtesy of FORD MOTOR CO.

Fig 13: Diagnostic Trouble Code Chart (13 Of 17)

Courtesy of FORD MOTOR CO.

Fig 14: Diagnostic Trouble Code Chart (14 Of 17)

Courtesy of FORD MOTOR CO.

Fig 15: Diagnostic Trouble Code Chart (15 Of 17)

Courtesy of FORD MOTOR CO.

Fig 16: Diagnostic Trouble Code Chart (16 Of 17)

Courtesy of FORD MOTOR CO.

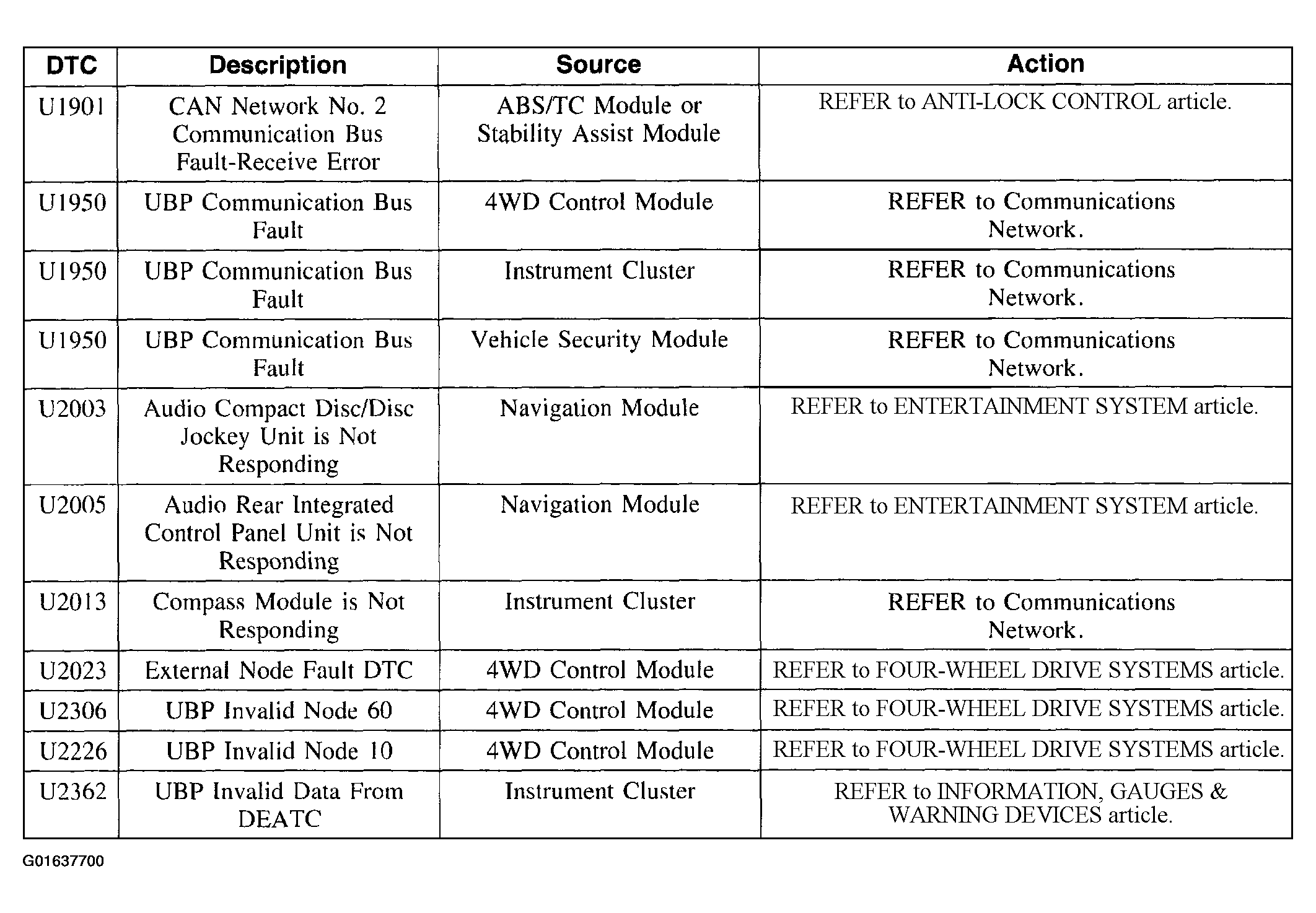

Fig 17: Diagnostic Trouble Code Chart (17 Of 17)

Courtesy of FORD MOTOR CO.
