WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

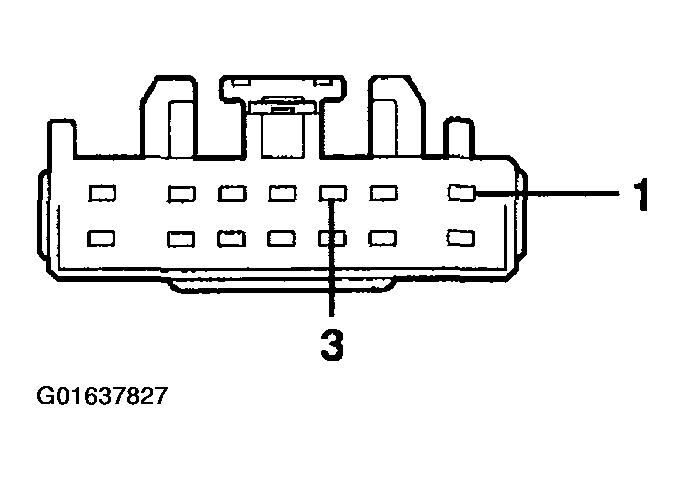

Fig 1: Identifying Vehicle Security Module C3008d Connector Terminals And Specification (1 Of 2)
Courtesy of FORD MOTOR CO.

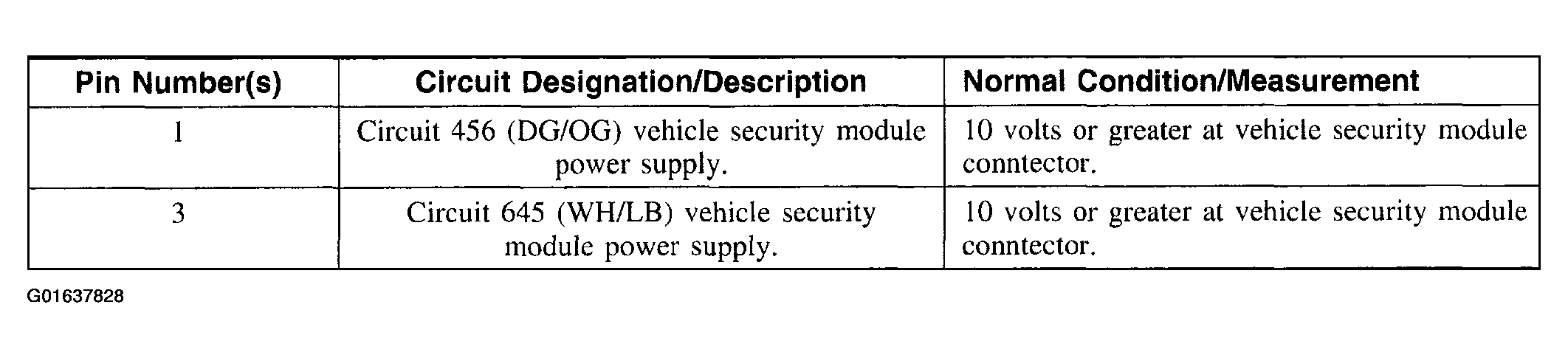

Fig 2: Identifying Vehicle Security Module C3008d Connector Terminals And Specification (2 Of 2)
Courtesy of FORD MOTOR CO.

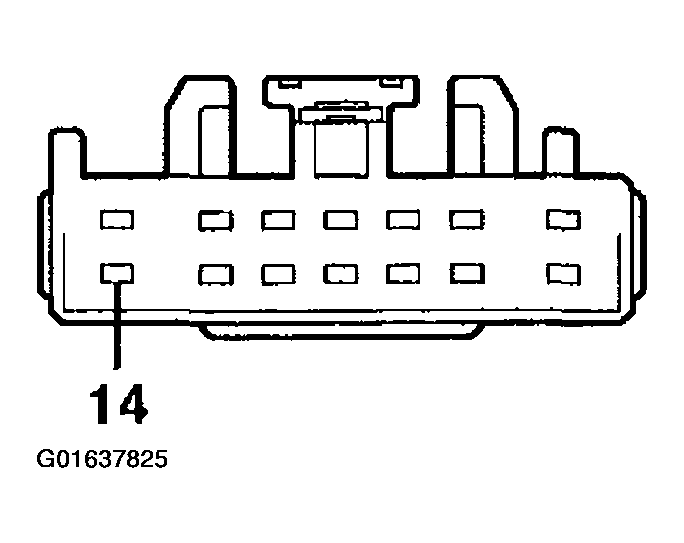

Fig 3: Identifying Vehicle Security Module C3008e Connector Terminals And Specification (1 Of 2)
Courtesy of FORD MOTOR CO.

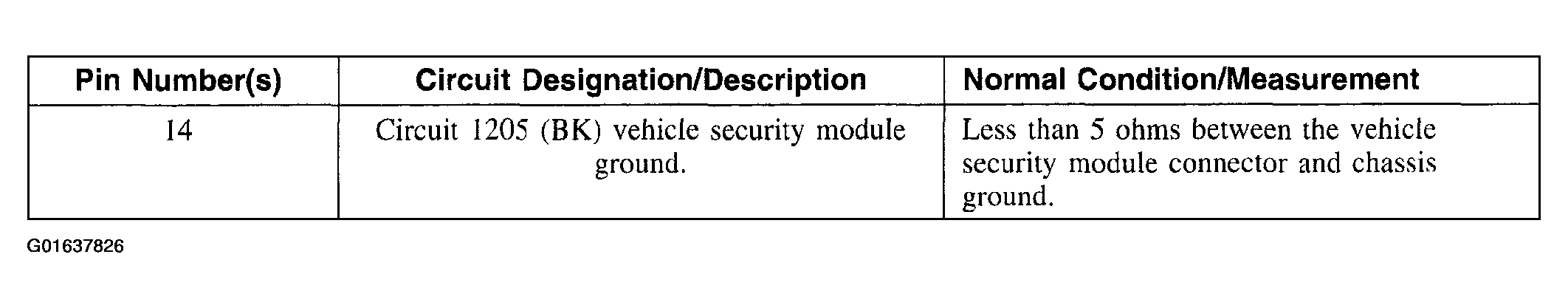

Fig 4: Identifying Vehicle Security Module C3008e Connector Terminals And Specification (2 Of 2)
