Driver Seat Module (DSM)

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

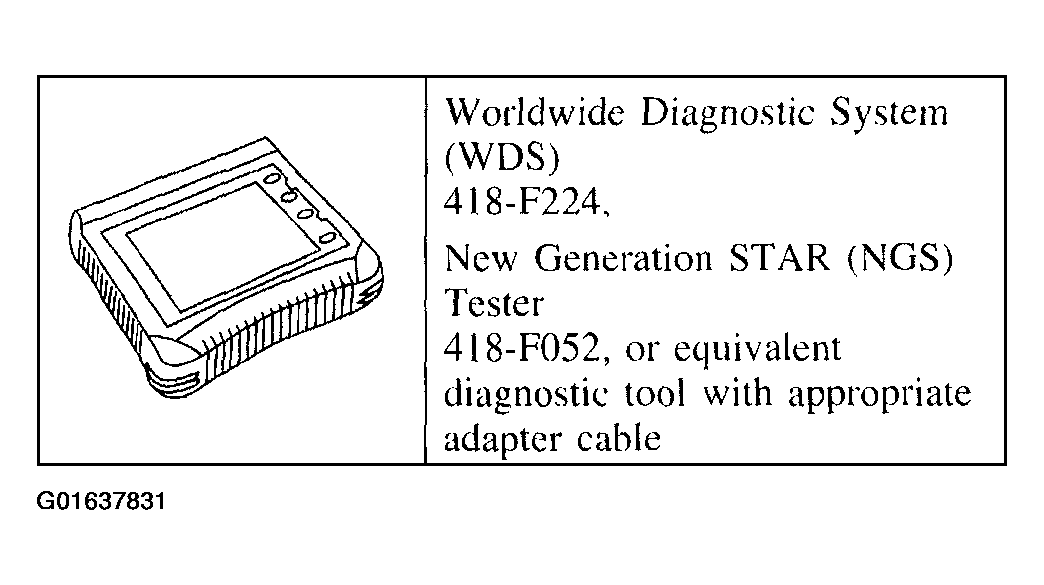

Fig 1: Special Tool(s)

Courtesy of FORD MOTOR CO.

CAUTION: Prior to removal of the DSM, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. Refer to MODULE CONFIGURATION .

Remove the driver seat. For additional information, refer to SEATING .
Remove the components in the order indicated in the following illustration.

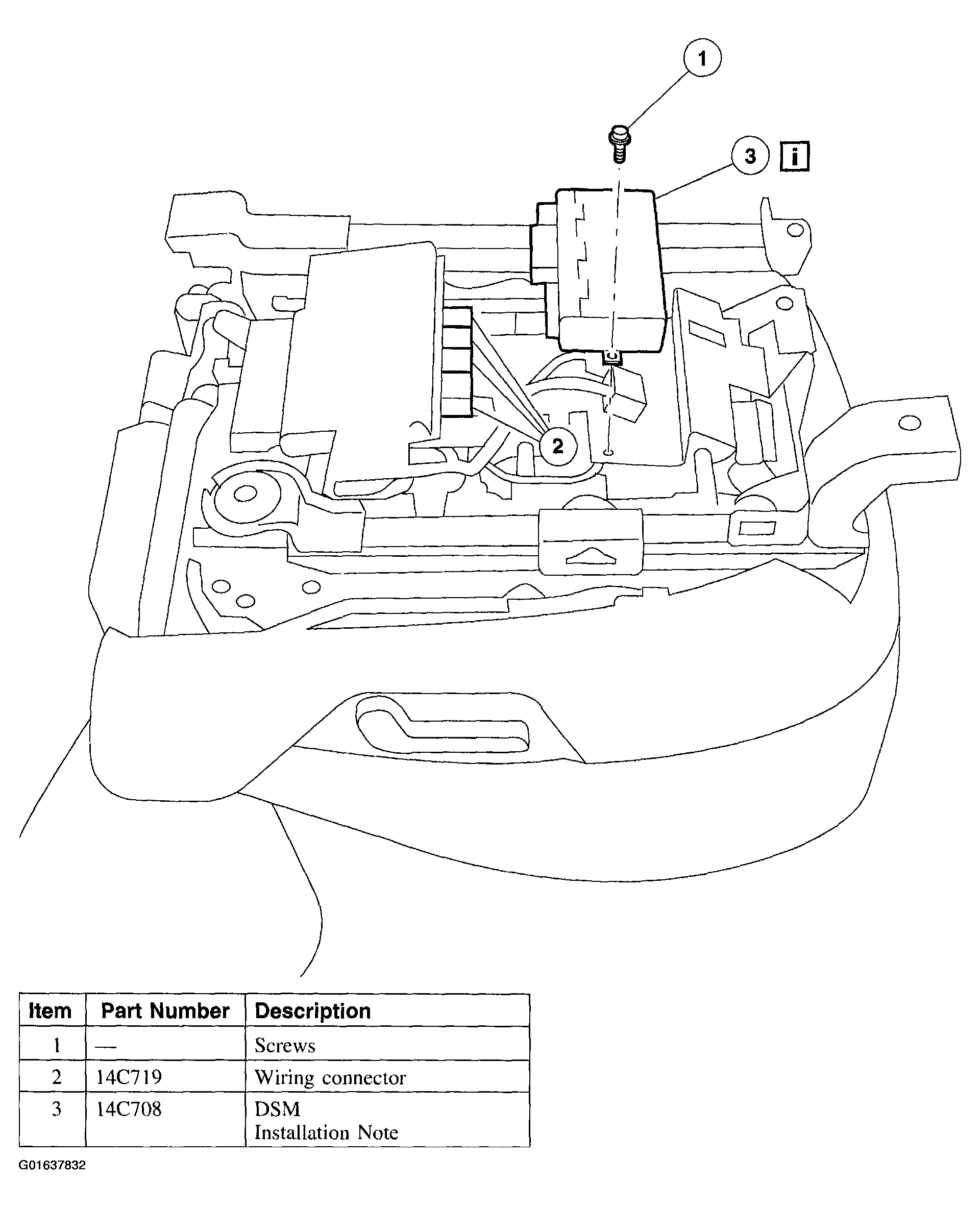

Fig 2: Removal Sequence Of Driver Seat Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 3: Driver Seat Module Installation Note

Once the module is installed, it is necessary to download the module configuration information from the diagnostic tool into the new module. Refer to MODULE CONFIGURATION .
