Body Support - Front Lower

BODY SUPPORT-FRONT LOWER

Removal
1. Remove the scuff plate.
2. Remove the cowl side trim panel.

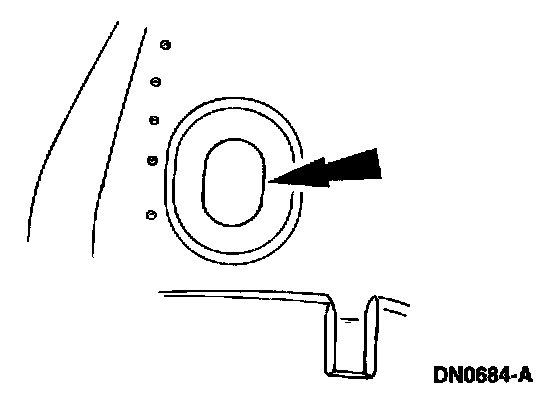

3. Pull the carpet or mat back to see the front body insulator plug button.

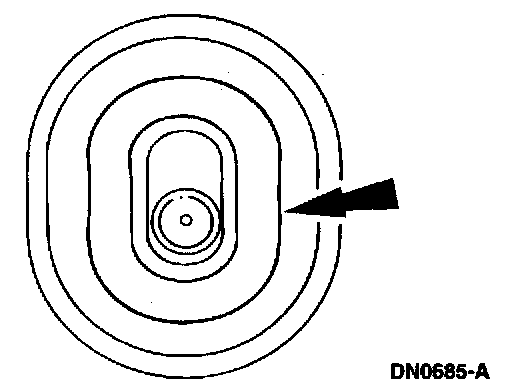

4. Remove the button.

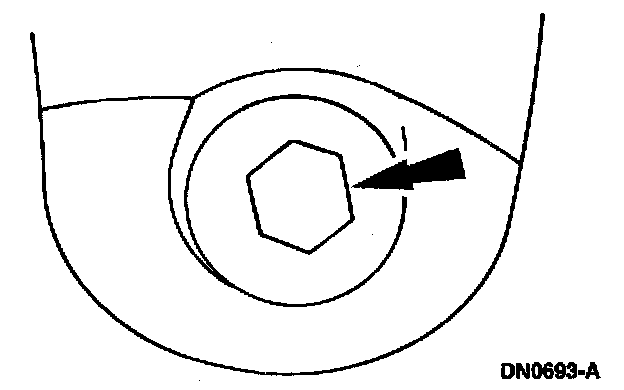

5. Remove and discard the bolt.

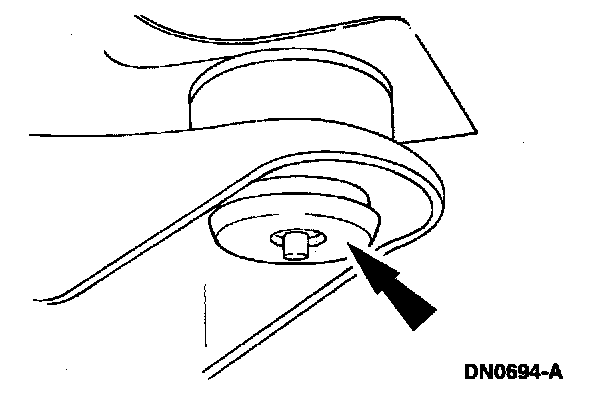

6. Remove the insulator.

Installation

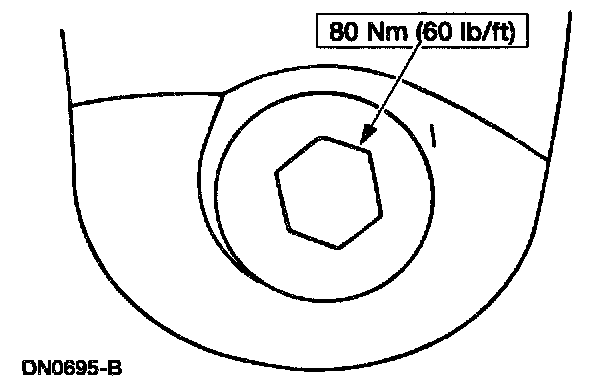

NOTE: Do not reuse body support mounting fasteners. New fasteners must be installed for each fastener that has been removed or loosened.







1. NOTE: No lubricants of any kind are to be used during body insulator installation.

Follow the removal procedure in reverse order.
