Body Support - Front Radiator Support Lower

BODY SUPPORT-FRONT RADIATOR SUPPORT LOWER

Removal and Installation

NOTE: Do not reuse body support mounting fasteners. New fasteners must be installed for each fastener that has been removed or loosened.

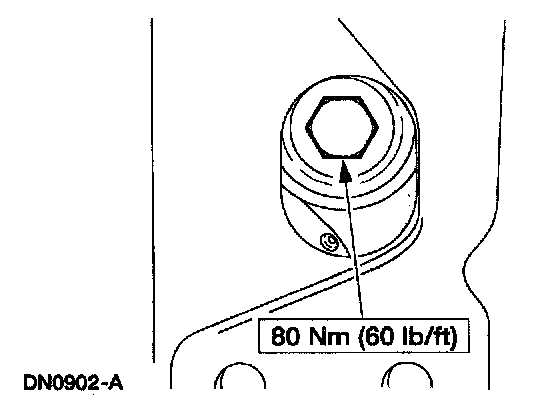

1. Remove and discard the nut and bolt.
- During installation, install a new bolt and nut.

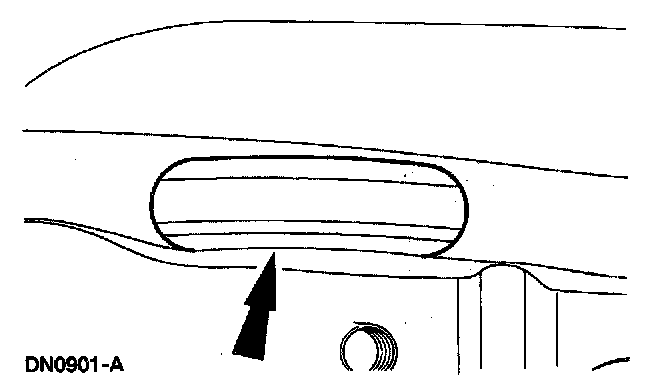

2. Remove the lower mount.

3. NOTE: No lubricants of any kind are to be used during body insulator installation.

To install, reverse the removal procedure.
