Component Tests and General Diagnostics

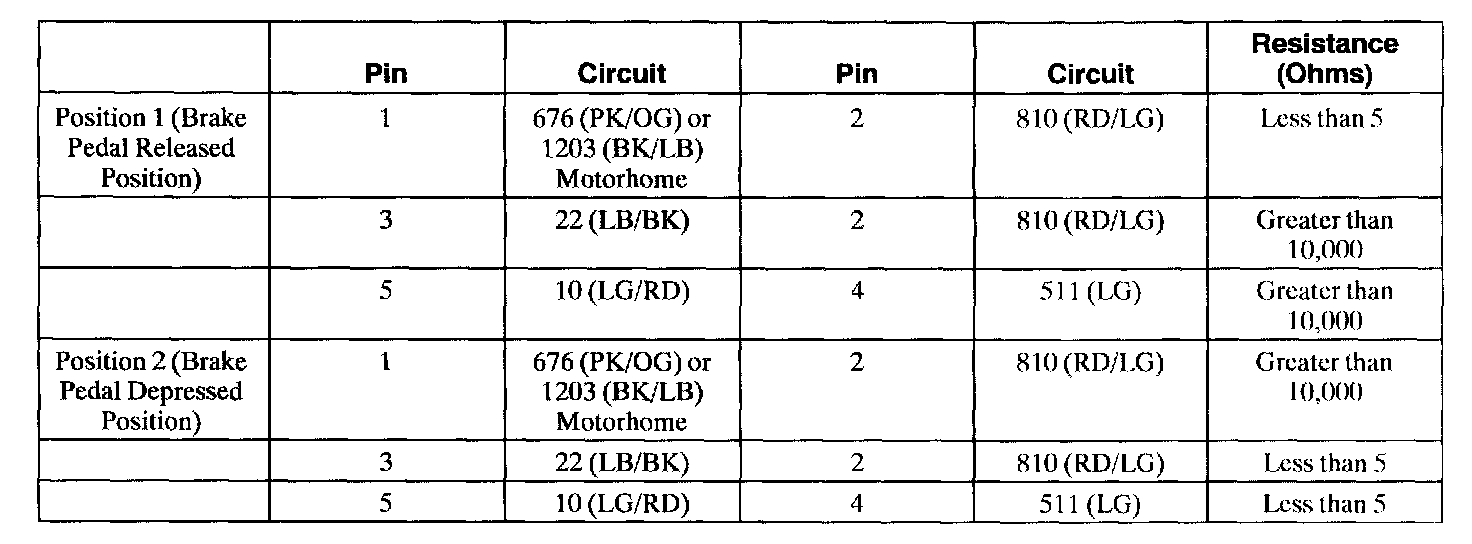

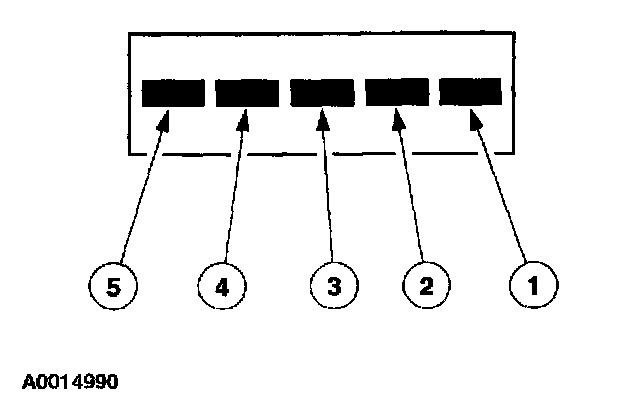

Use the 73III Automotive Meter or equivalent to check the continuity between the given terminals of the BPP switch C279, component side, using the table.

If the resistance is as specified, return to the pinpoint test. Otherwise, install a new BPP switch. Pinpoint Tests
