A/C Cycling Switch

REMOVAL

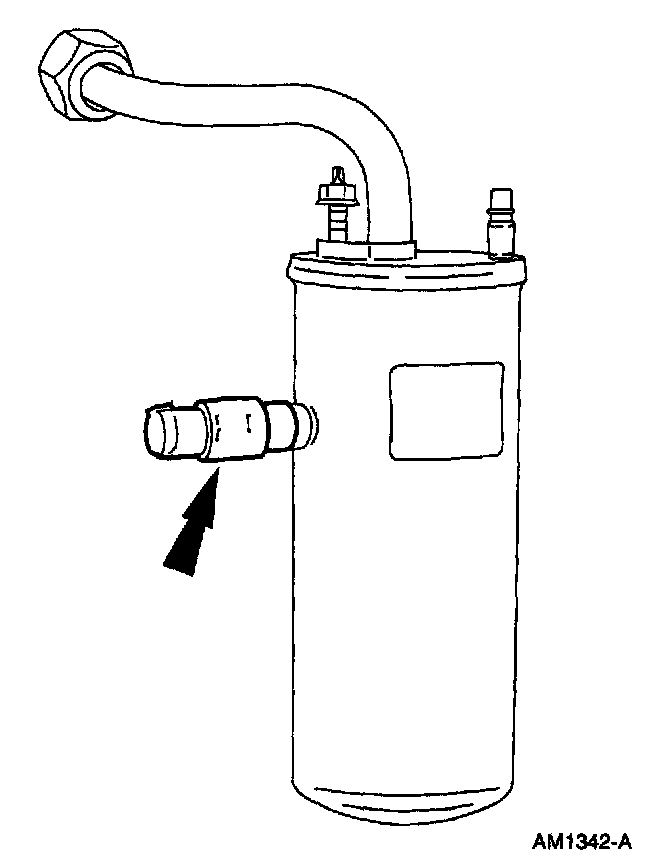

1. Disconnect the A/C cycling switch electrical connector.







2. Remove the A/C cycling switch from the suction accumulator/drier.

INSTALLATION

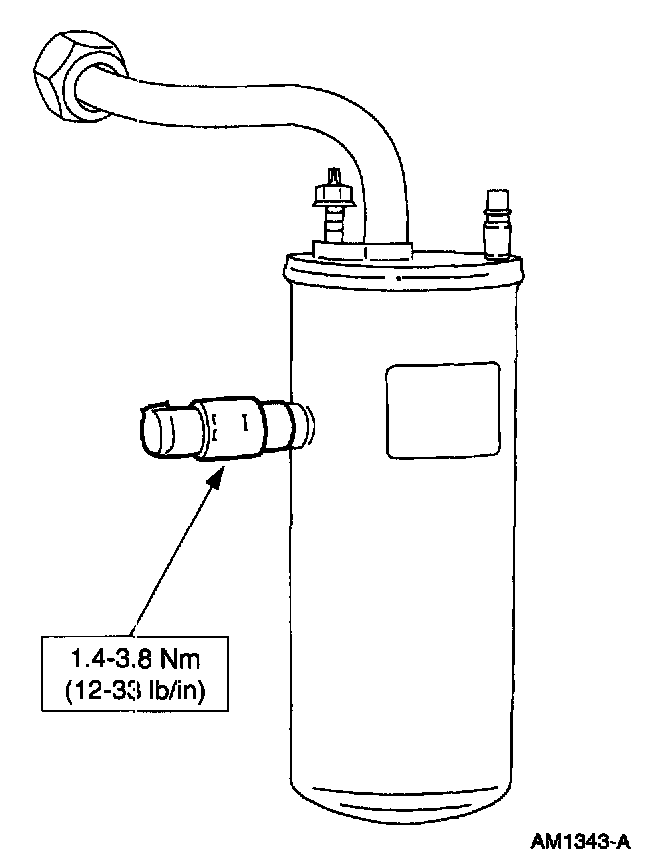

1. Follow the removal procedure in reverse order.
^ Lubricate the O-ring seal with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B.
