Power Steering Line/Hose: Service and Repair

Hose

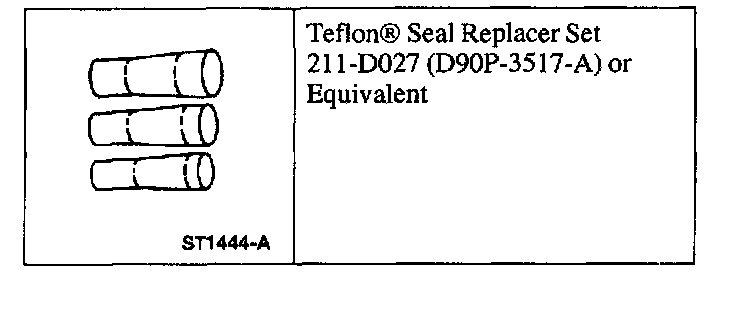

Special Tools:

Special Tool(s)

Removal
1. Refer to the System View illustration in Description and Operation for the hose routing and retention points.

Installation

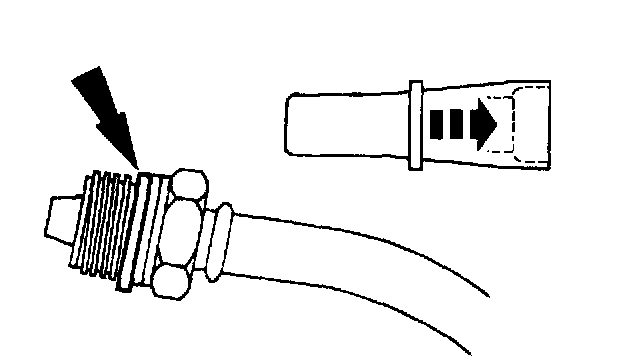

1. When connecting a fitting with a seal ring, a new ring must be installed.
- Use the Seal Replacer to install a seal ring over a fitting.
2. Fill, purge and leak check the system.
