Fuel Tank Pressure Sensor: Description and Operation
Fuel Tank Pressure SensorFuel Tank Pressure (FTP) Sensor:
In-Line Fuel Tank Pressure (FTP) Sensor:

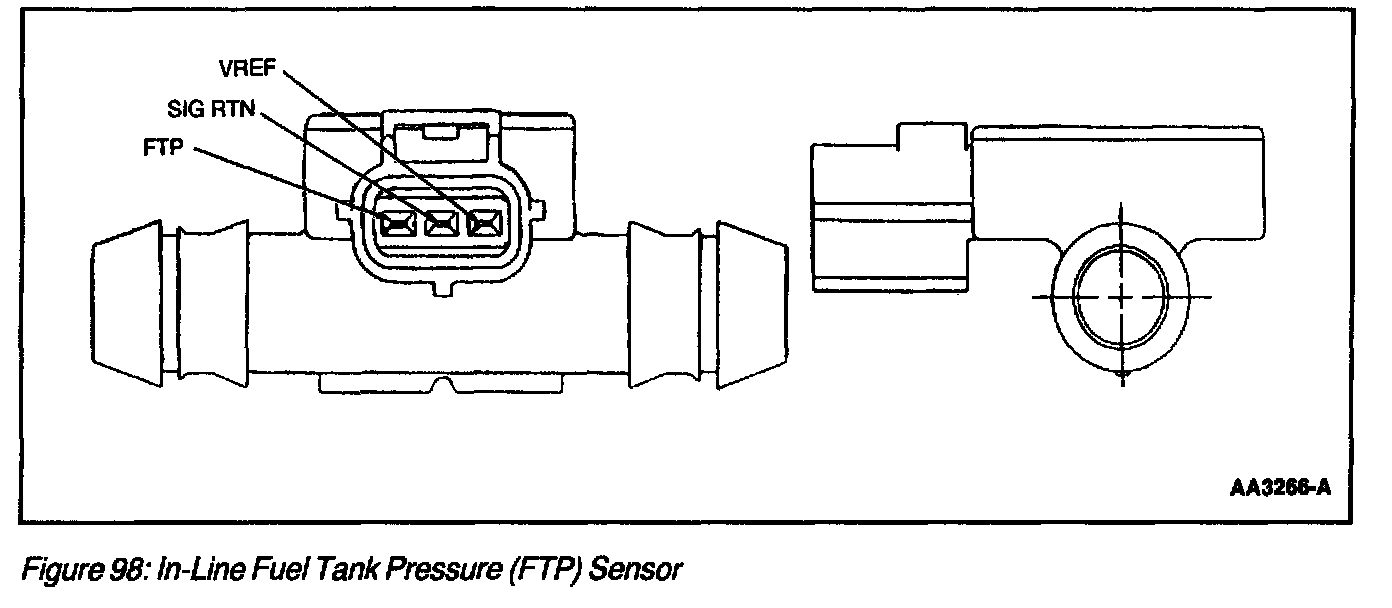

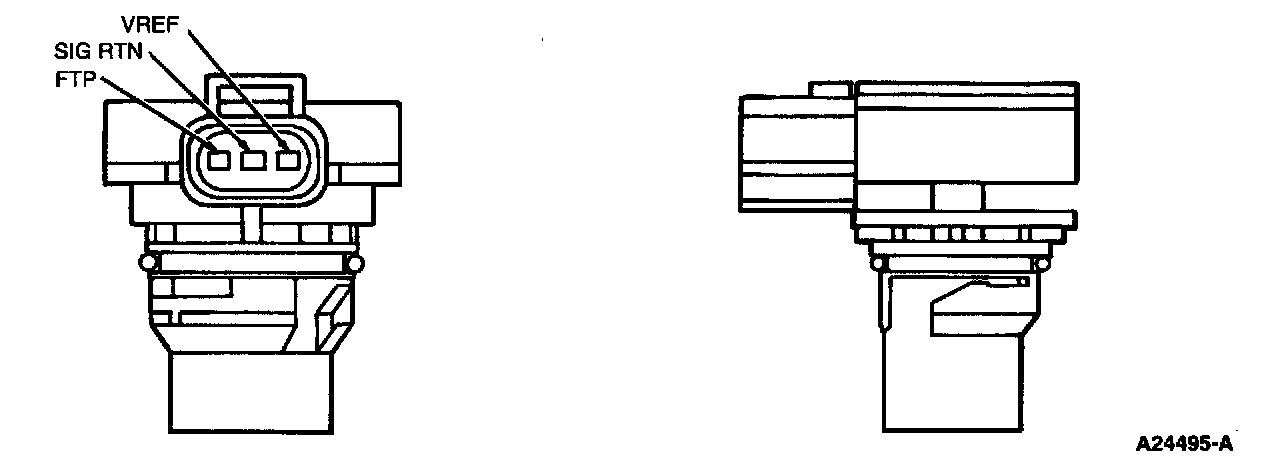

The Fuel Tank Pressure (FTP) sensor (Figure 97) or inline fuel tank pressure (FTP) sensor (Figure 98) is used to measure the fuel tank pressure during the EVAP monitor test on vehicles equipped with the Running Loss-type system. Also, it is used to control excessive fuel tank pressure by forcing the system to purge.
