Test E: Parking Aid Module (PAM) Does Not Respond to the Scan Tool
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Test E: Parking Aid Module (PAM) Does Not Respond to the Scan Tool

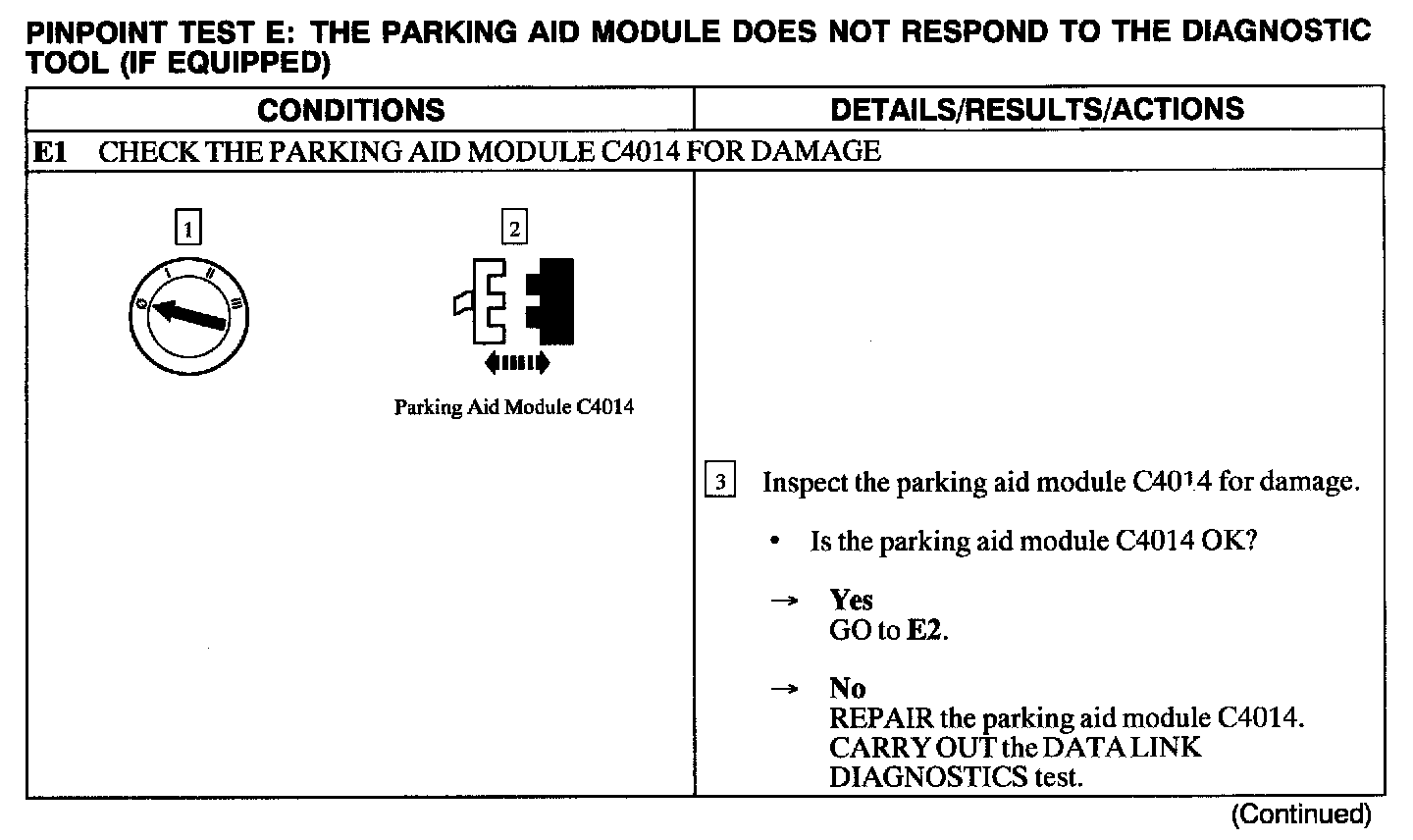

E1:

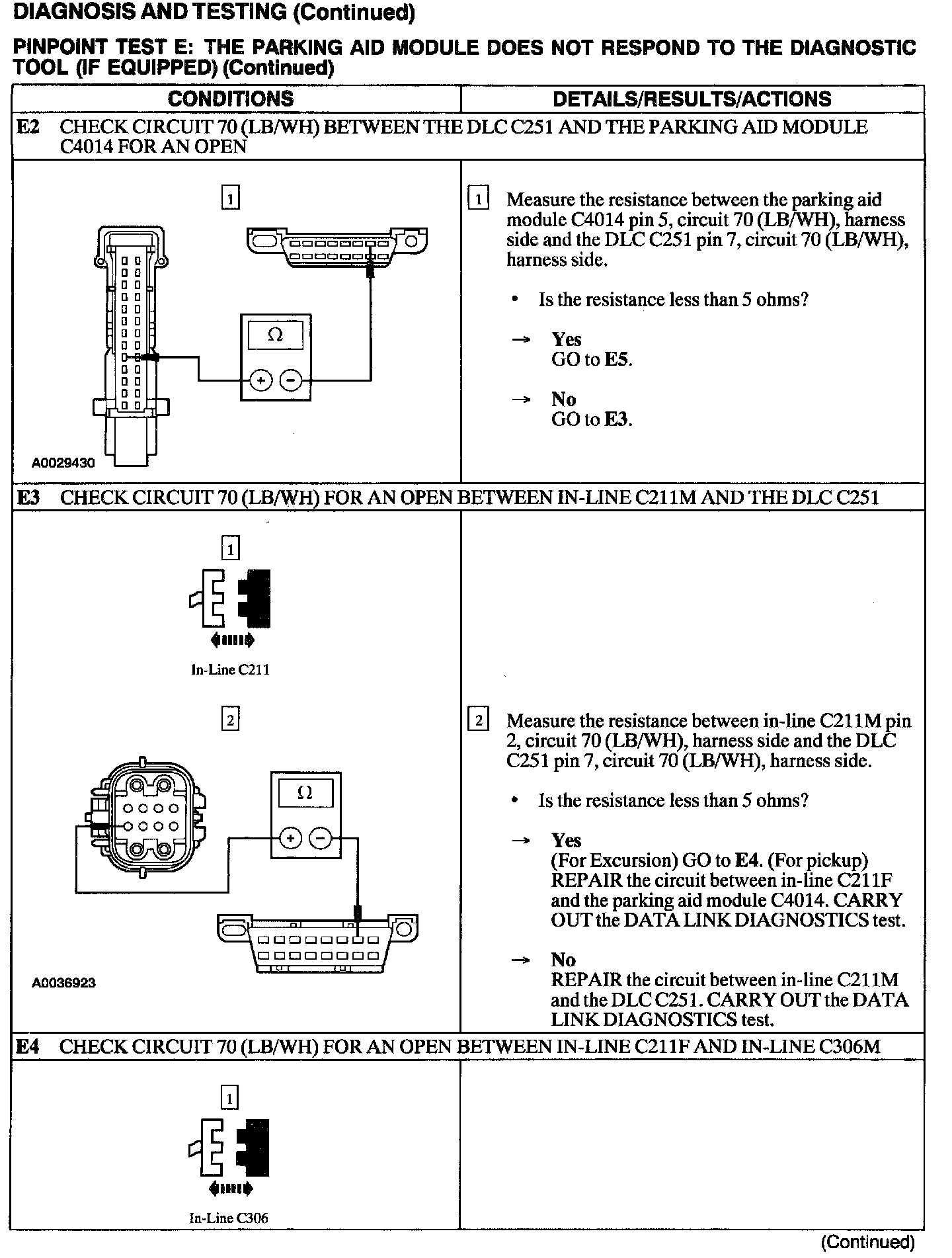

E2 - E4:

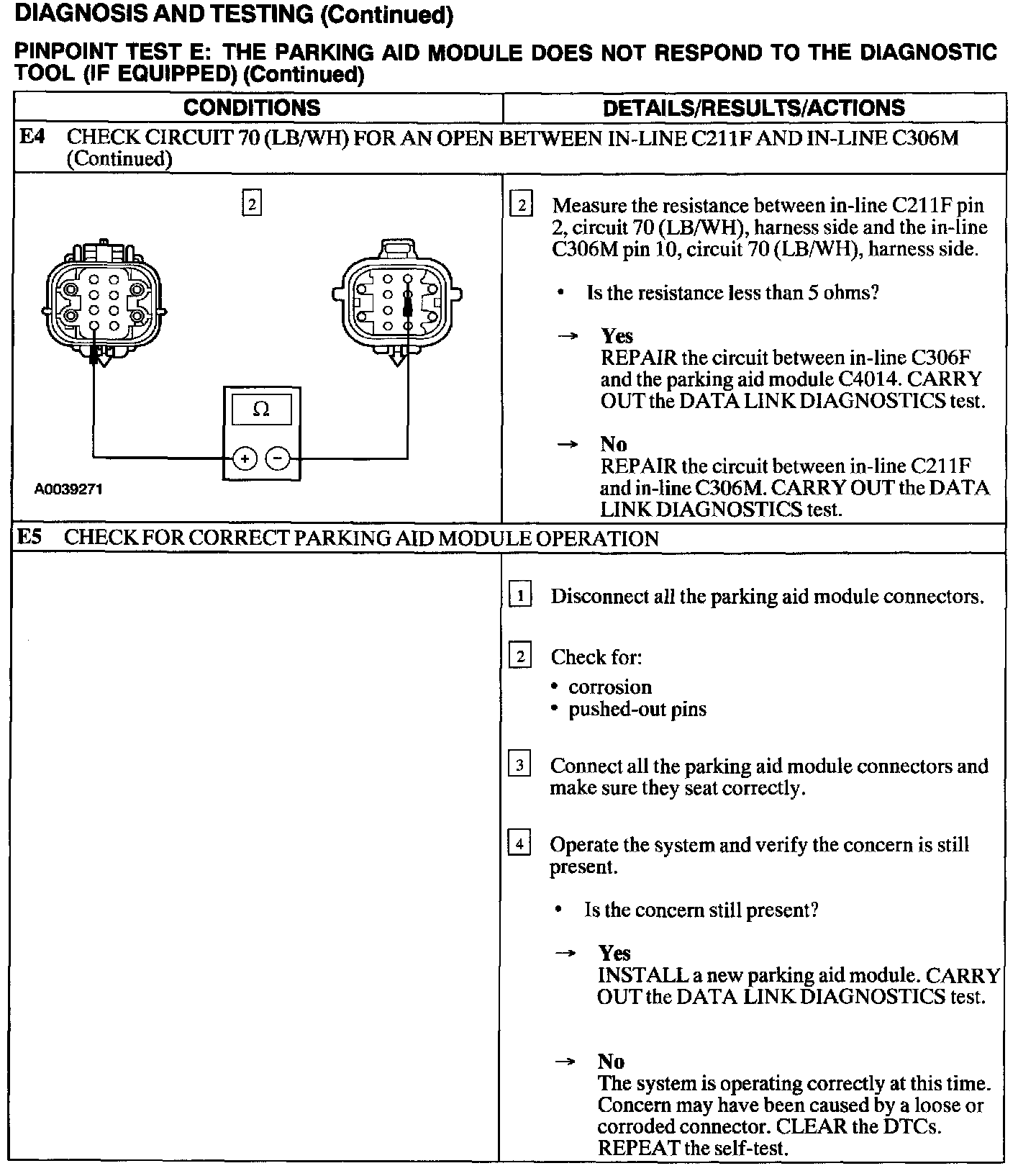

E4 - E5:
