Test P: No SCP Network Communication

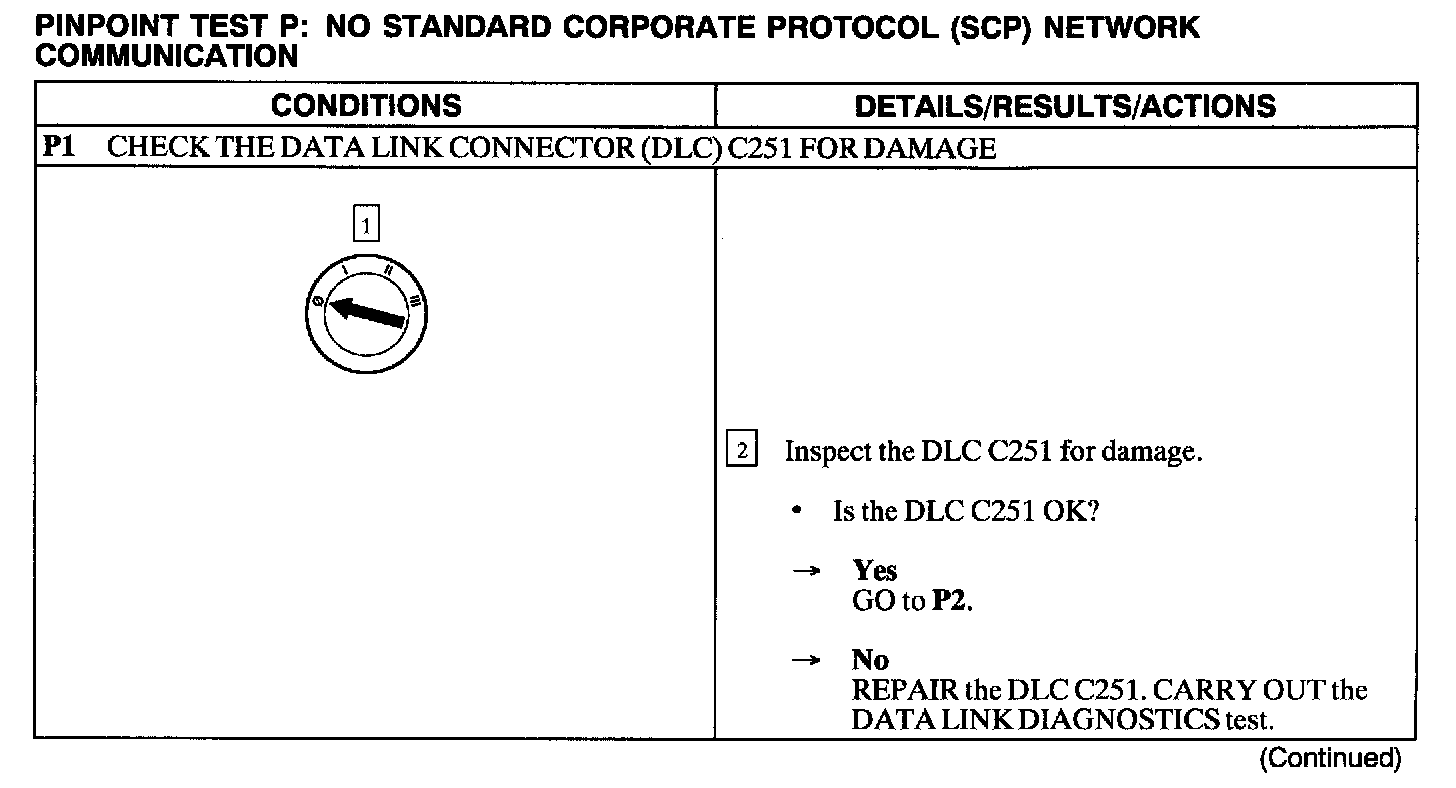

P1:

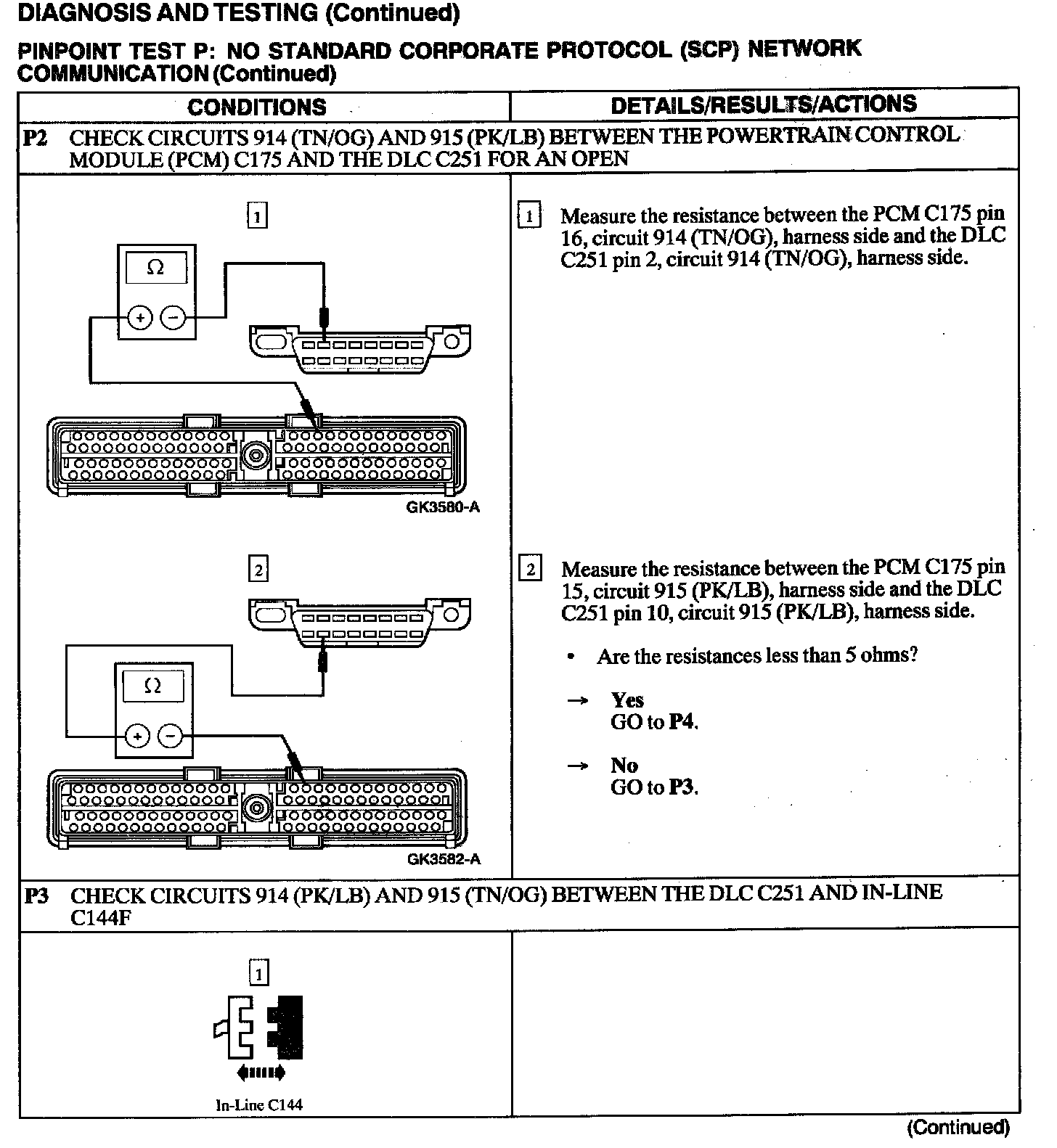

P2 - P3:

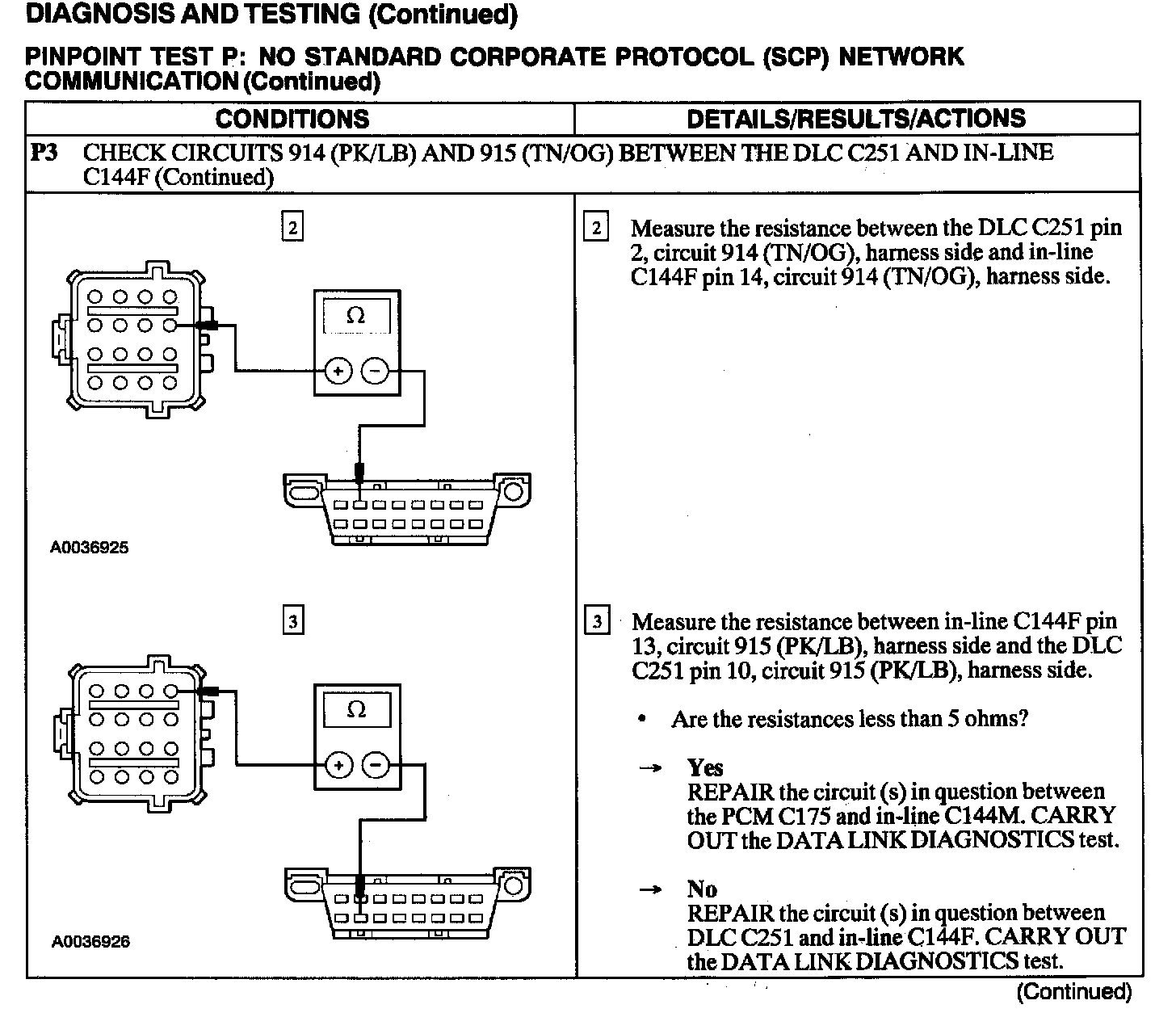

P3:

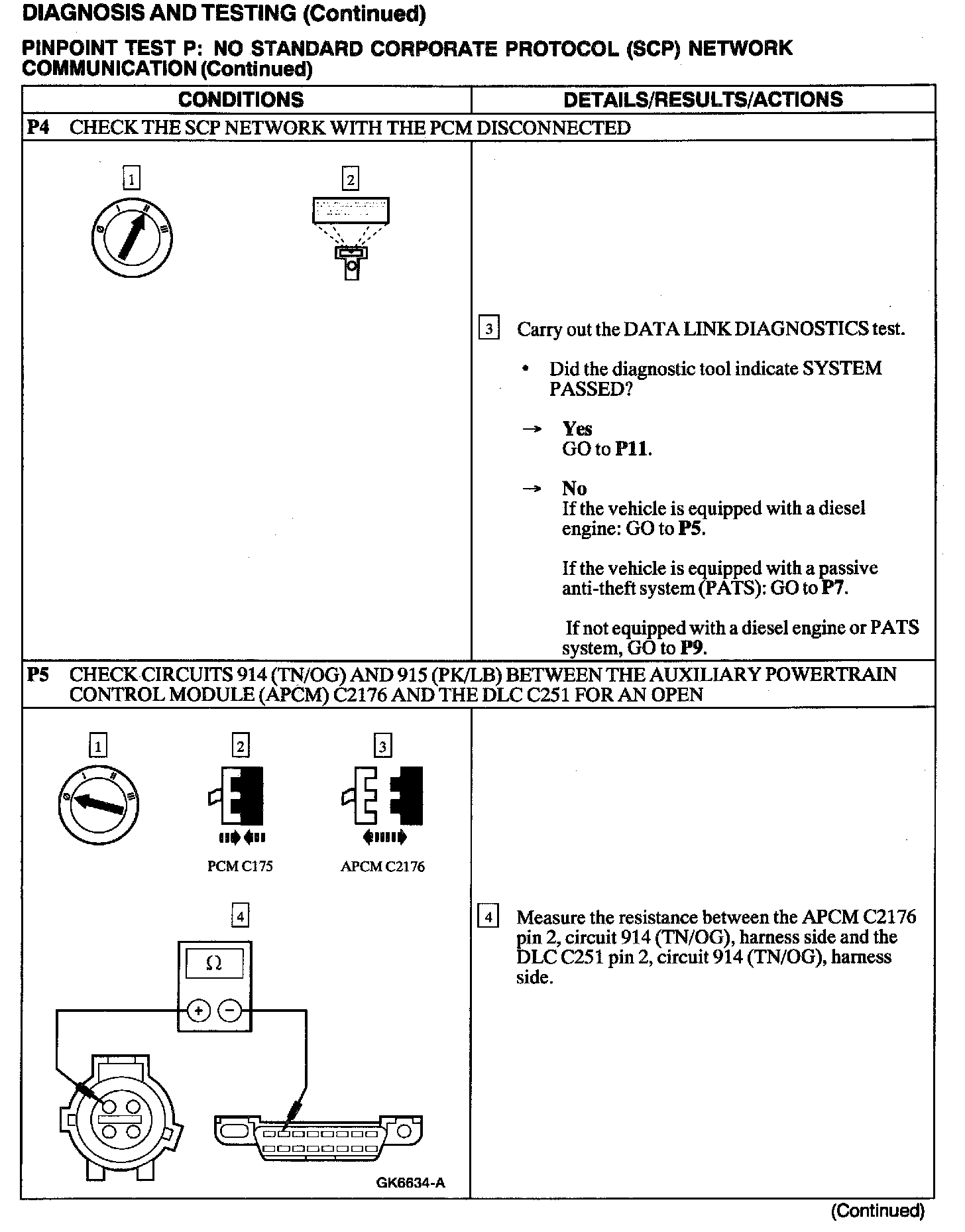

P4 - P5:

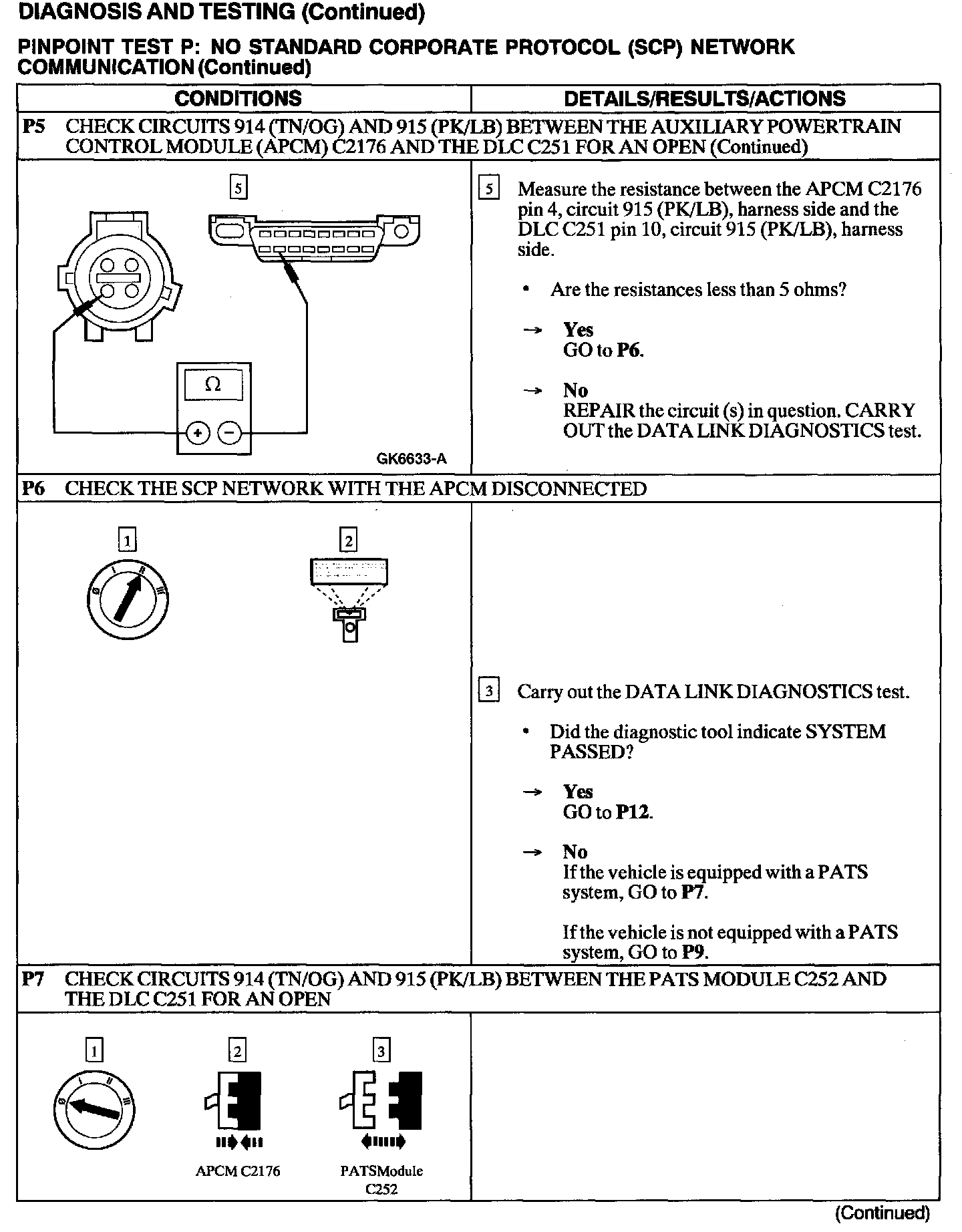

P5 - P7:

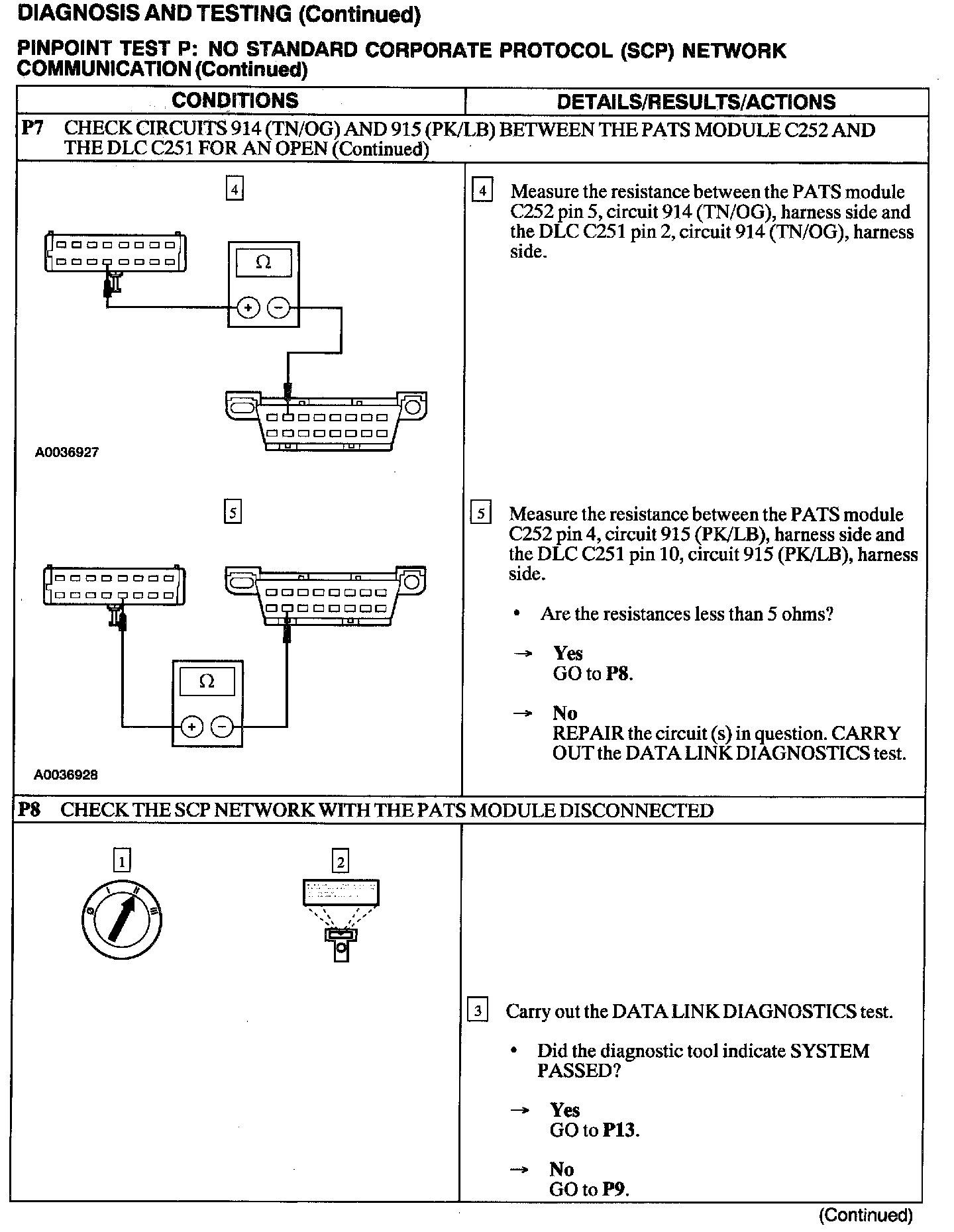

P7 - P8:

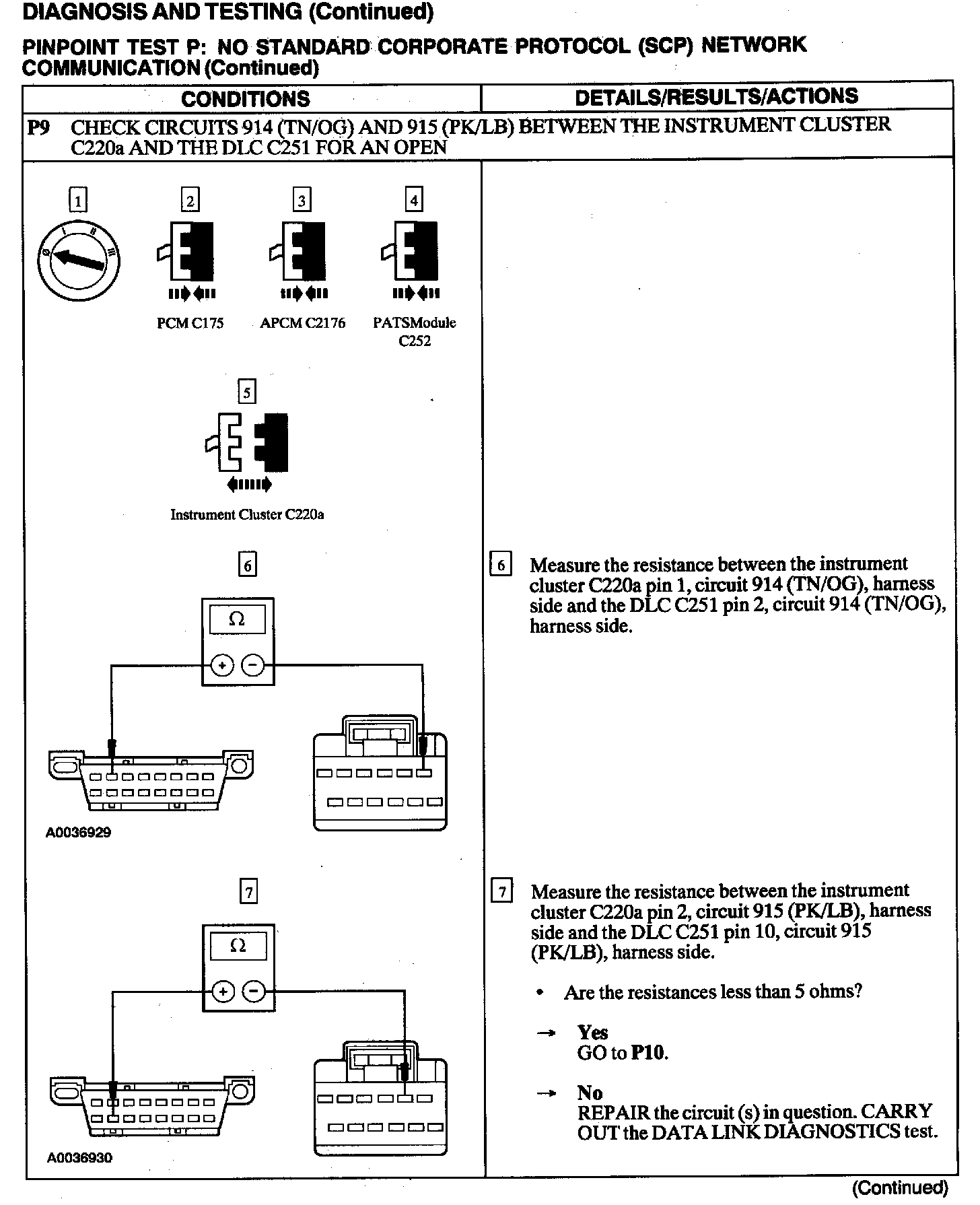

P9:

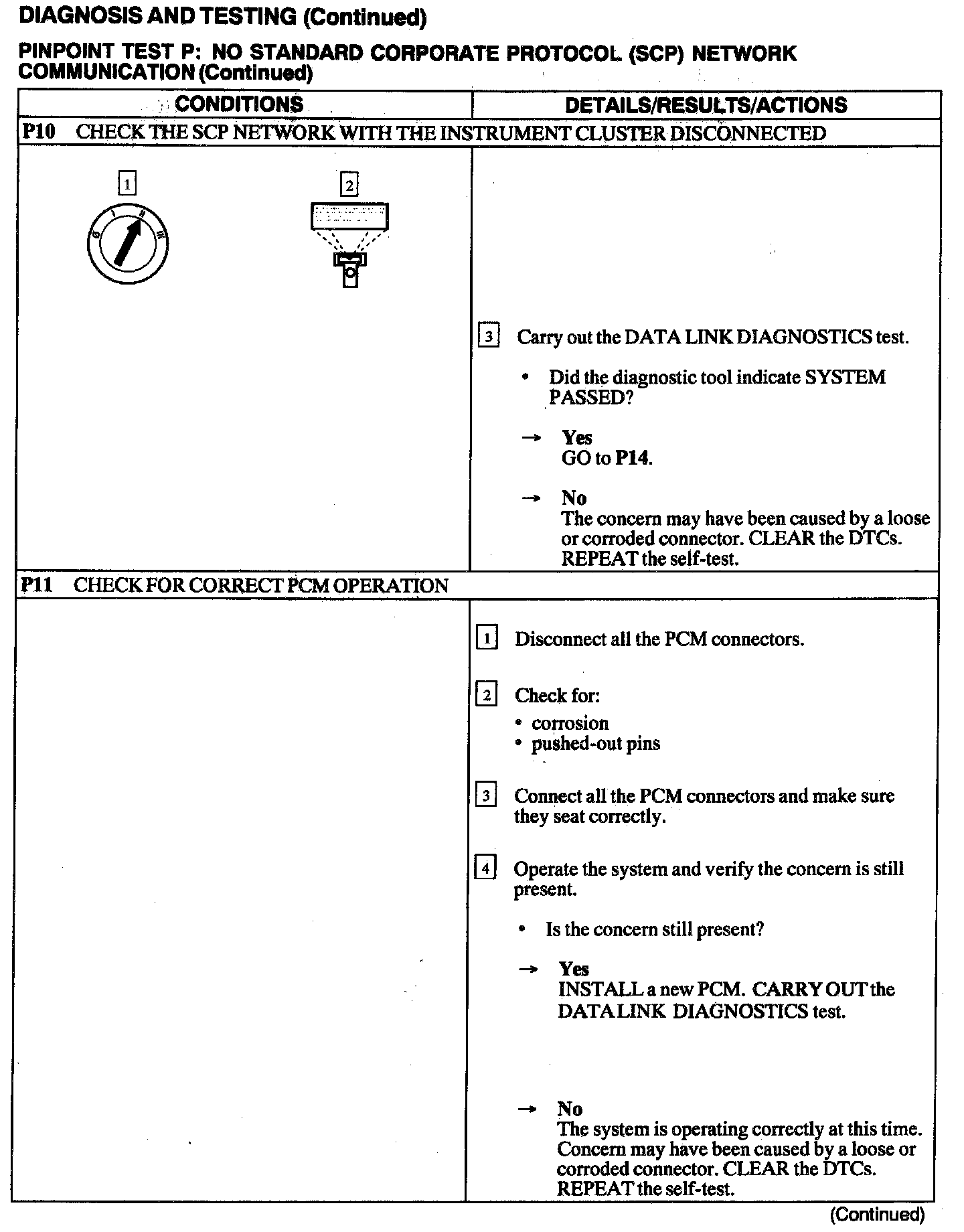

P10 - P11:

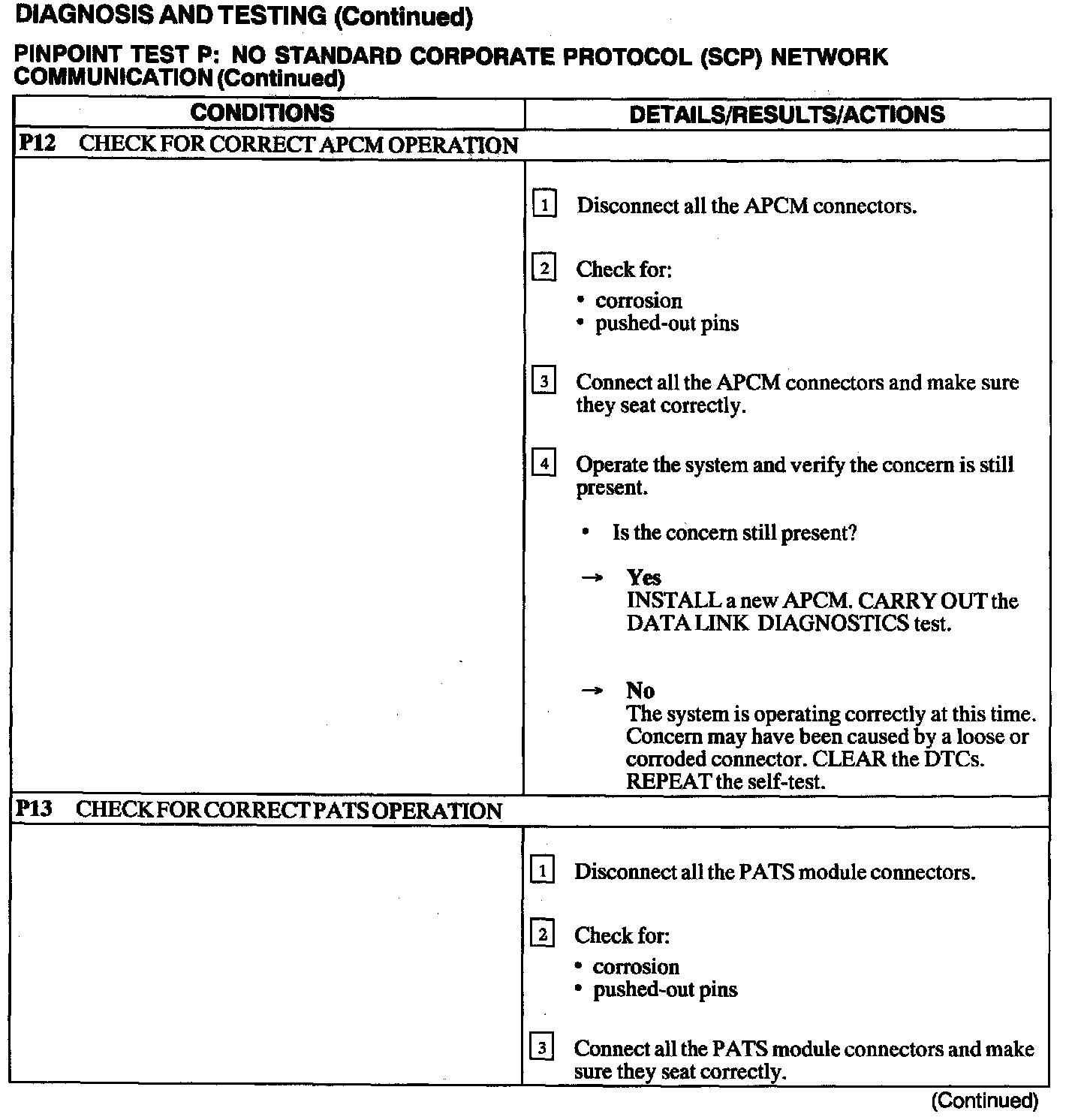

P12 - P13:

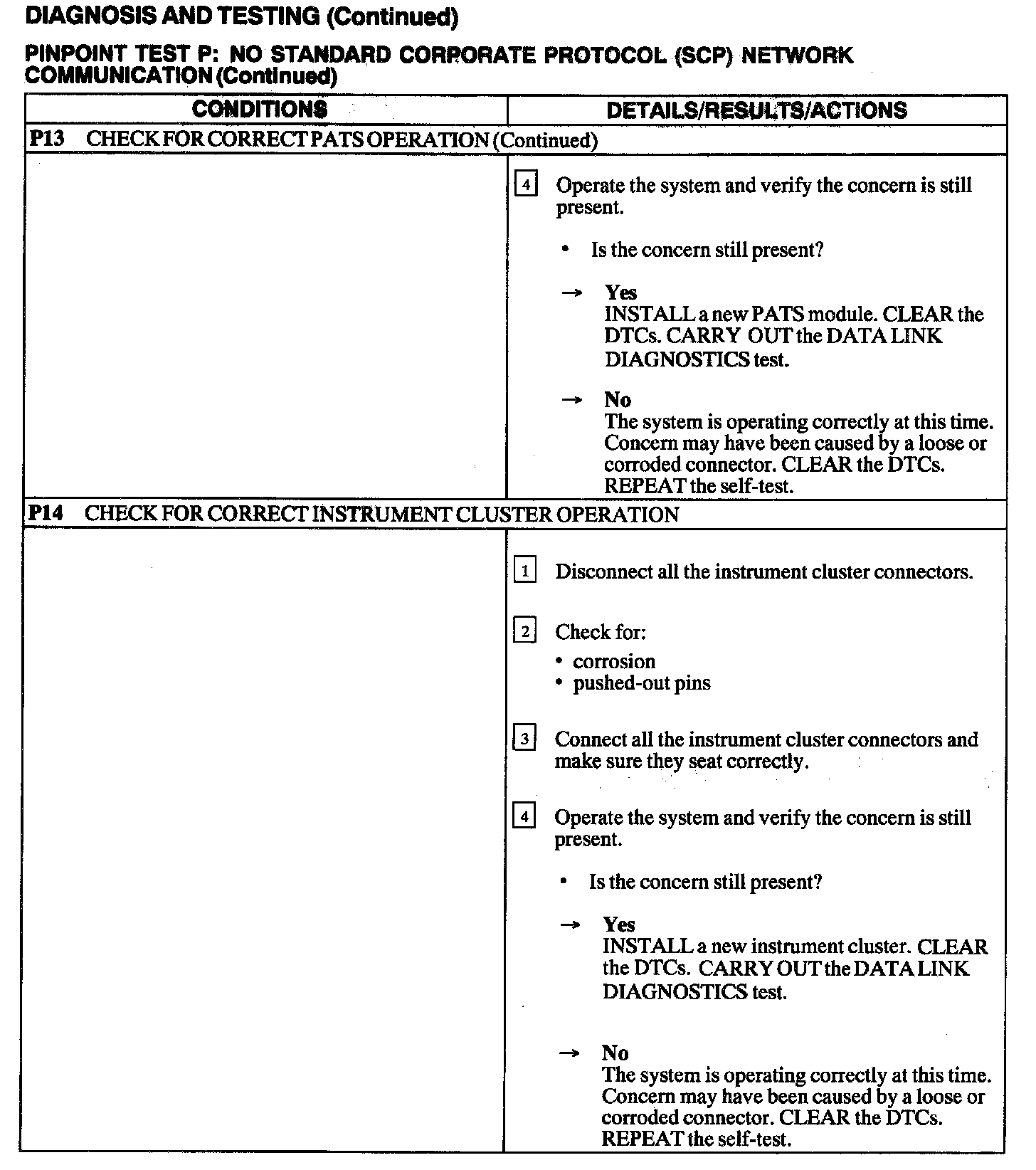

P13 - P14:
