Symptom Related Diagnostic Procedures

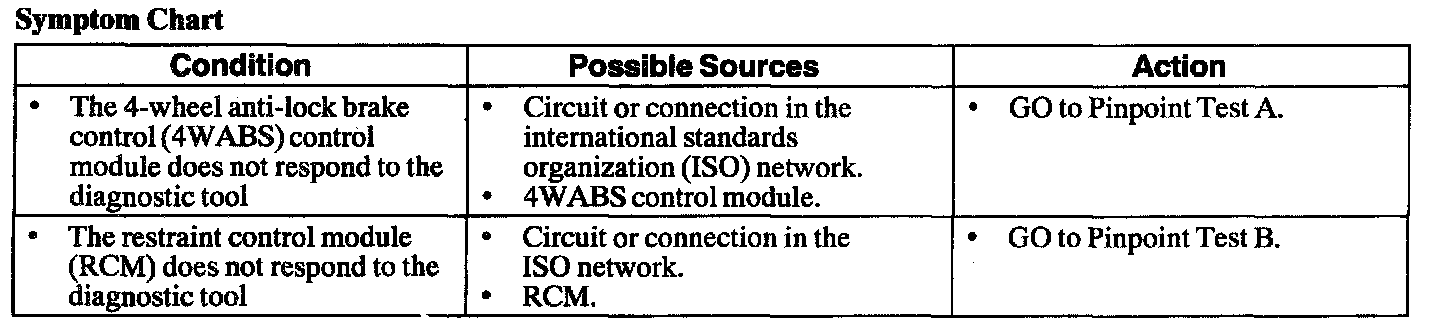

Symptom Chart, Part 1:

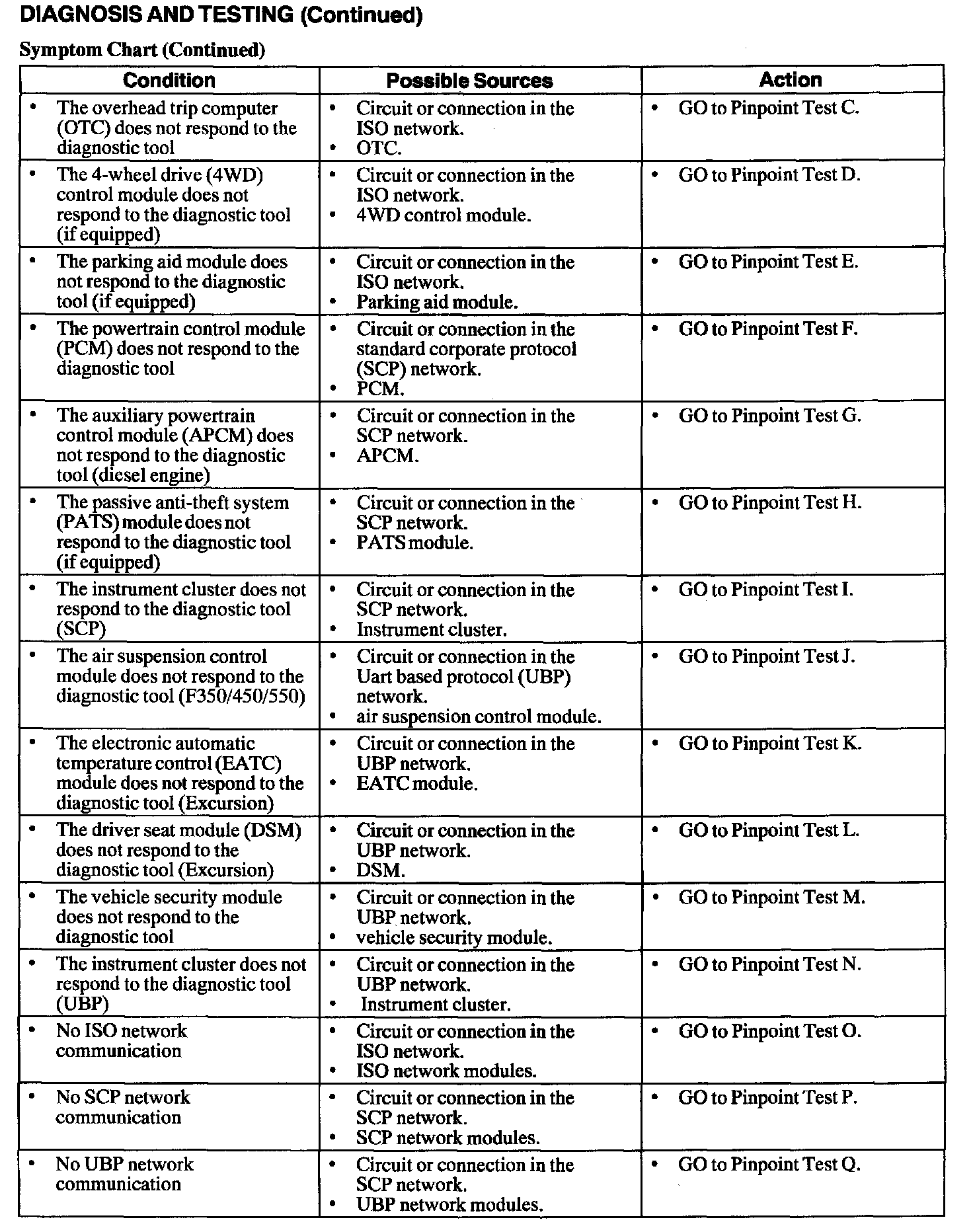

Symptom Chart, Part 2:

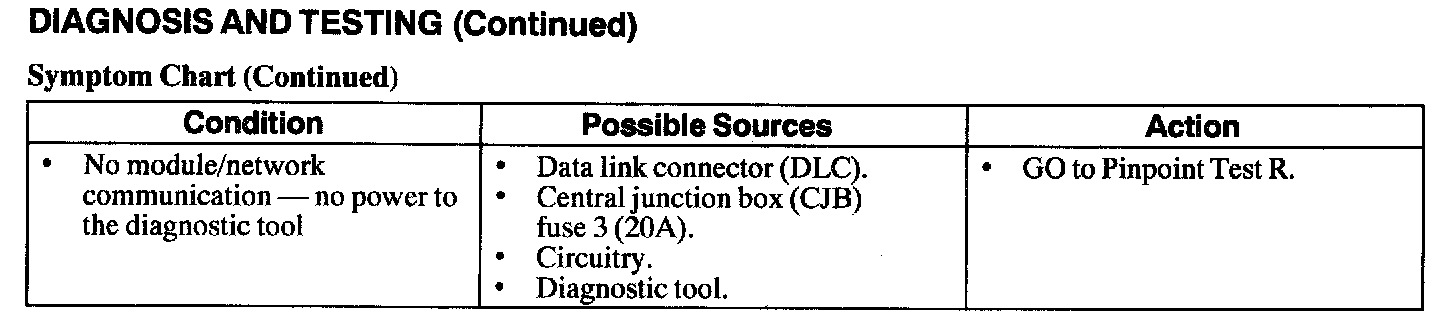

Symptom Chart, Part 3:
