Tests DB: Engine Fuel Temperature (EFT) Sensor

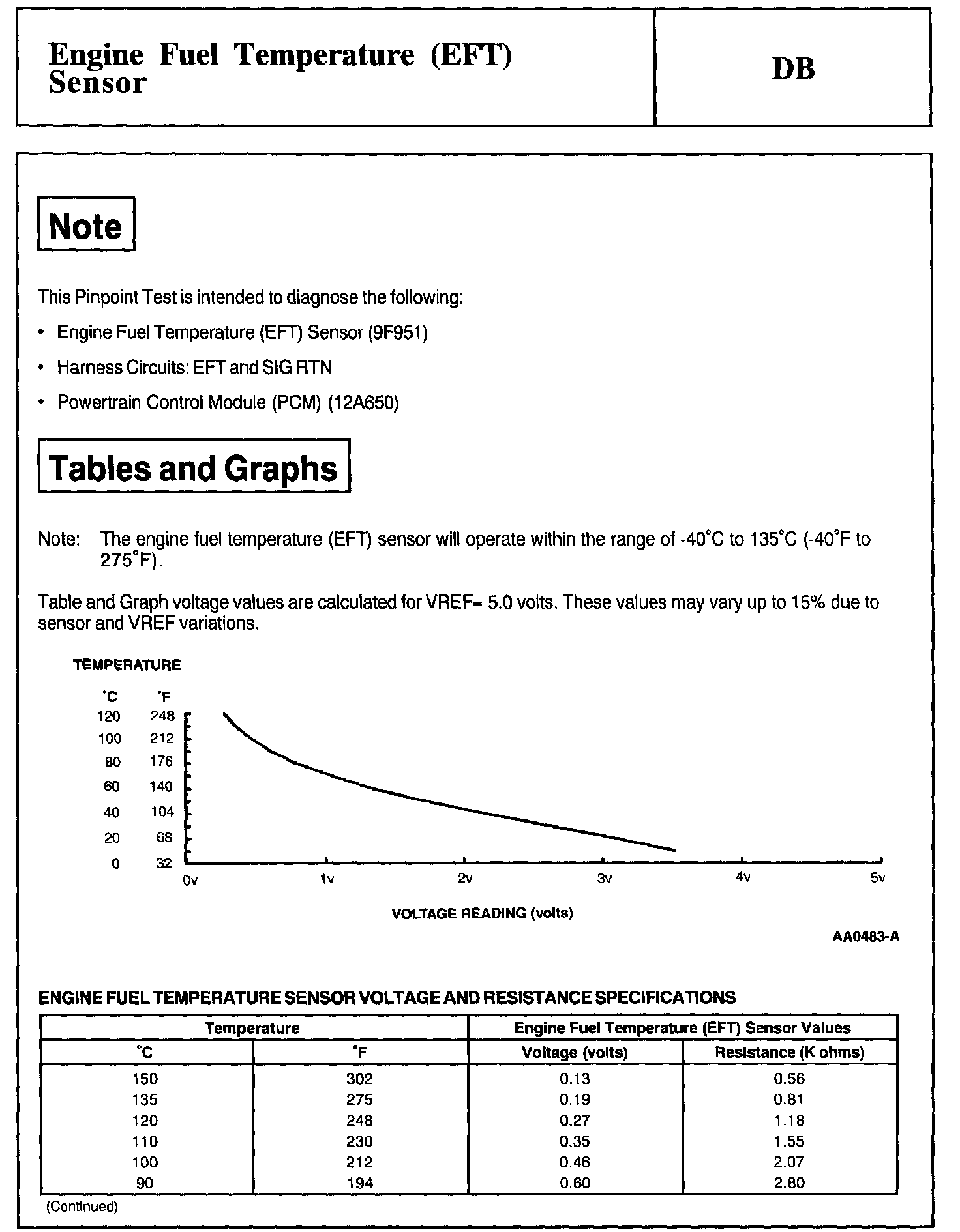

Note, Tables and Graphs:

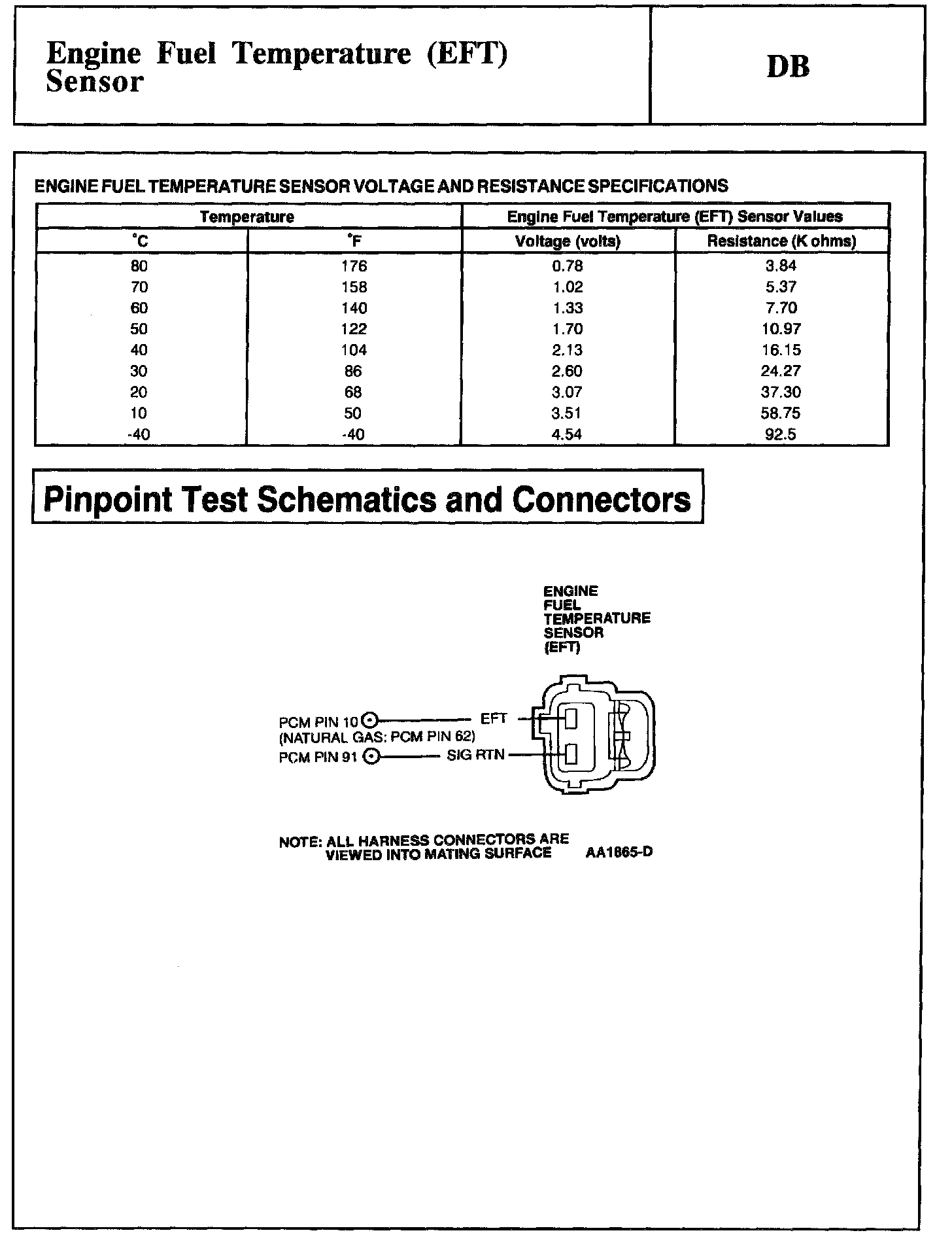

Table, Schematics and Connectors:

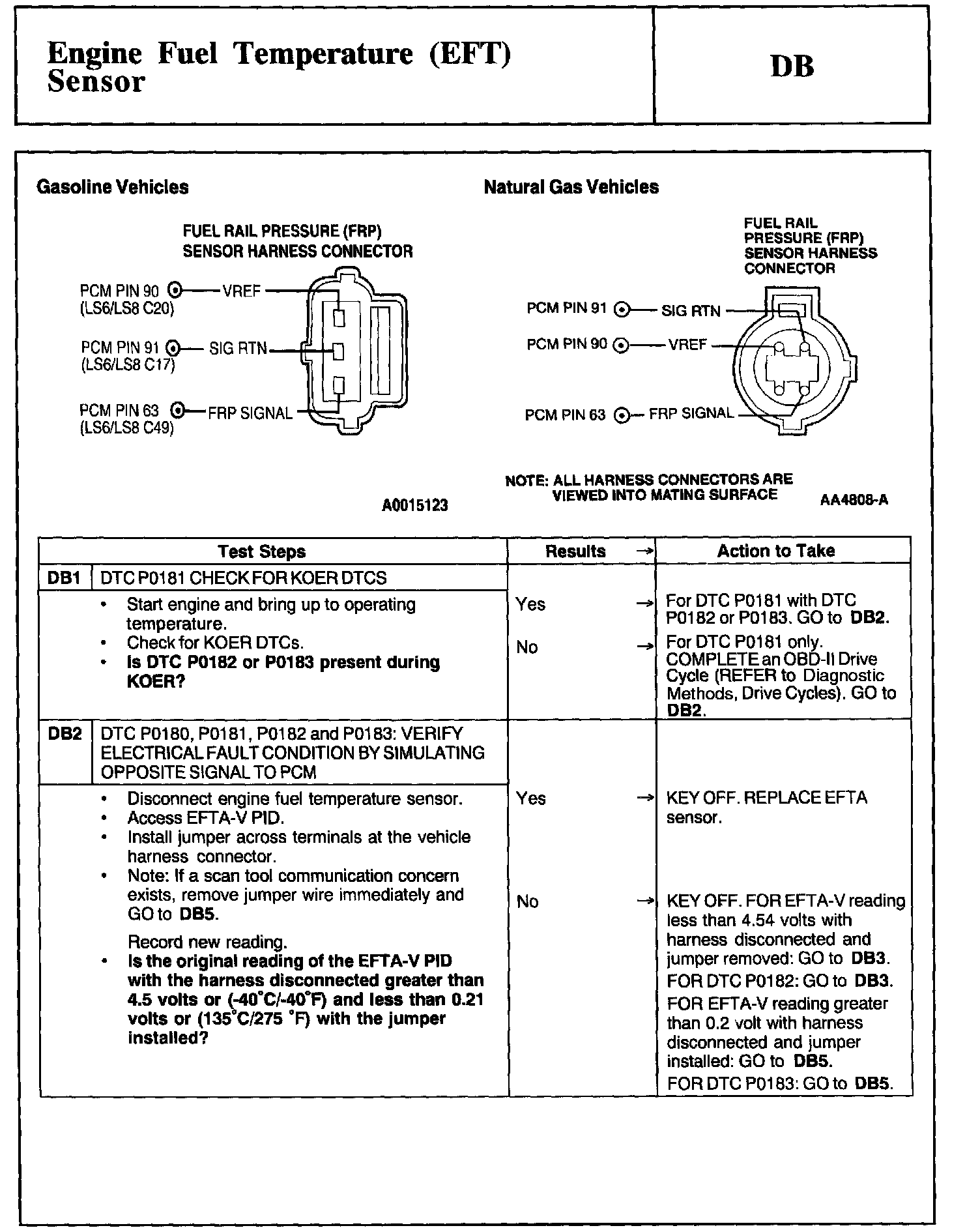

Schematic, Test DB1 - DB2:

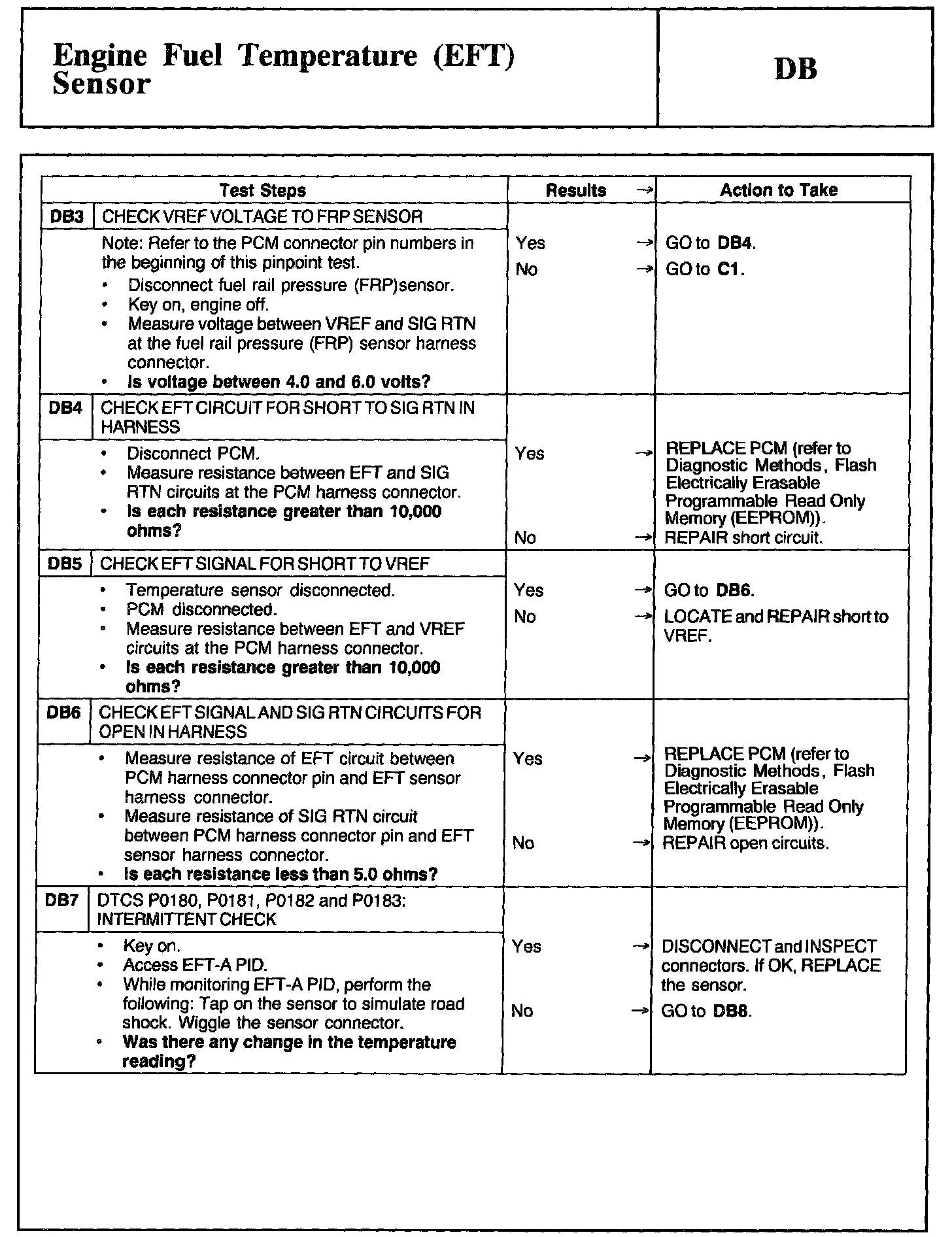

DB3 - DB7:

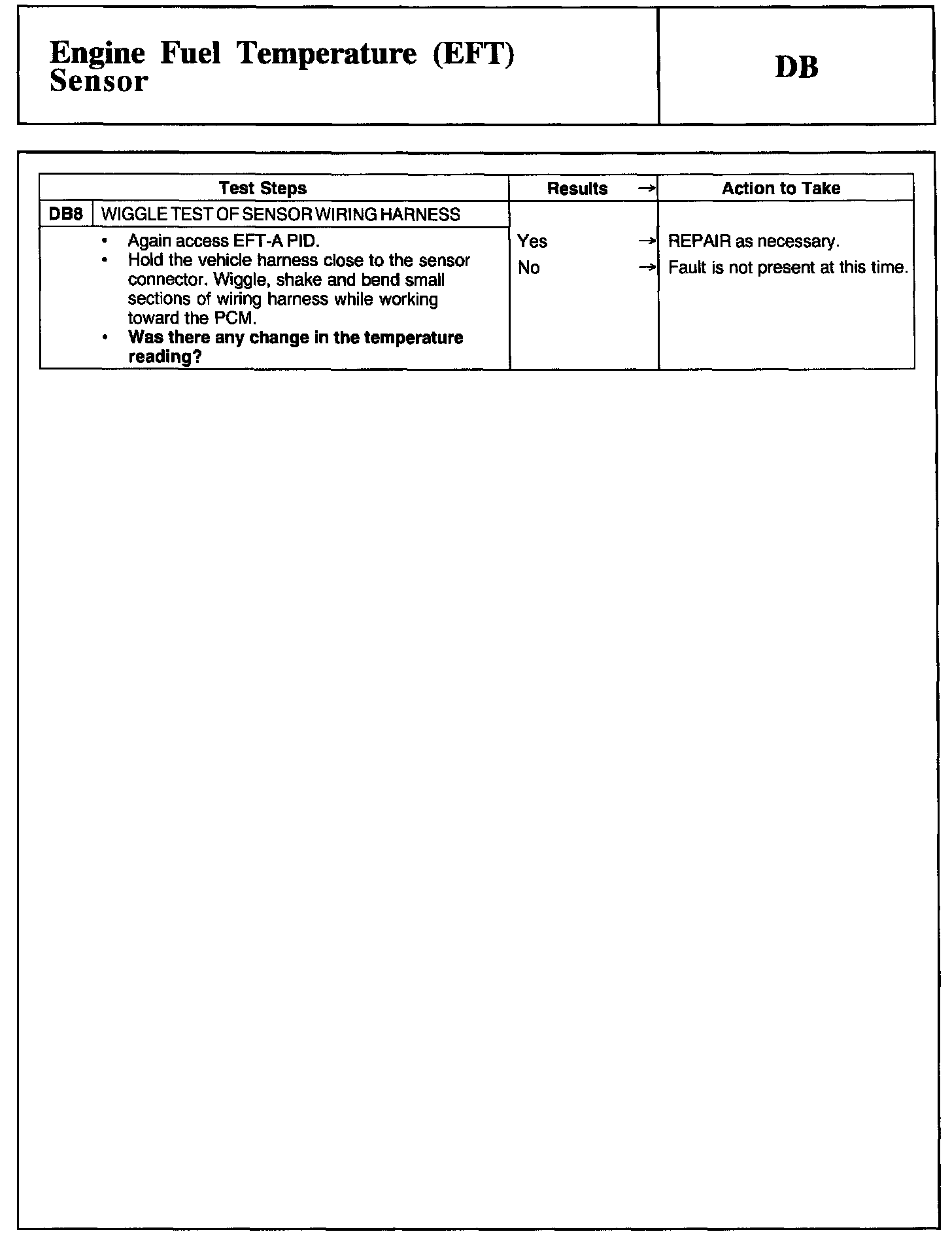

DB8:
