Tests DC: Mass Air Flow (MAF) Sensor

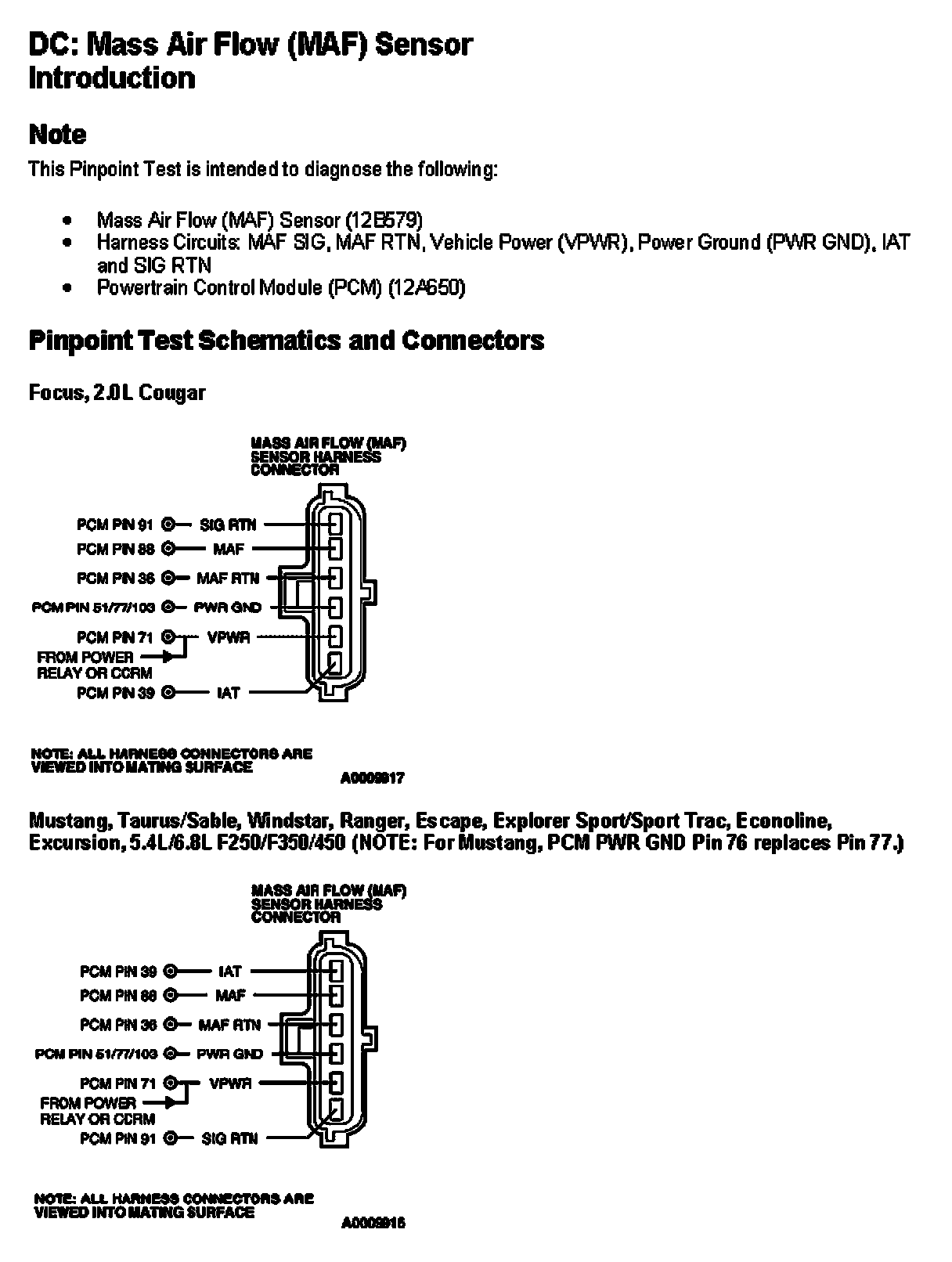

Note, Schematics, And Connectors:

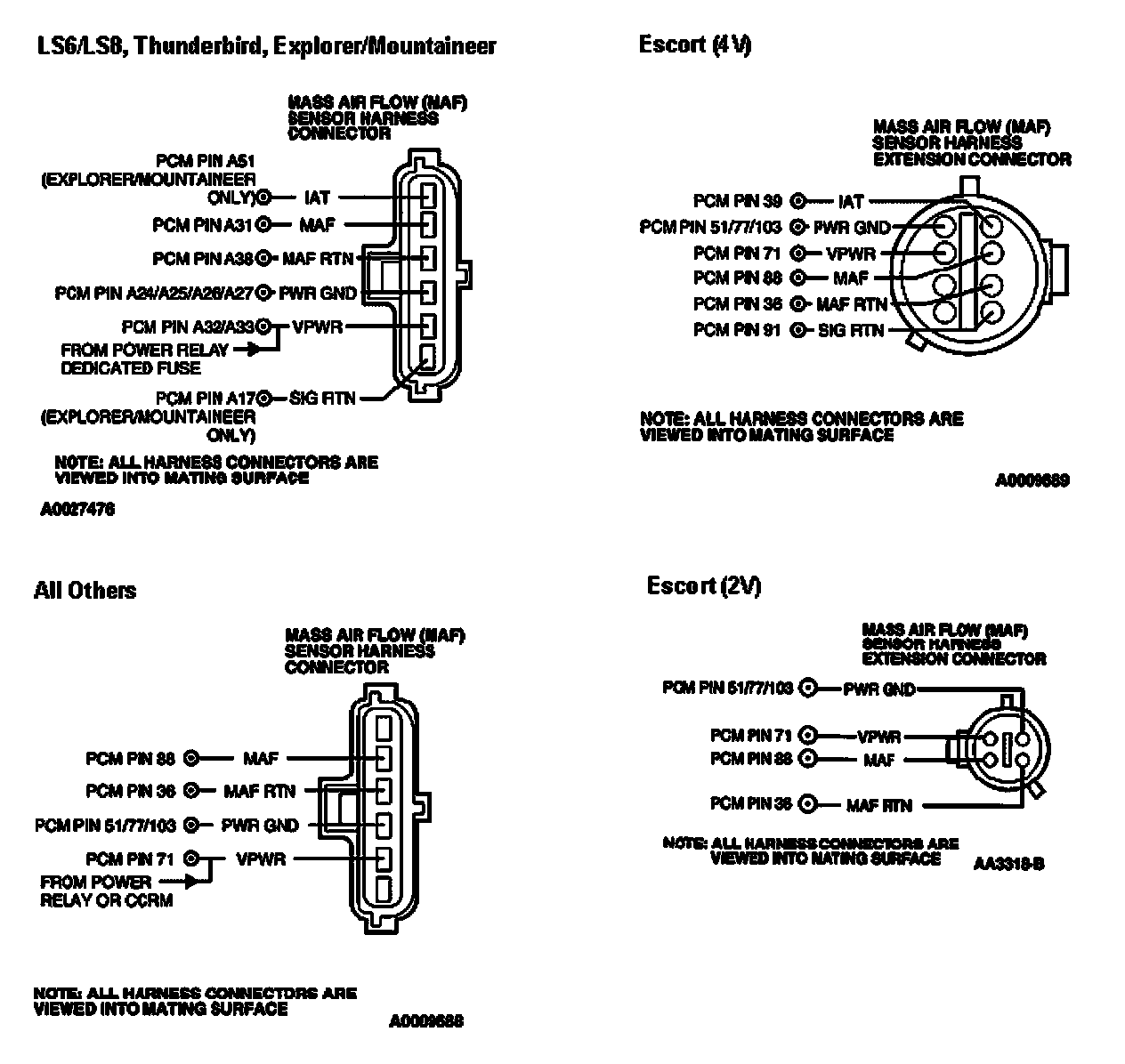

Schematics, And Connectors:

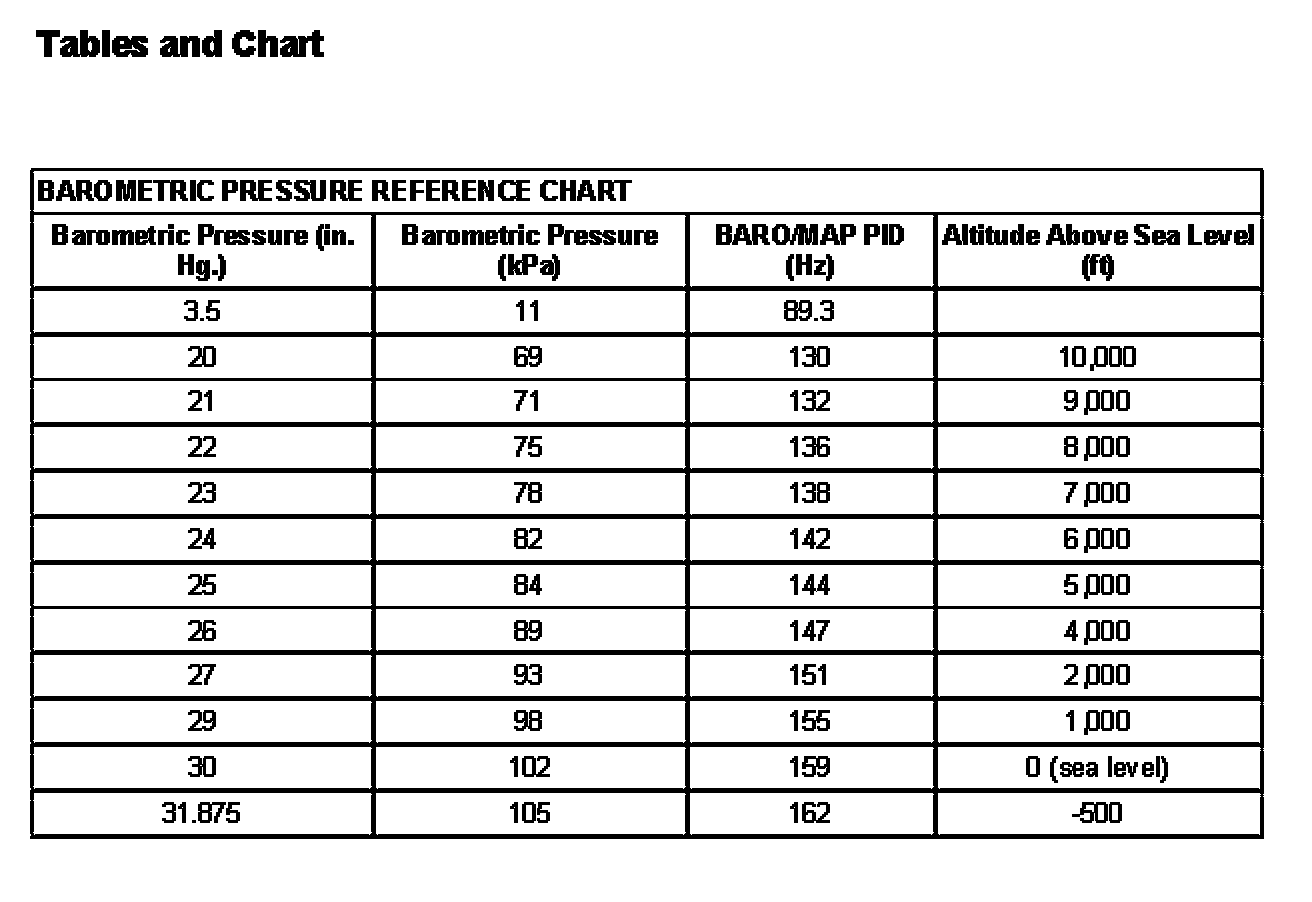

Barometric Pressure Chart:

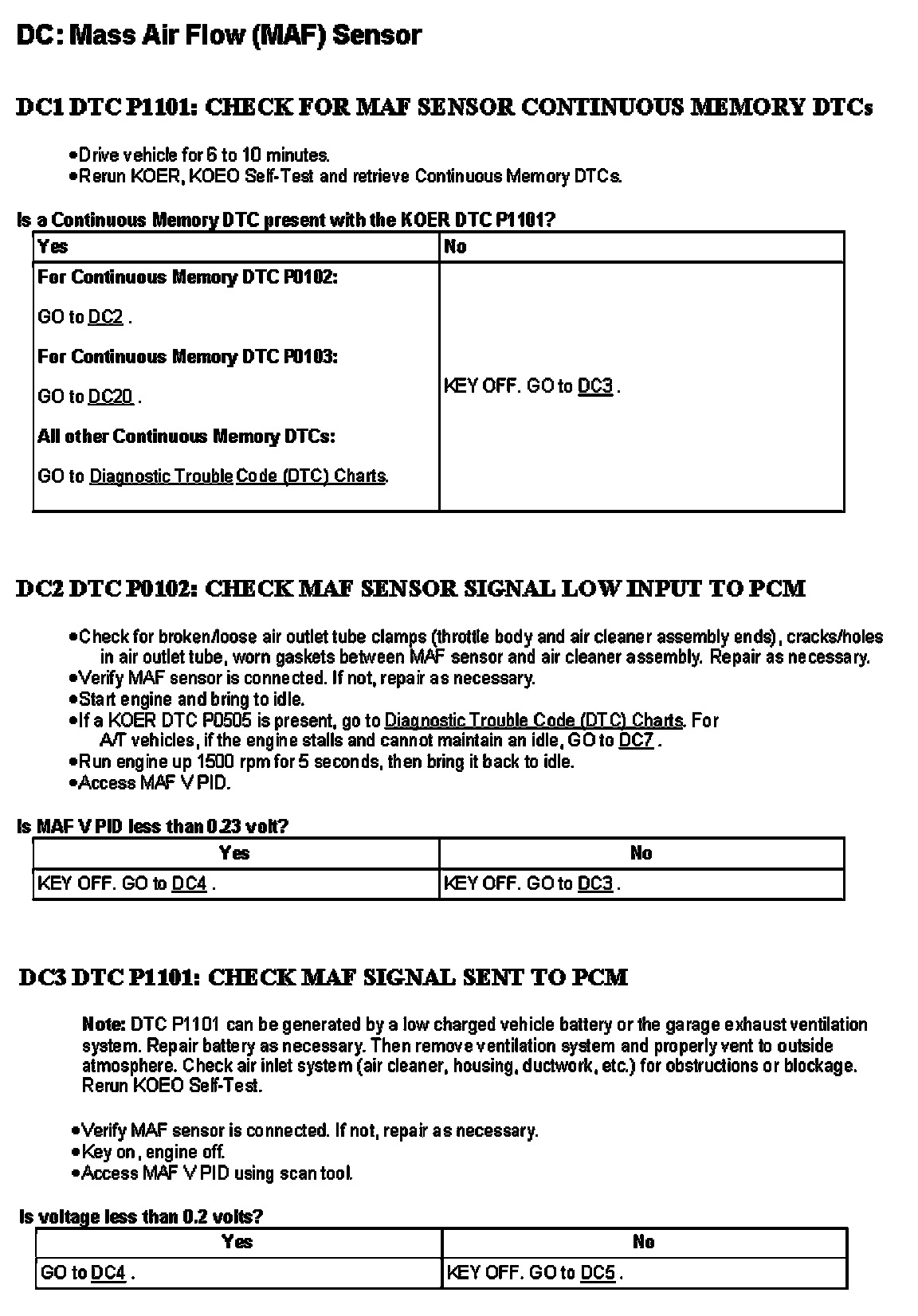

DC1 - DC3:

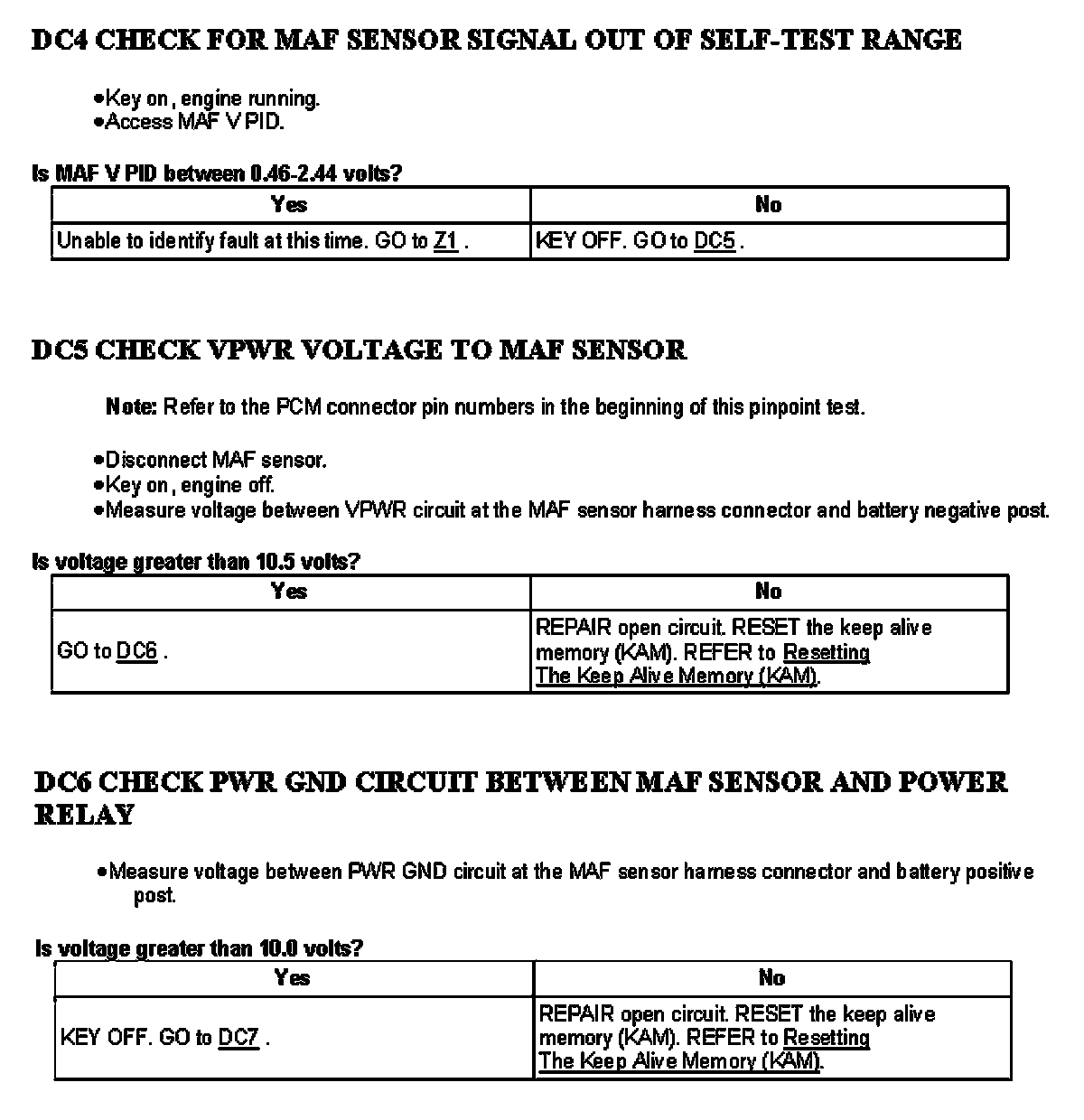

DC4 - DC6:

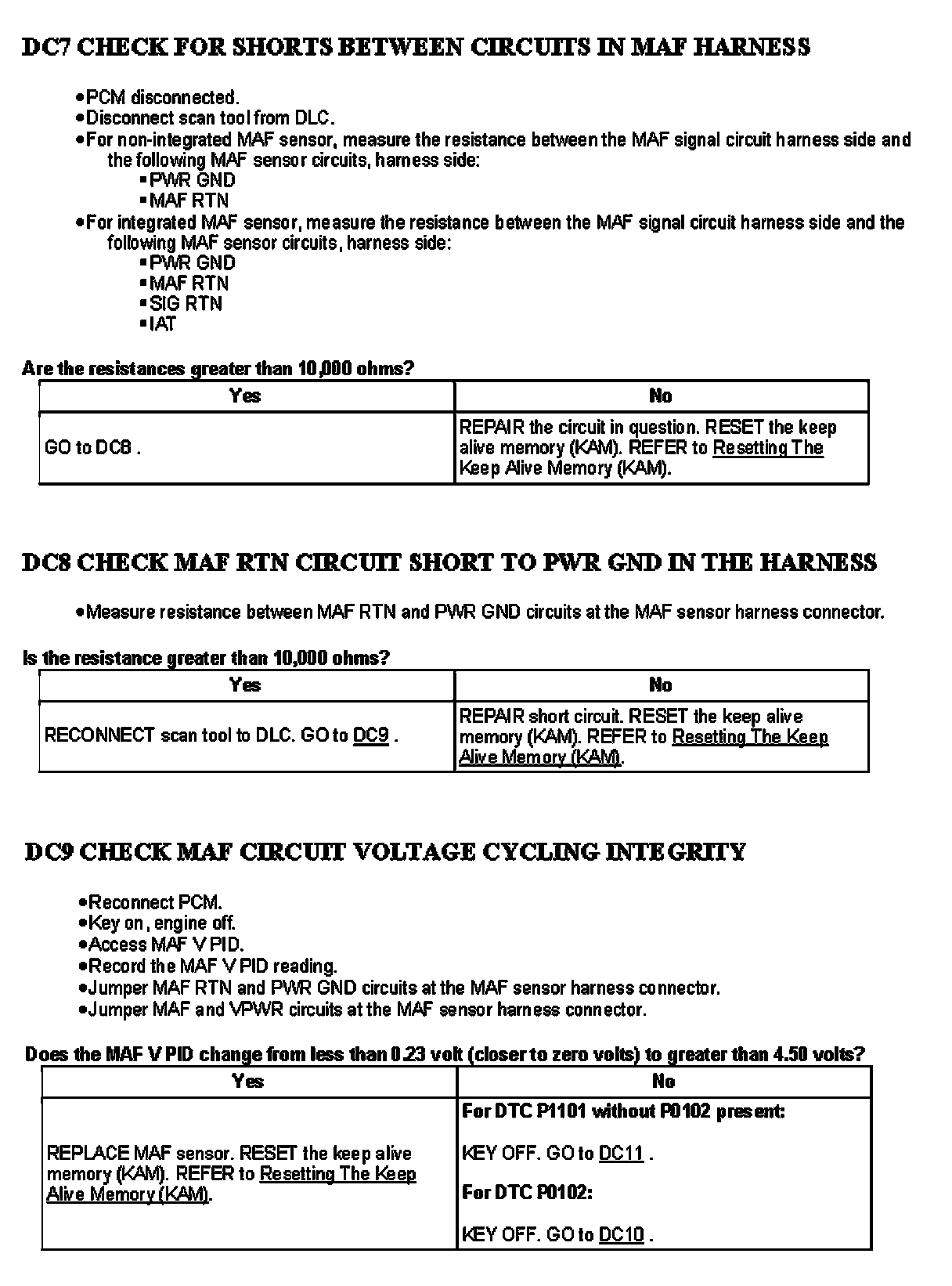

DC7 - DC9:

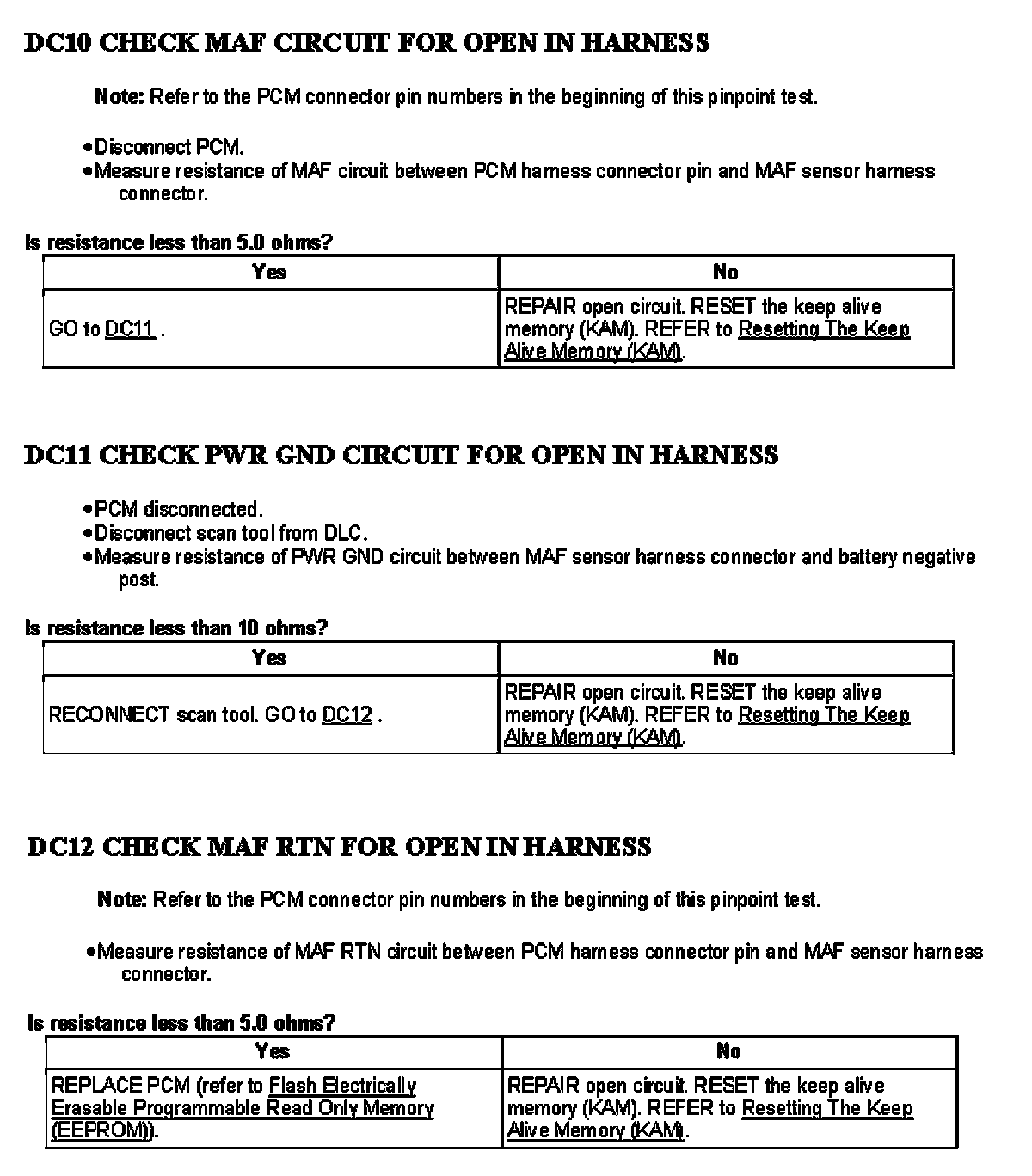

DC10 - DC12:

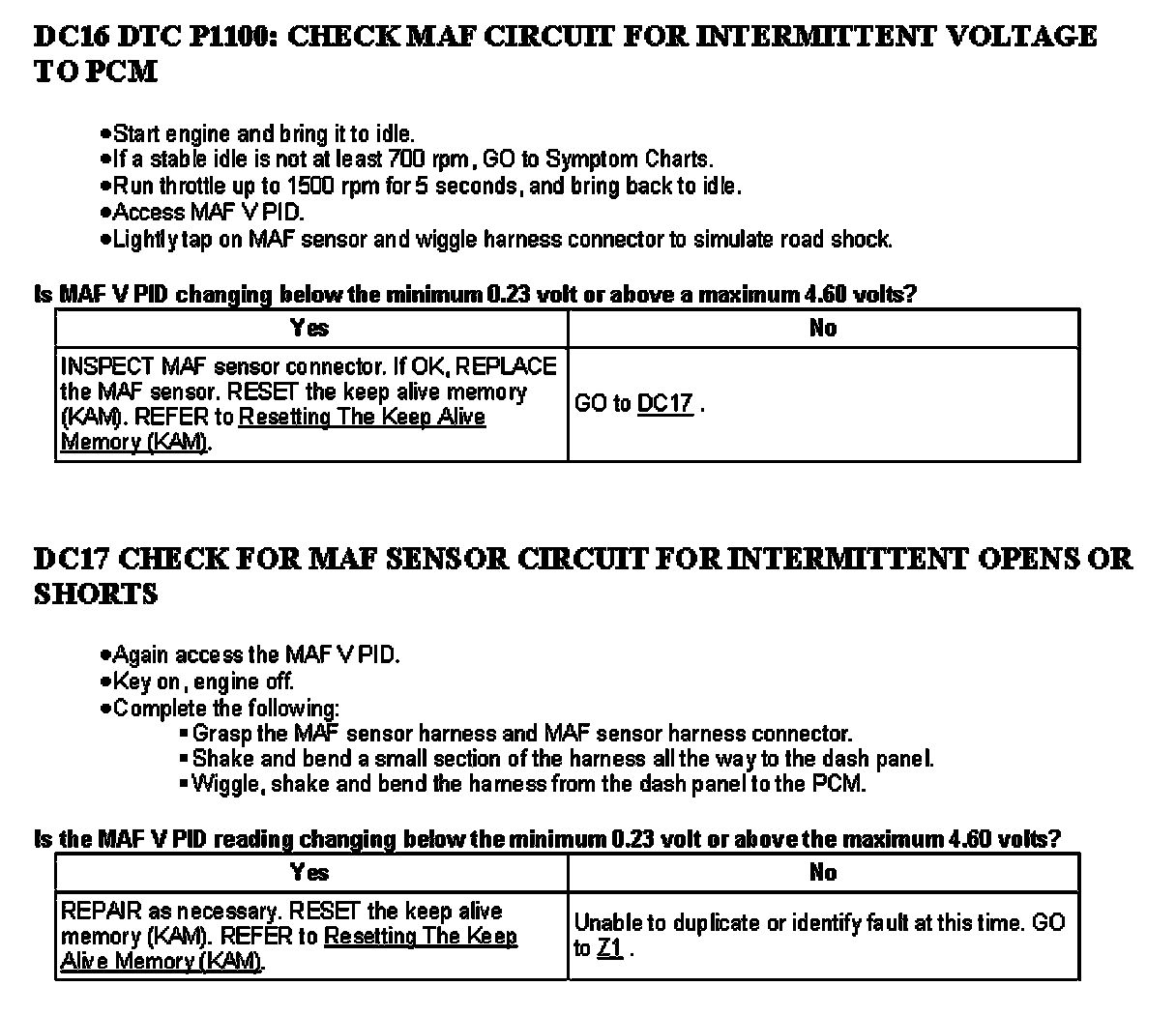

DC16 - DC17:

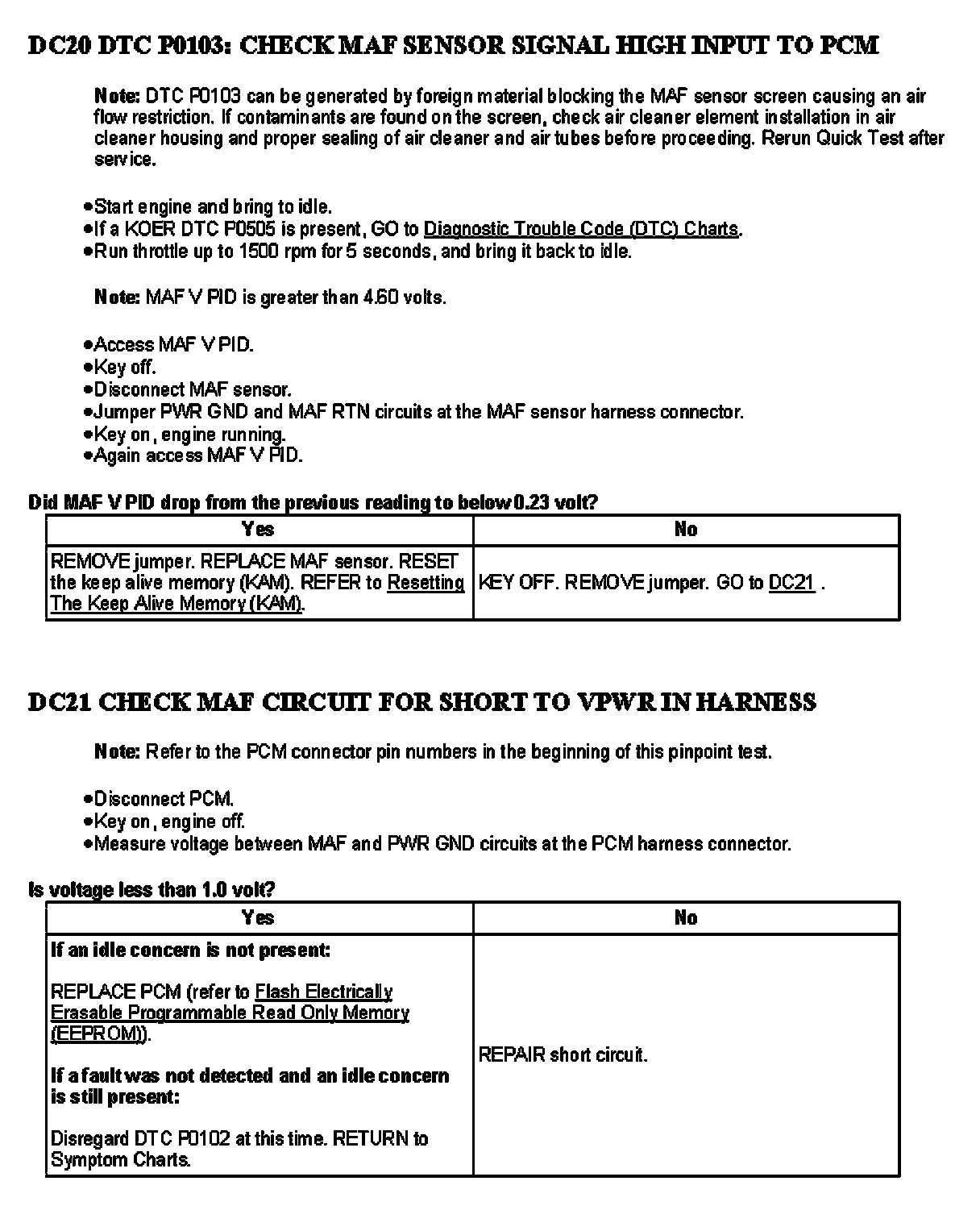

DC20 - DC21:

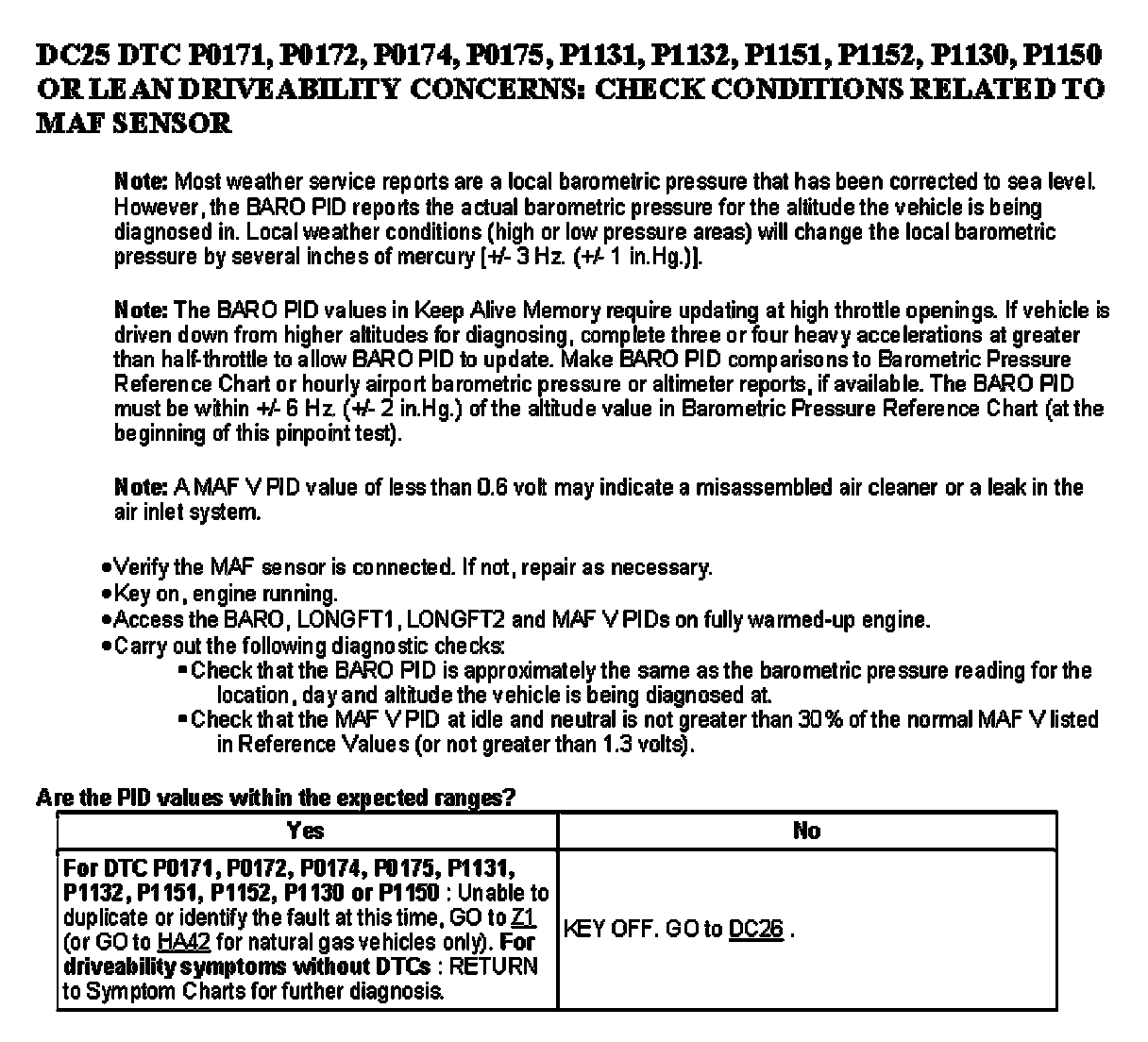

DC25:

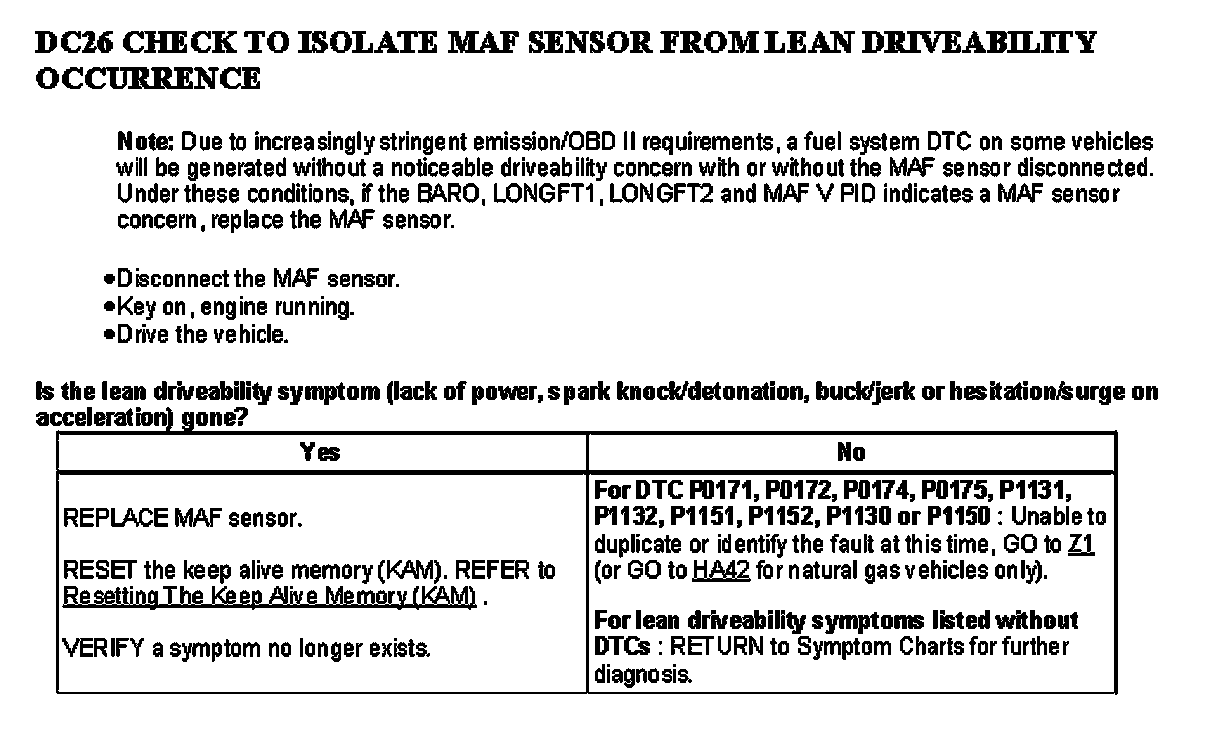

DC26:
