Tests FF: Power Steering Pressure (PSP) Switch

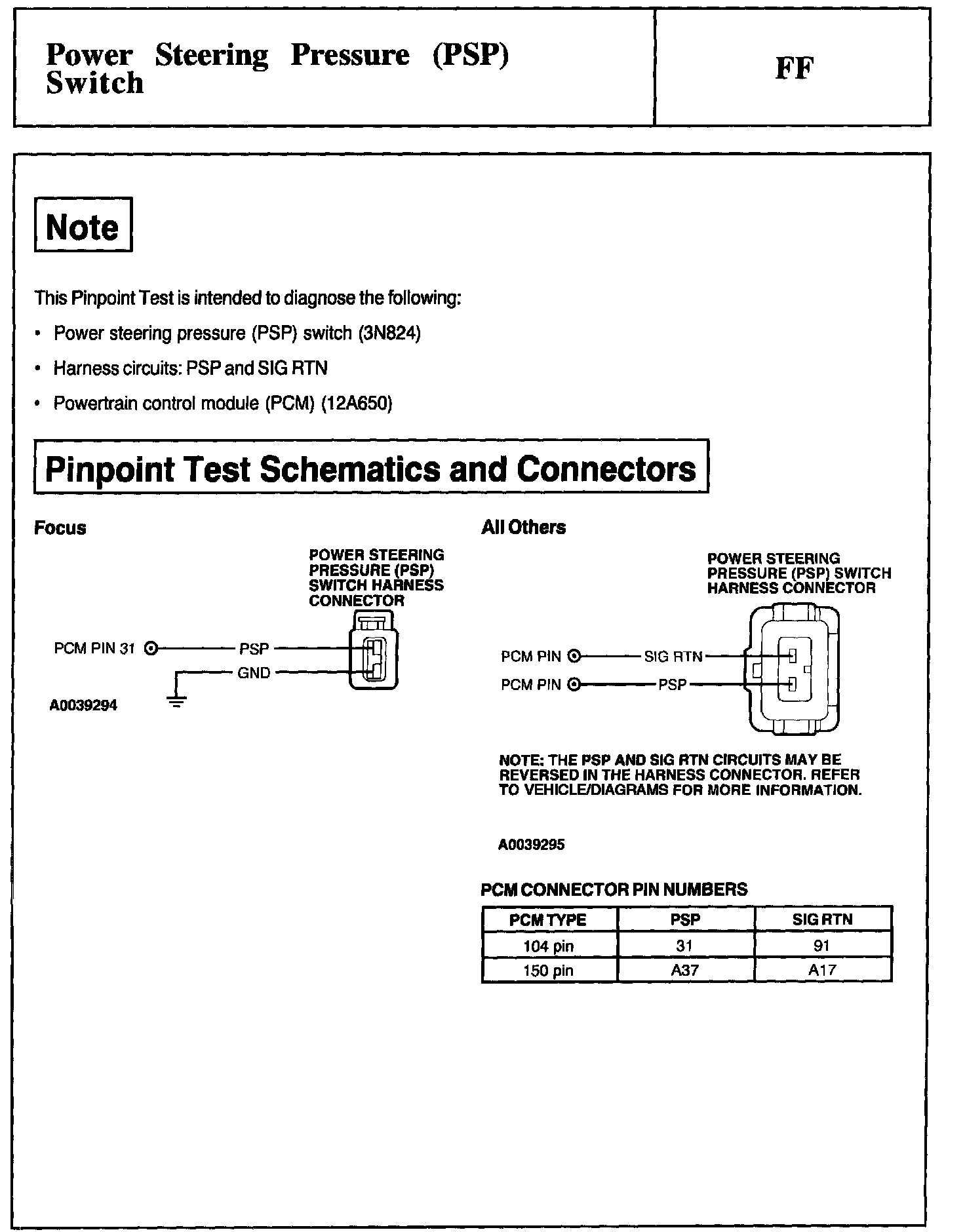

Note, Schematics and Connectors:

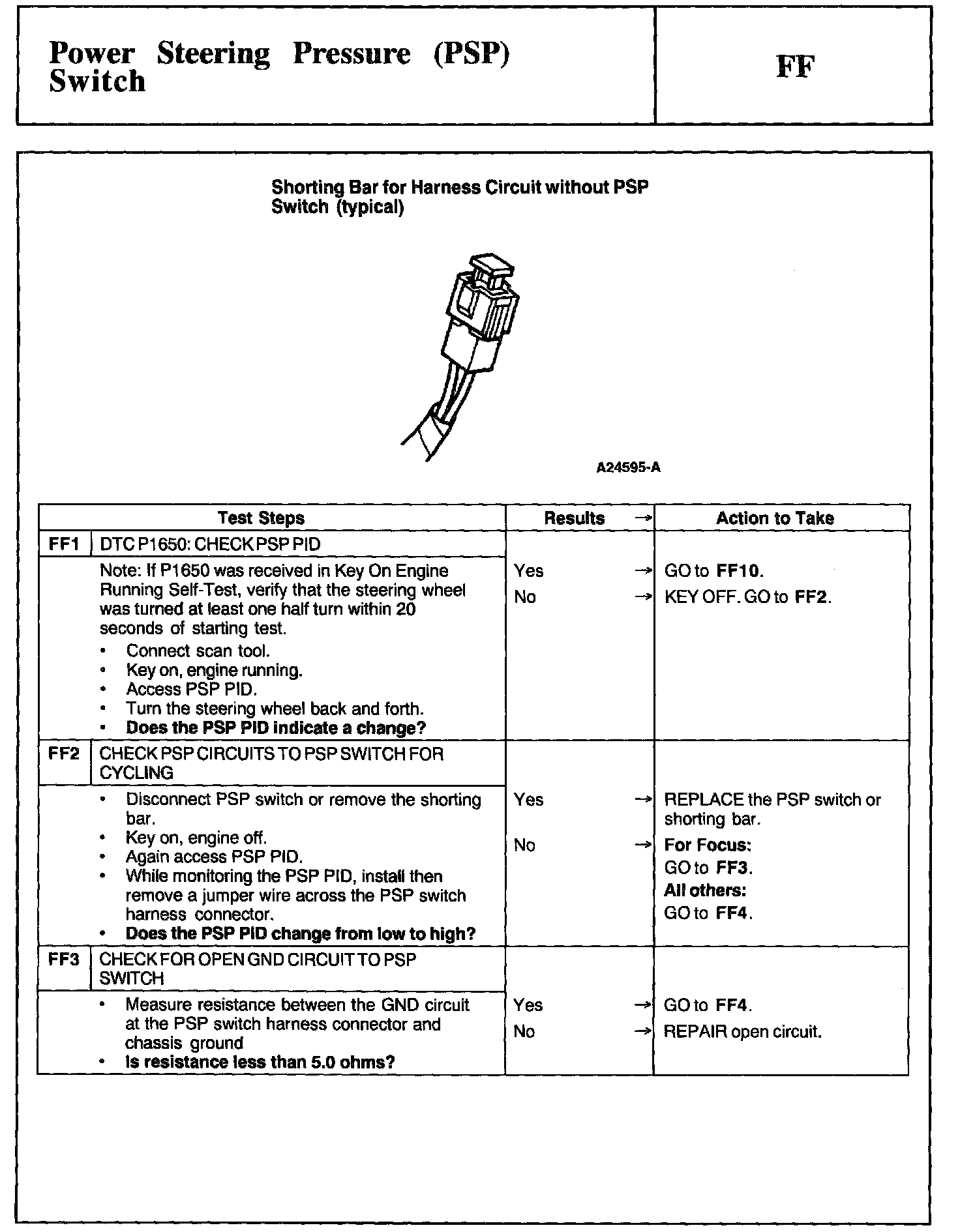

Schematic, Test FF1 - FF3:

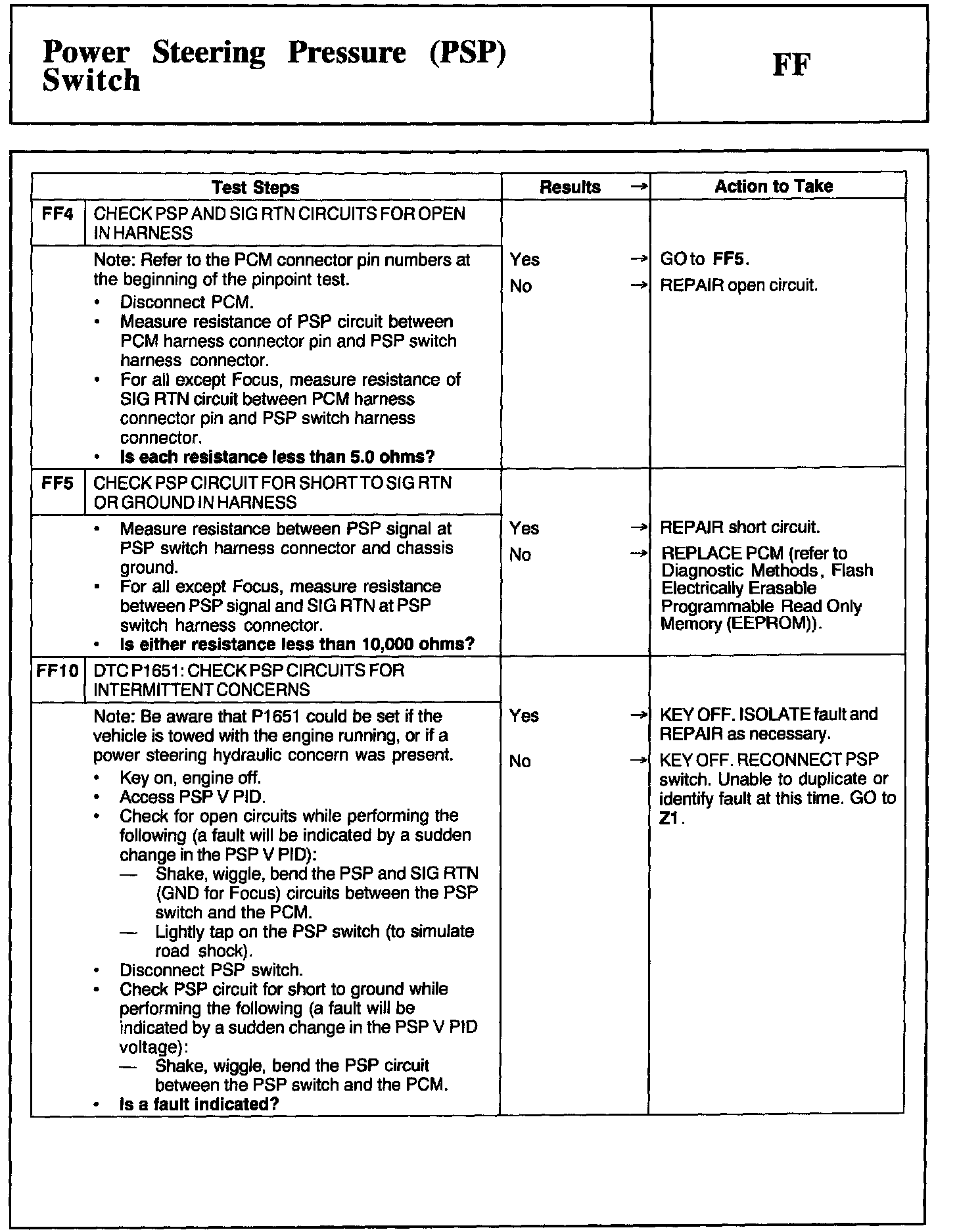

FF4 - FF10:
