Tests KM: A/C Clutch Relay, A/C Circuits

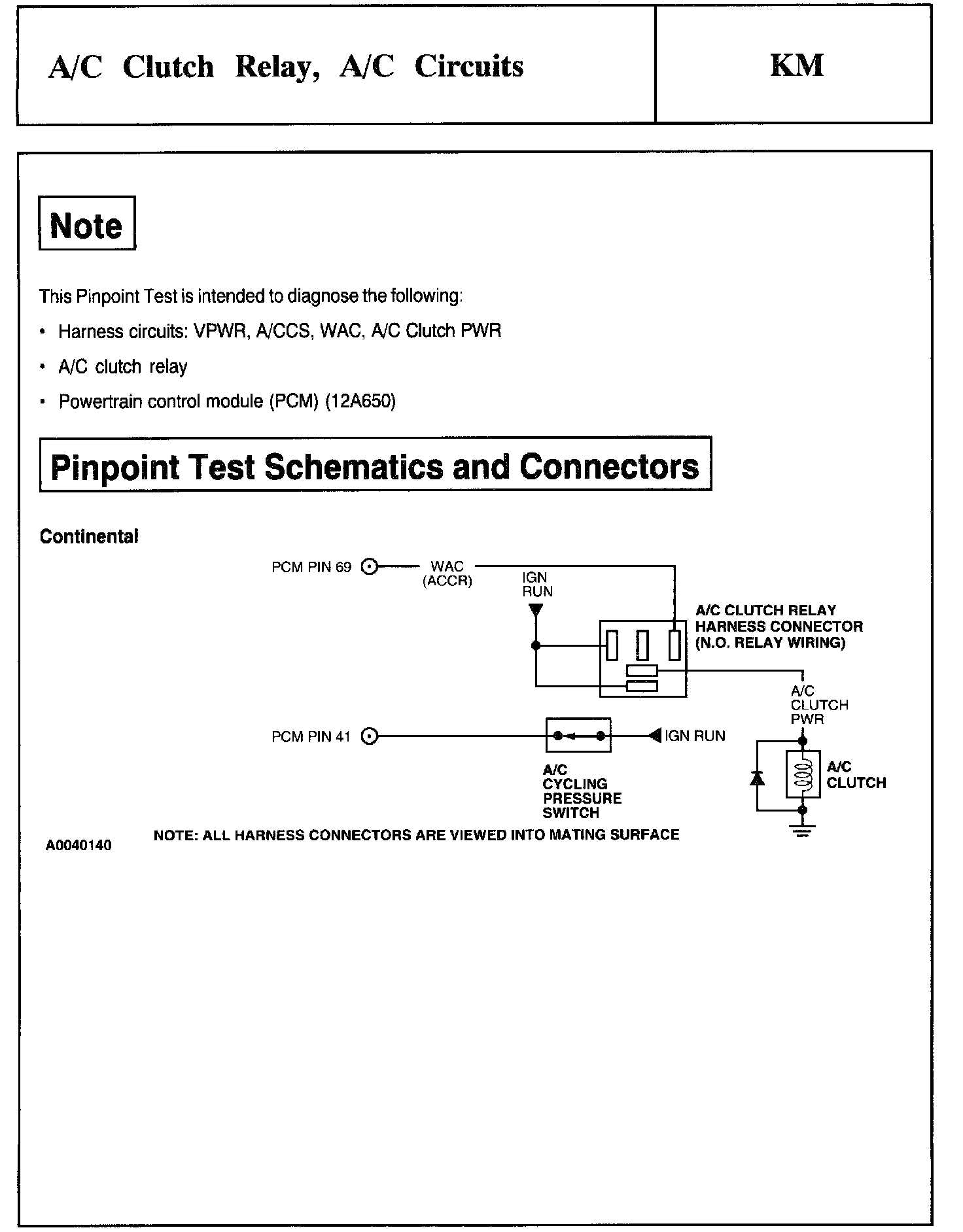

Note, Schematics and Connectors:

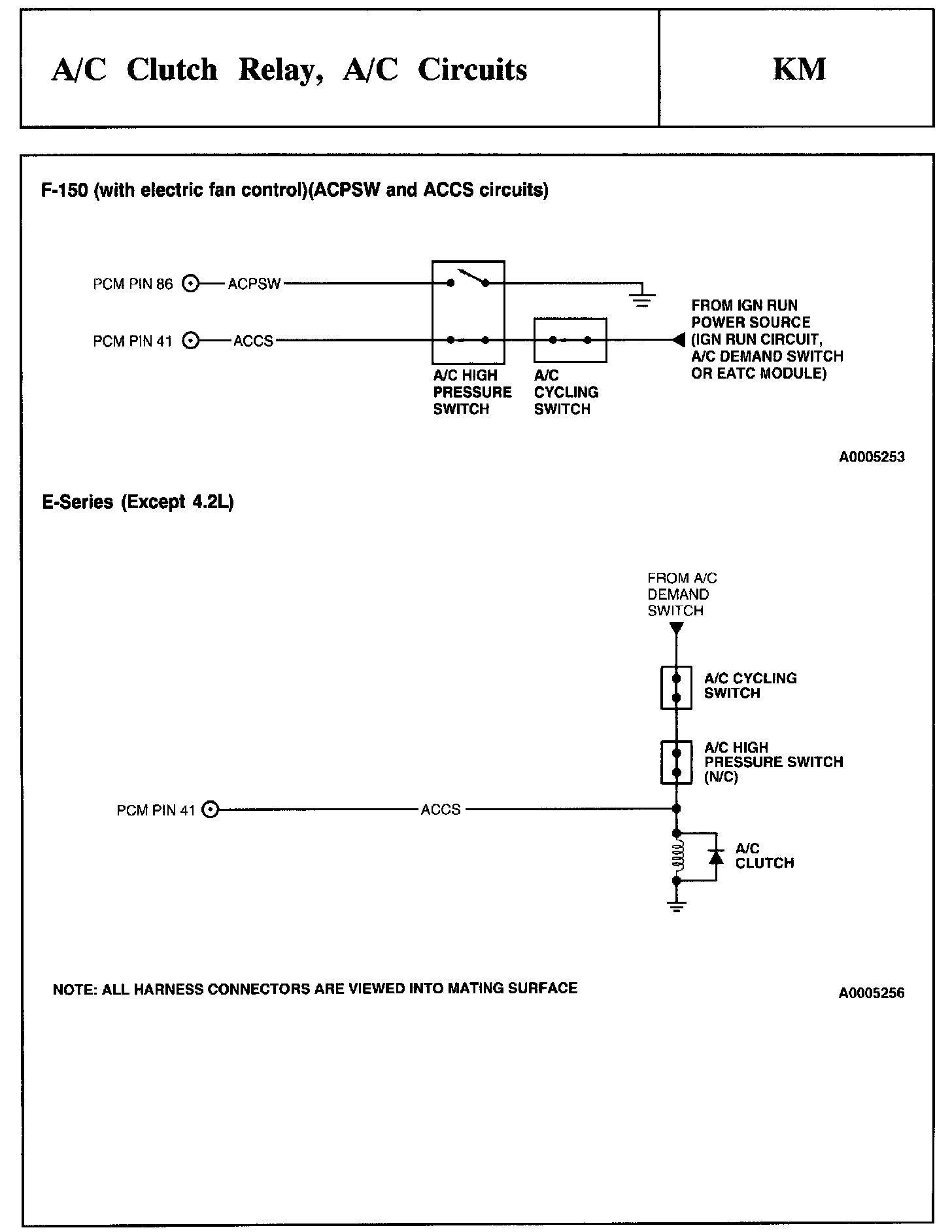

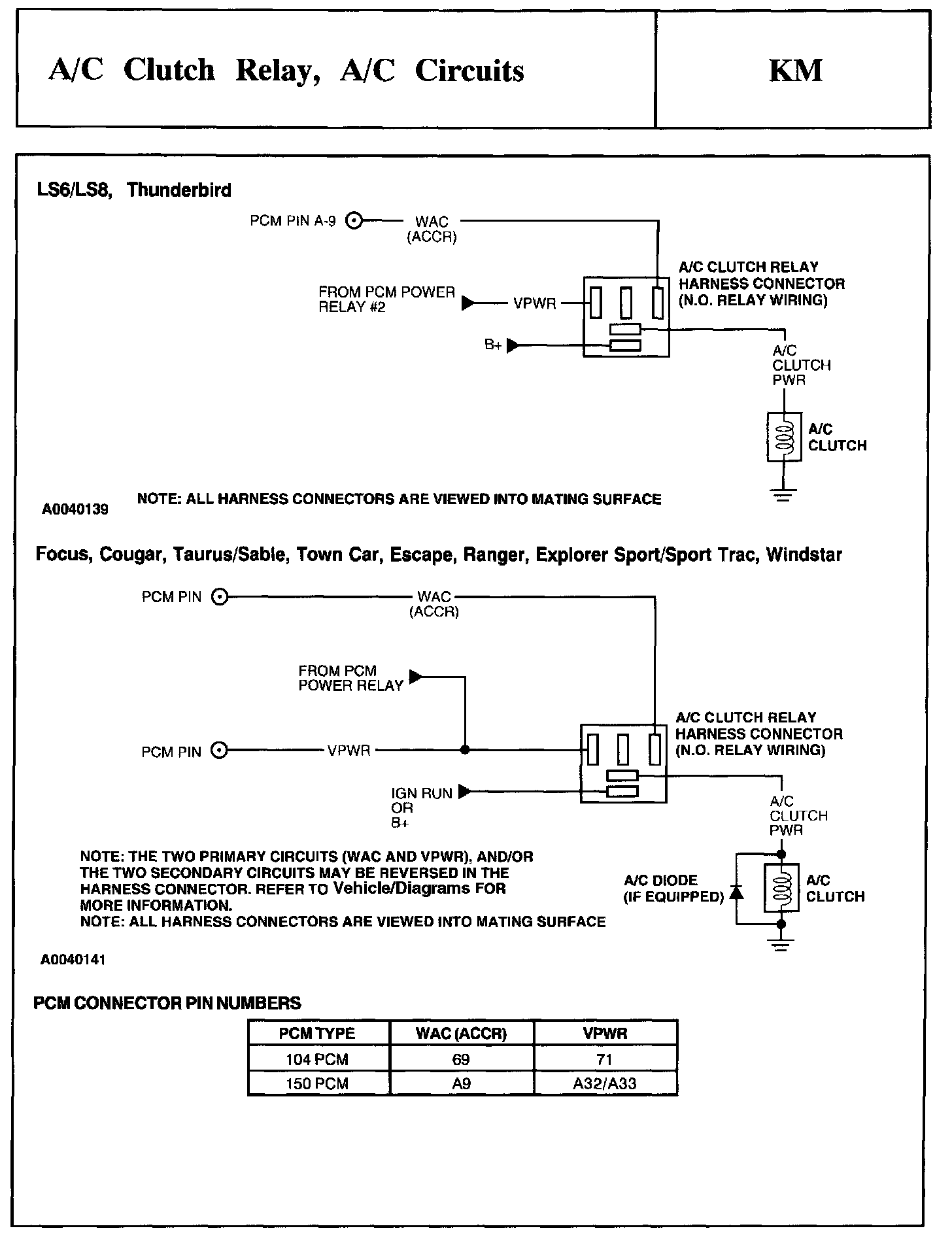

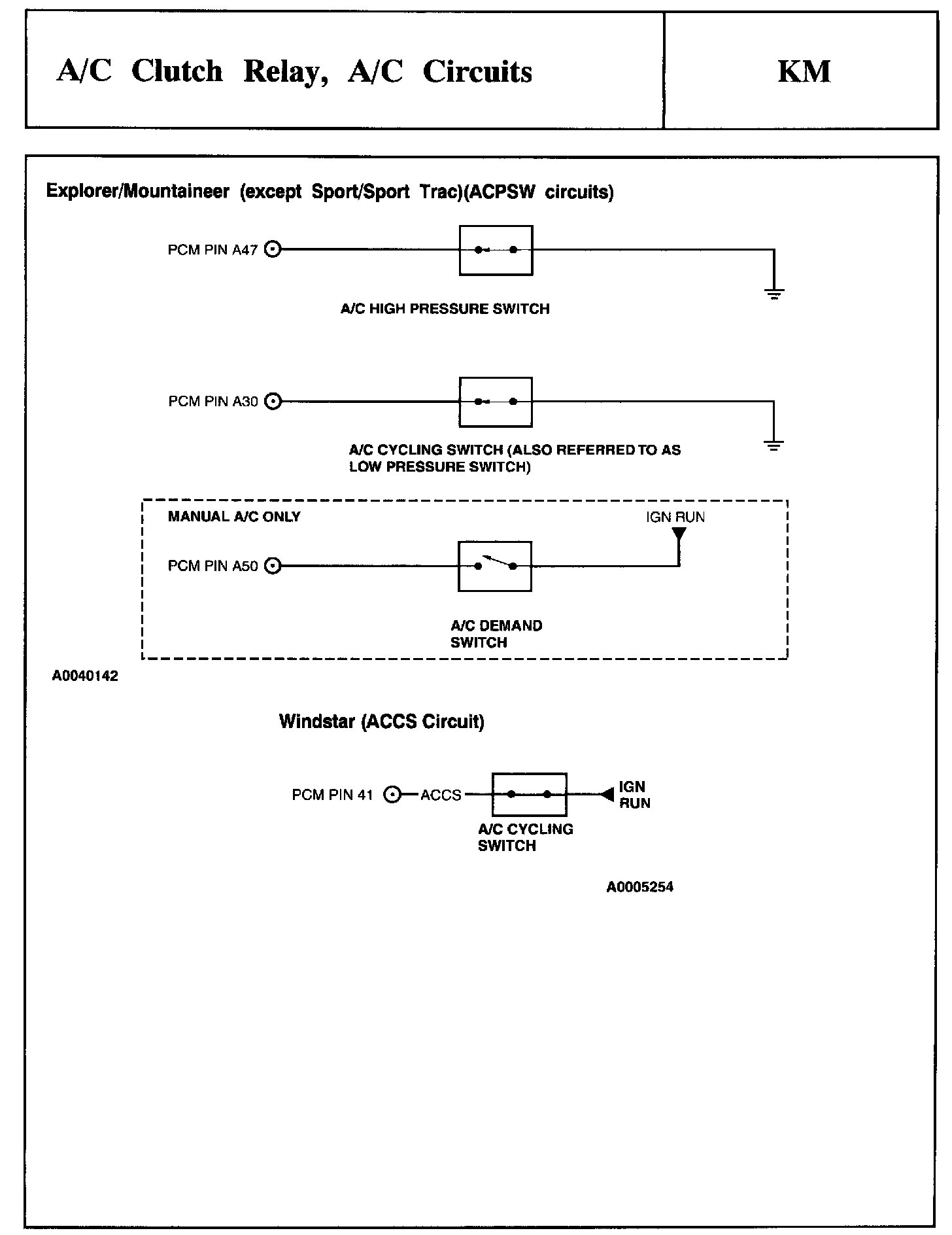

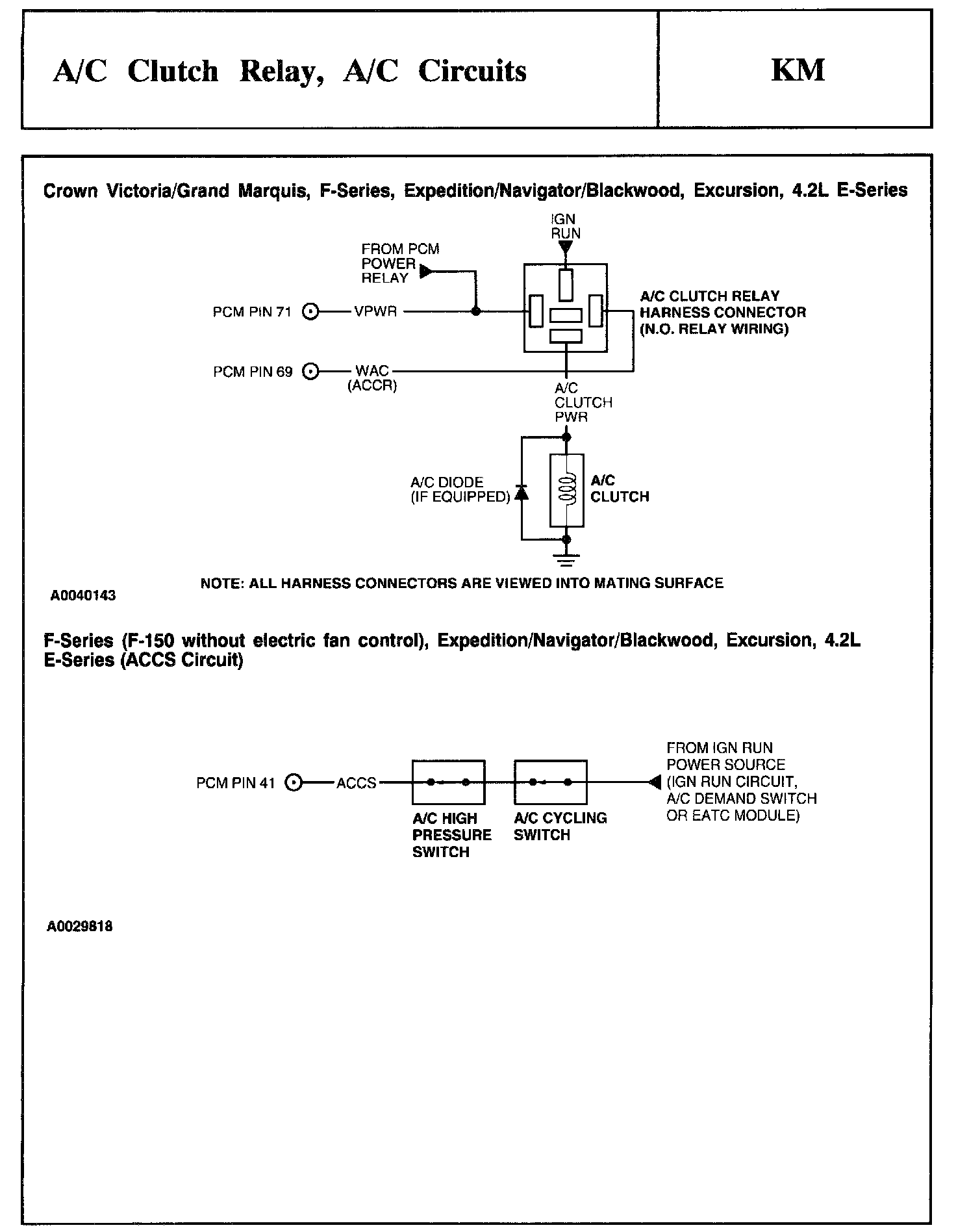

Test Schematic:

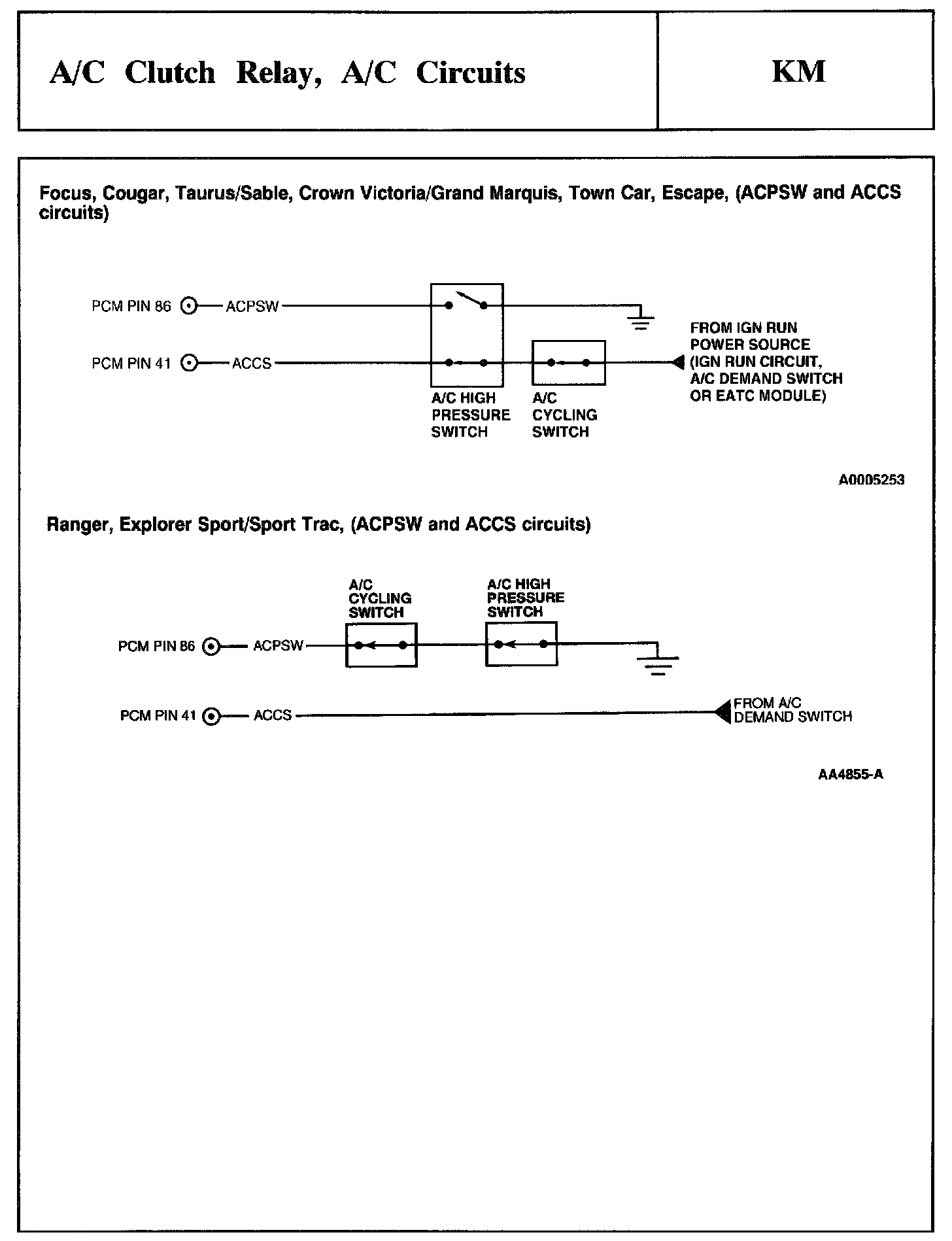

Test Schematic:

Test Schematic:

Test Schematic:

Test Schematic:

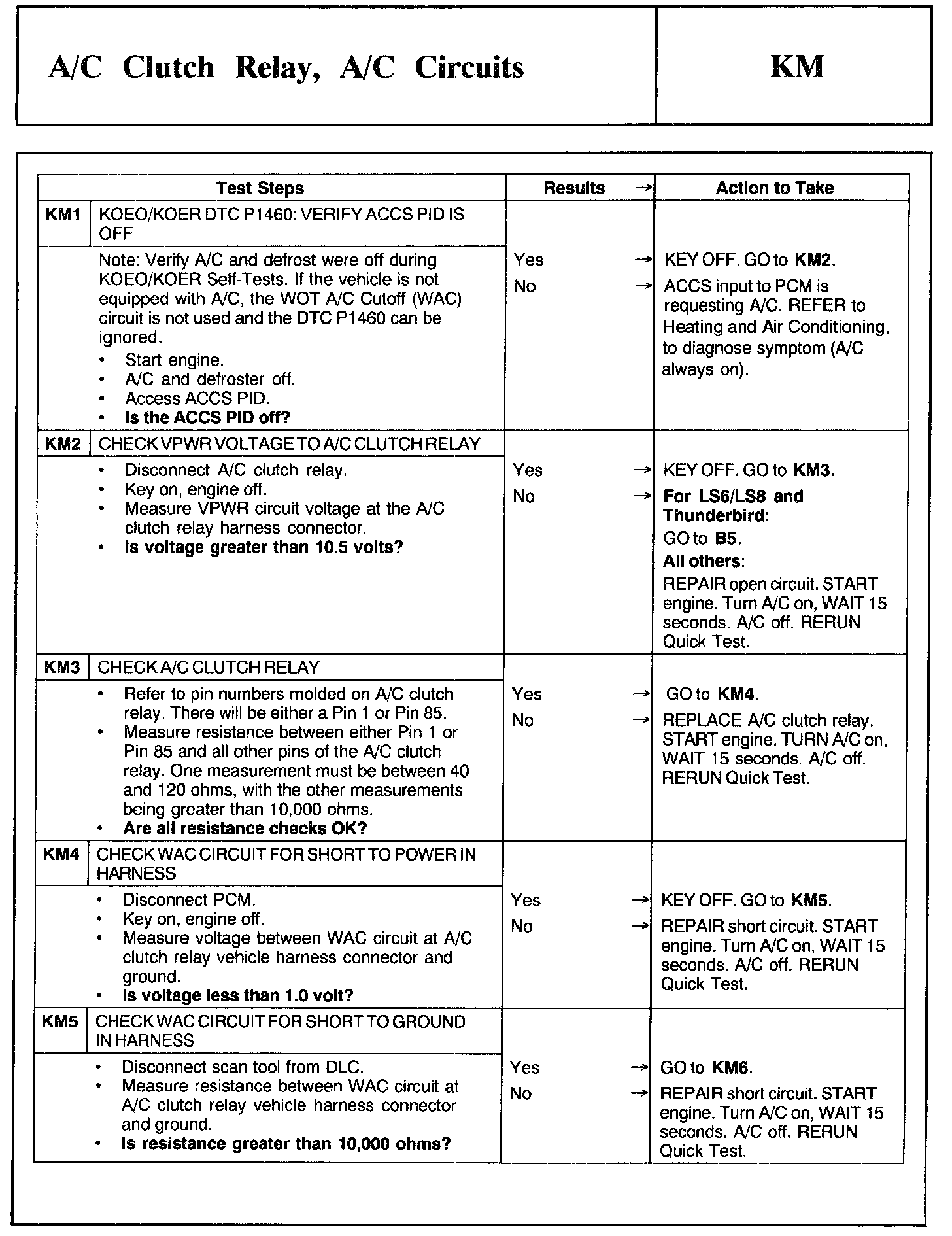

KM1 - KM5:

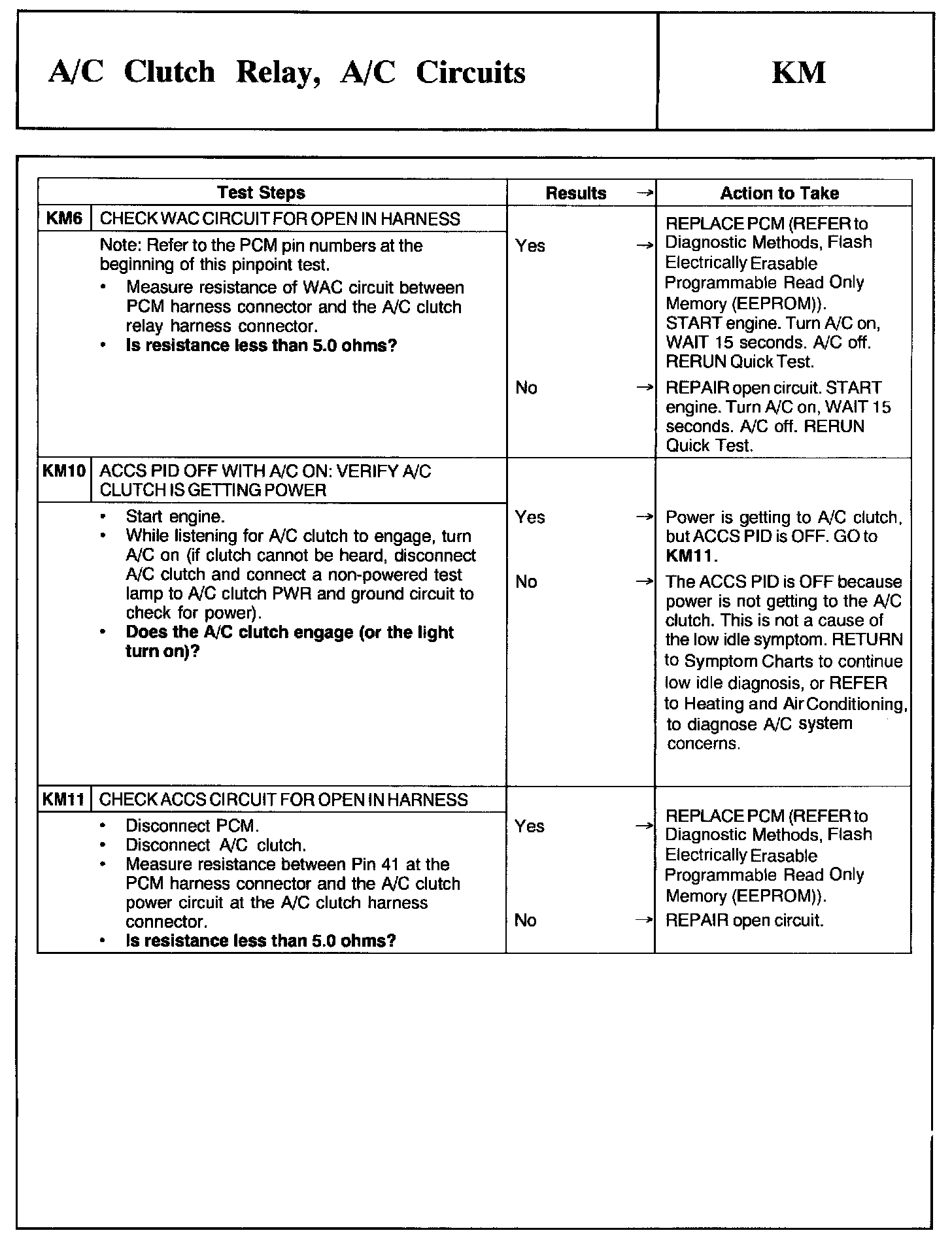

KM6 - KM11:

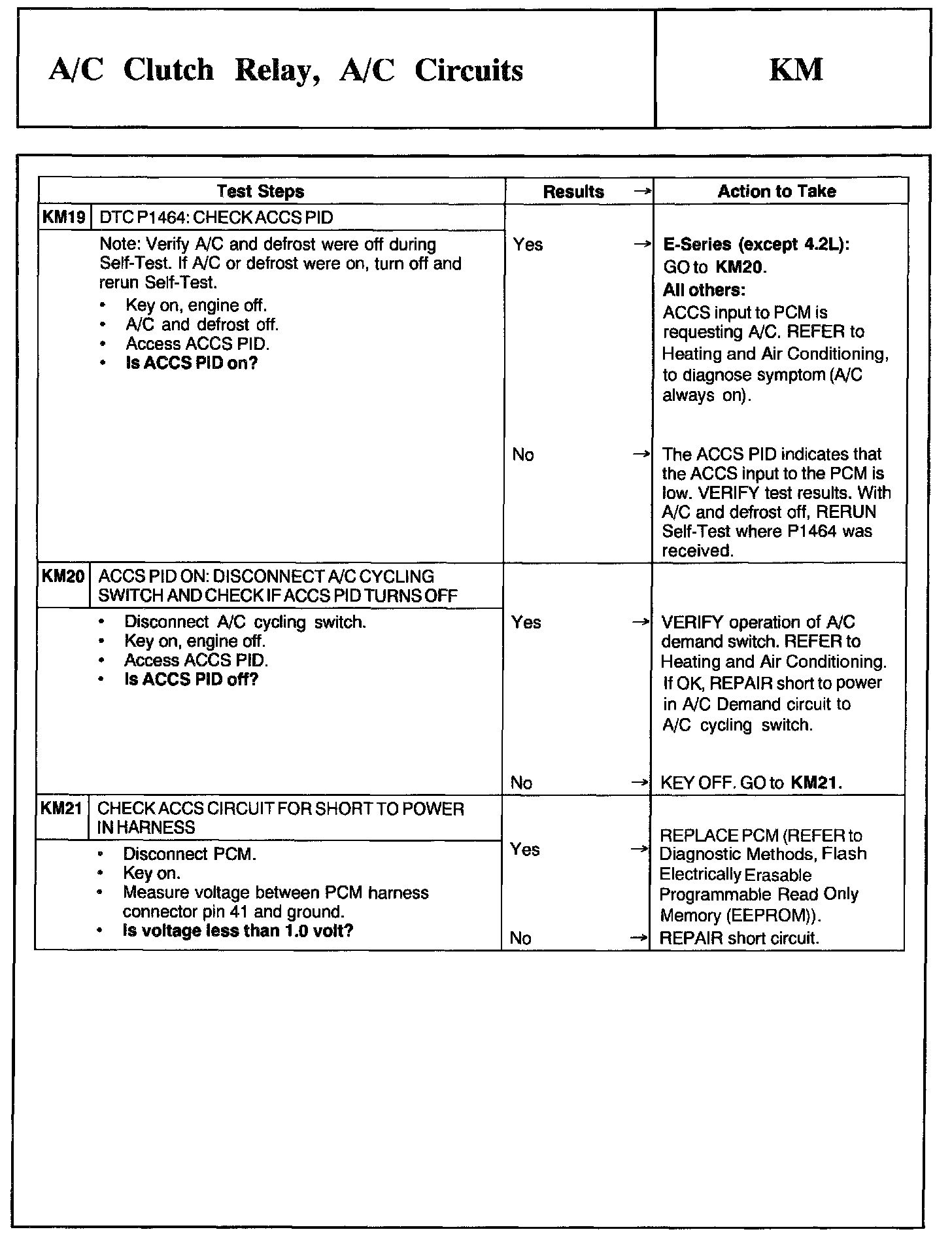

KM19 - KM21:

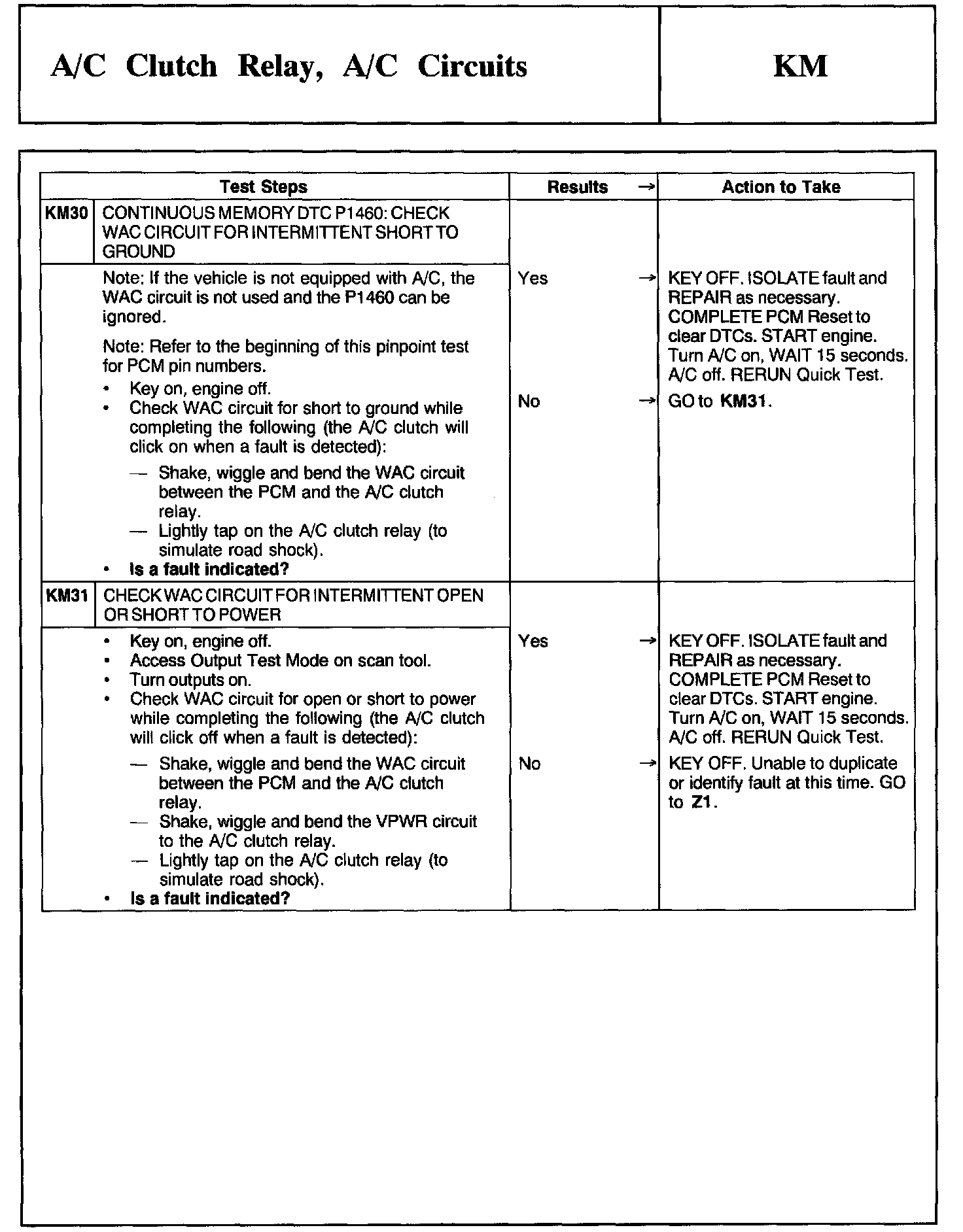

KM30 - KM31:
