Home >> Ford >> 2002 >> Excursion 2WD V10-6.8L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Electrical Diagrams

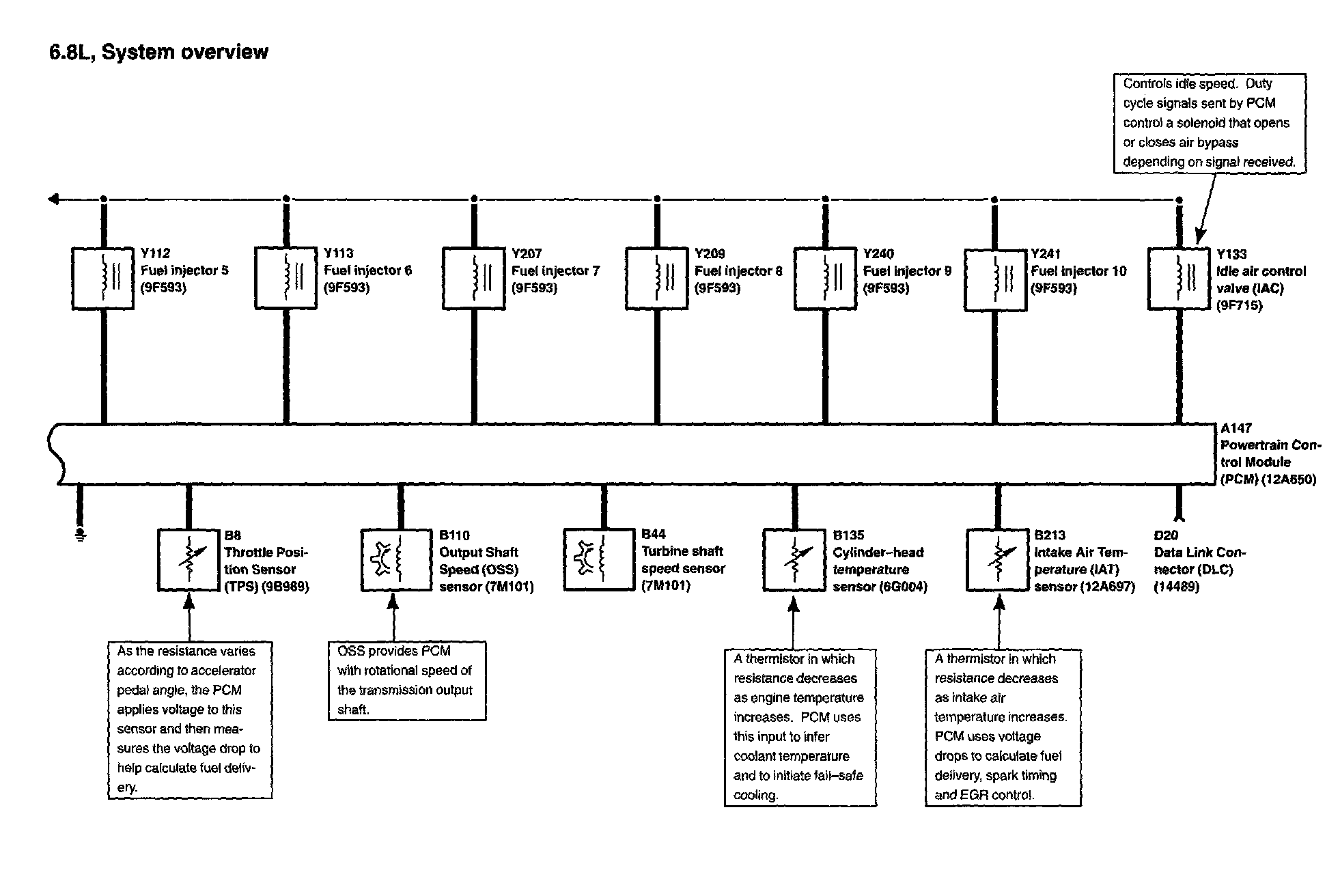

Diagram 25-1:

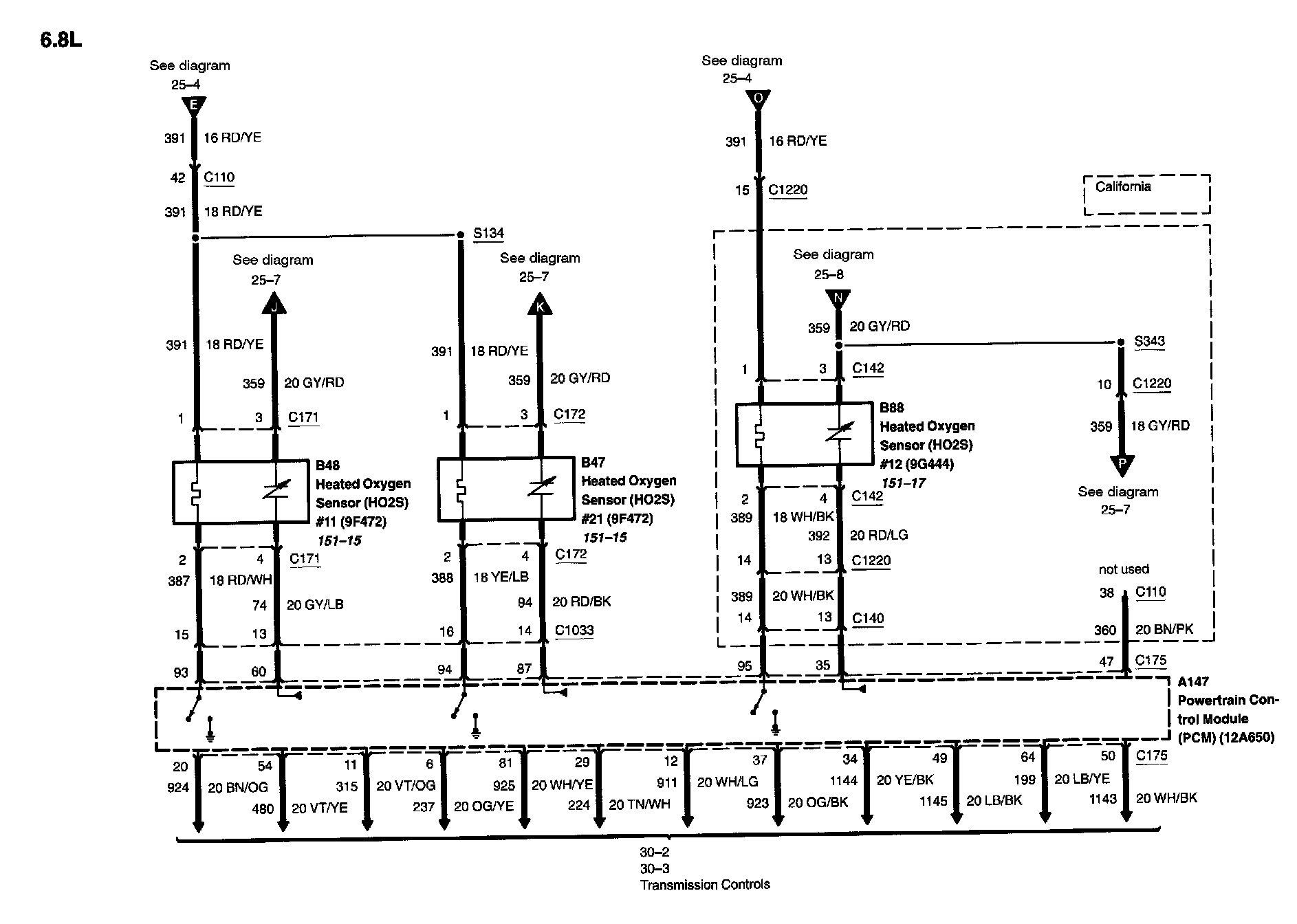

Diagram 25-2:

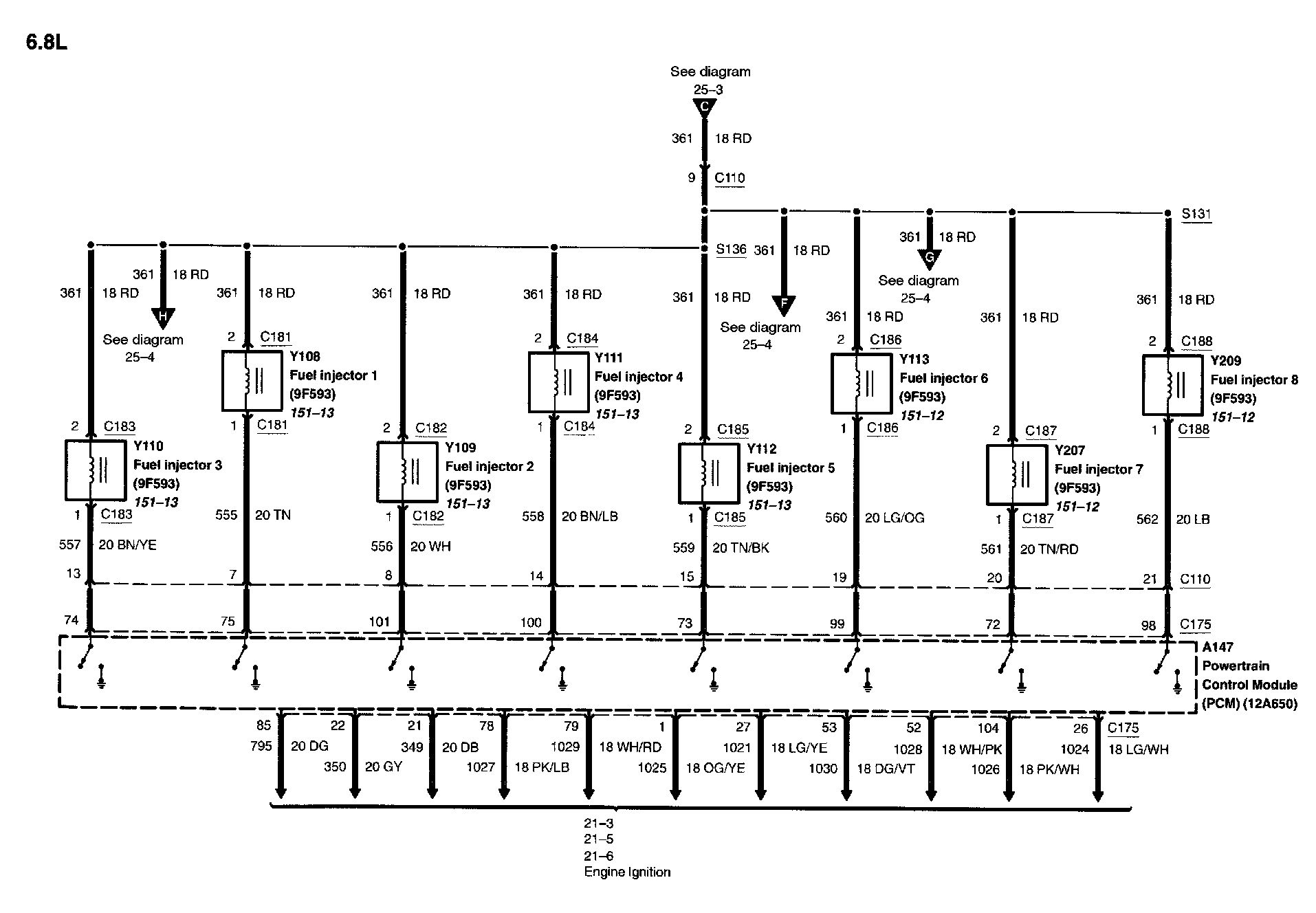

Diagram 25-3:

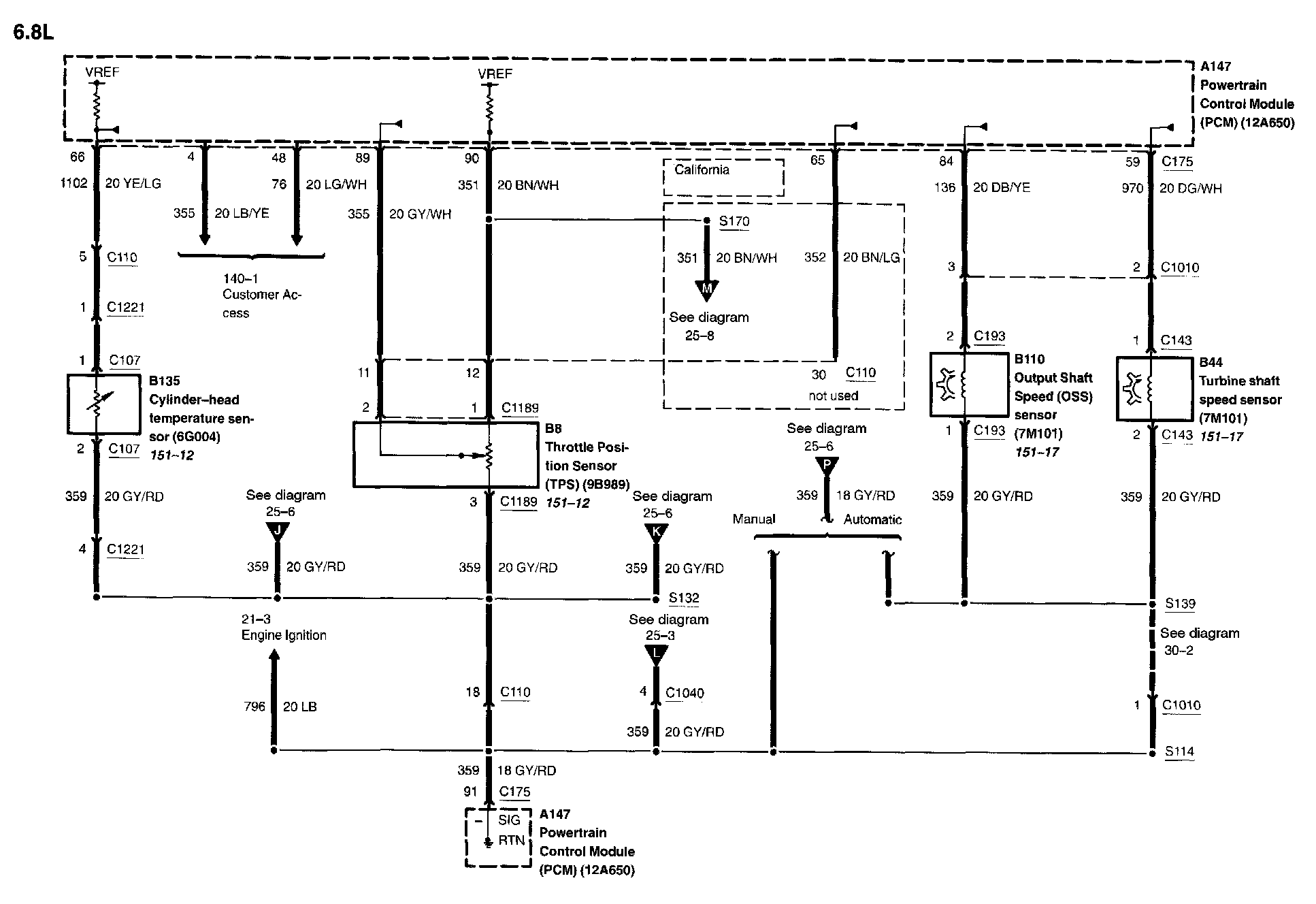

Diagram 25-4:

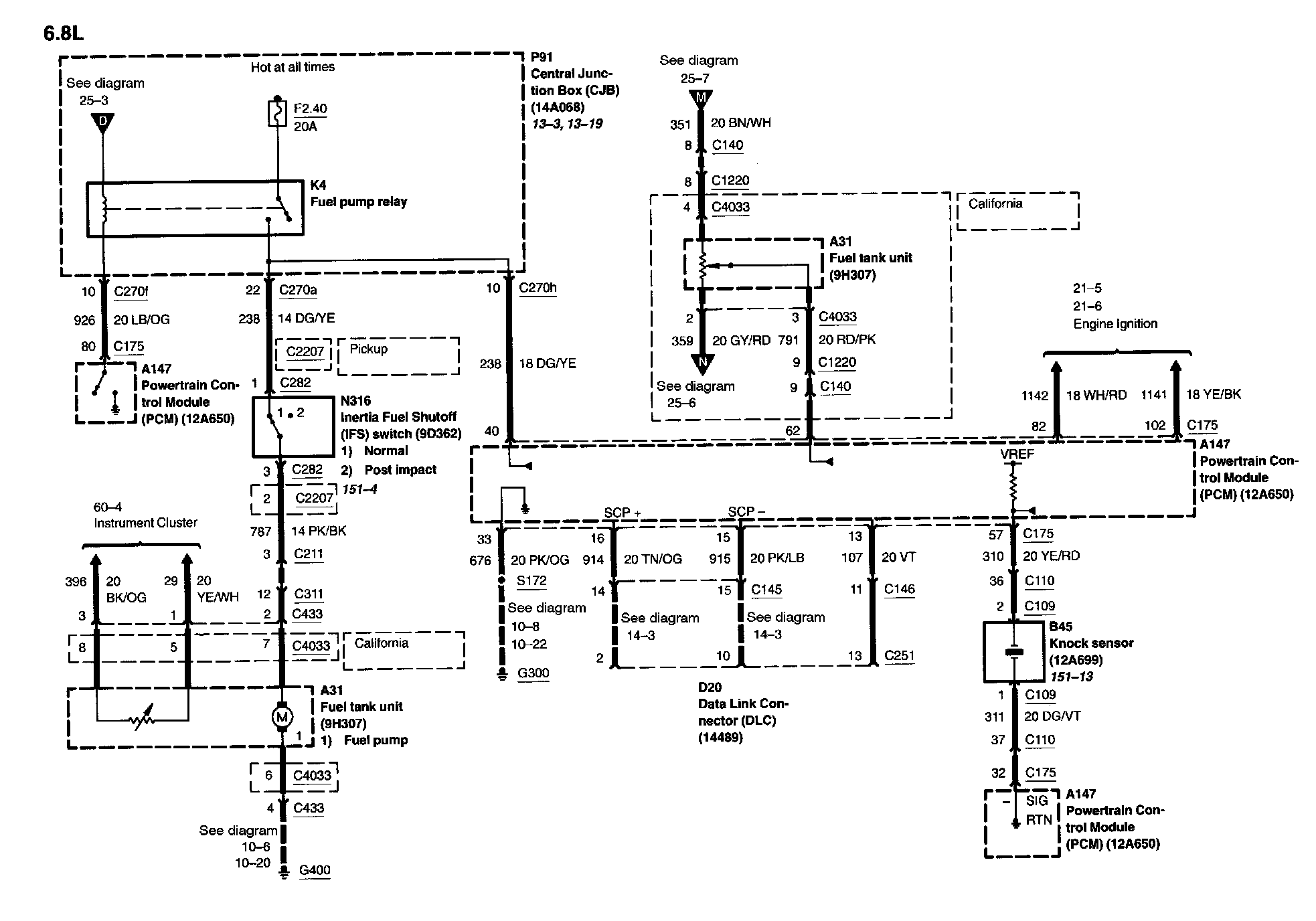

Diagram 25-5:

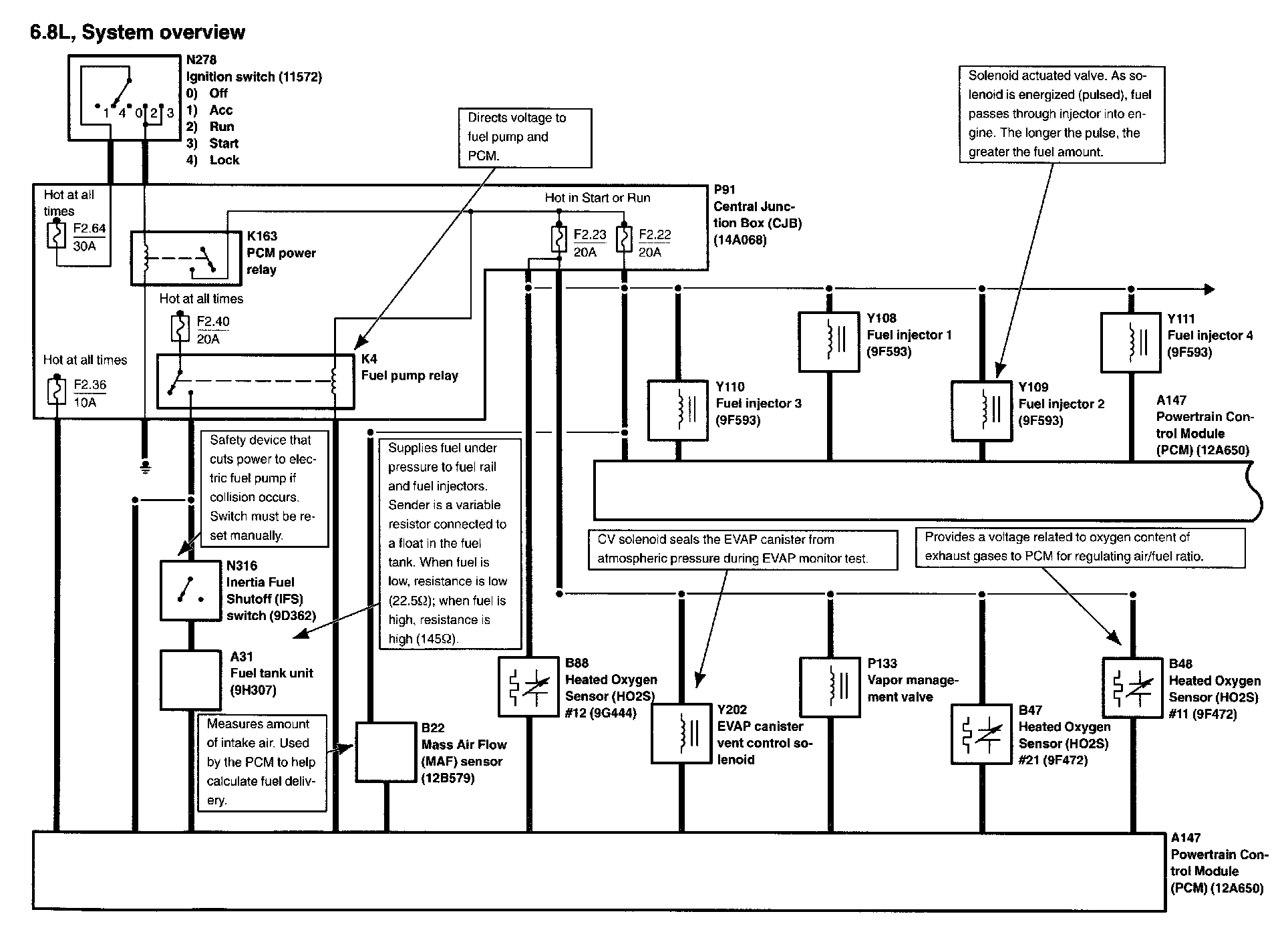

Diagram 25-6:

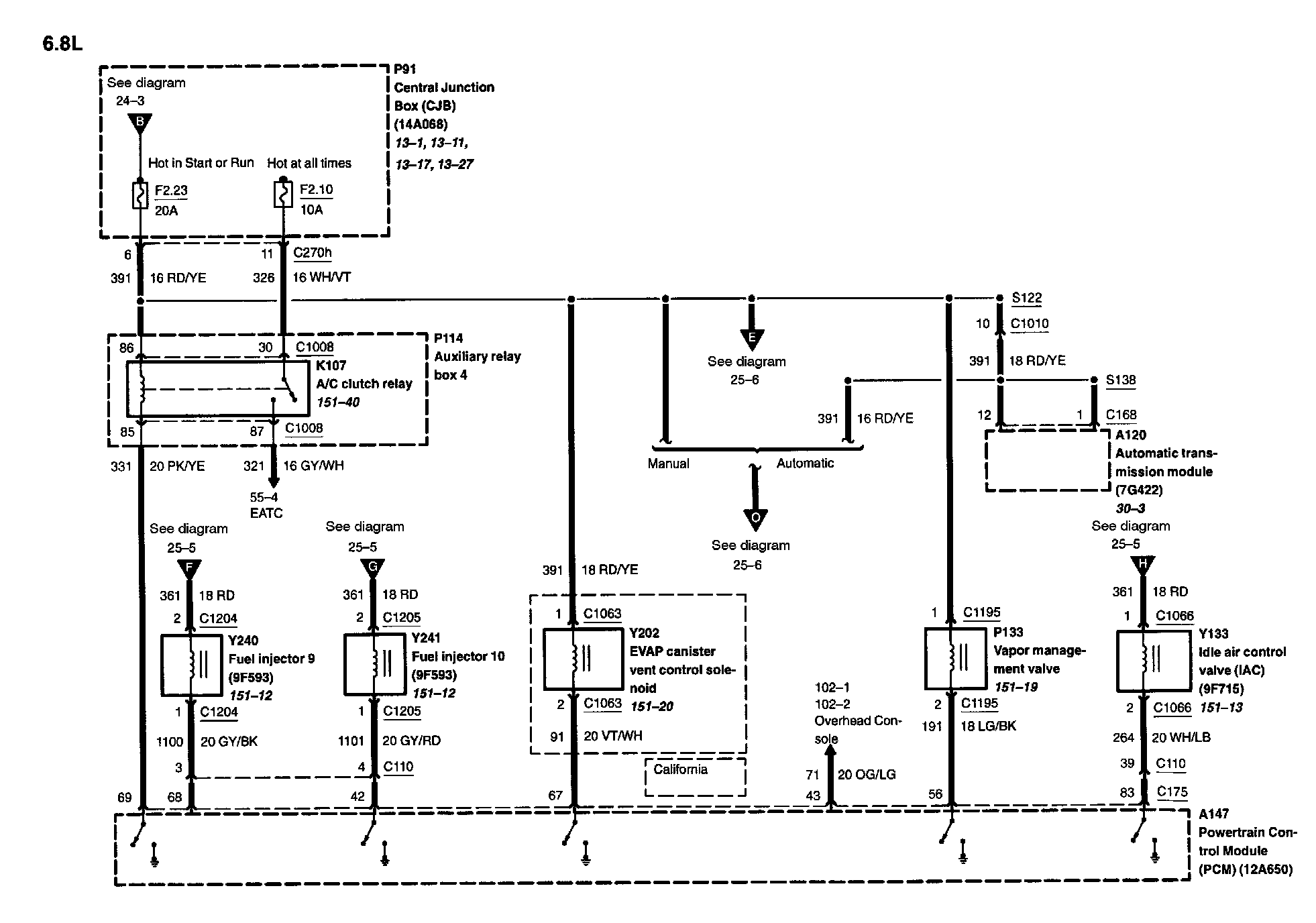

Diagram 25-7:

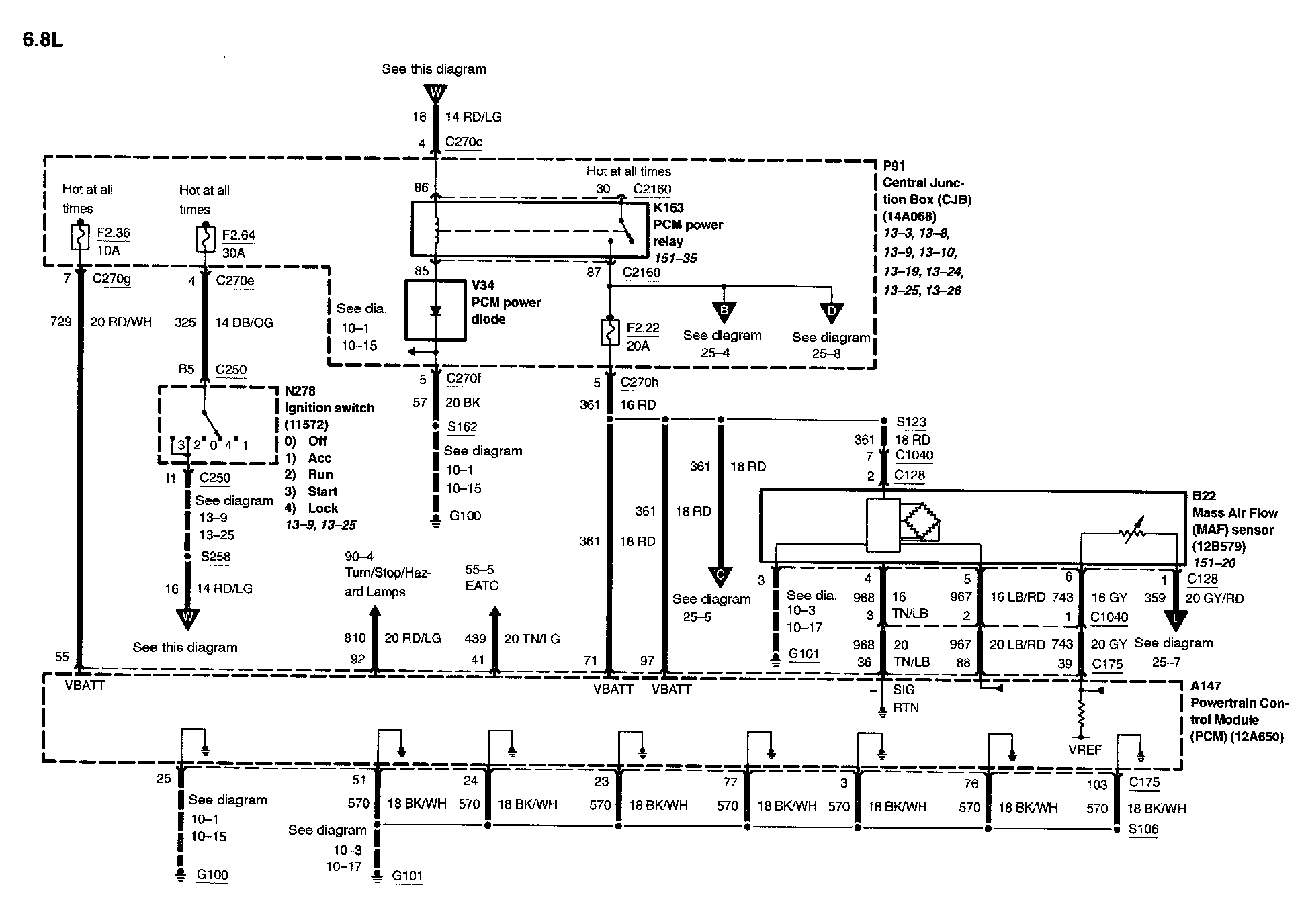

Diagram 25-8:
