Cable Adjustment-Shift Indicator

Cable Adjustment-Shift Indicator
1. Remove the upper instrument panel steering column cover.
2. Place the gearshift lever in the 0 position.
- Rotate the gearshift lever clockwise until it bottoms out (first gear), then rotate two detents counterclockwise (0 position).
3. Hang a three pound weight on the gearshift lever.





4. Center the pointer in the middle of the O position.

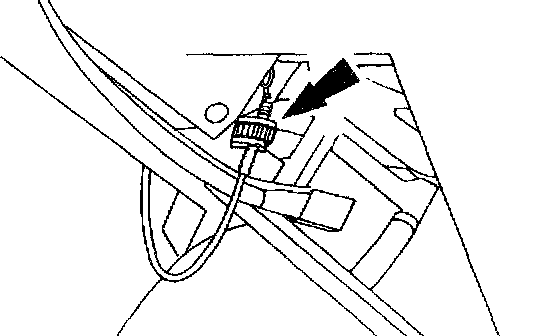

- Rotate the thumb wheel located on the bottom of the steering column to adjust the pointer.
5. Remove the three pound weight.
6. Carefully move the gearshift lever from detent to detent and compare with transmission settings. Readjust if necessary.
7. Install the upper instrument panel steering column cover.
