Transmission and Drivetrain: Service and Repair

Axle Housing Casting Porosity (Holes in Casting) Repair

NOTE: Do not disassemble the carrier. Make repairs on the outside of the axle.

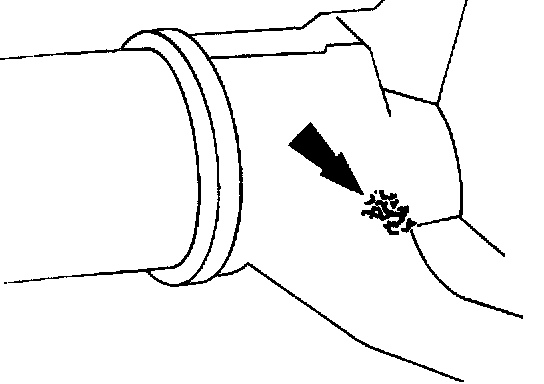

NOTE: Casting porosity is a condition where occasionally gas bubbles will form during the casting process leaving small pockets in the metal that may cause the axle housing to show signs of dampness.





1. To fill small pockets, peon in a small amount of body lead.
2. Seal the pocket.
- Use Devcon Aluminum Liquid F2 or equivalent meeting Ford specification M-3D35A (E).
3. To fill large pockets, drill and tap a shallow hole for a small setscrew. Install the setscrew and seal it.
- Use Devcon Aluminum Liquid F2 or equivalent meeting Ford specification M-3D35A (E).
