Compressor Bracket

REMOVAL
1. Remove the drive belt from the A/C clutch pulley.

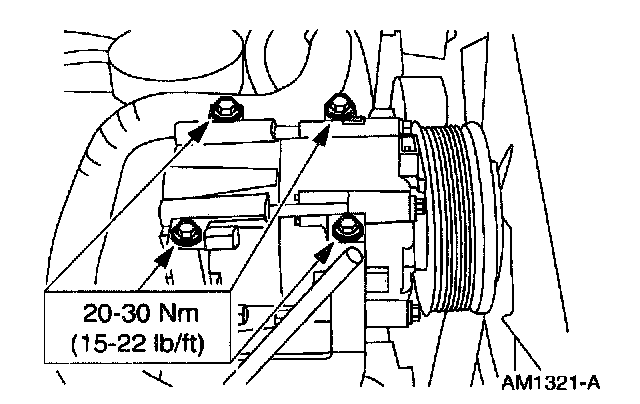

2. Remove the bolts and reposition the A/C compressor.

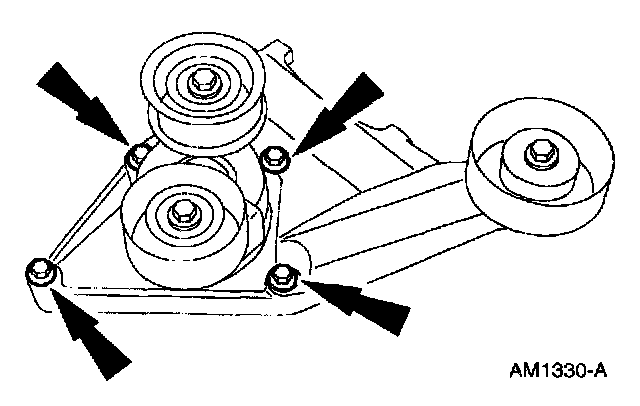

3. Remove the bolts and remove the A/C compressor bracket.

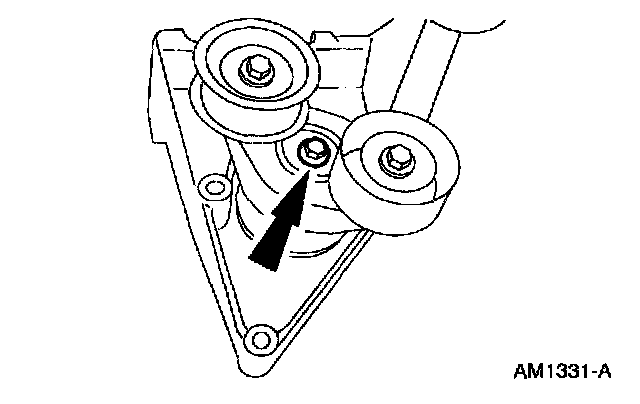

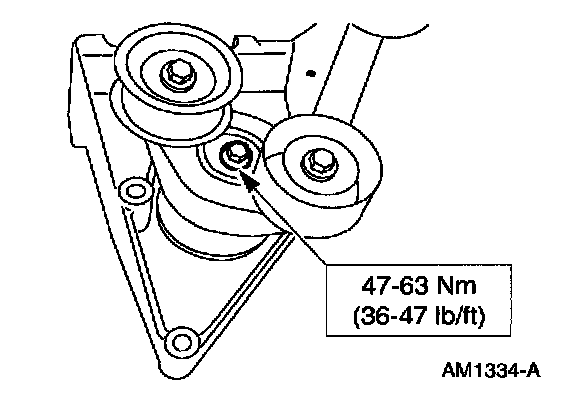

4. Remove the bolt and remove the drive belt tensioner.

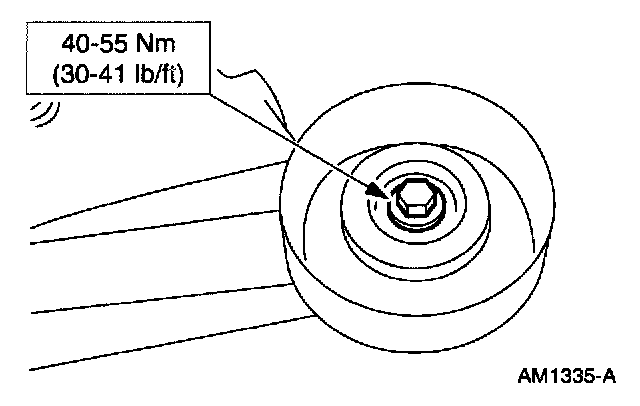

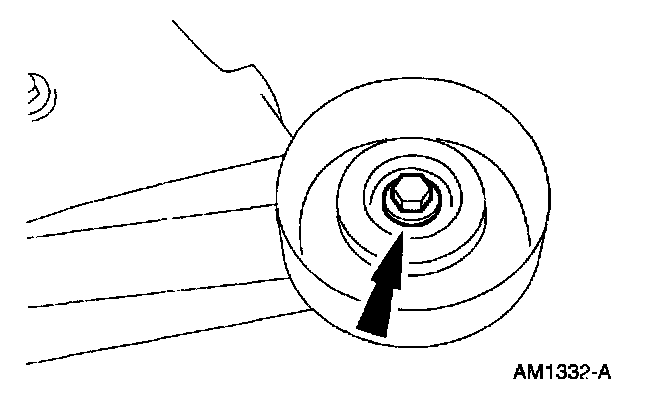

5. Remove the bolt and remove the idler pulley.

INSTALLATION

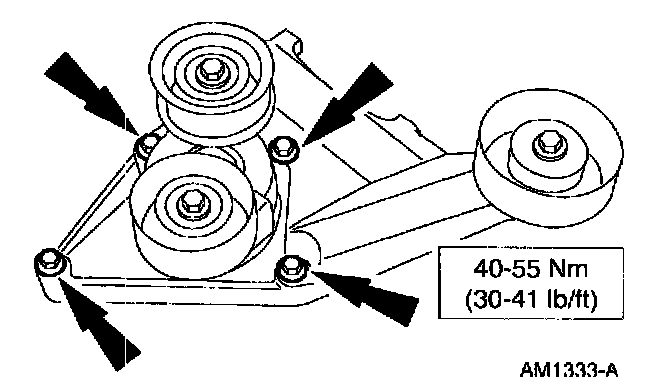

1. Follow the removal procedure in reverse order.
