Test H: Auxiliary Powertrain Control System

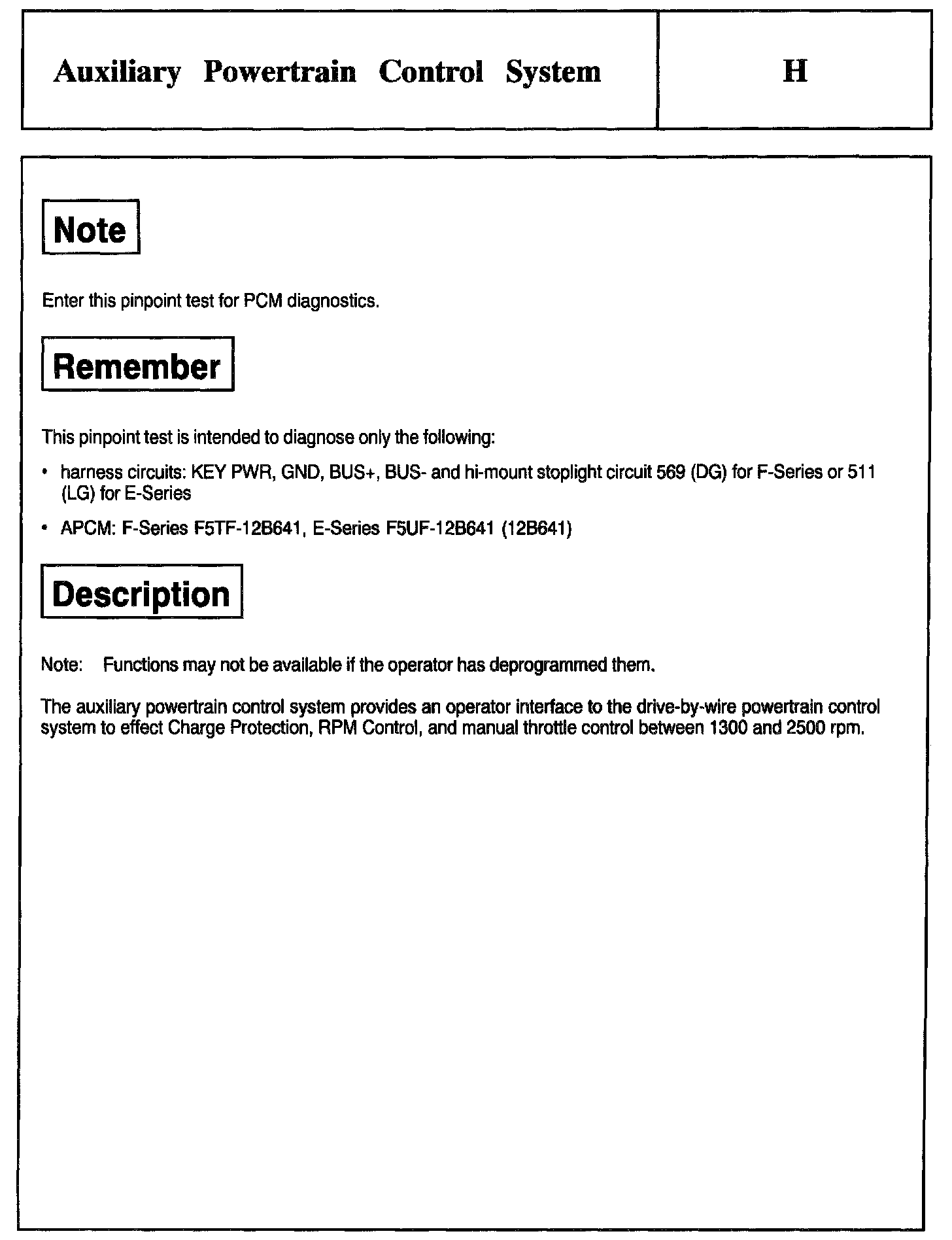

Note, Remember and Description:

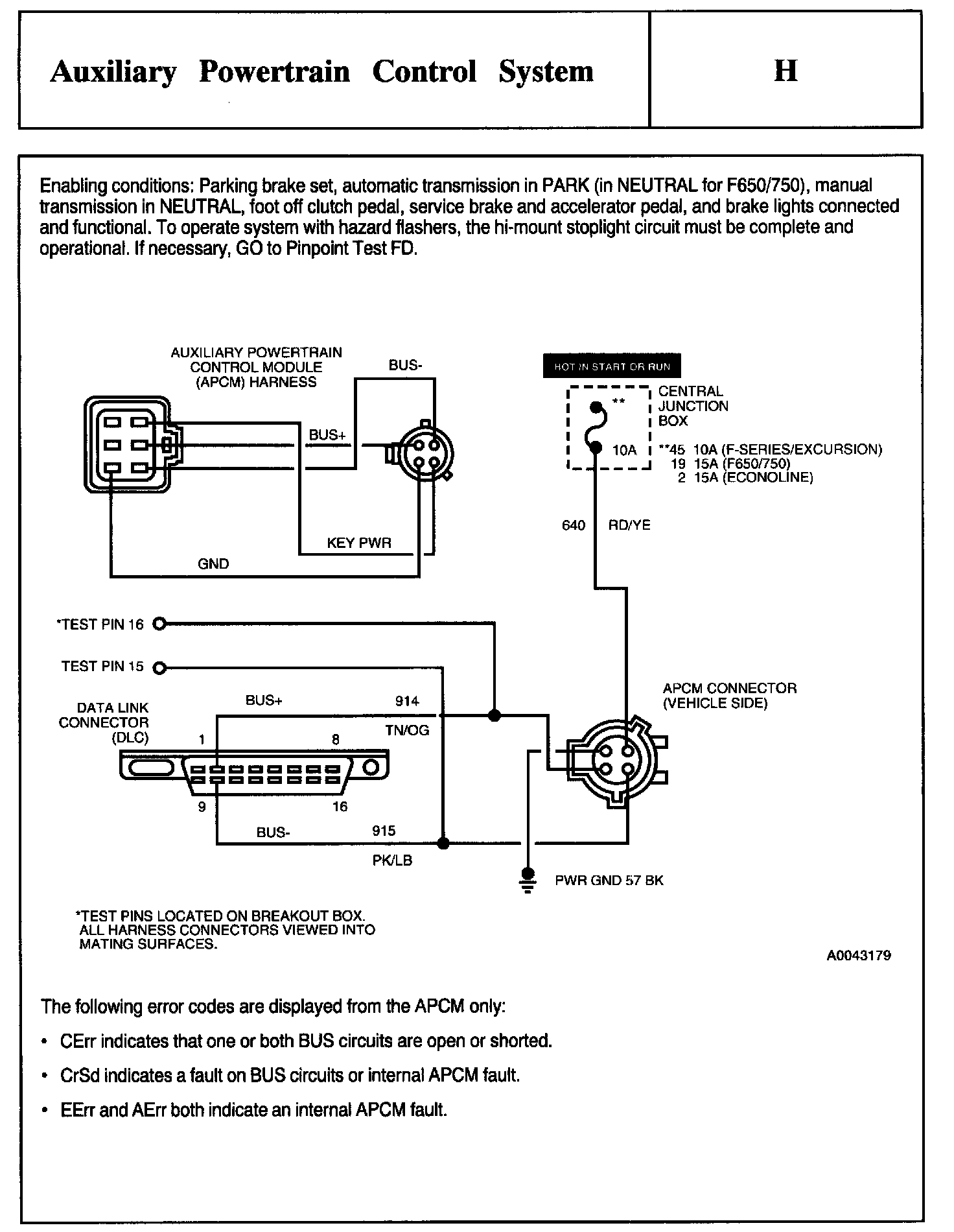

Description, Schematic:

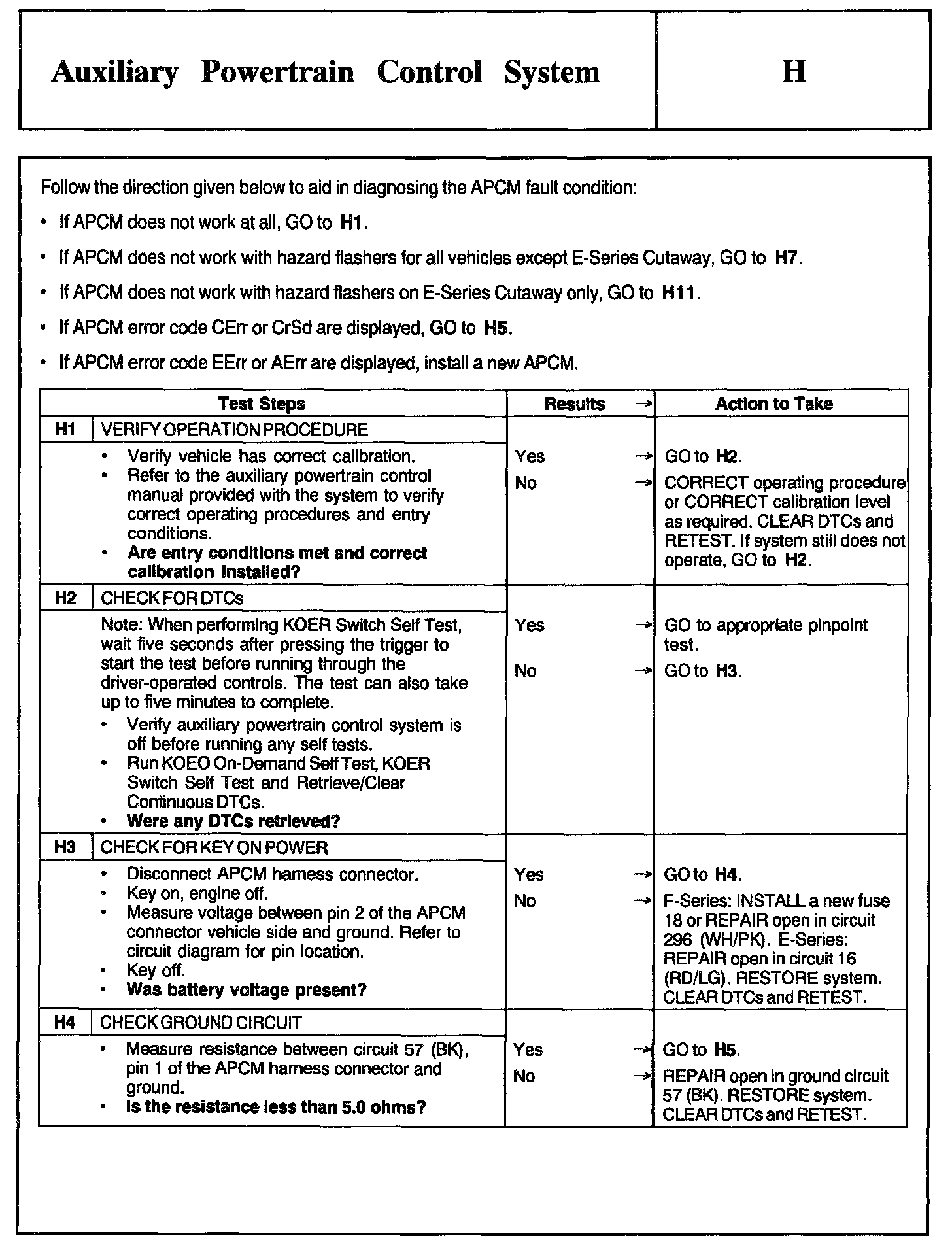

H1 - H4:

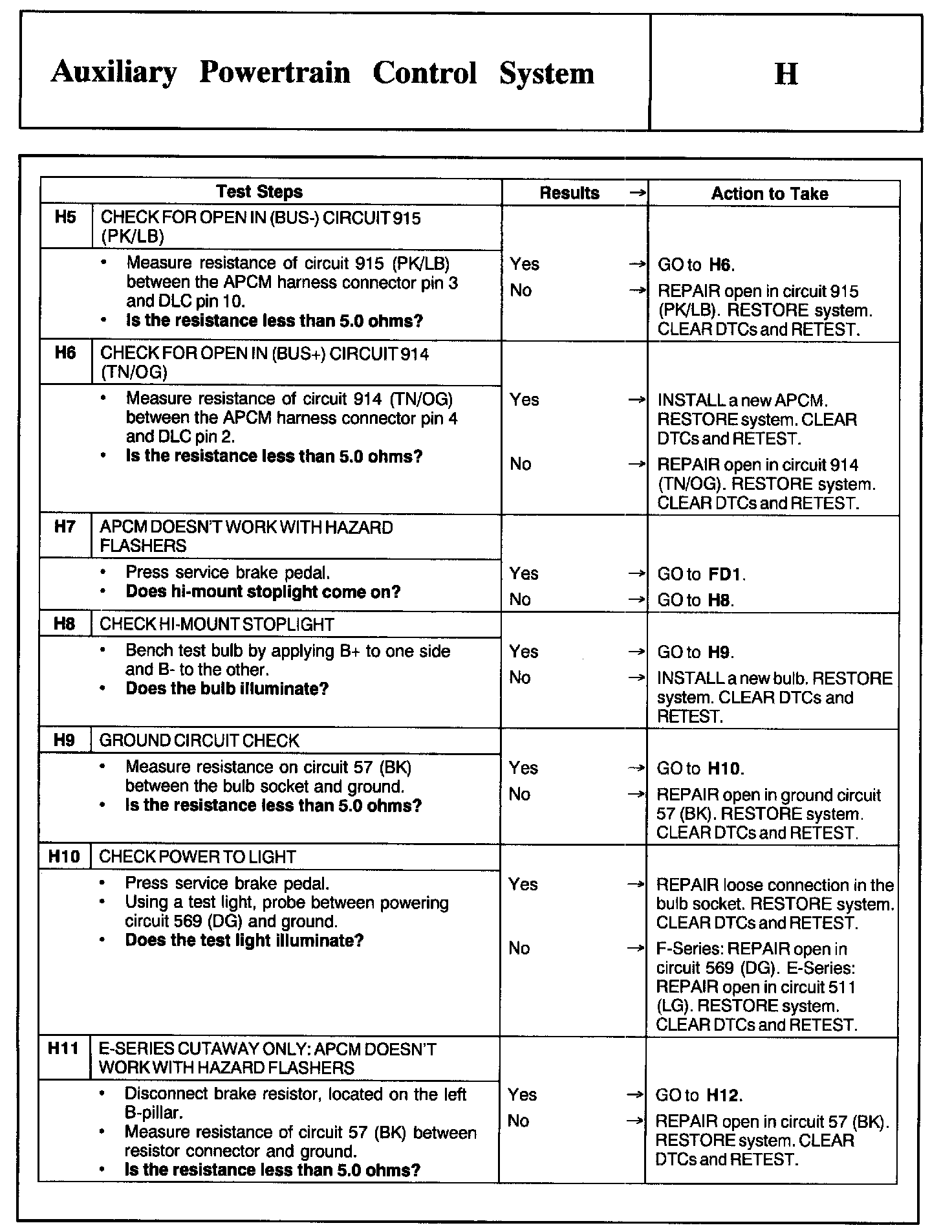

H5 - H11:

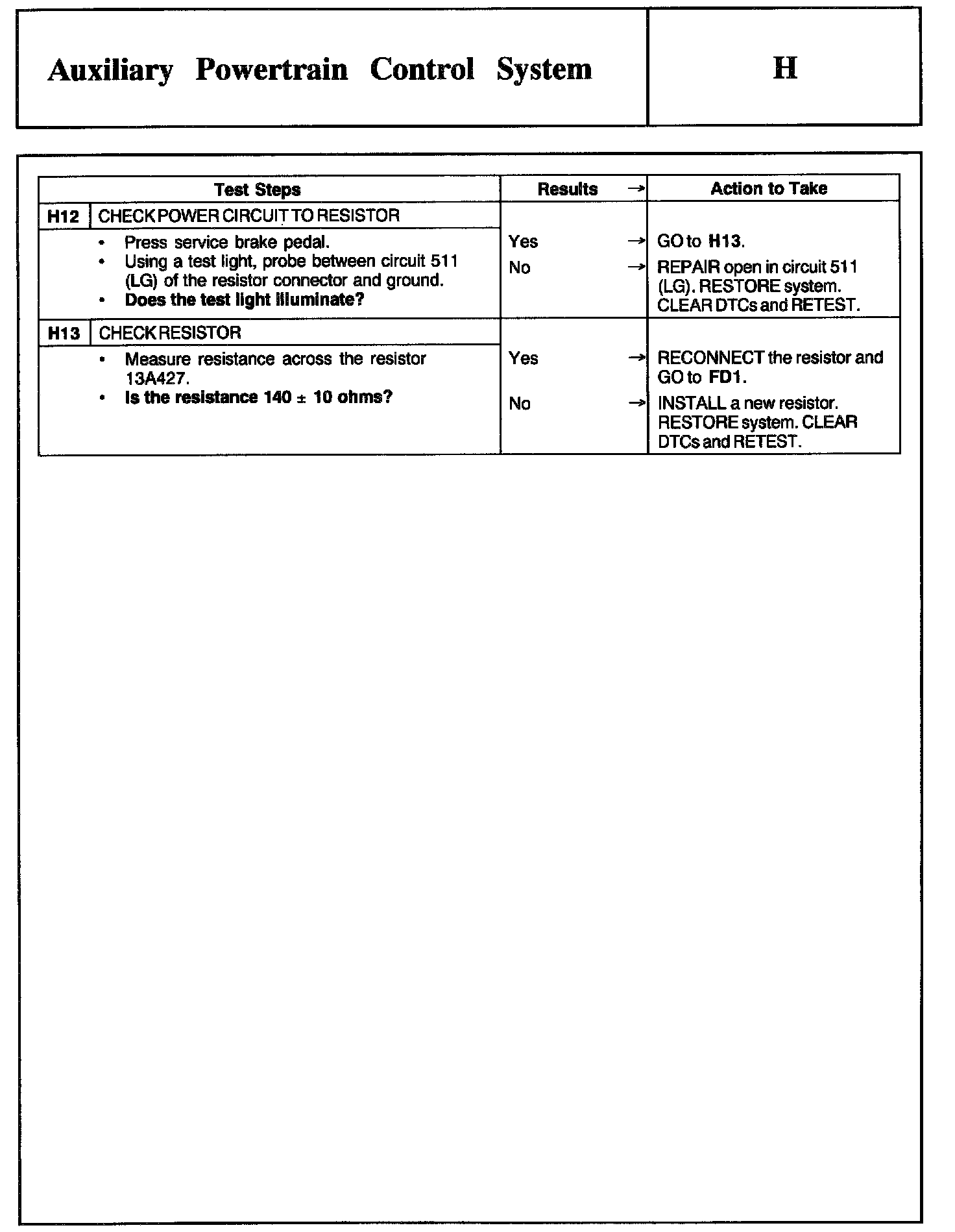

H12 - H13:
