Tests DC: Injection Control Pressure (ICP) Sensor

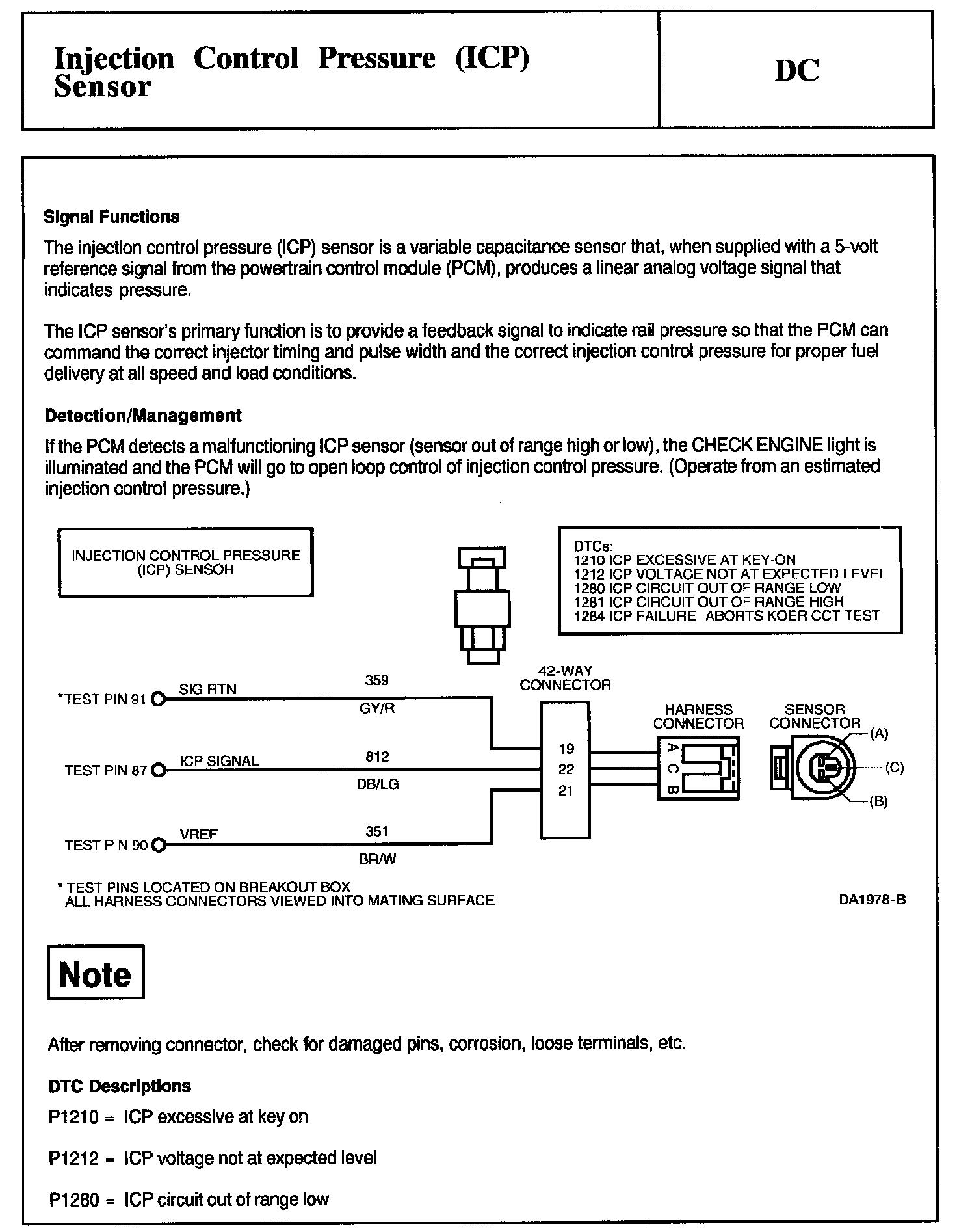

Description, Schematic and Note:

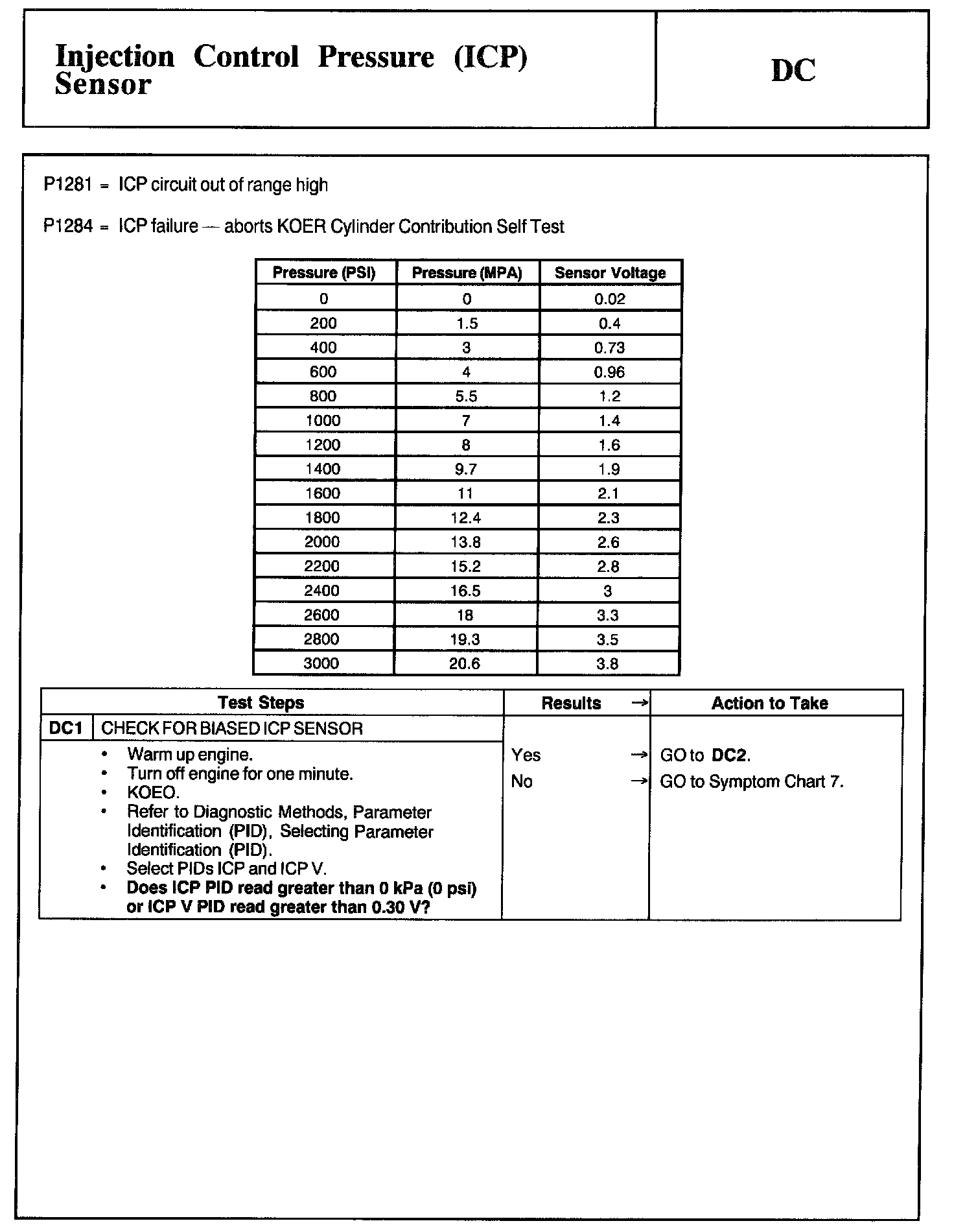

Table and Test DC1:

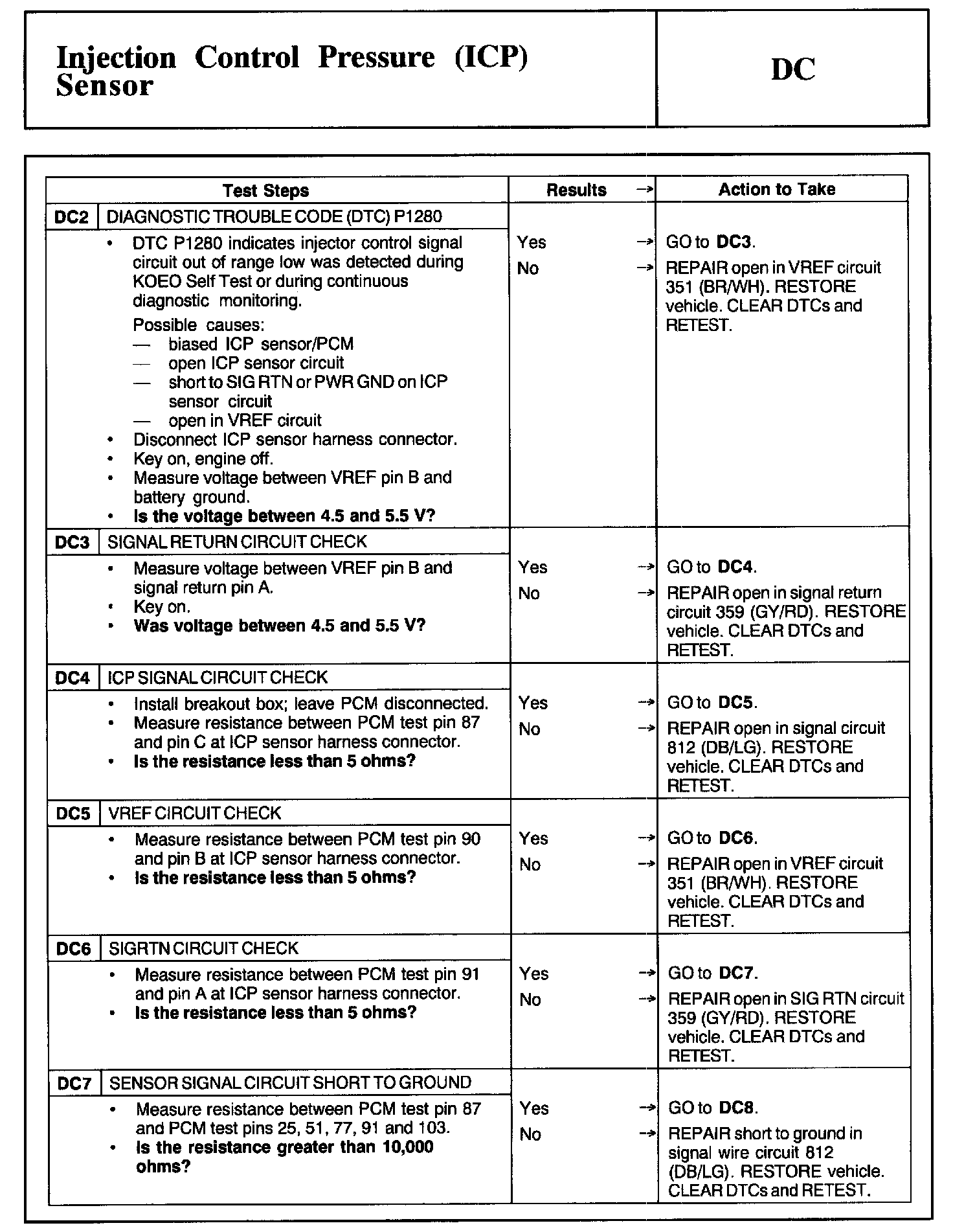

DC2 - DC7:

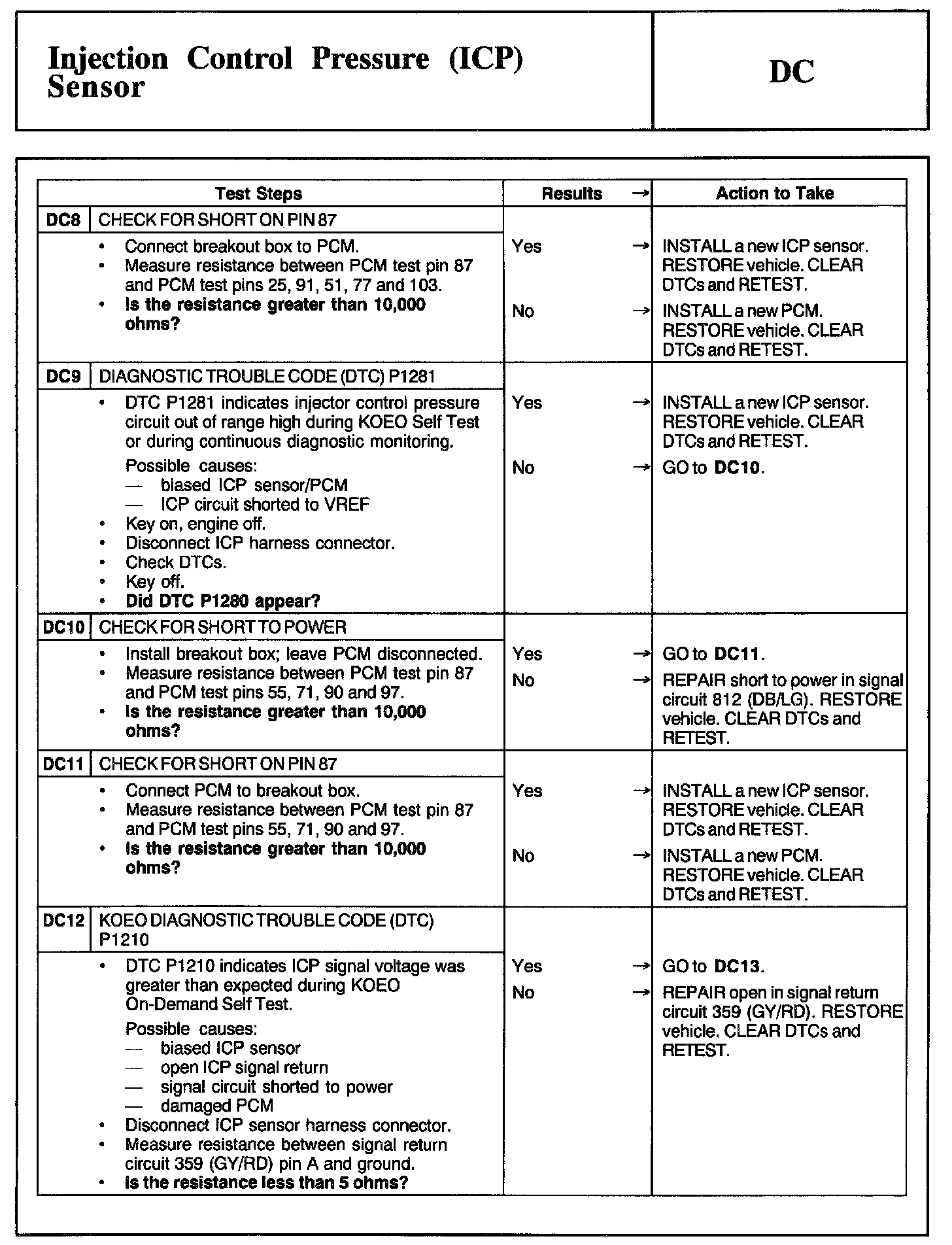

DC8 - DC12:

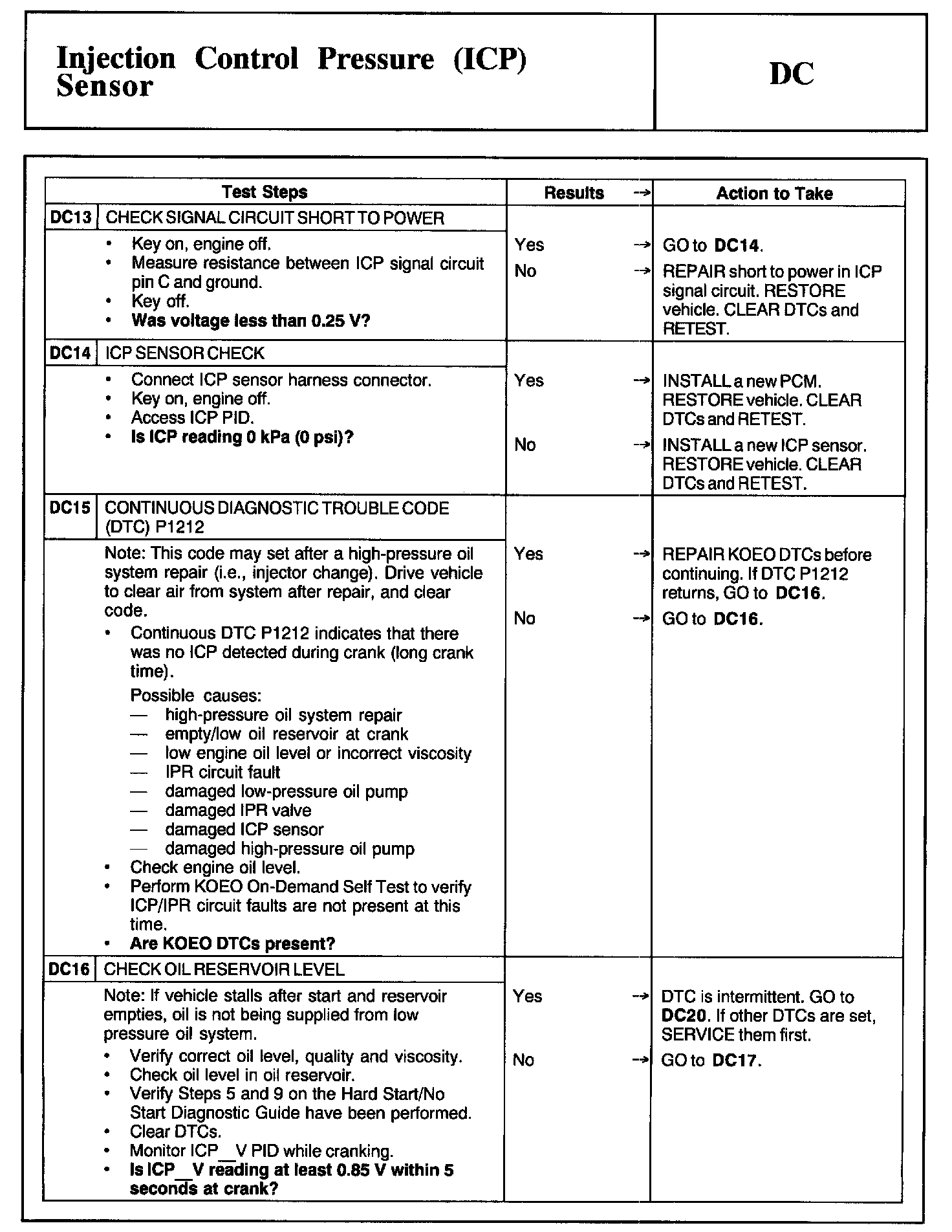

DC13 - DC16:

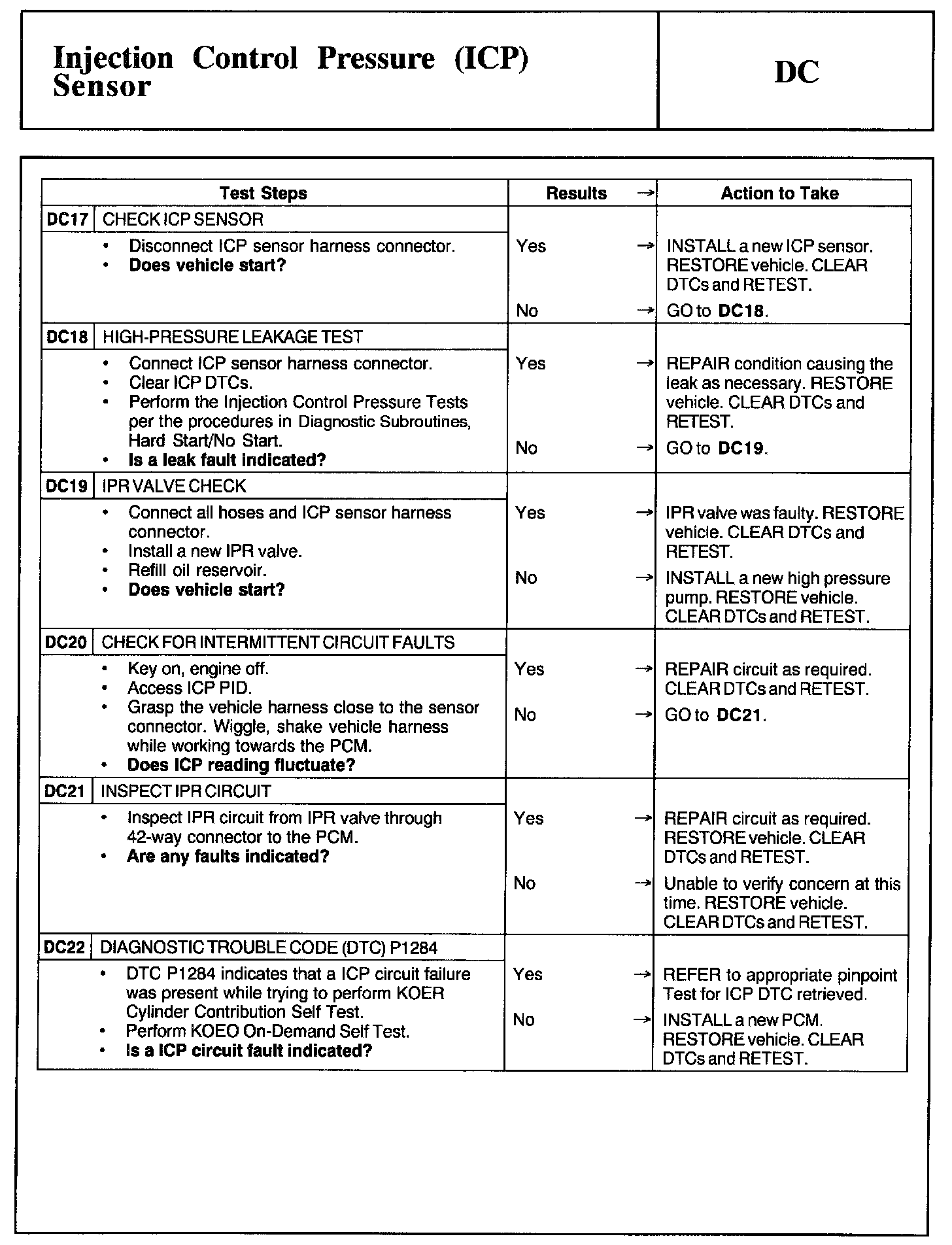

DC17 - DC22:

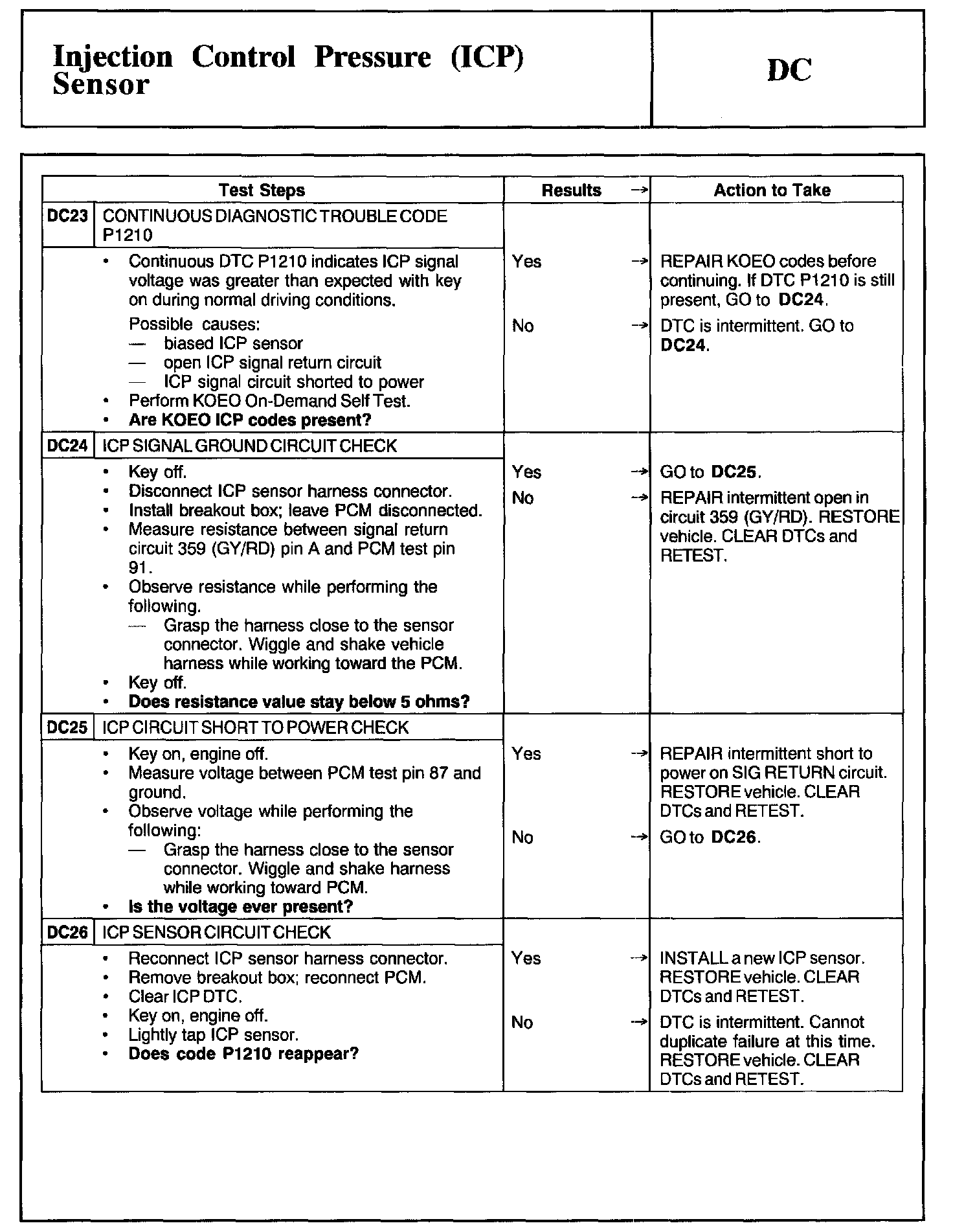

DC23 - DC26:
