Tests FK: Fuel Pump Monitor/Control

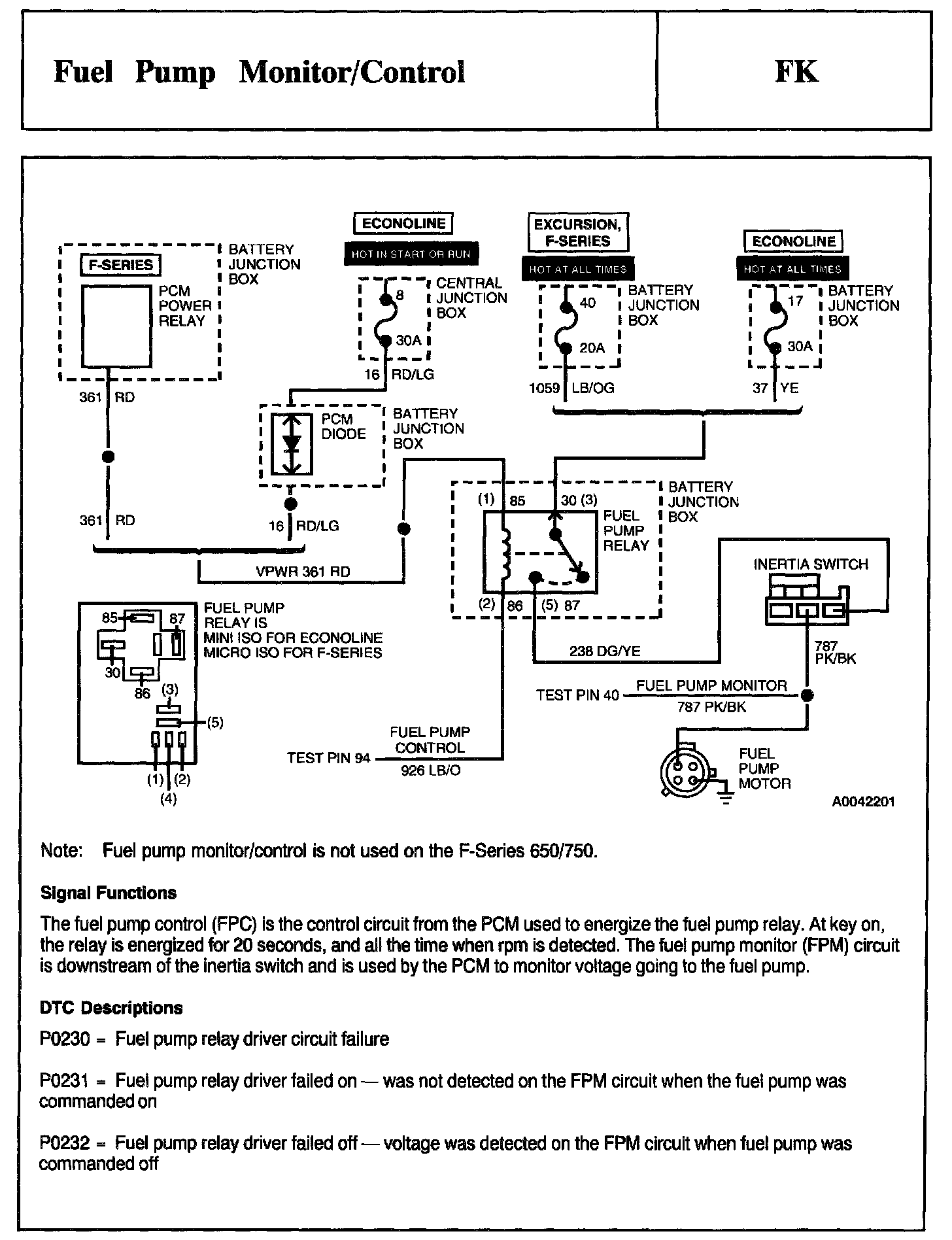

Schematic and Description:

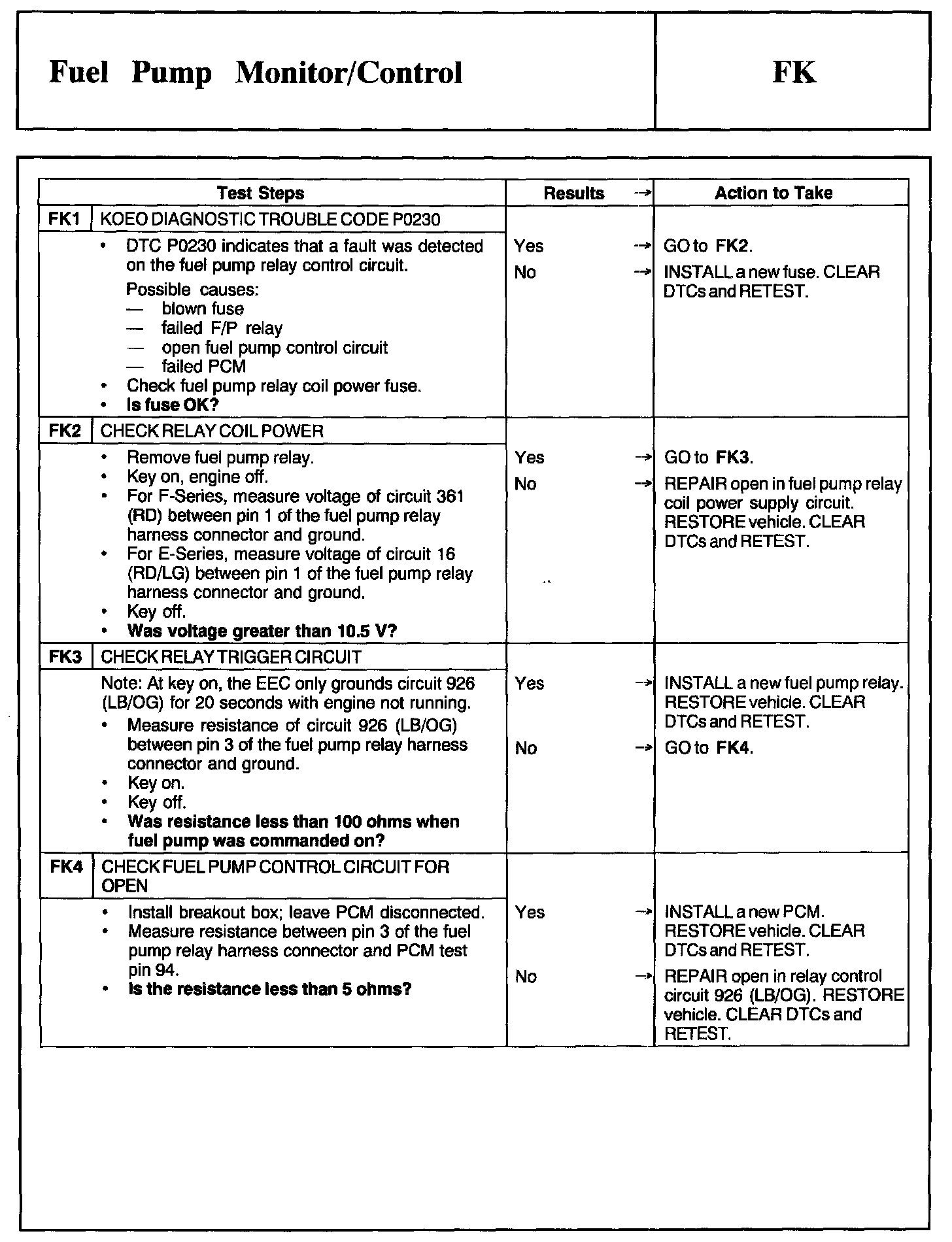

FK1 - FK4:

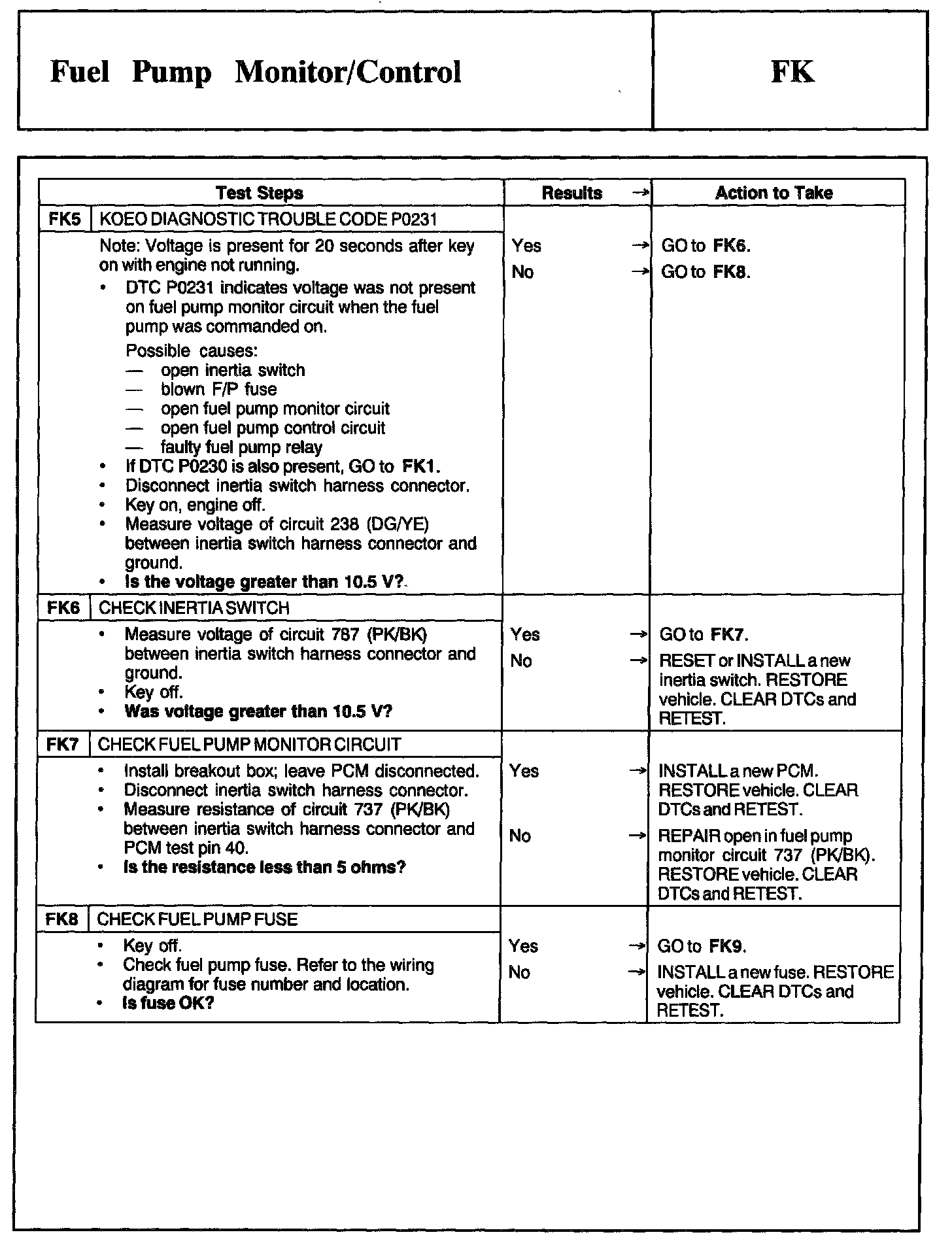

FK5 - FK8:

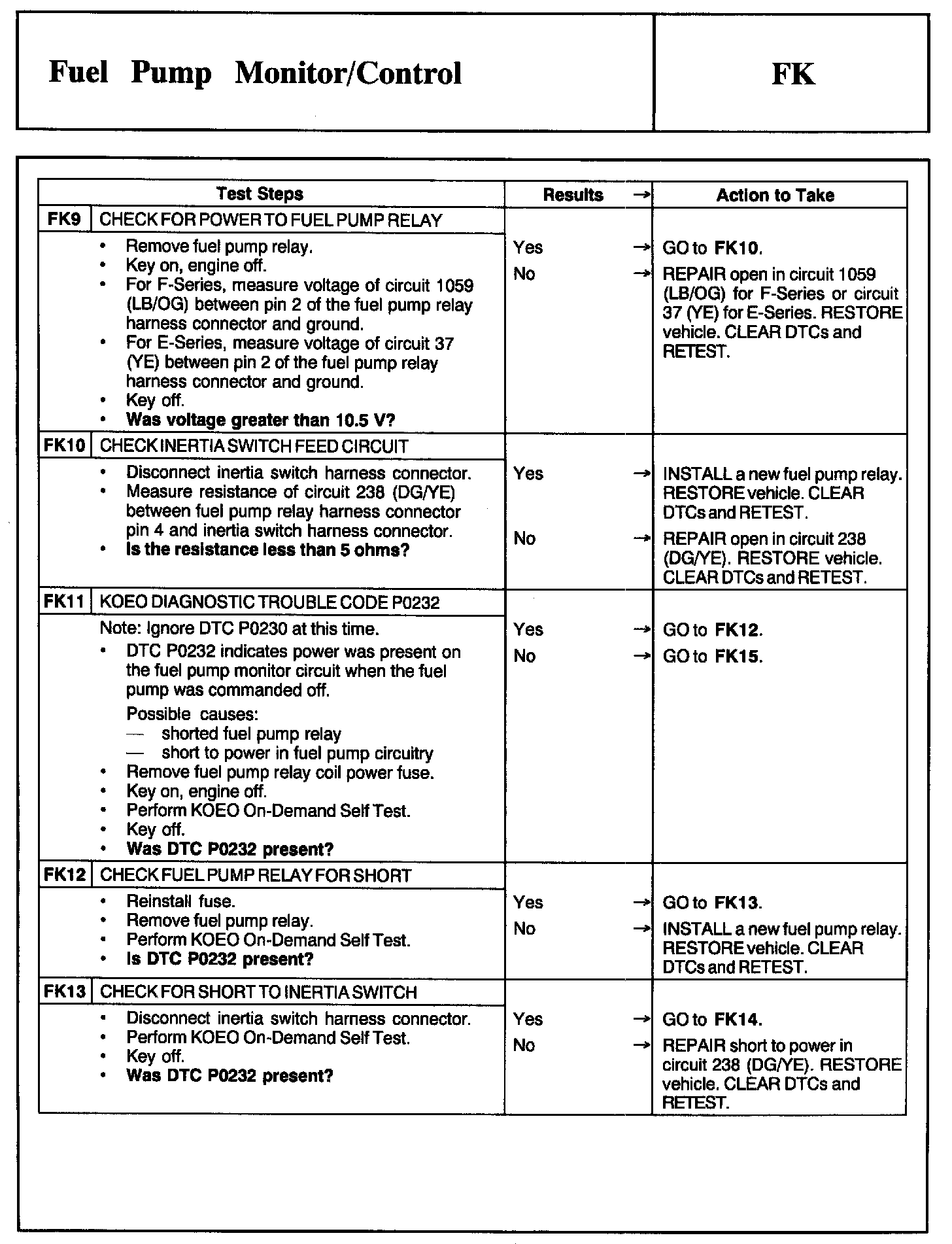

FK9 - FK13:

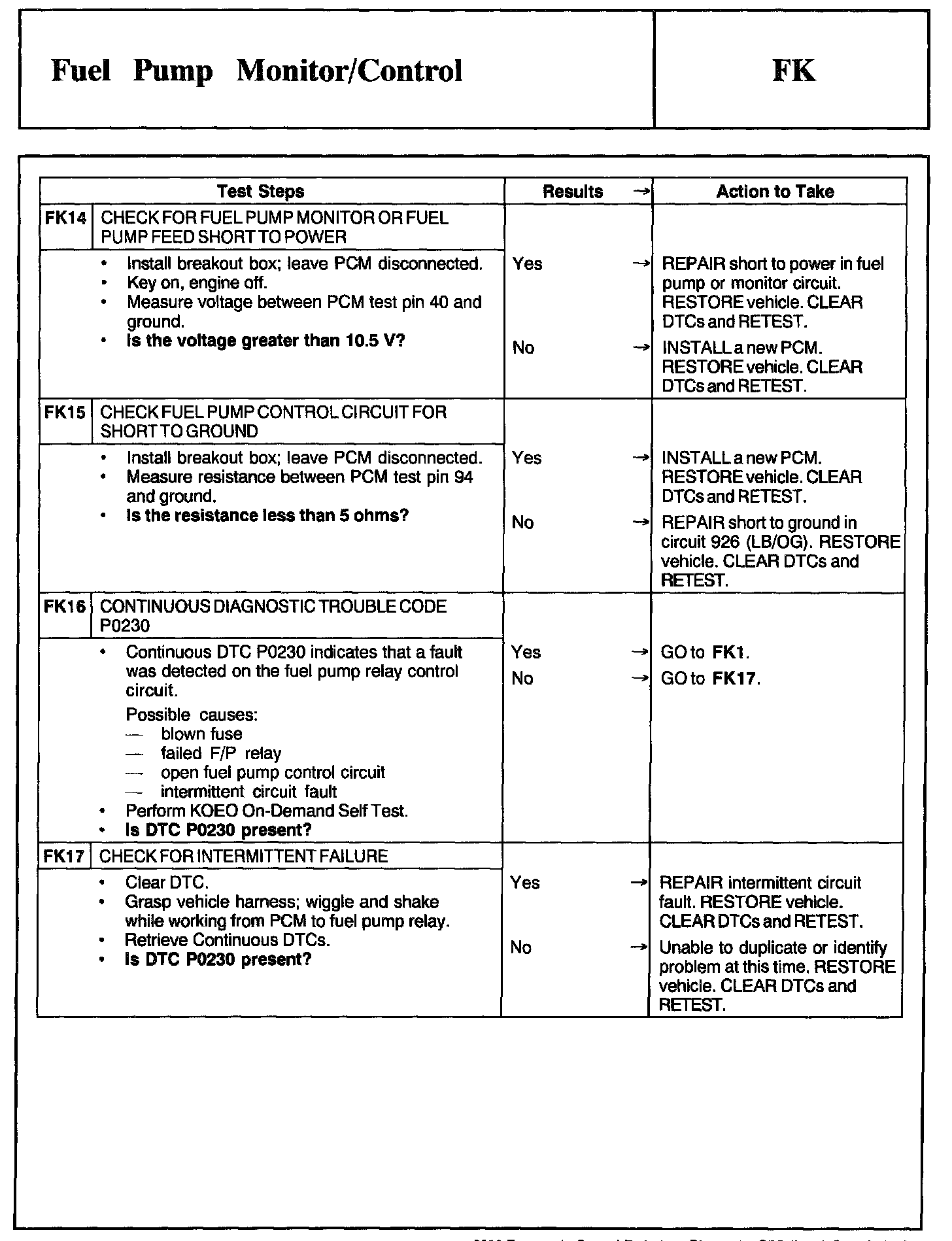

FK14 - FK17:

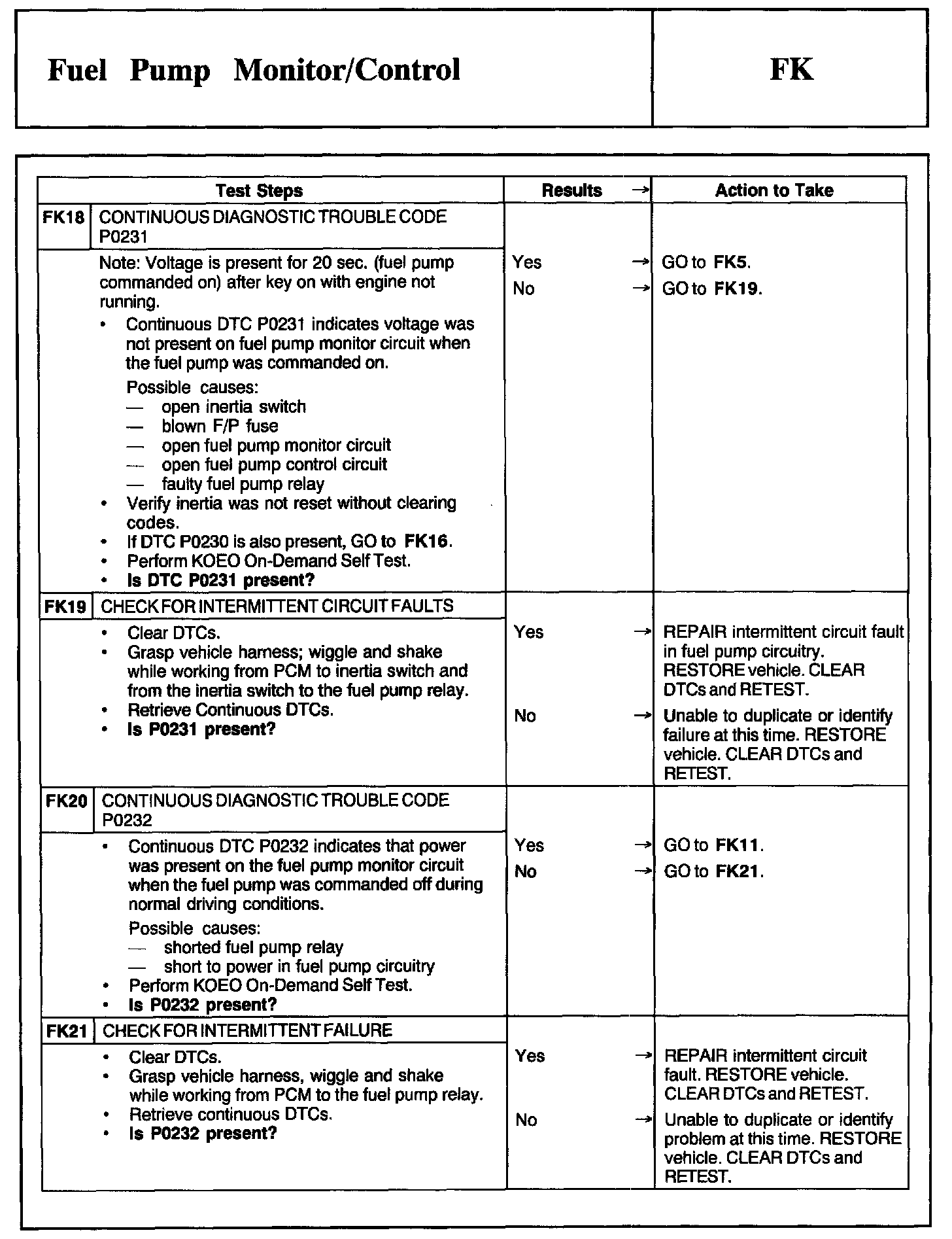

FK18 - FK21:
