Tests KC: Glow Plug System - Without Glow Plug Control Module (GPCM)

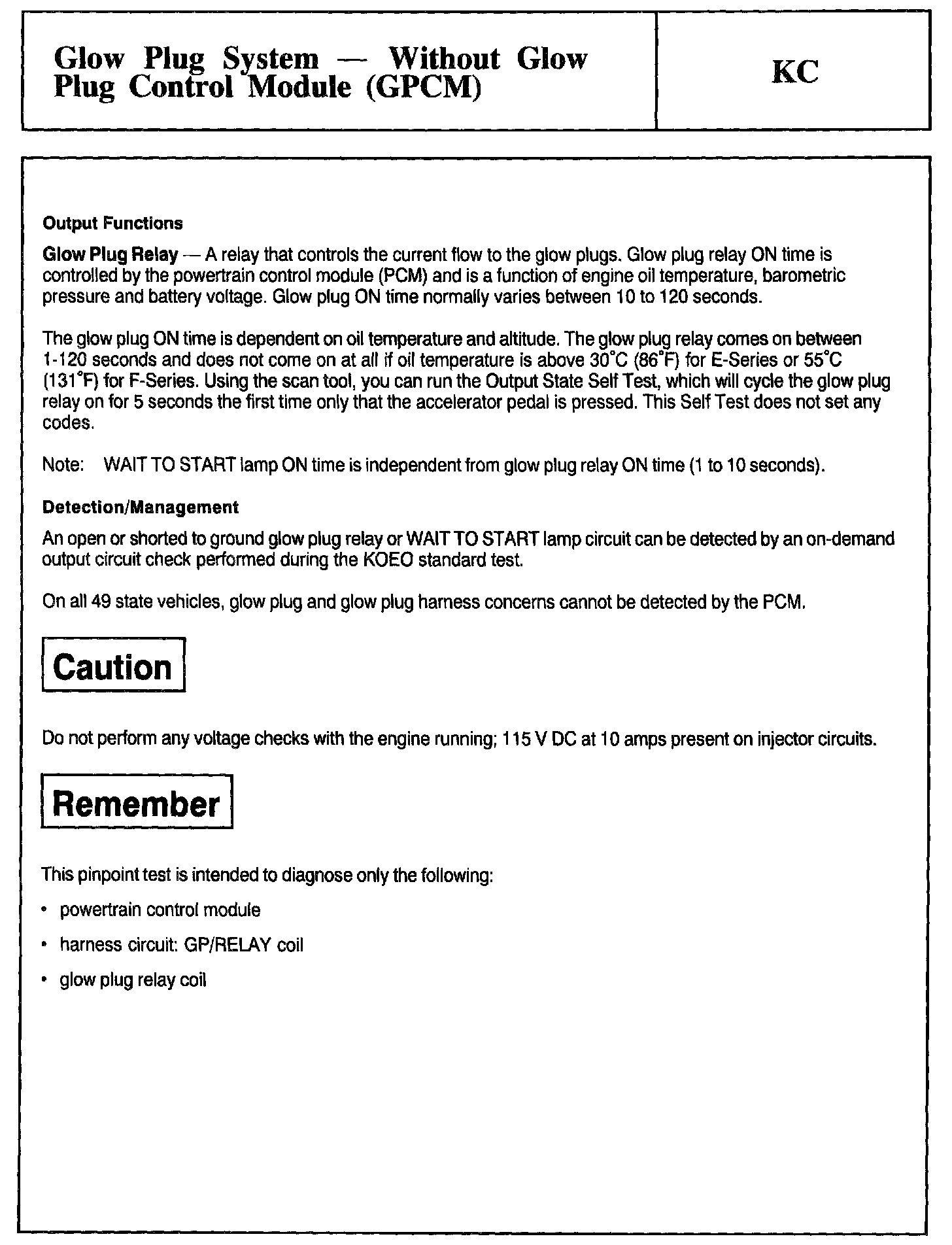

Description, Caution and Remember:

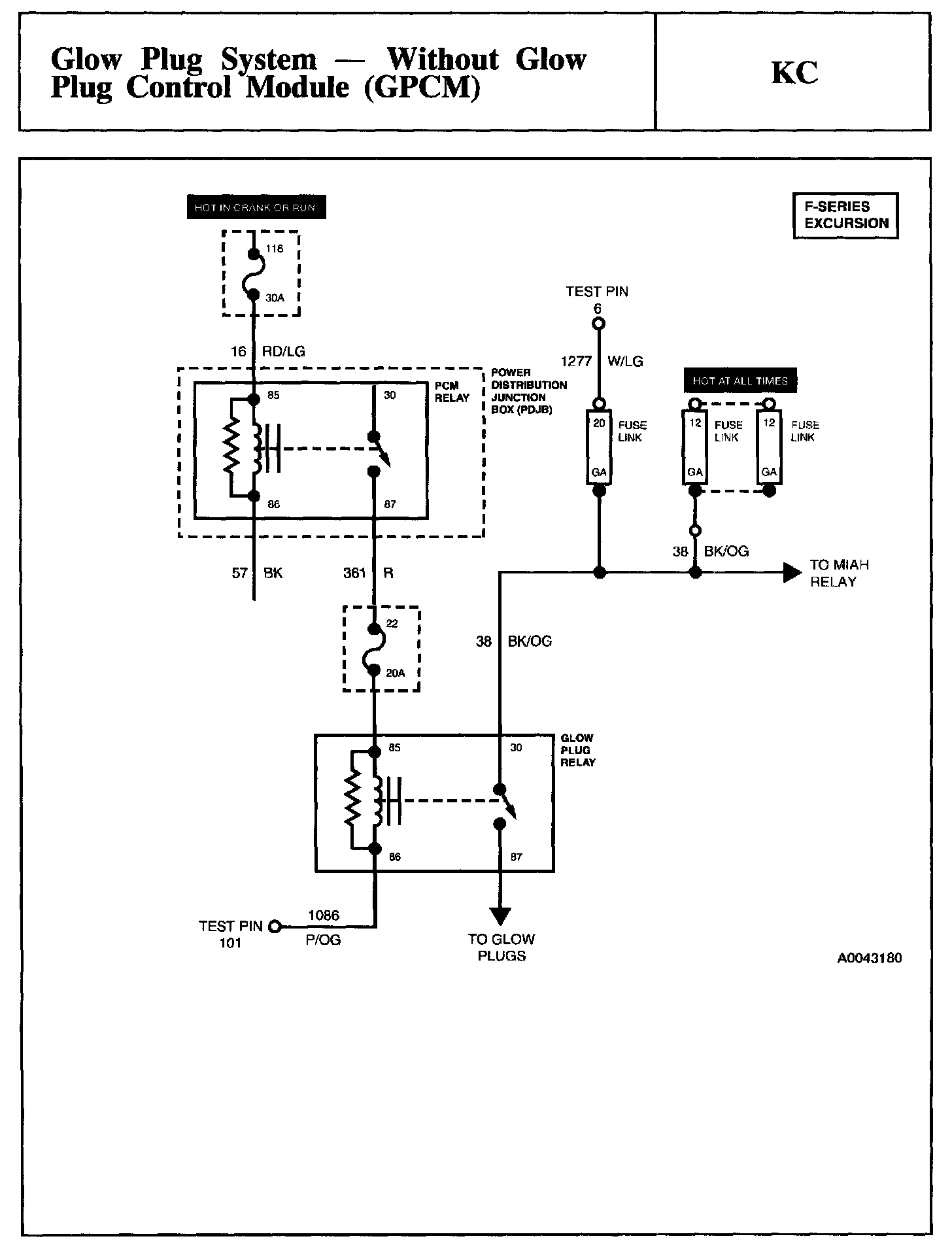

Test Schematic:

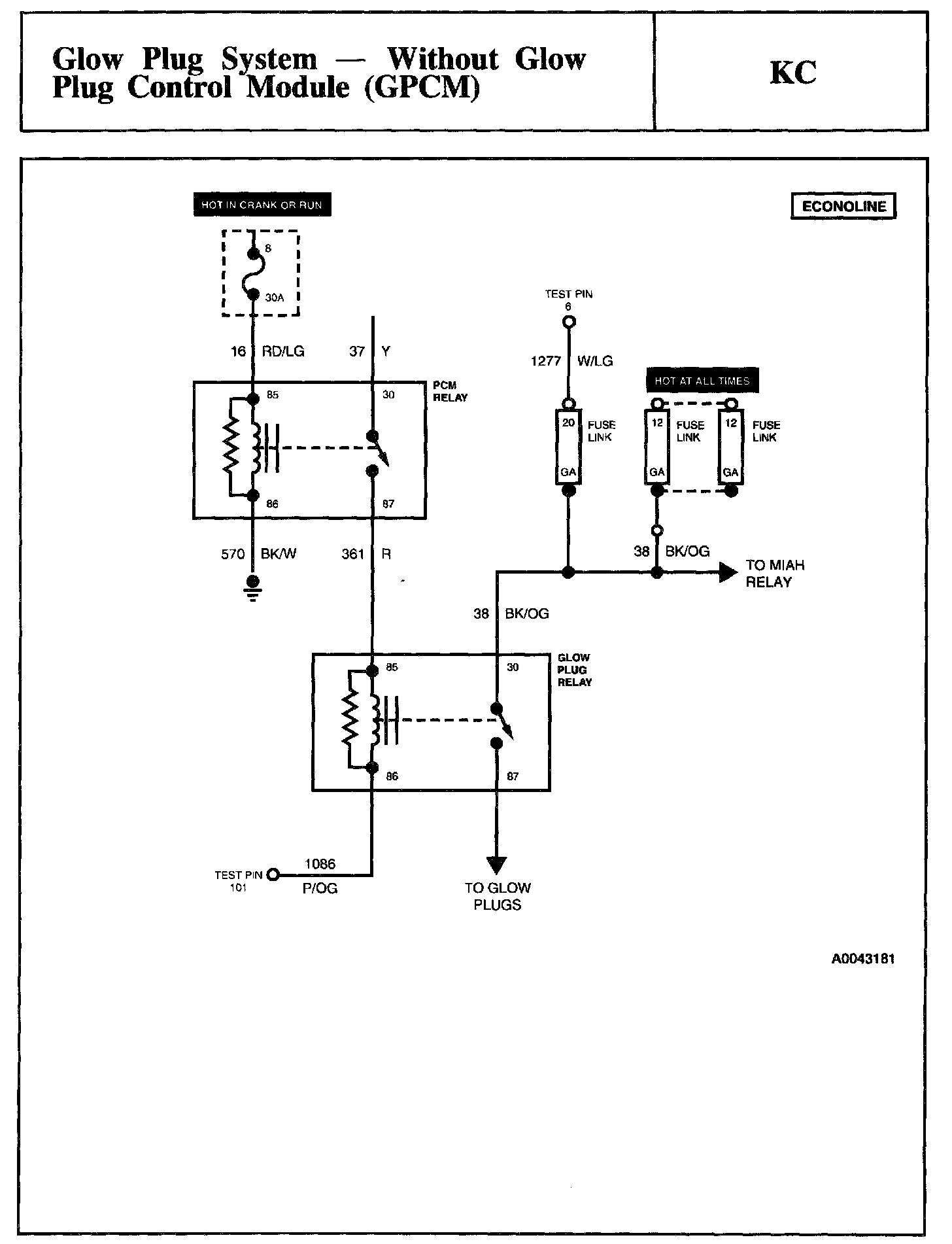

Test Schematic:

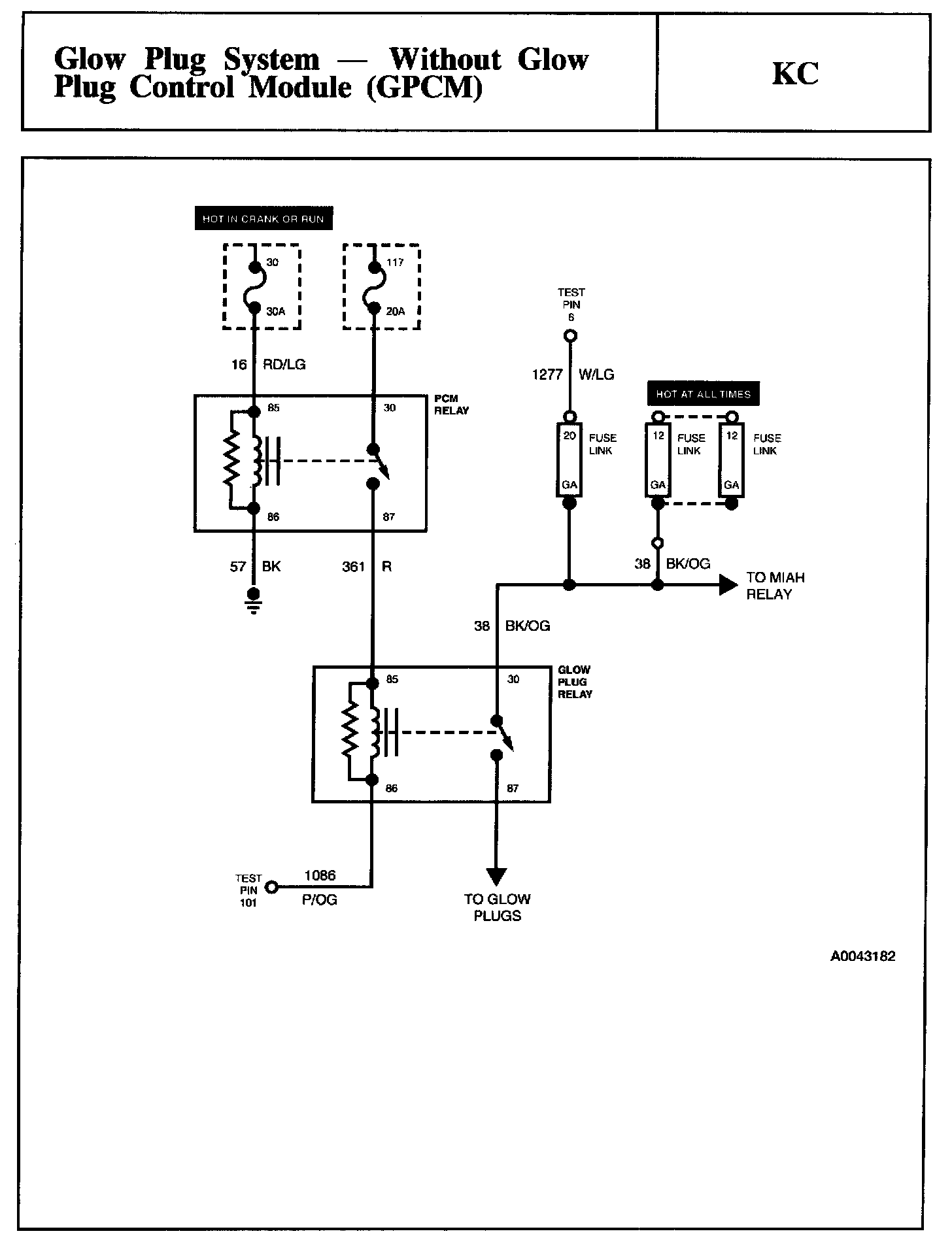

Test Schematic:

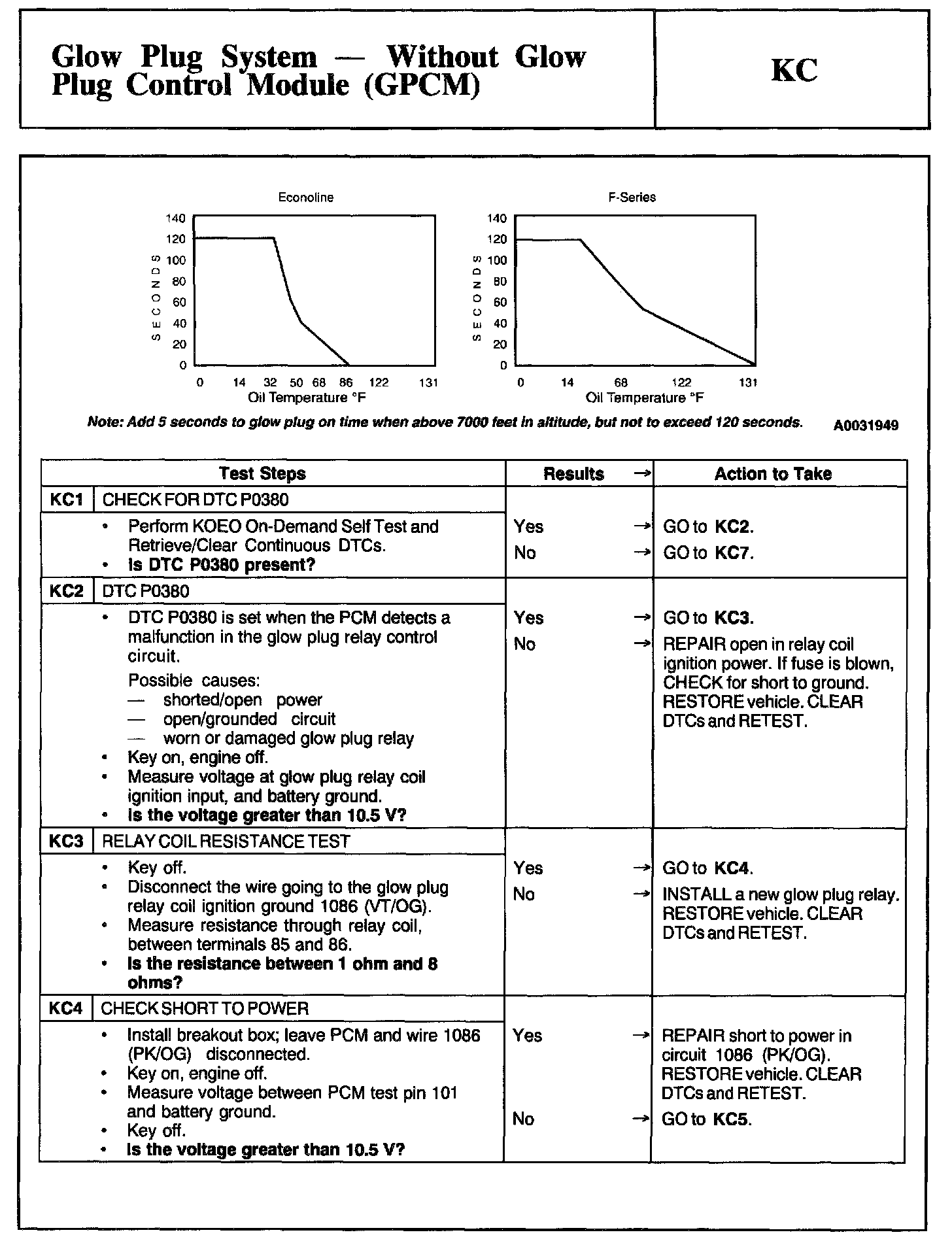

Graphs, Test KC1 - KC4:

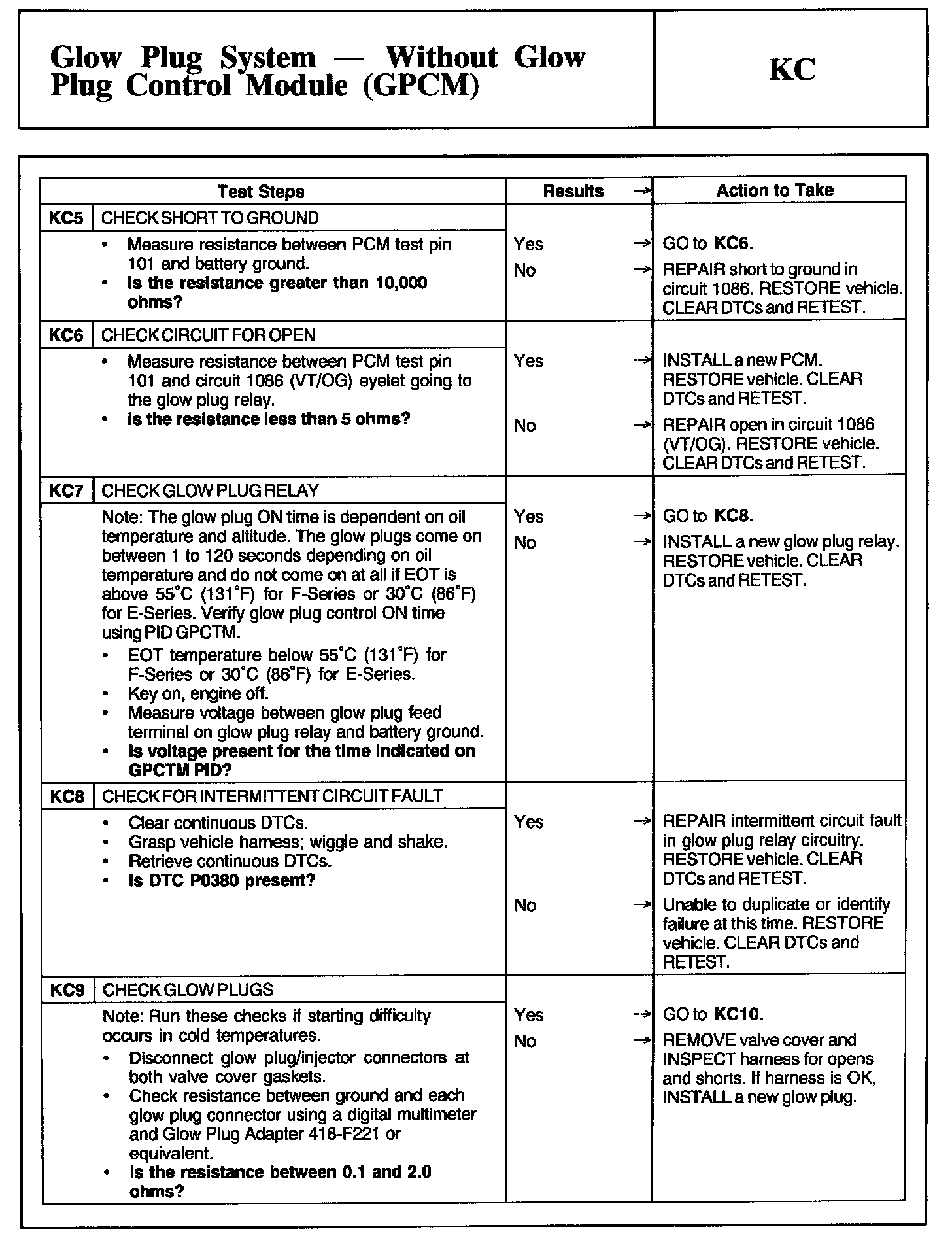

KC5 - KC9:

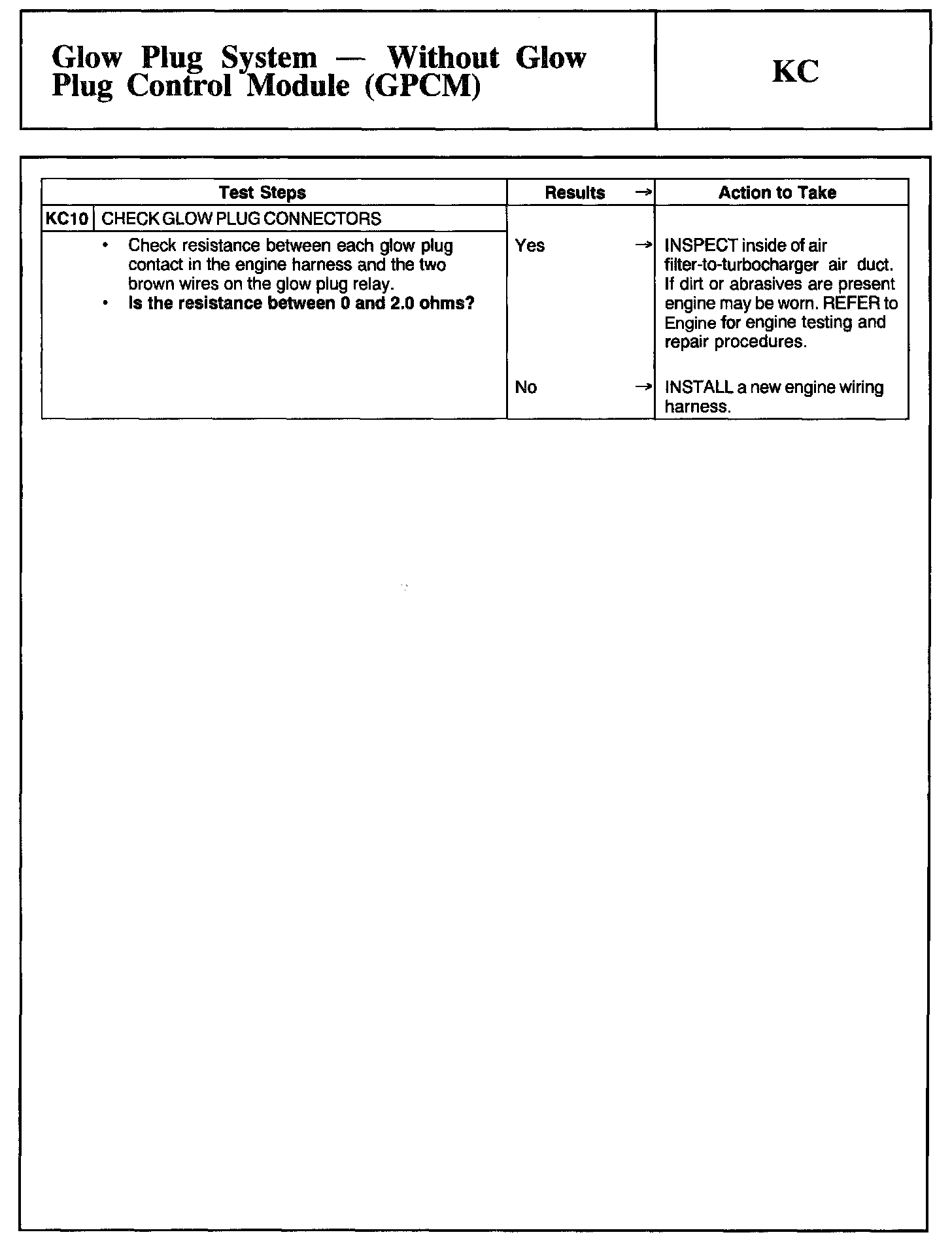

KC10:
