Tests NC: Injector Driver Module Enable (IDM-EN)

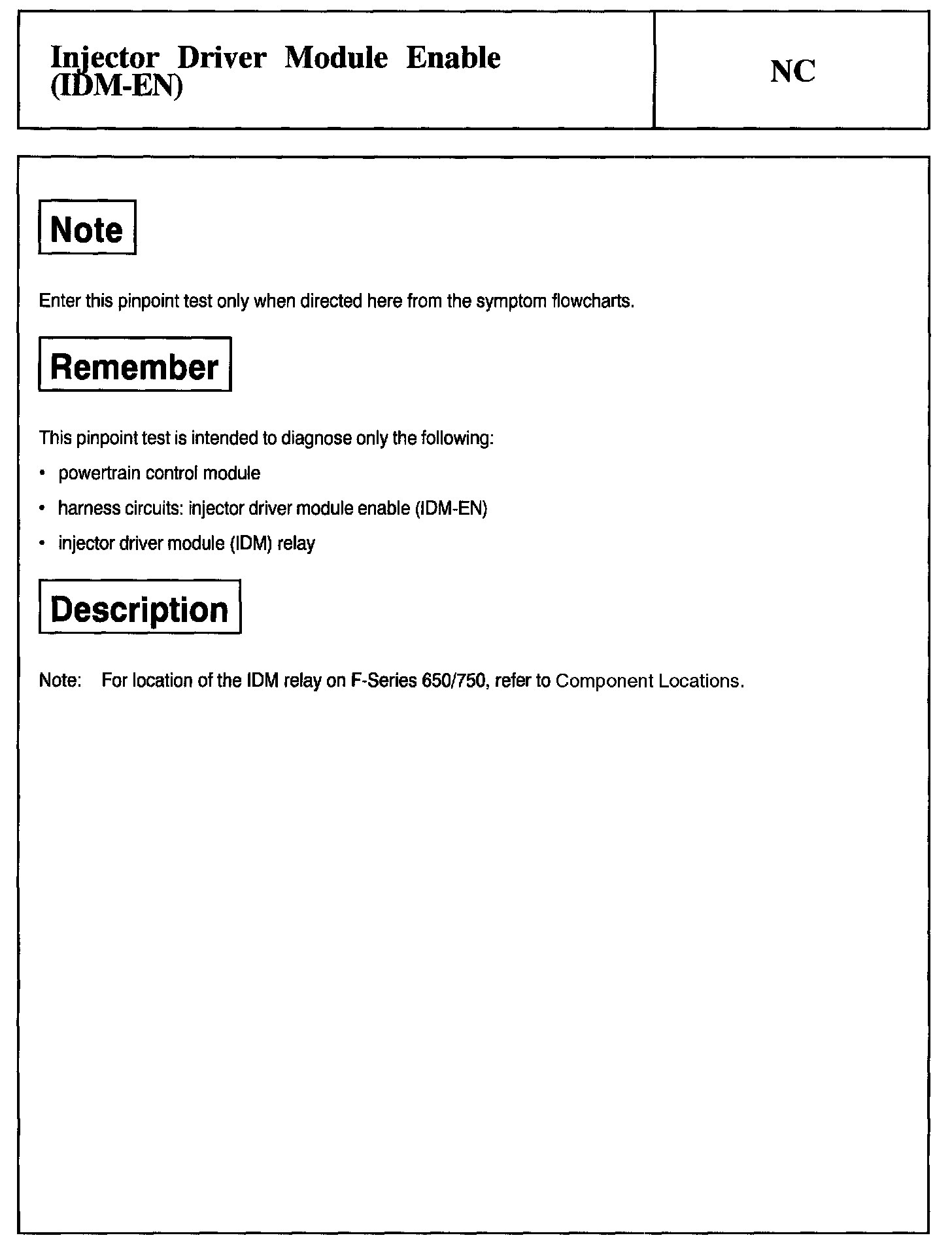

Note, Remember and Description:

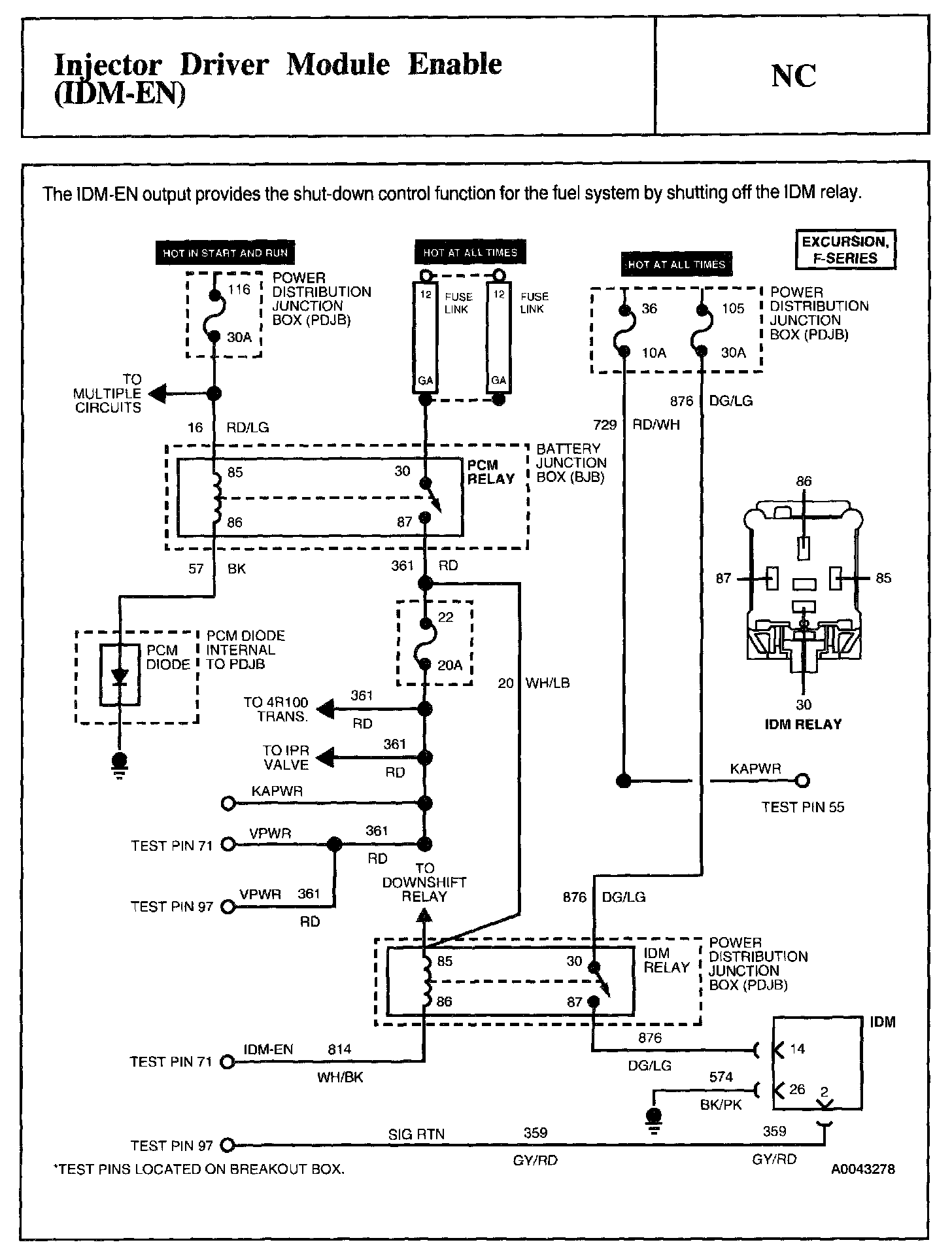

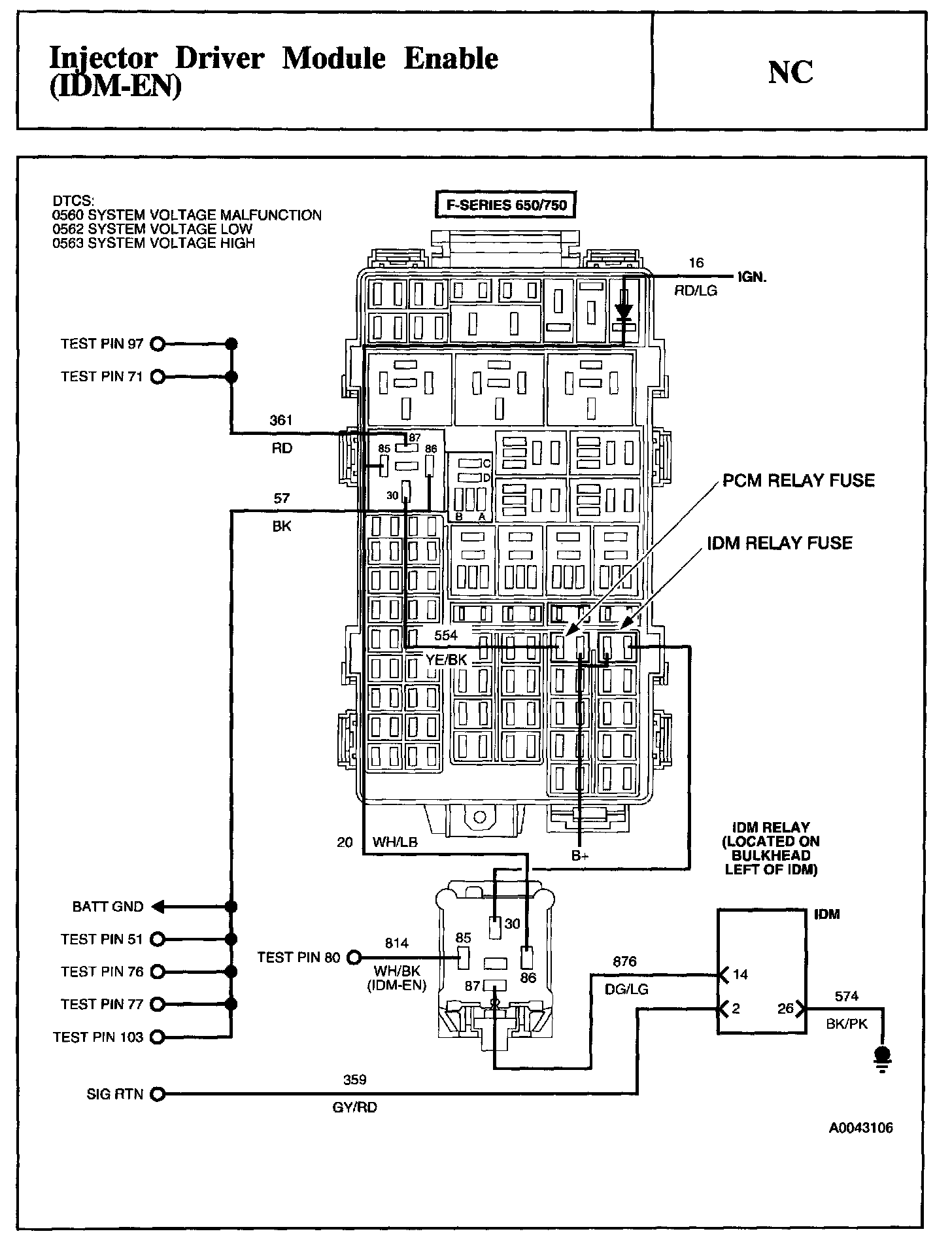

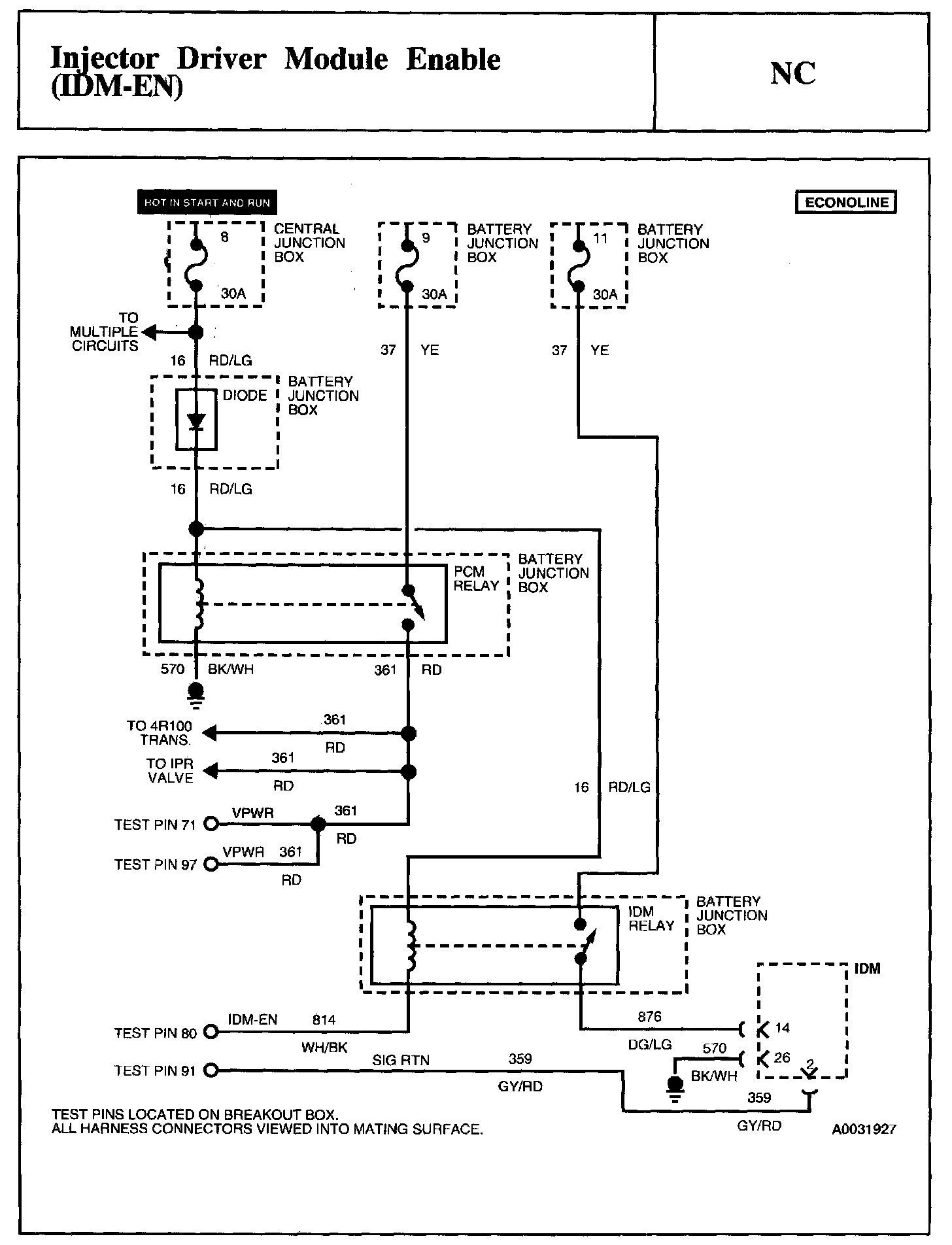

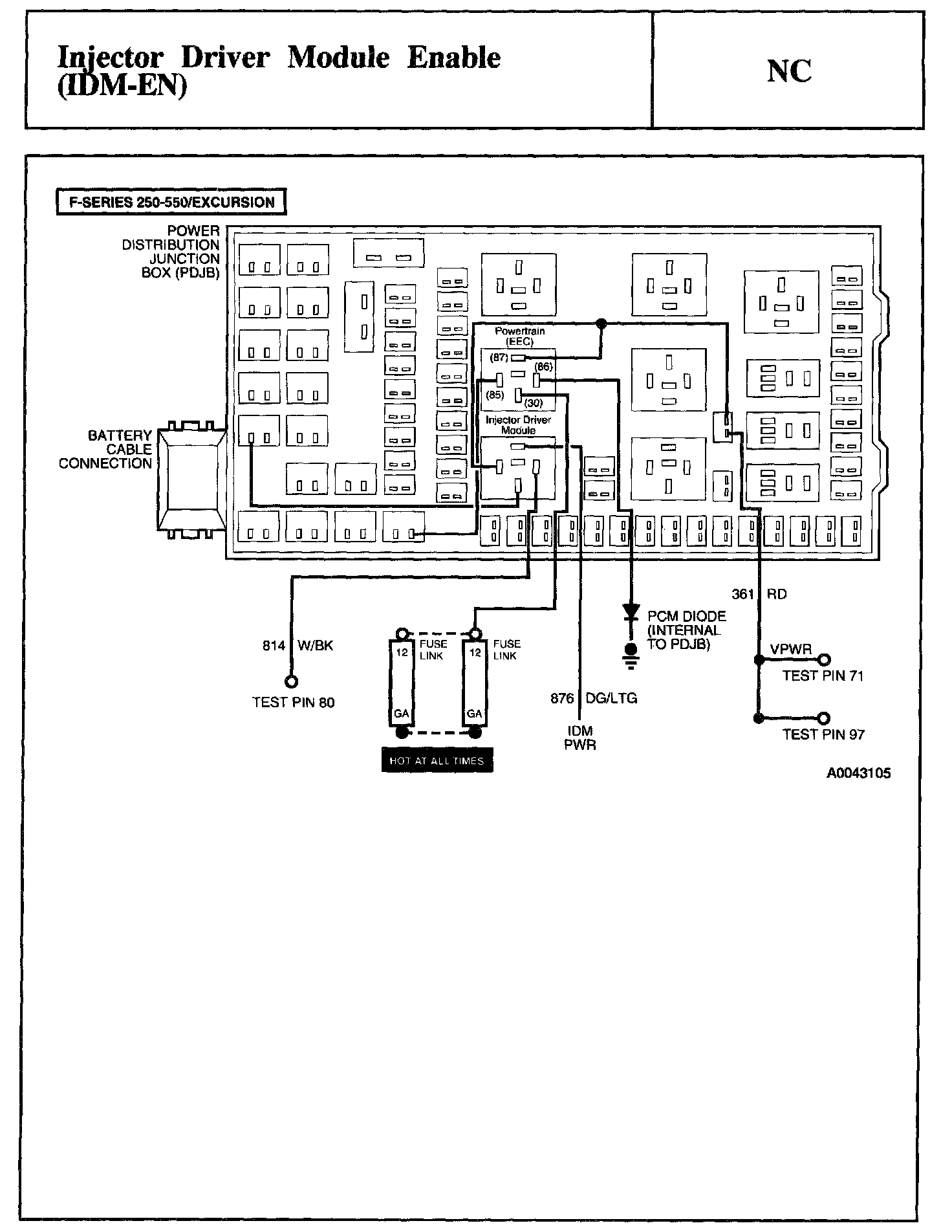

Test Schematic:






Test Schematic:






Test Schematic:






Test Schematic:

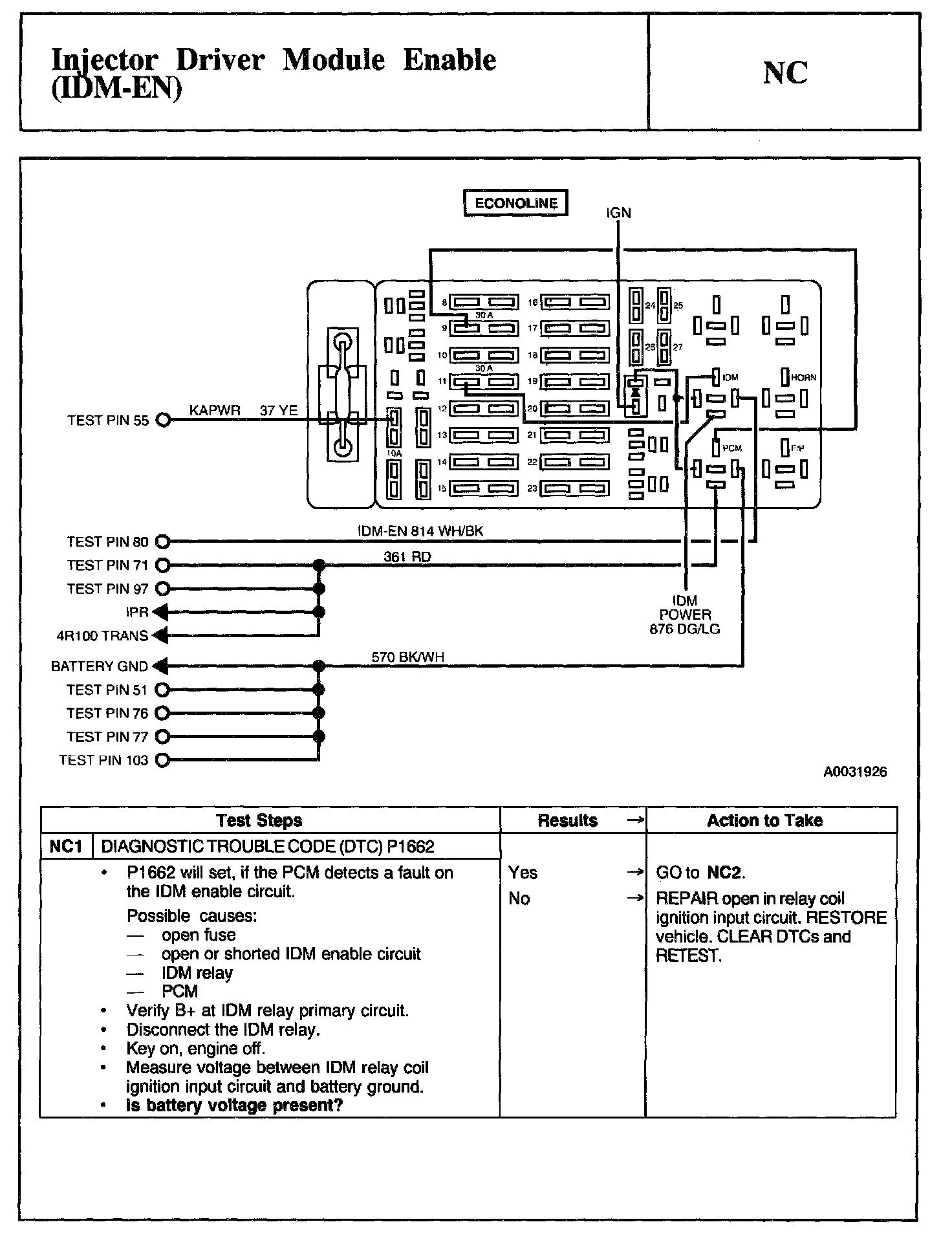

Schematic, Test NC1:

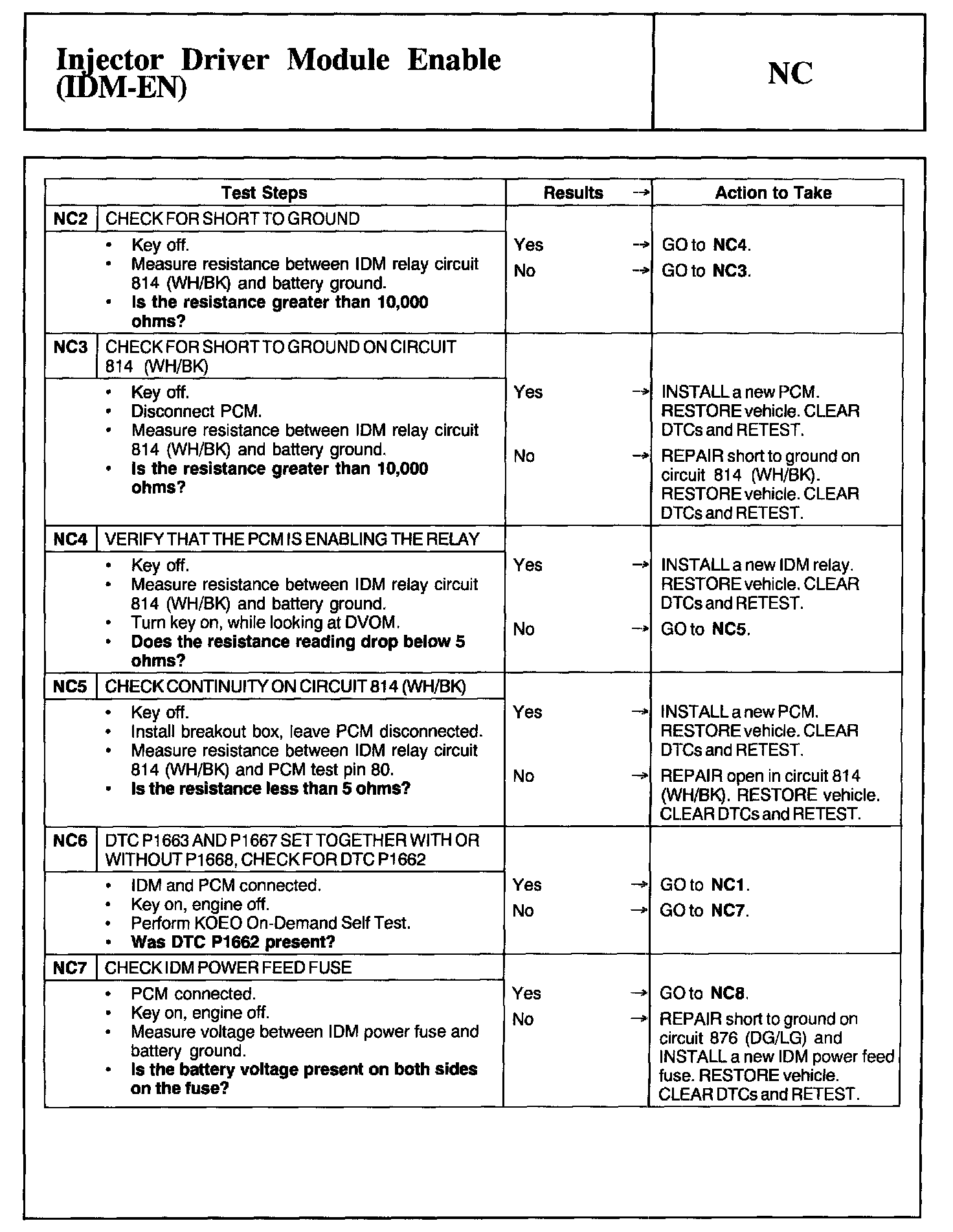

NC2 - NC7:

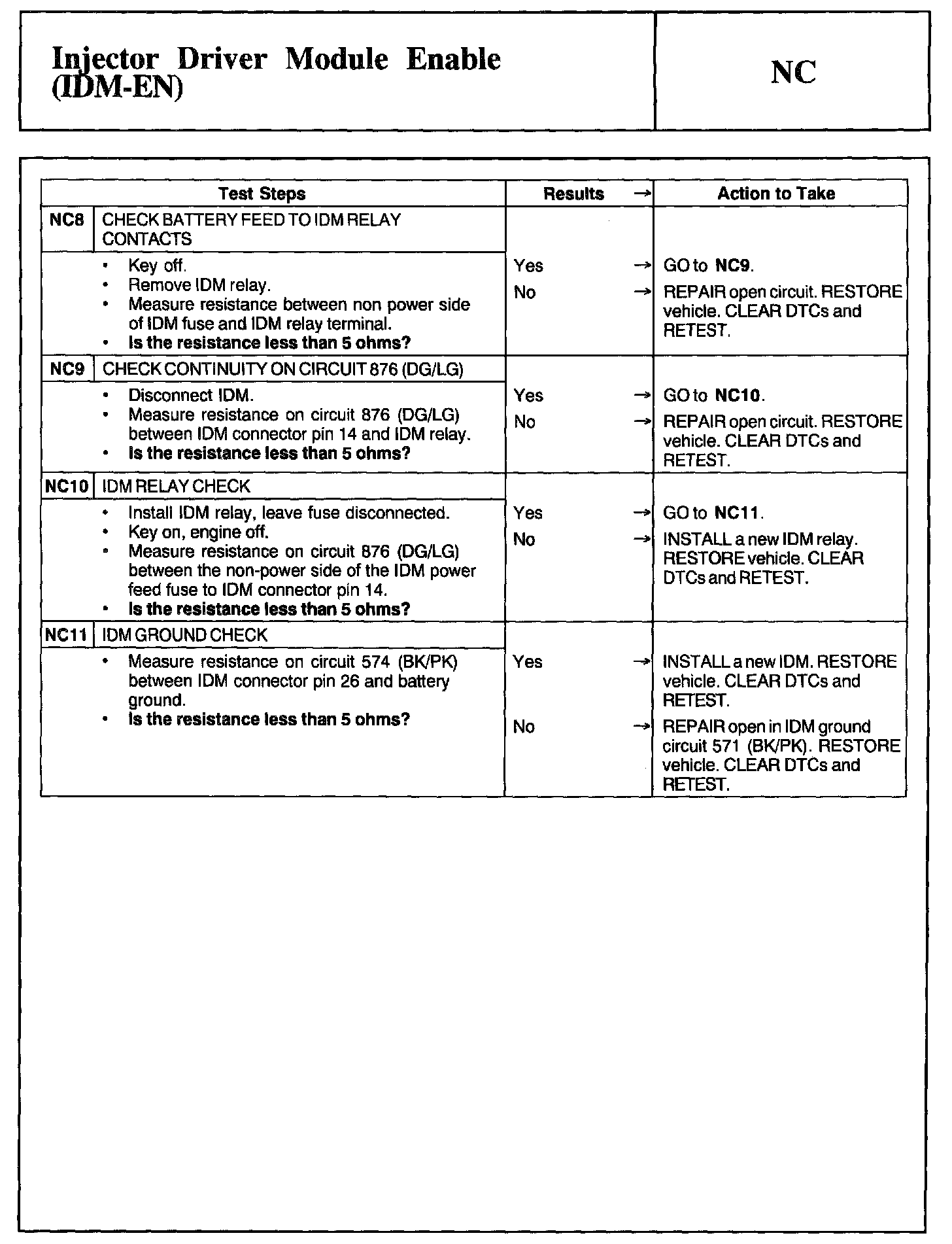

NC8 - NC11:
