Body Support - Number 4 Lower, Excursion

BODY SUPPORT-NUMBER 4 LOWER, EXCURSION

Removal and Installation

NOTE:
- Do not reuse body support mounting fasteners. New fasteners must be installed for each fastener that has been removed or loosened.
- The removal and installation of the LH body mount is shown, removal and installation of the RH body mount is similar.

1. Remove the third row seat.
2. Detach the lower portion of the rear quarter trim panel.
3. Detach the cross car scuff plate. Pull the carpet back.

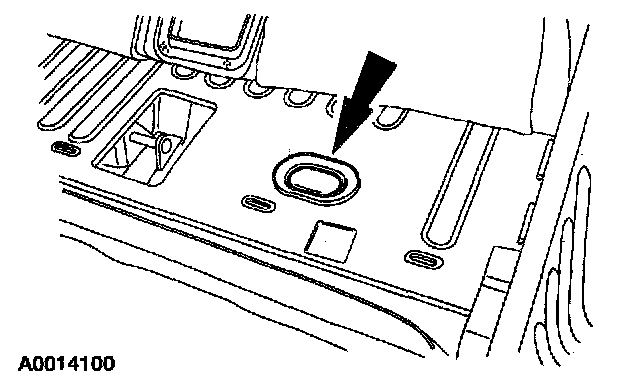

4. Remove the plug.

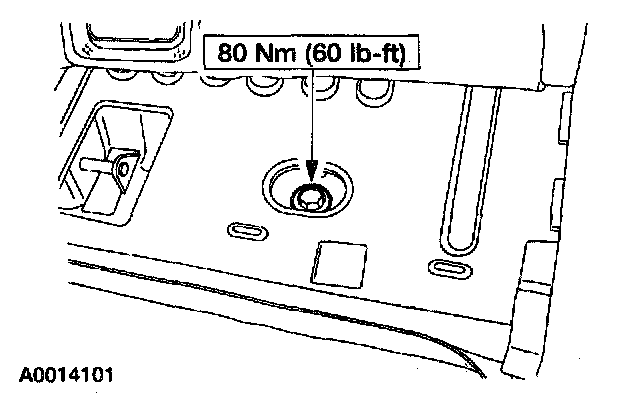

5. Remove the bolt and washer. Discard the bolt.
6. Remove the lower body mount.

7. NOTE: No lubricants of any kind are to be used during body insulator installation.

To install, reverse the removal procedure.
