Auxiliary Climate Control

REMOVAL
1. Remove the access panel from the RH rear quarter trim panel.

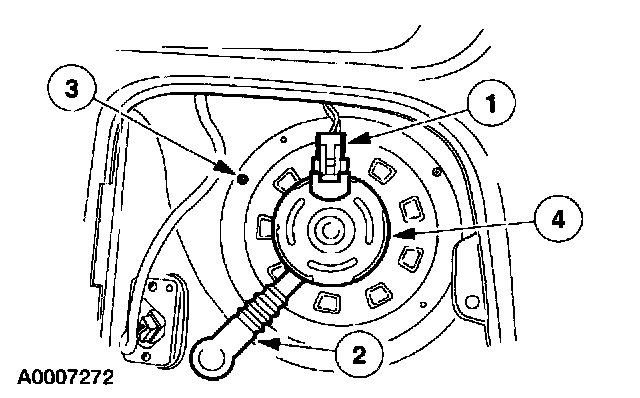

2. Remove the blower motor.
1 Disconnect the electrical connector.
2 Remove the blower motor breather.
3 Remove the blower motor screws.
4 Remove the blower motor.

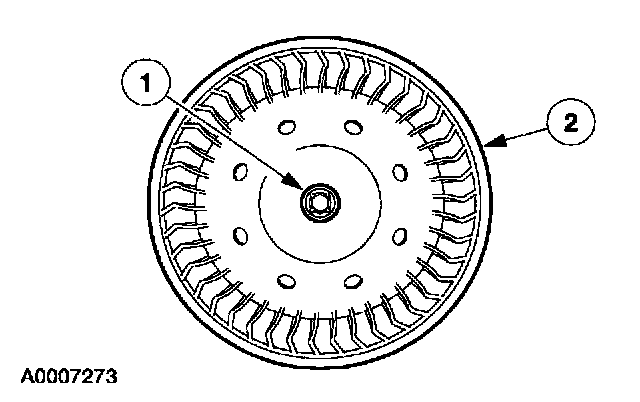

3. Remove the blower motor wheel from the blower motor.
1 Remove the push clip.
2 Remove the blower motor wheel.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Install a new push clip when reinstalling the blower motor wheel to the blower motor.
