Pressure Feedback Exhaust Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.







2. Remove the differential pressure feedback EGR (if equipped).

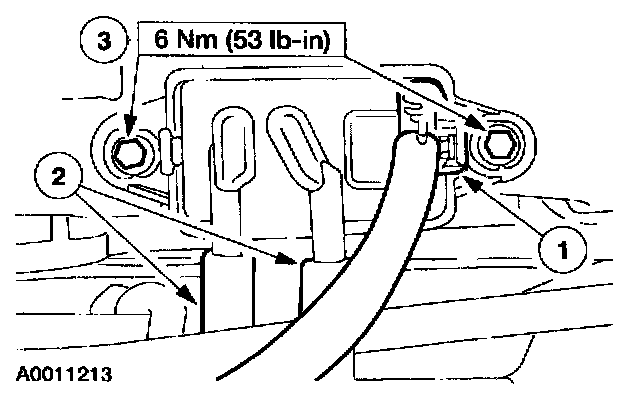

1 Disconnect the electrical connector.
2 Disconnect the hoses.
3 Remove the bolts (nuts if applicable).

INSTALLATION
1. To install, reverse the removal procedure.
