Transmission

Automatic Transaxle/Transmission

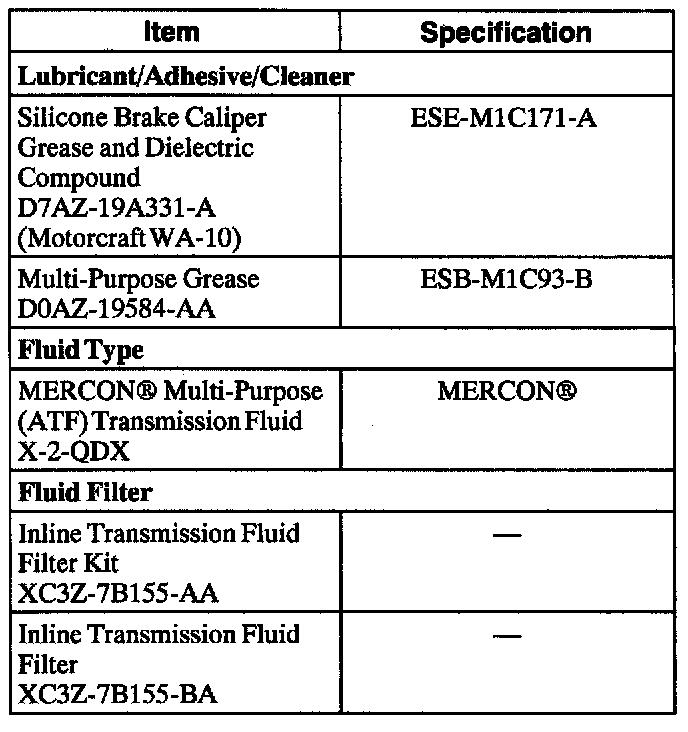

General Specifications





Application a Shift Speeds-Approximate* Km/h (MPH) (F-250, F-350, F-450 Excursion, Series Super Duty with 6.8L)

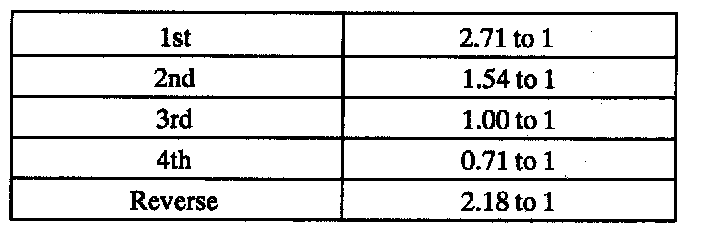

Gear Ratio








a Plus one apply plate.
b A non-selective snap ring.
c Plus a steel wave cushion spring installed between the front pressure plate and a steel separator plate.
d Plus a steel wave cushion spring installed between the reverser clutch piston and a steel separator plate.

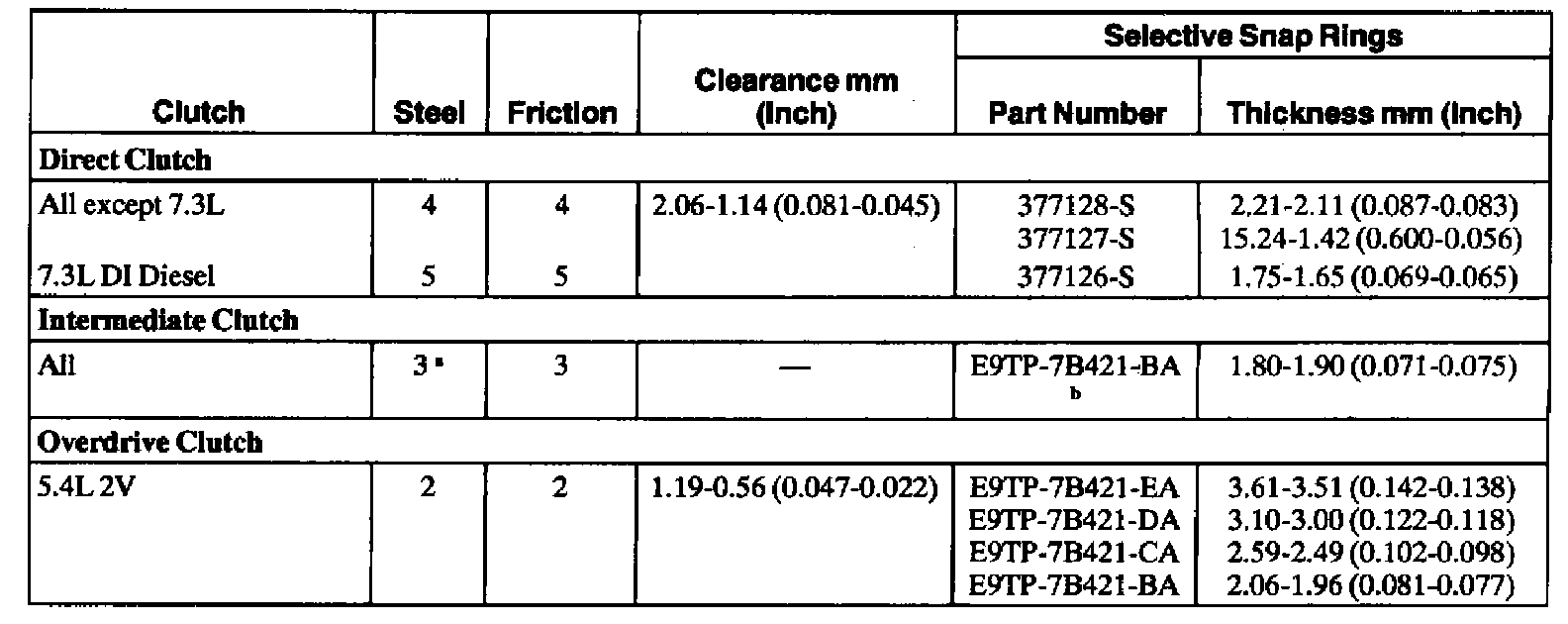

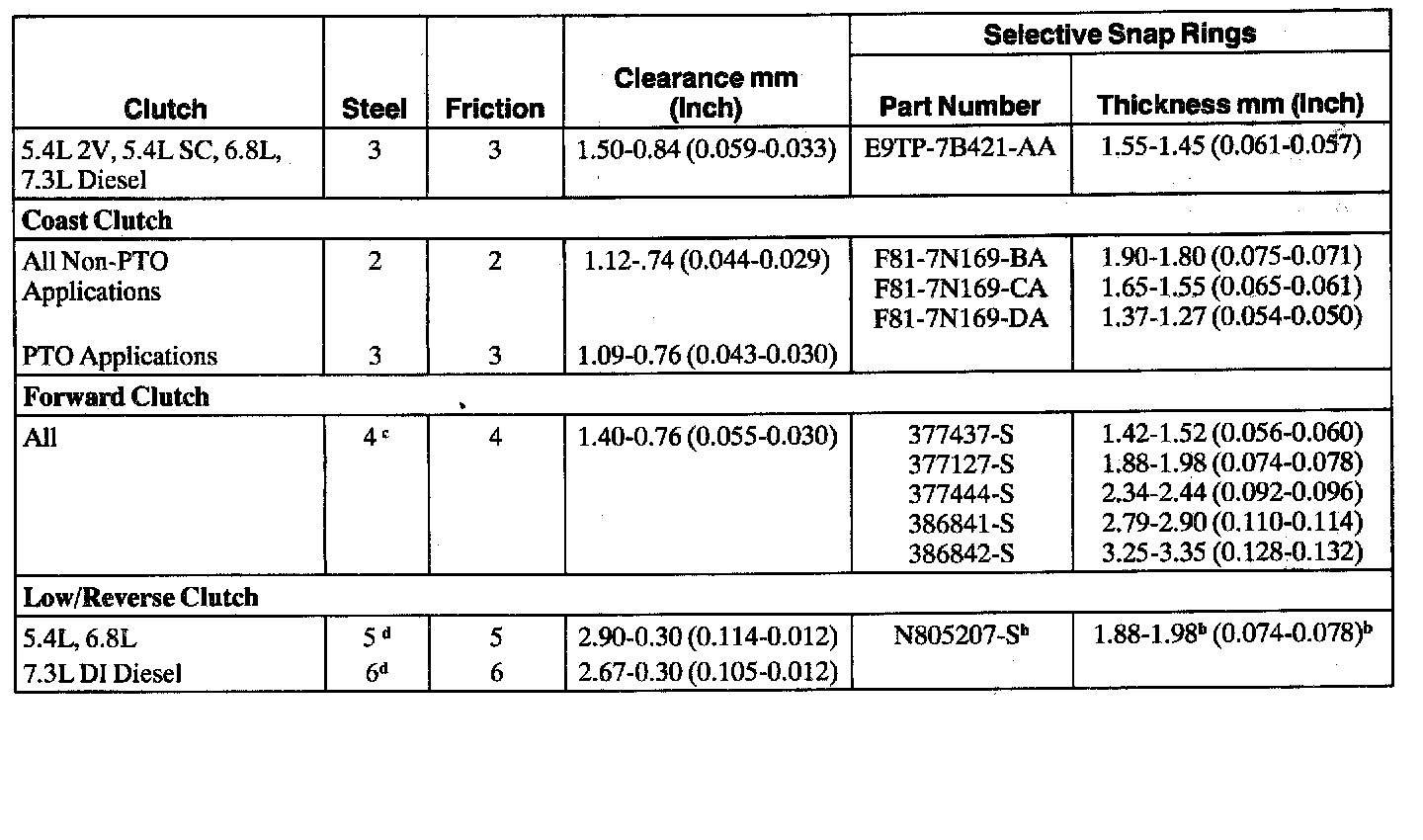

Clutch Plate Usage and Clearance Specifications

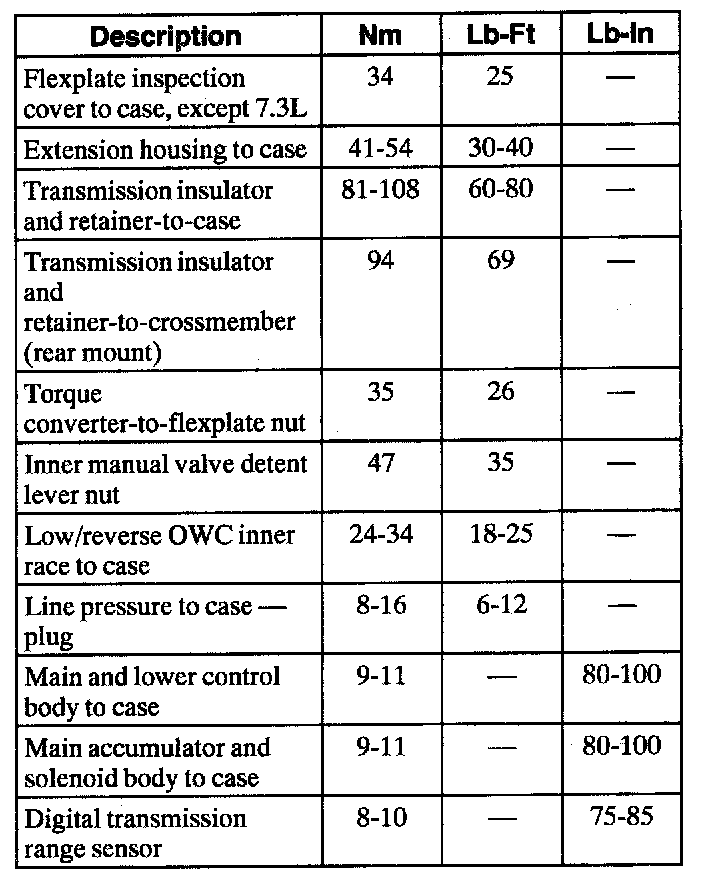

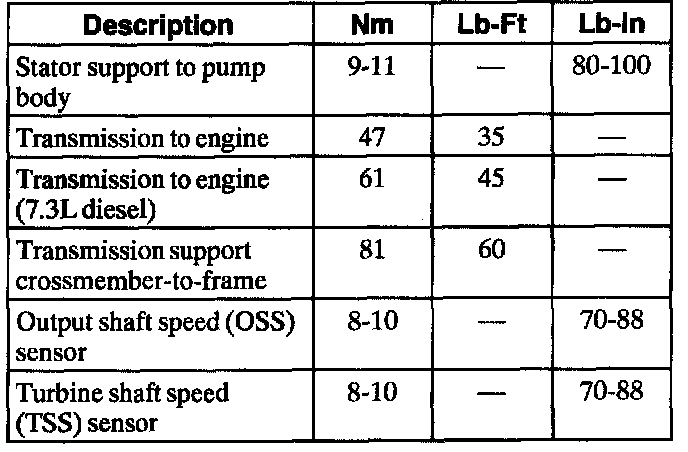

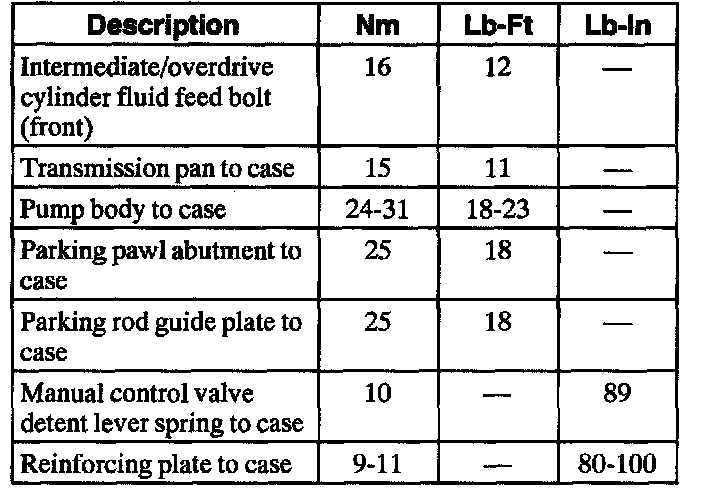

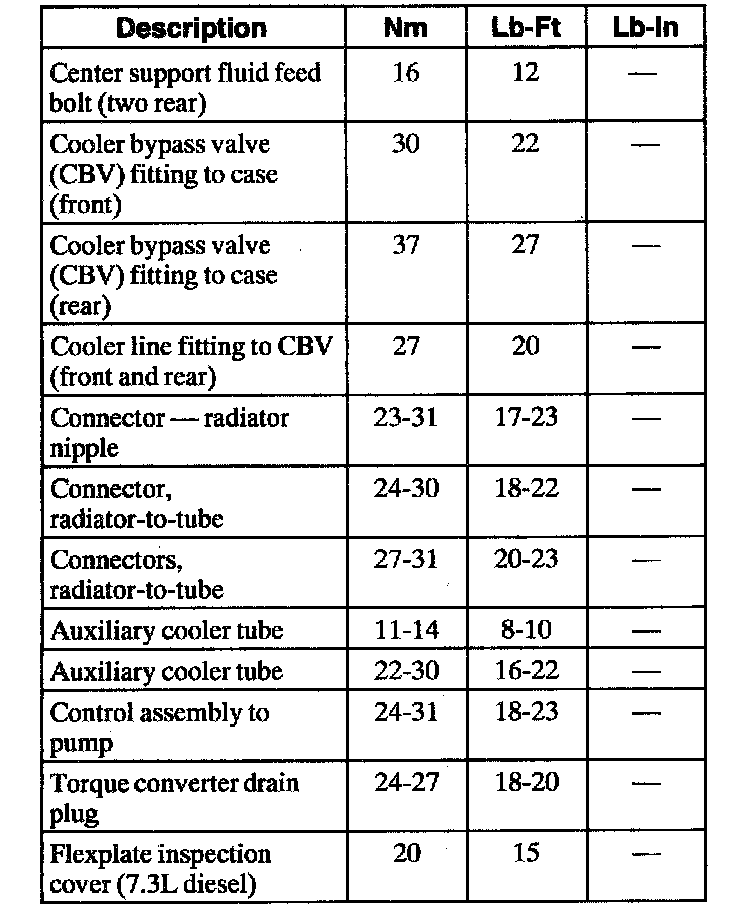

Torque Specifications

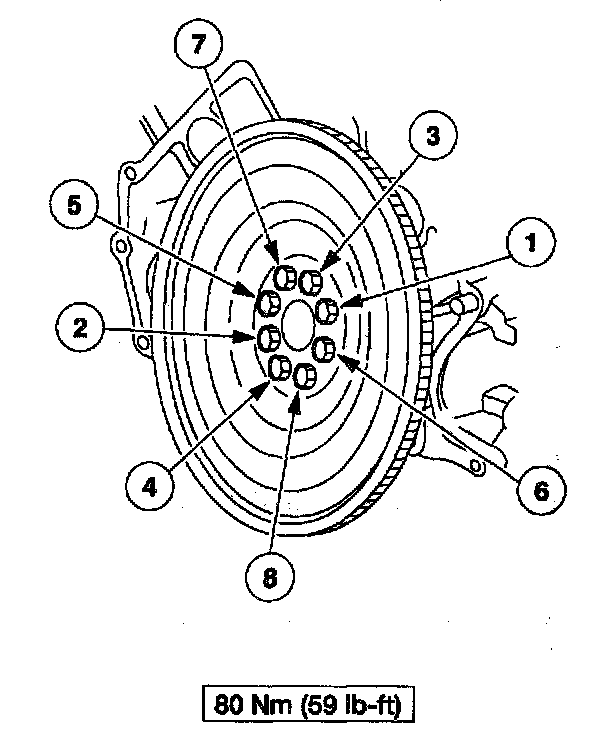

Flex Plate Torque and Sequence

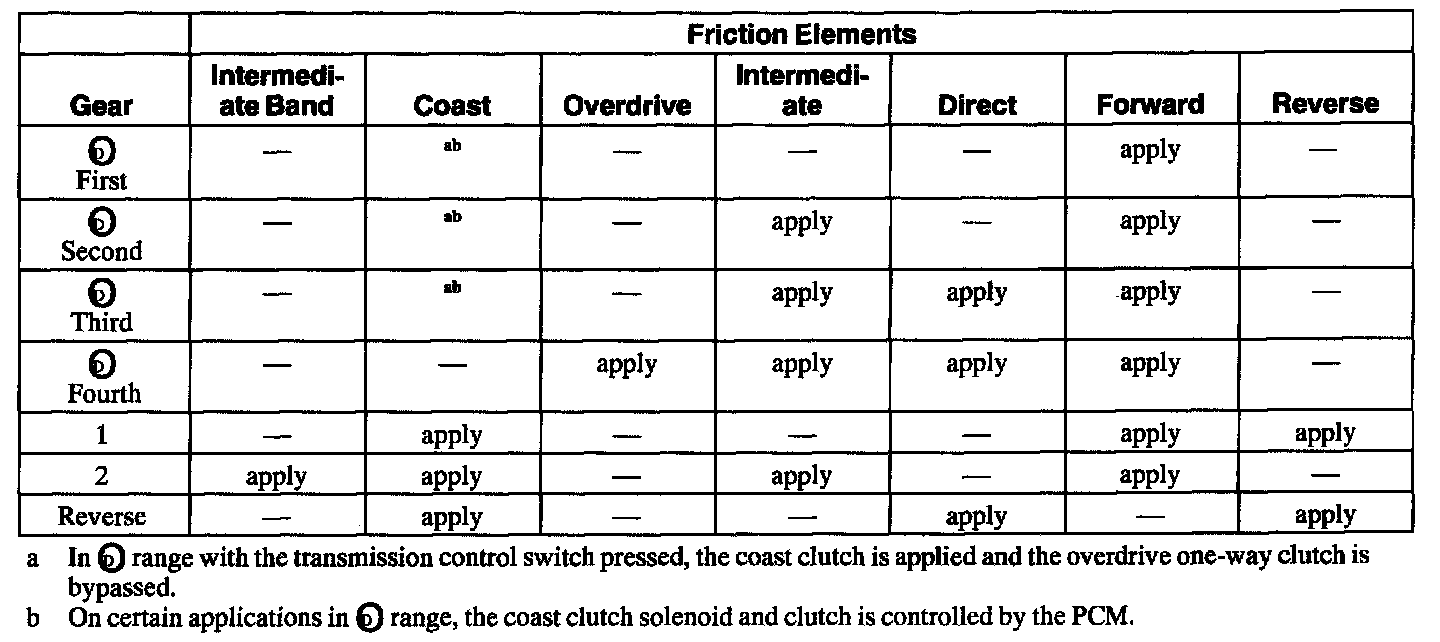

Band/Clutch Application Chart





Friction Elements








O/R - Overrunning
CC - Coast Friction Clutch Applied
BA - Band Applied

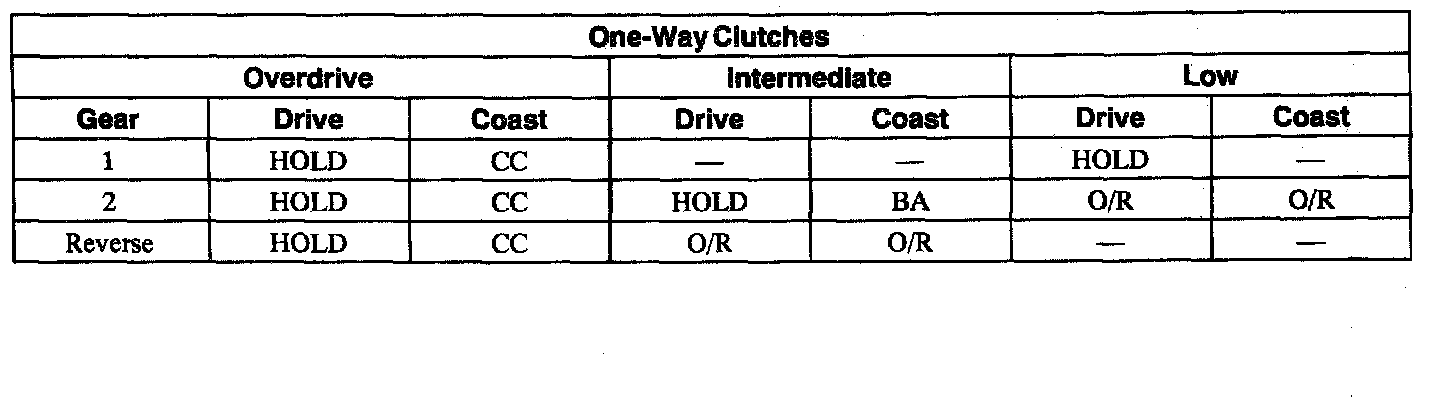

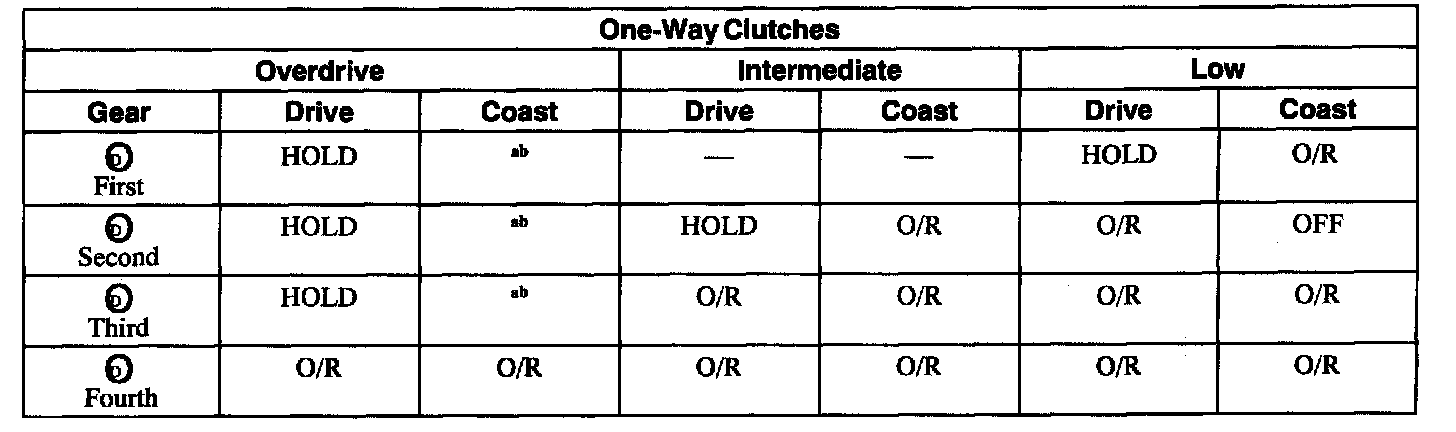

One-Way Clutches
