Pinpoint Test E: The Module Does Not Respond To The Diagnostic Tool - Electronic Automatic Temperature Control (EATC) Module

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

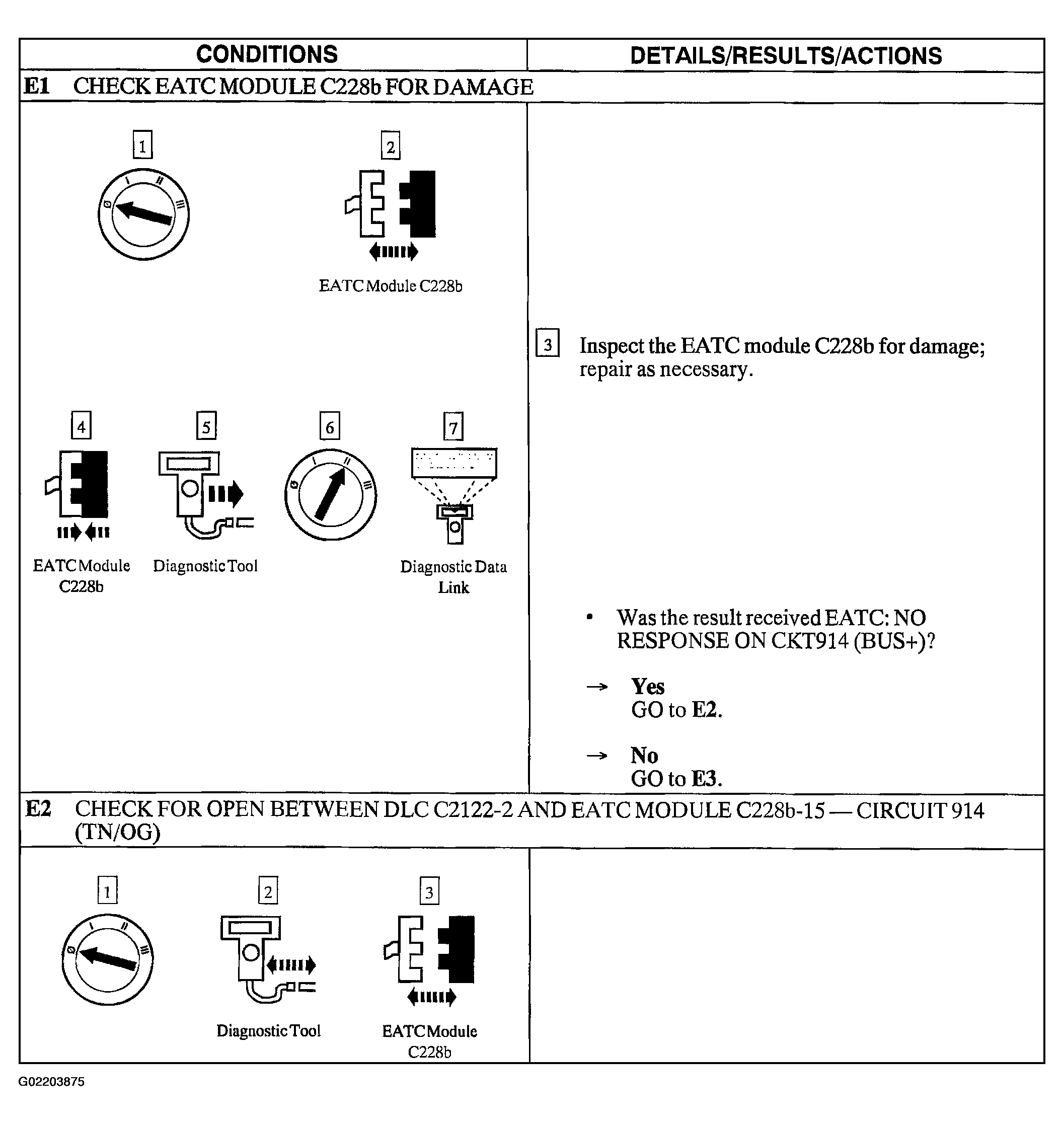

Fig 1: Pinpoint Test E: Module Does Not Respond To Diagnostic Tool - Electronic Automatic Temperature Control (EATC) Module (E1-E2)
G02203875Courtesy of FORD MOTOR CO.

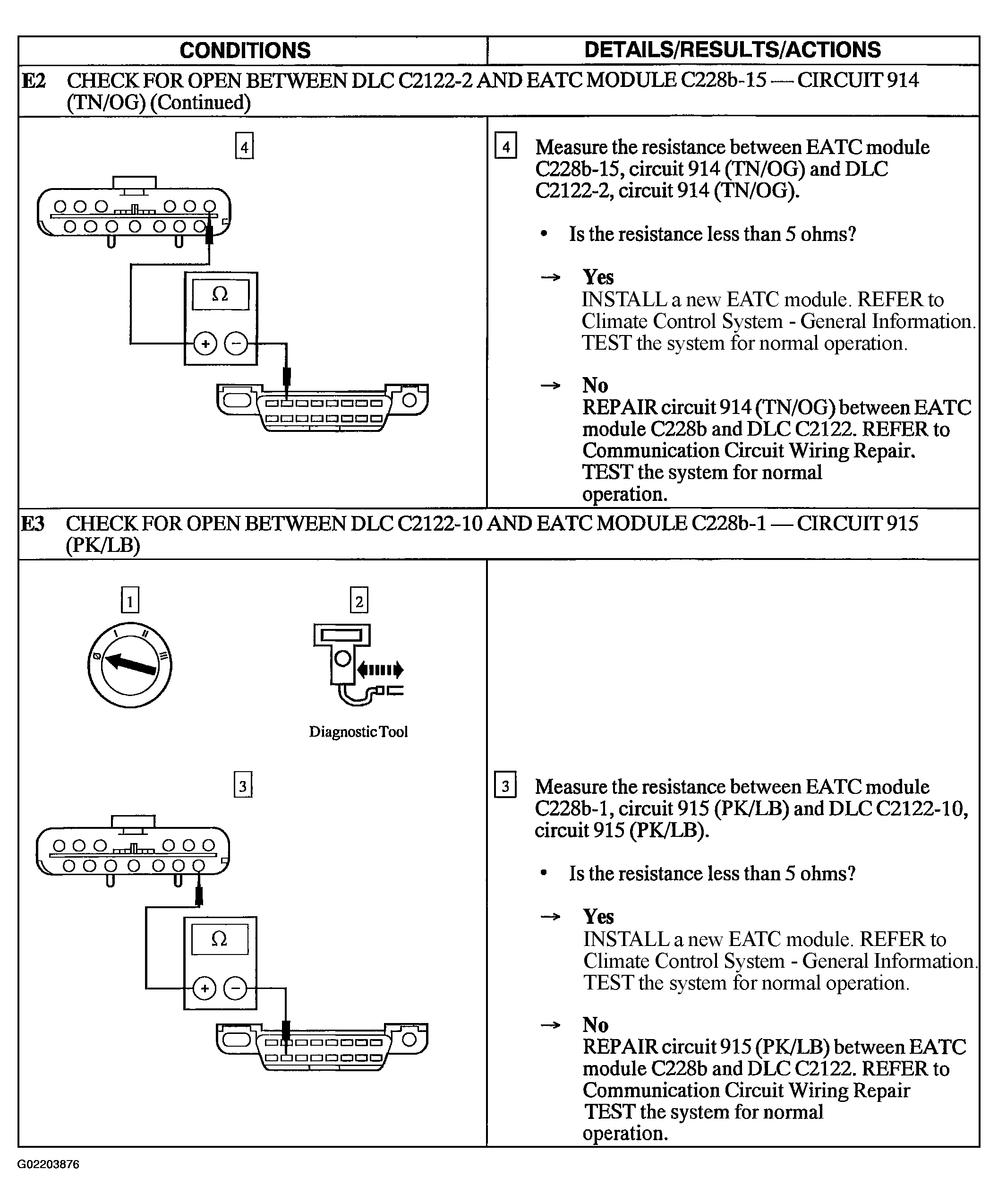

Fig 2: Pinpoint Test E: Module Does Not Respond To Diagnostic Tool - Electronic Automatic Temperature Control (EATC) Module (E2 Cont.-E3)
G02203876Courtesy of FORD MOTOR CO.
