Pinpoint Test G: The Module Does Not Respond To The Diagnostic Tool - Lighting Control Module (LCM)

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

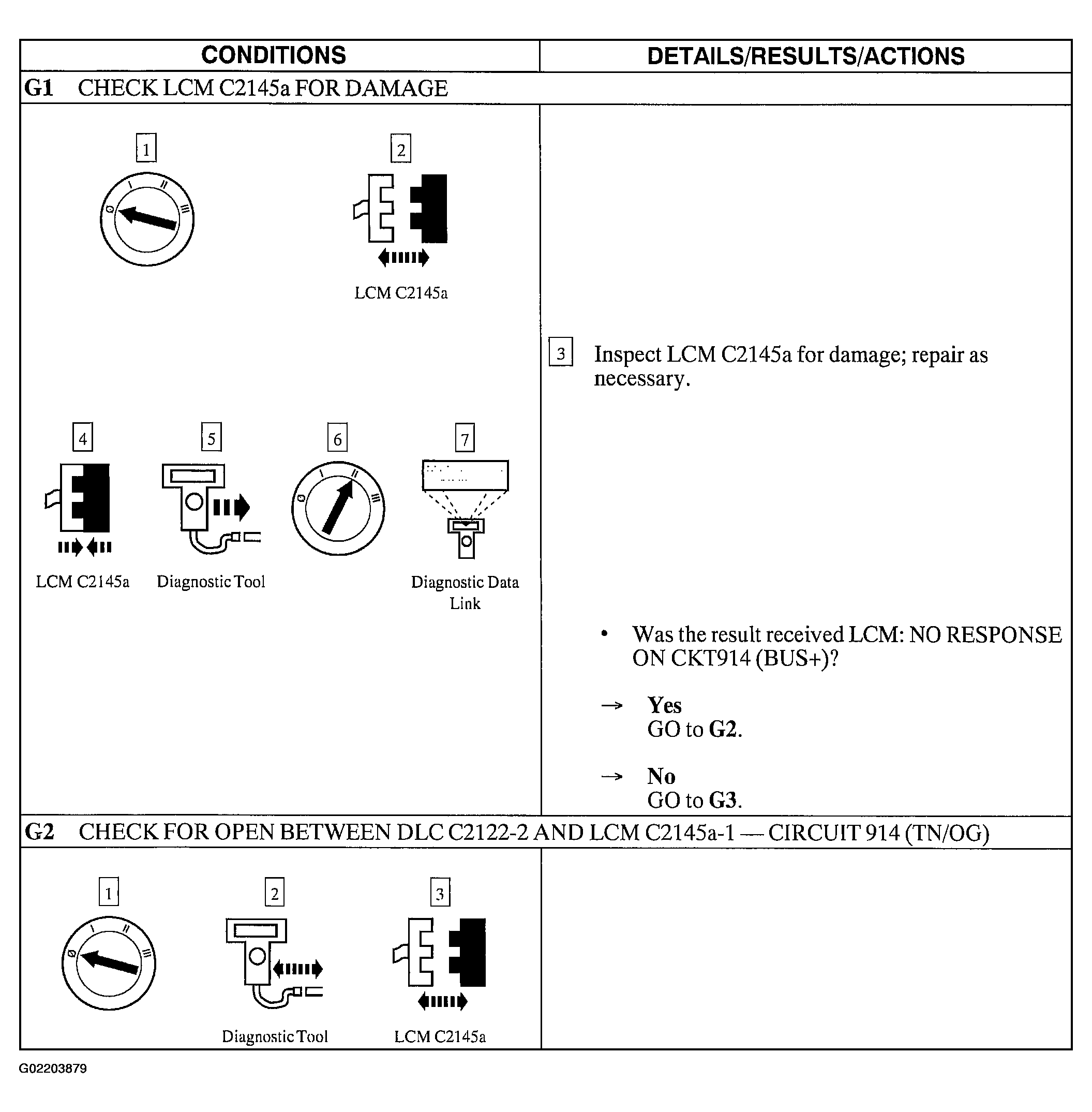

Fig 1: Pinpoint Test G: Module Does Not Respond To Diagnostic Tool - Lighting Control Module (G1-G2)

Courtesy of FORD MOTOR CO.

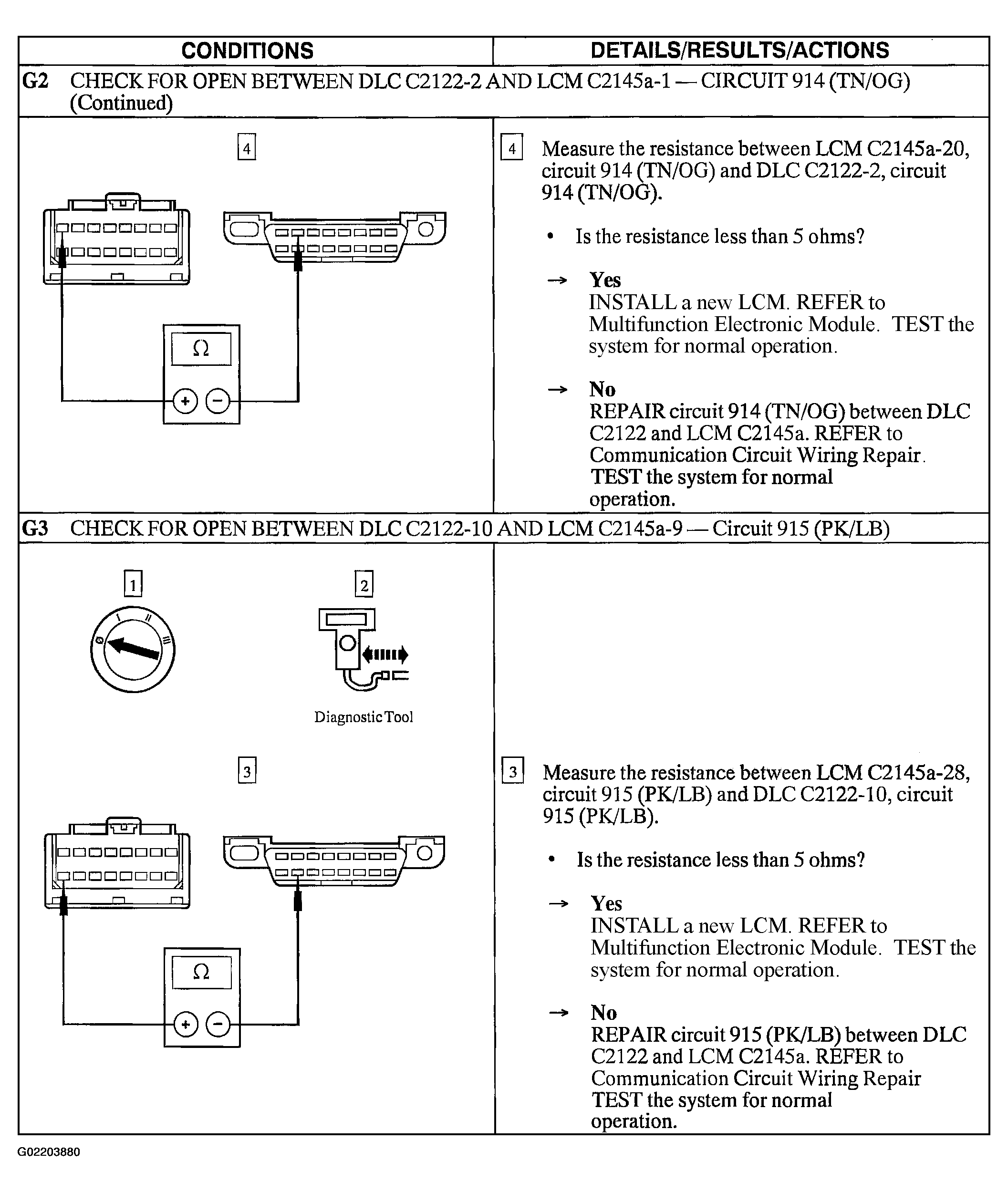

Fig 2: Pinpoint Test G: Module Does Not Respond To Diagnostic Tool - Lighting Control Module (G2 Cont.- G3)

Courtesy of FORD MOTOR CO.
