Pinpoint Test I: The Telematics Control Module Does Not Respond To The Diagnostic Tool
WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

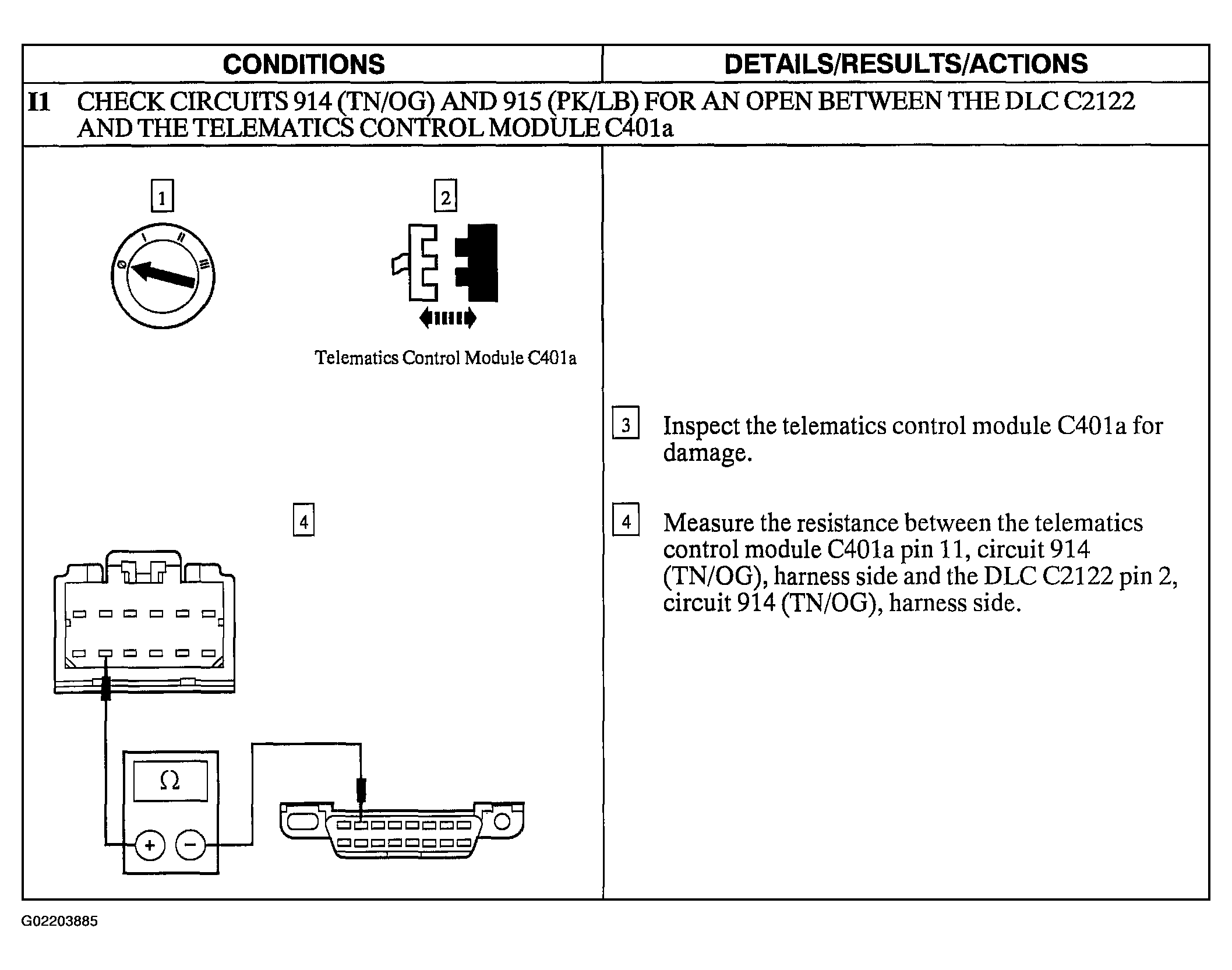

Fig 1: Pinpoint Test I: Telematics Control Module Does Not Respond To Diagnostic Tool (I1)
Courtesy of FORD MOTOR CO.

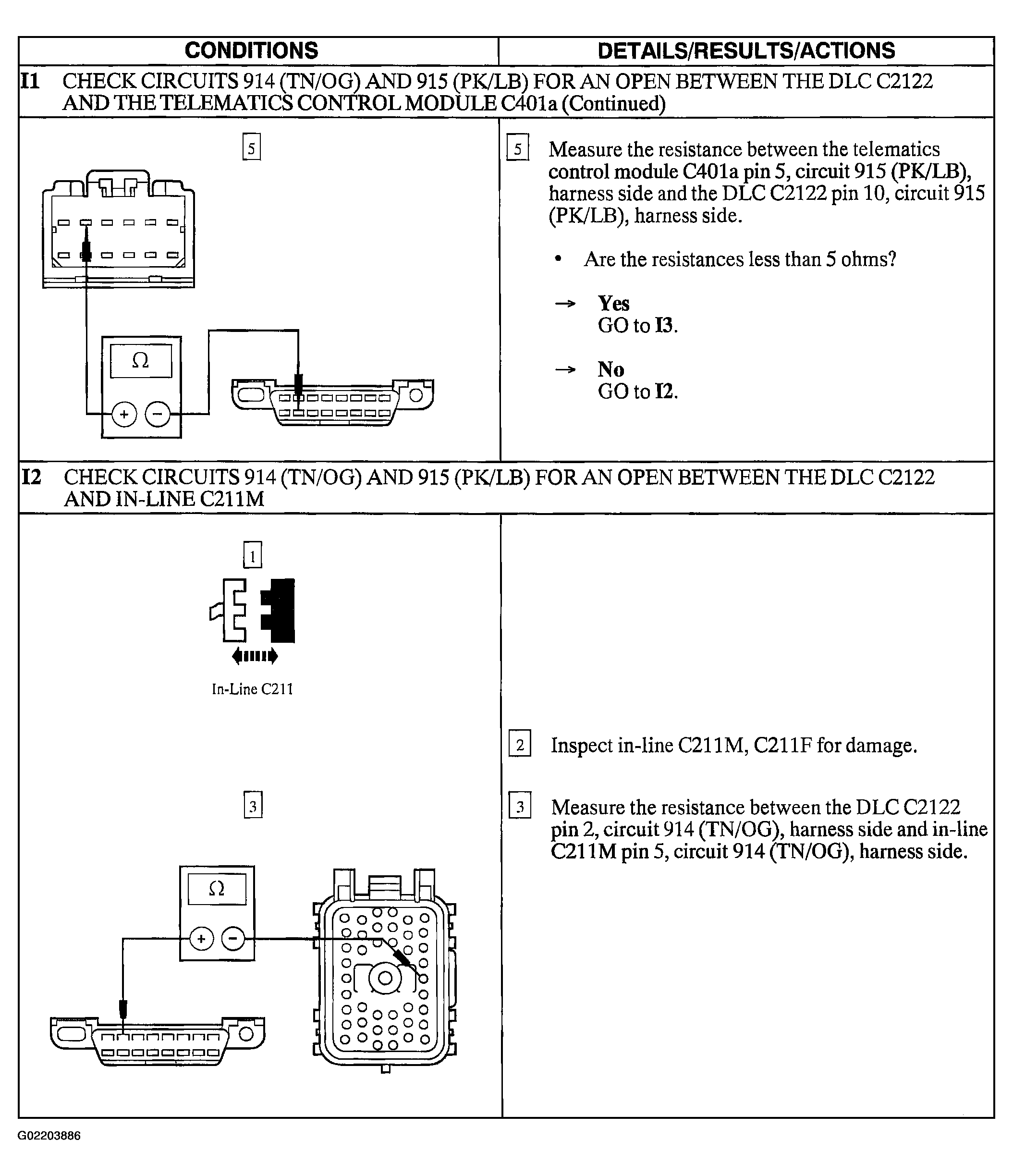

Fig 2: Pinpoint Test I: Telematics Control Module Does Not Respond To Diagnostic Tool (I1 Cont.-I2)
Courtesy of FORD MOTOR CO.

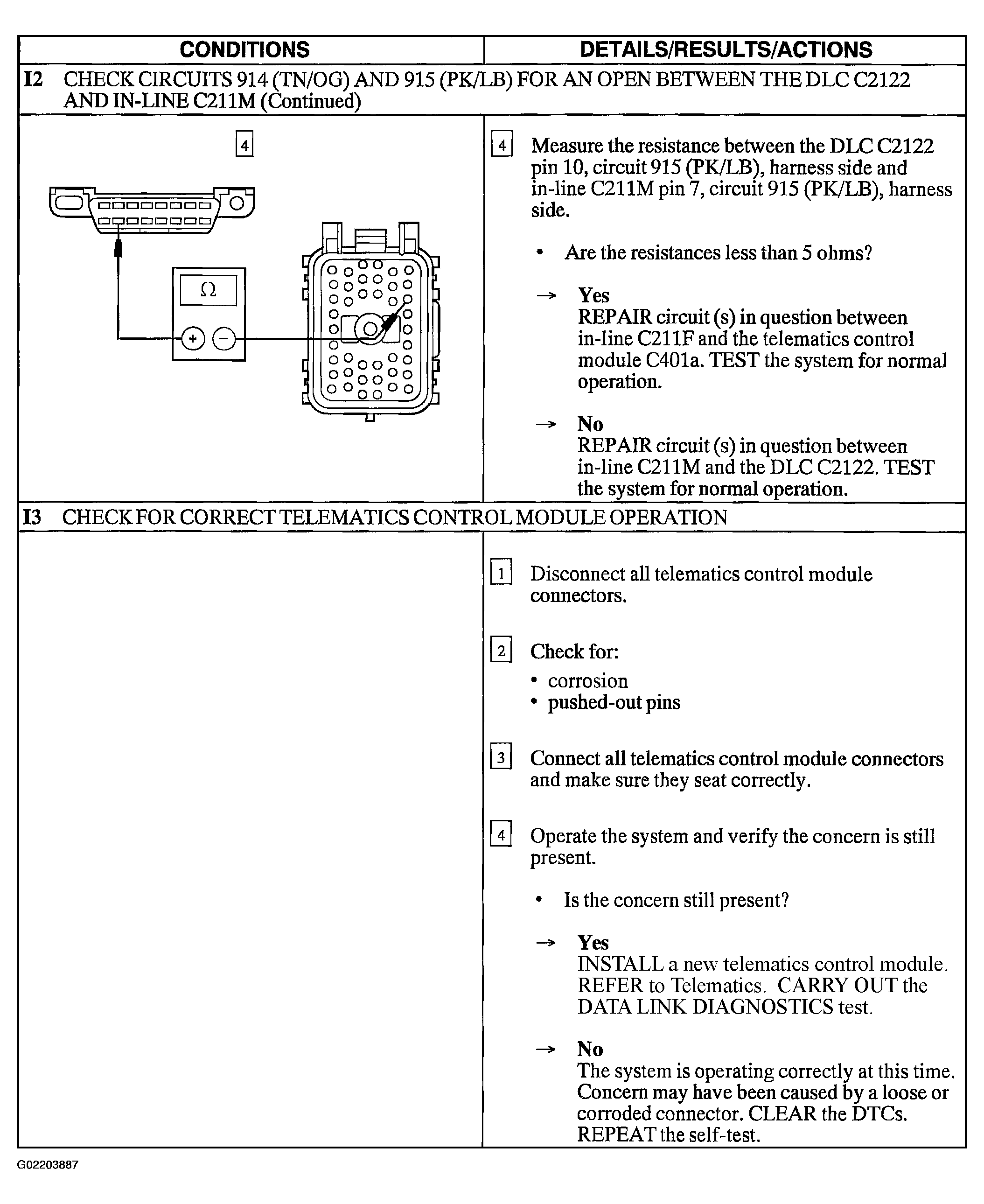

Fig 3: Pinpoint Test I: Telematics Control Module Does Not Respond To Diagnostic Tool (I2 Cont.-I3)
