Drill three 6.35 mm (0.25 in) holes in the wheel knuckle.

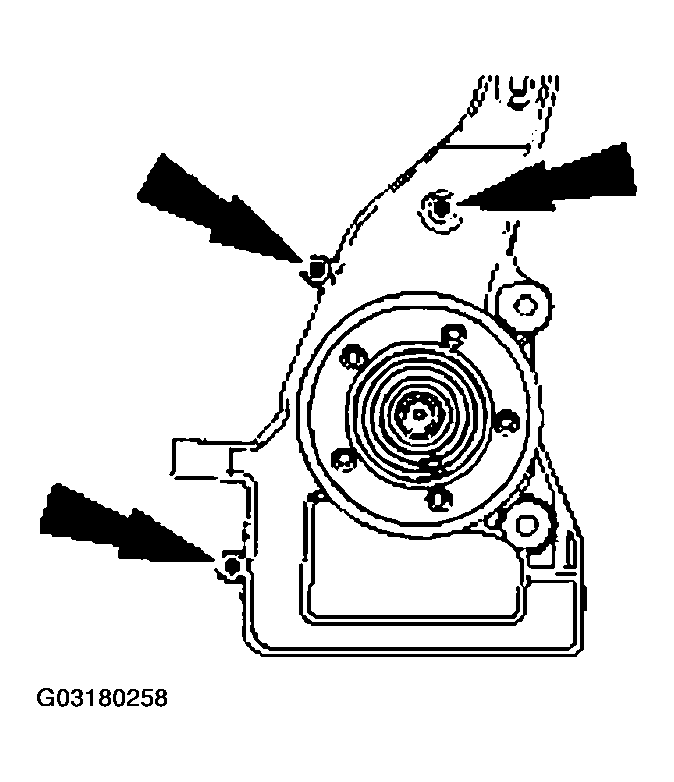

Fig 1: Drilling Holes In Wheel Knuckle
Courtesy of FORD MOTOR CO.
Secure the brake disc shield to the wheel knuckle with three 6.35 mm (0.25 in) rivets (W701950-S100).
