Removal and Installation

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery.
Disconnect the ABS module electrical connector.

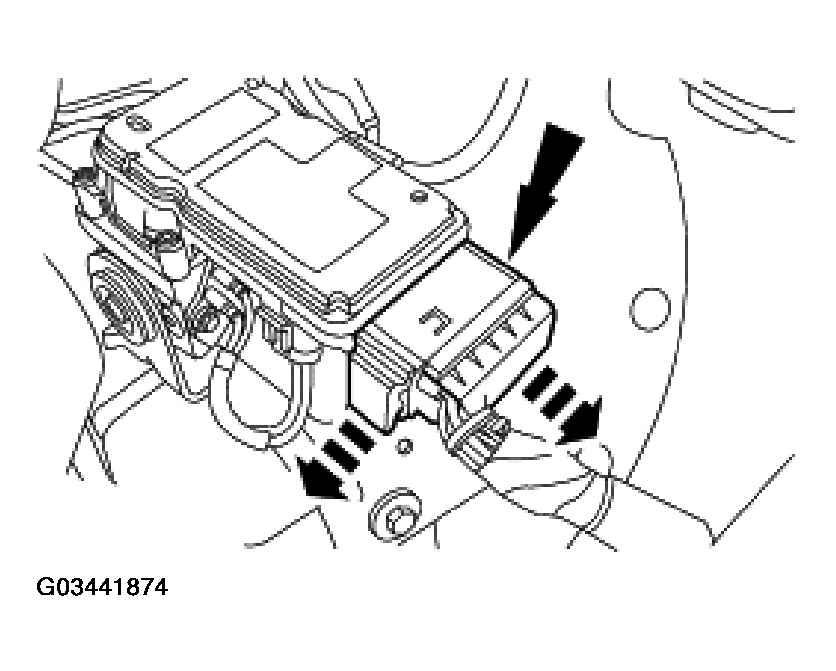

Fig 1: Disconnecting ABS Module Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the pump motor electrical connector from the ABS module.

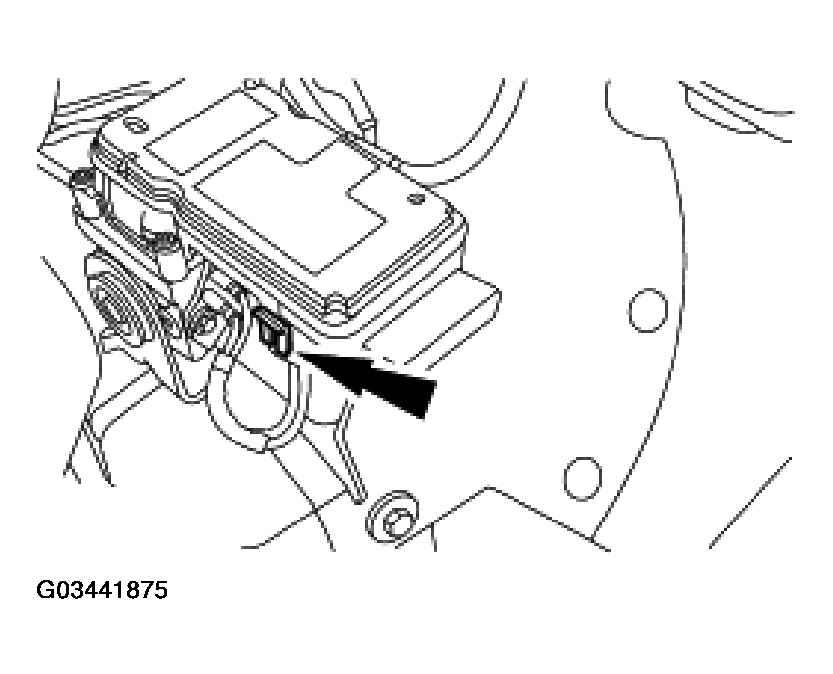

Fig 2: Disconnecting Pump Motor Electrical Connector From ABS Module
Courtesy of FORD MOTOR CO.
Remove the screws and the ABS module.

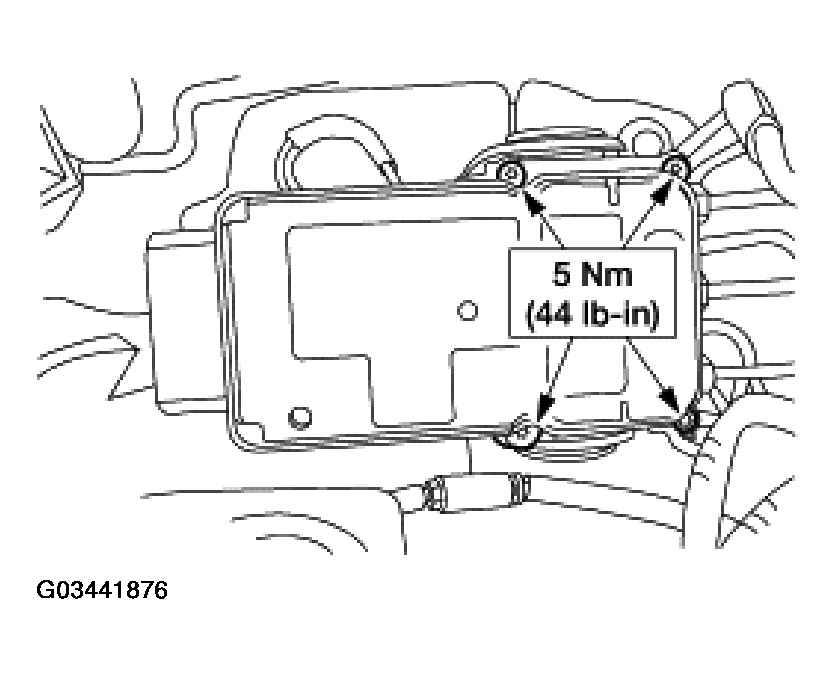

Fig 3: Removing Screws & ABS Module
Courtesy of FORD MOTOR CO.

NOTE: At the first key-on after a new ABS module is installed, use the NGS with the service card to configure the module. For additional information, refer to MODULE CONFIGURATION .

To install, reverse the removal procedure.
