Central Security Module - Vehicles Built Before 03/2002

CENTRAL SECURITY MODULE - VEHICLES BUILT BEFORE 03/2002

Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the RH rear quarter trim panel.

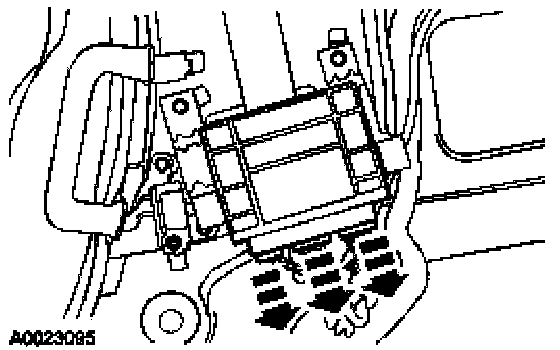

3. Disconnect the three central security module electrical connectors.

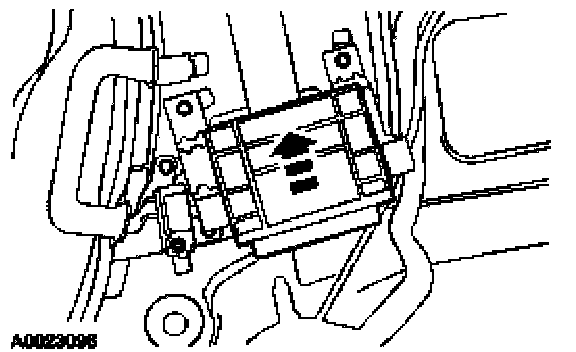

4. Remove the central security module.
5. To install, reverse the removal procedure.
- Check for correct operation.
