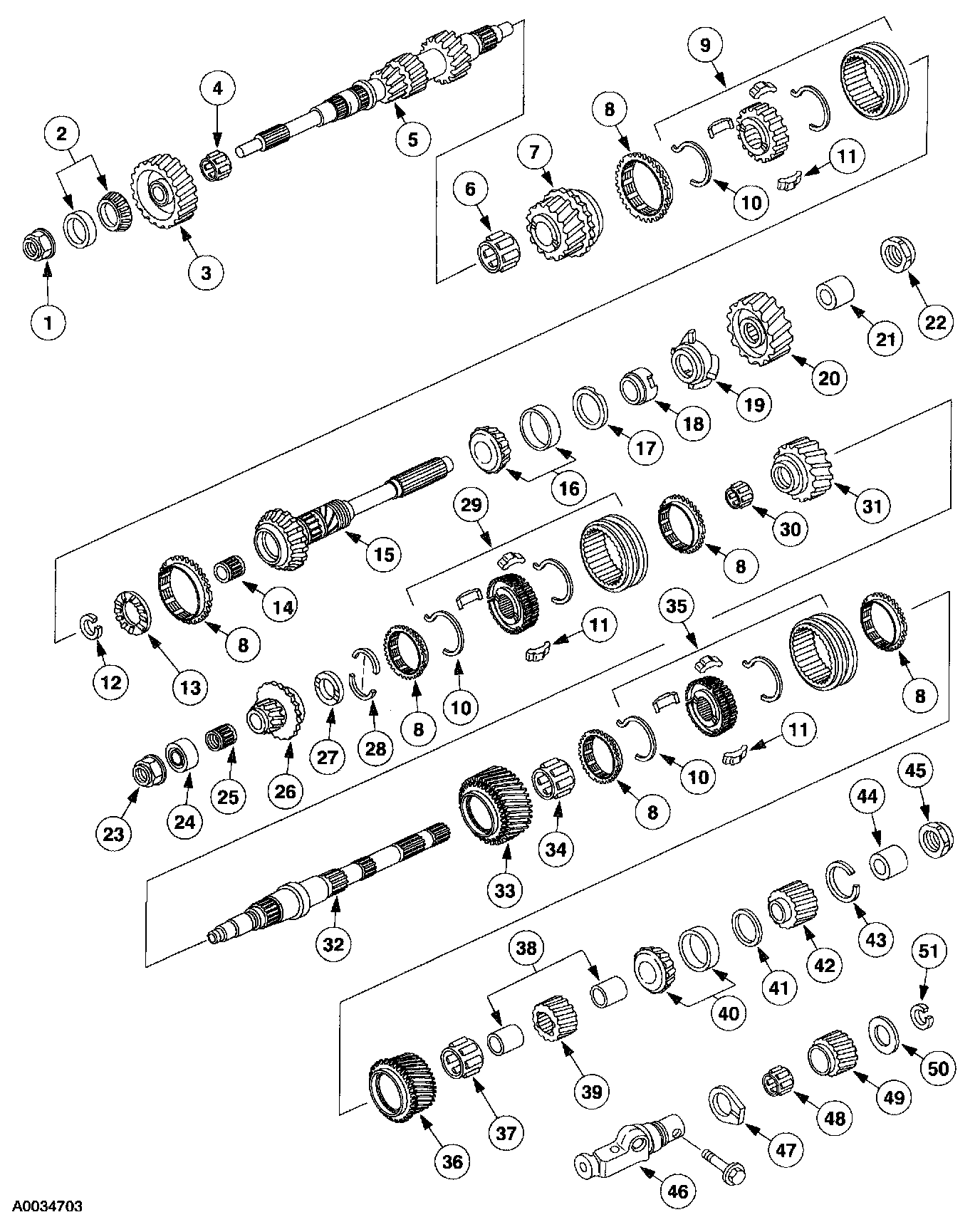

Transmission Internal Components-Disassembled View

Transmission Internal Components-Disassembled View





Part 1 of 4





Part 2 of 4





Part 3 of 4





Part 4 of 4
