System Specifications

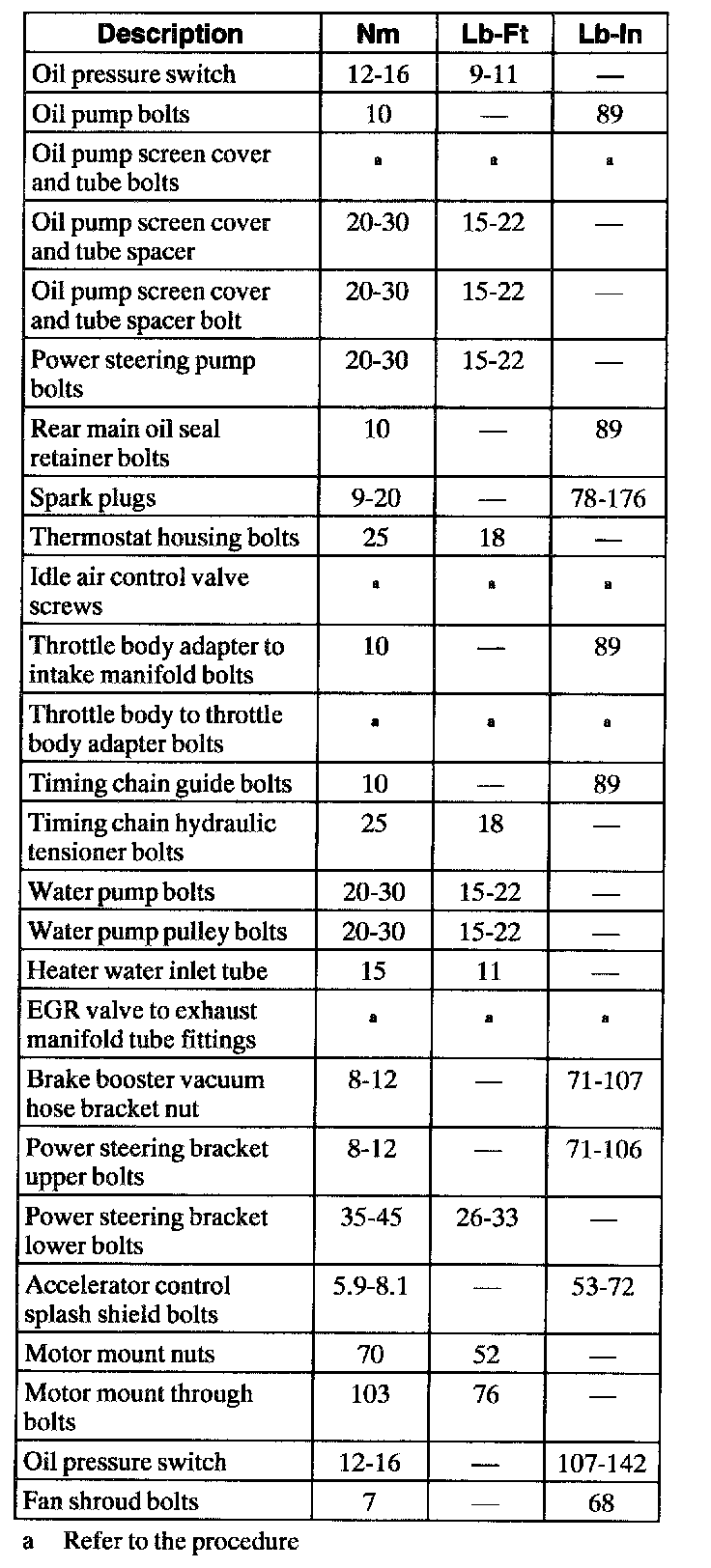

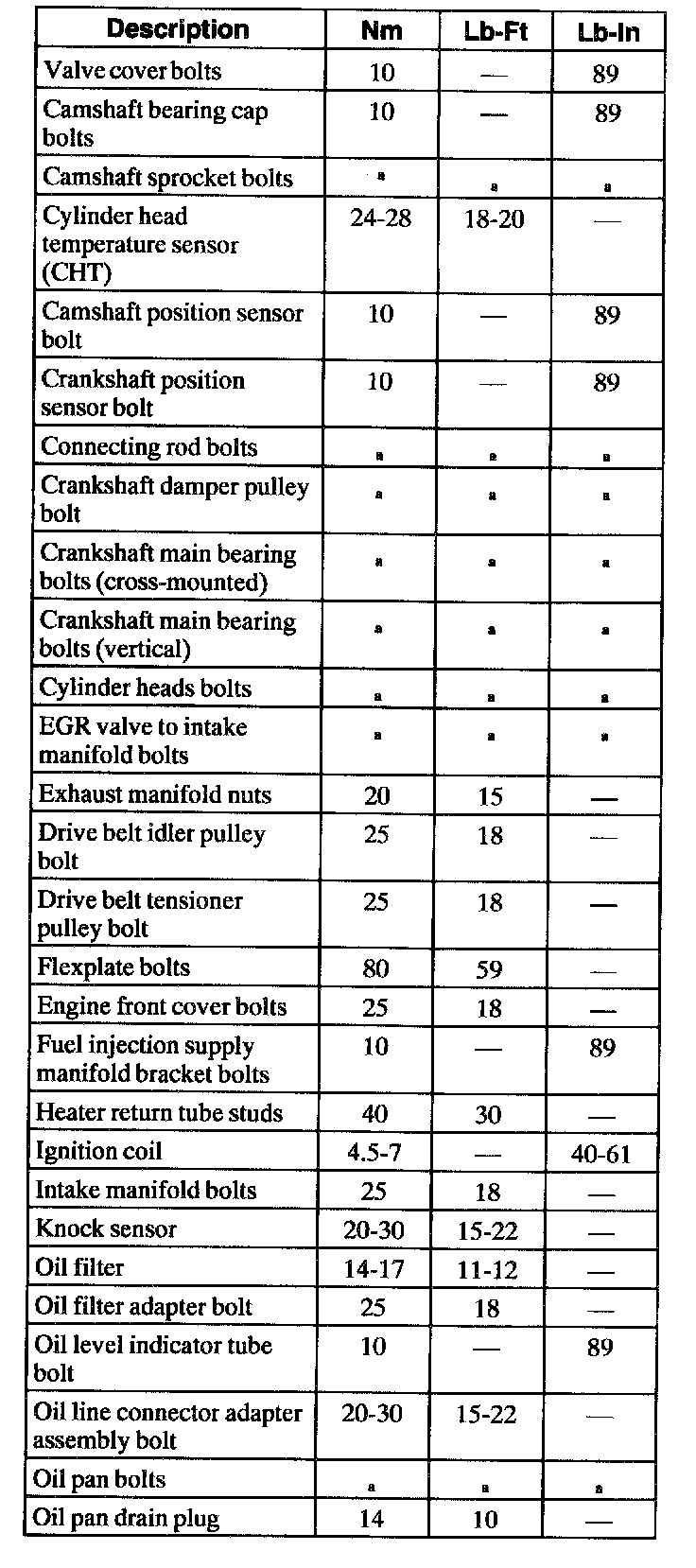

Engine Torque Specifications





1 of 2





2 of 2

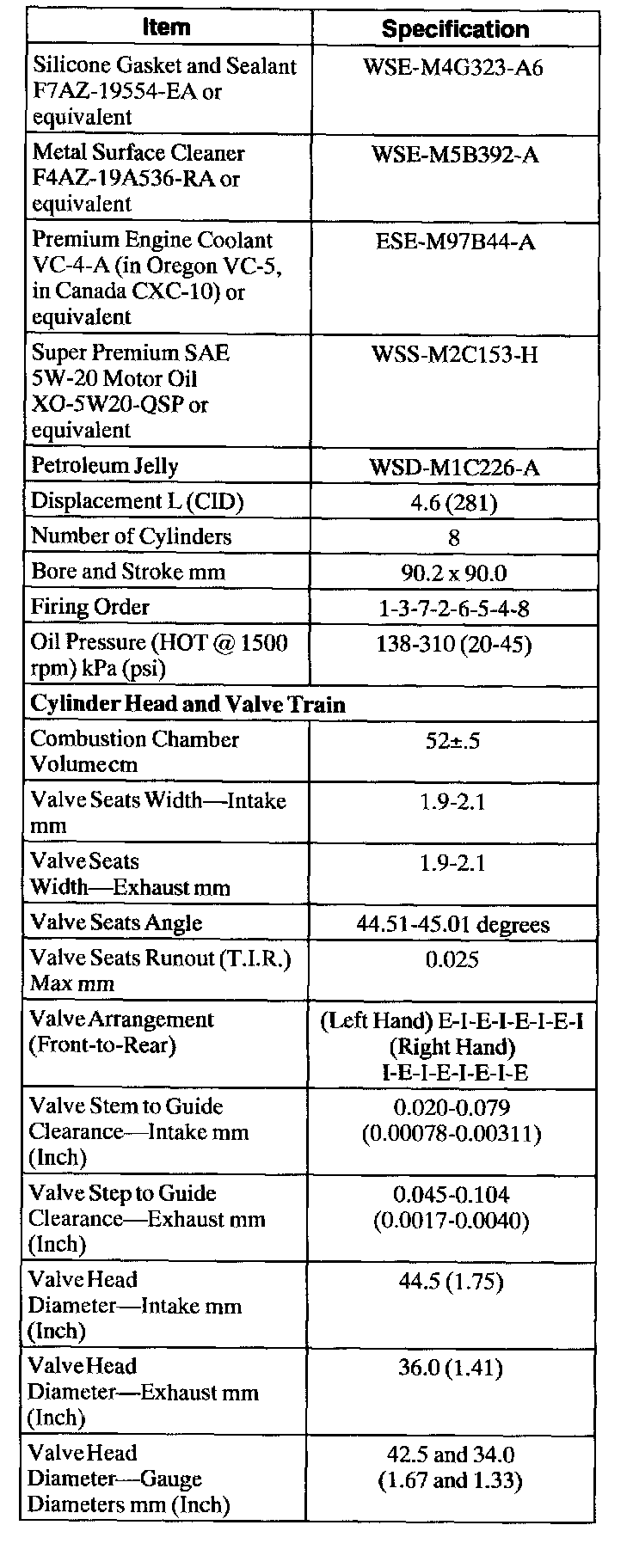

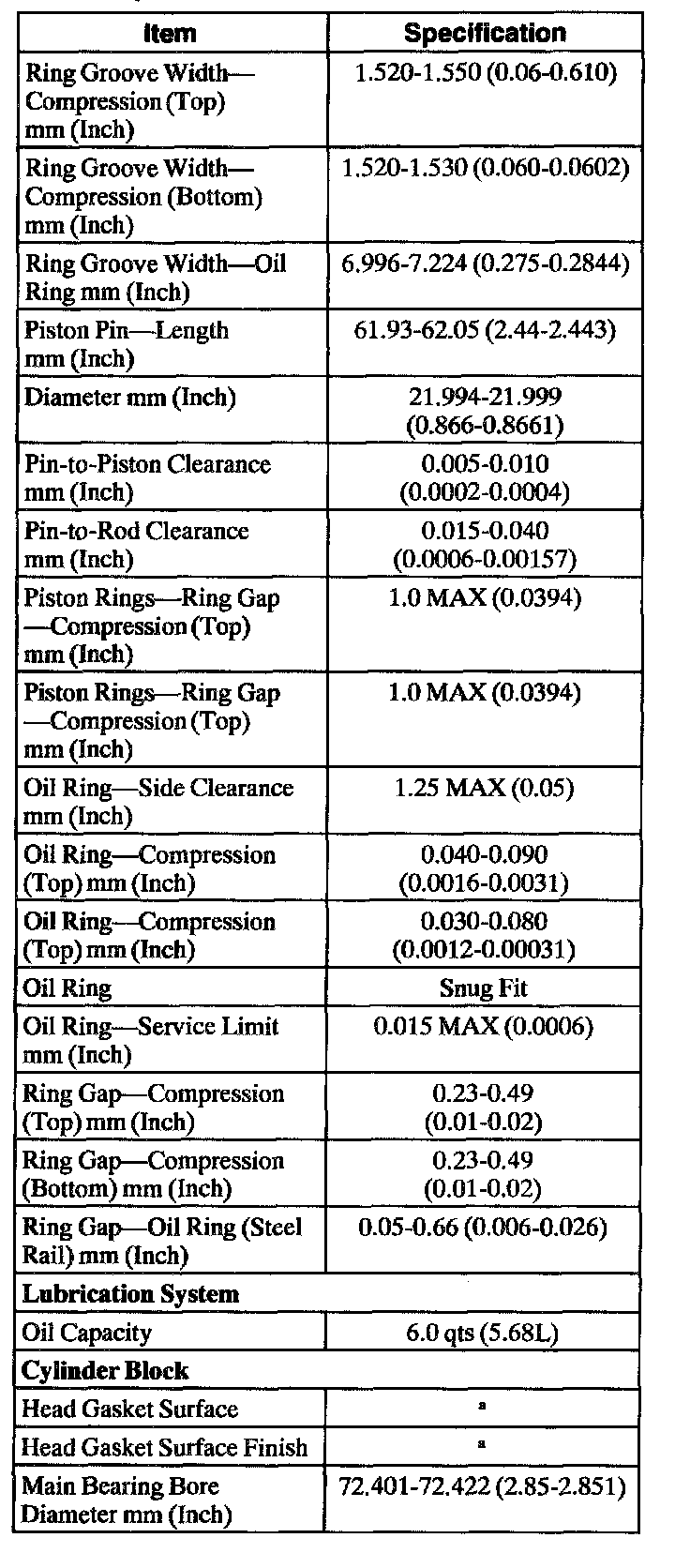

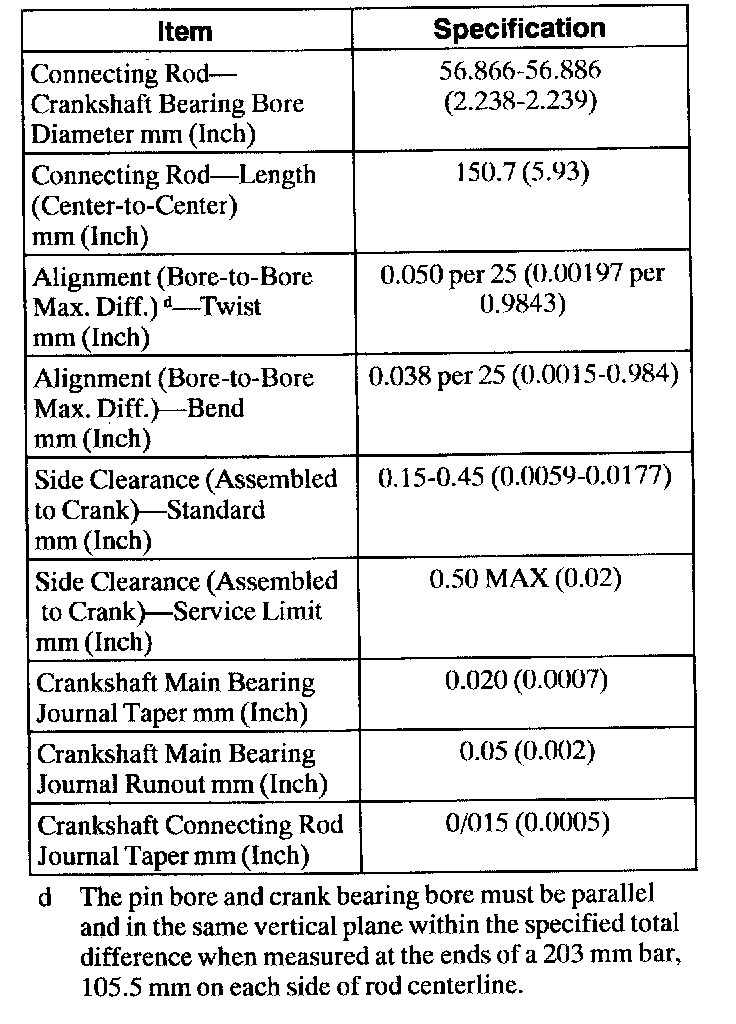

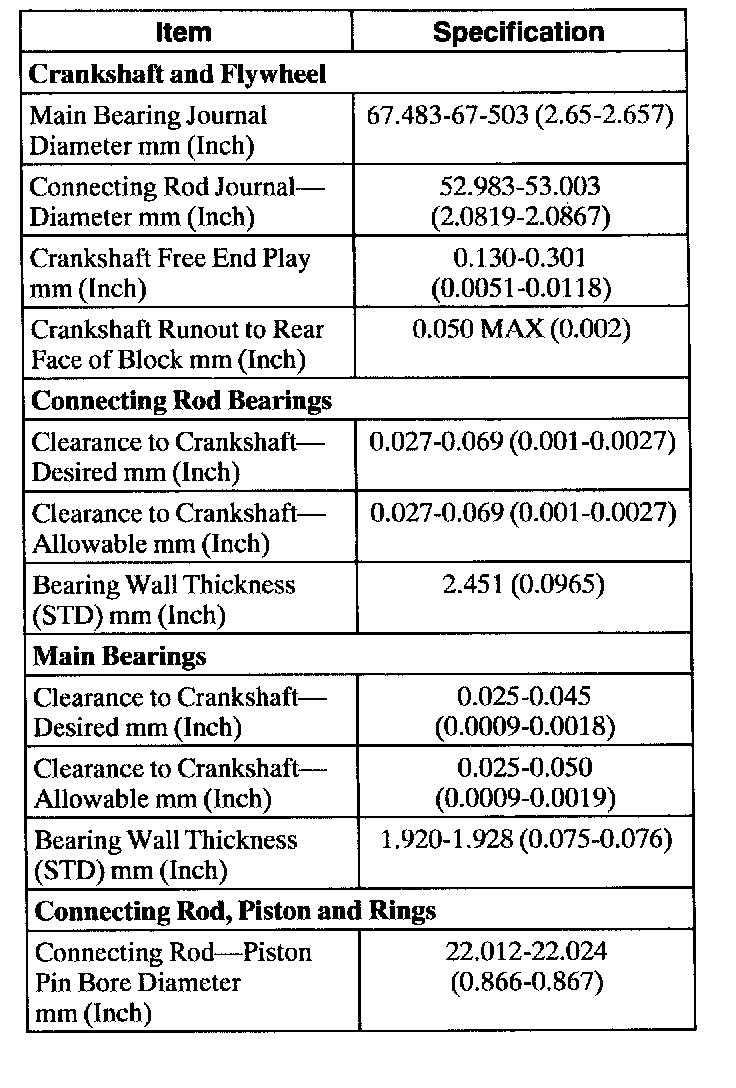

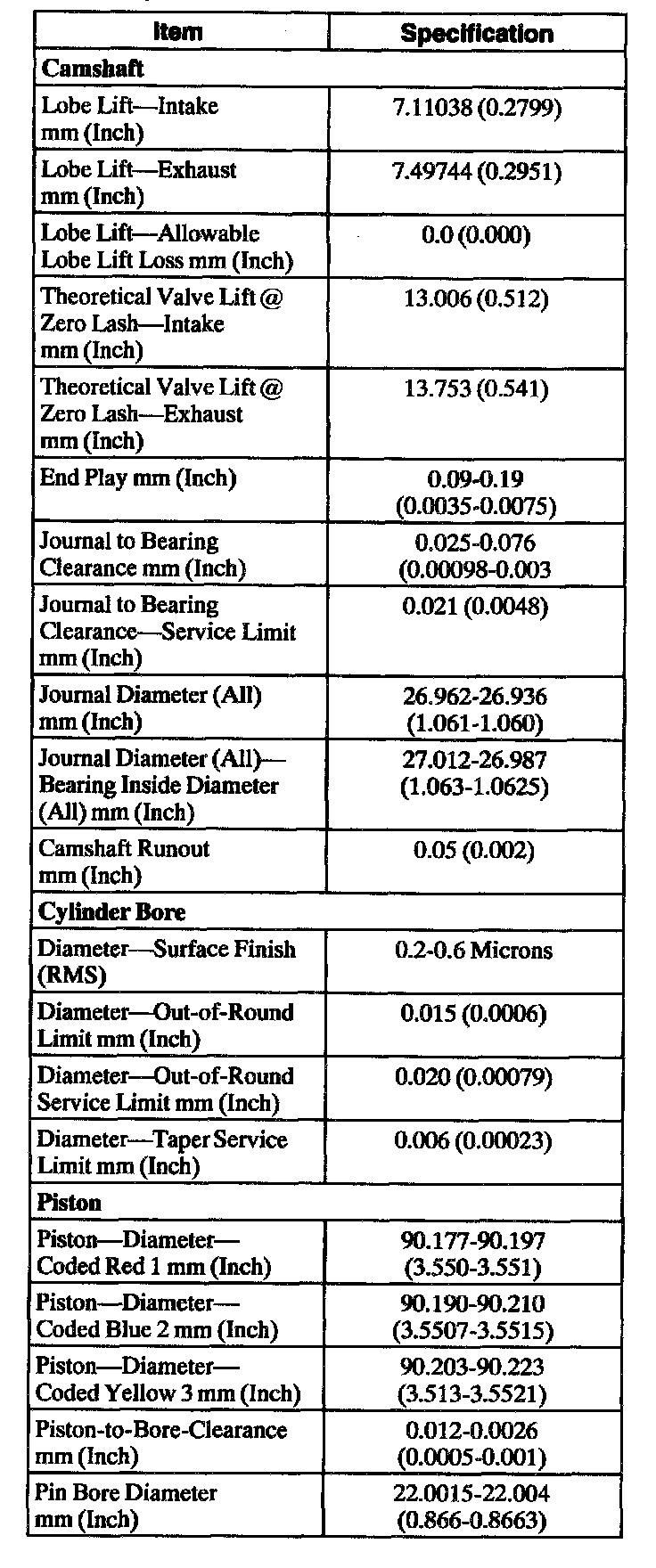

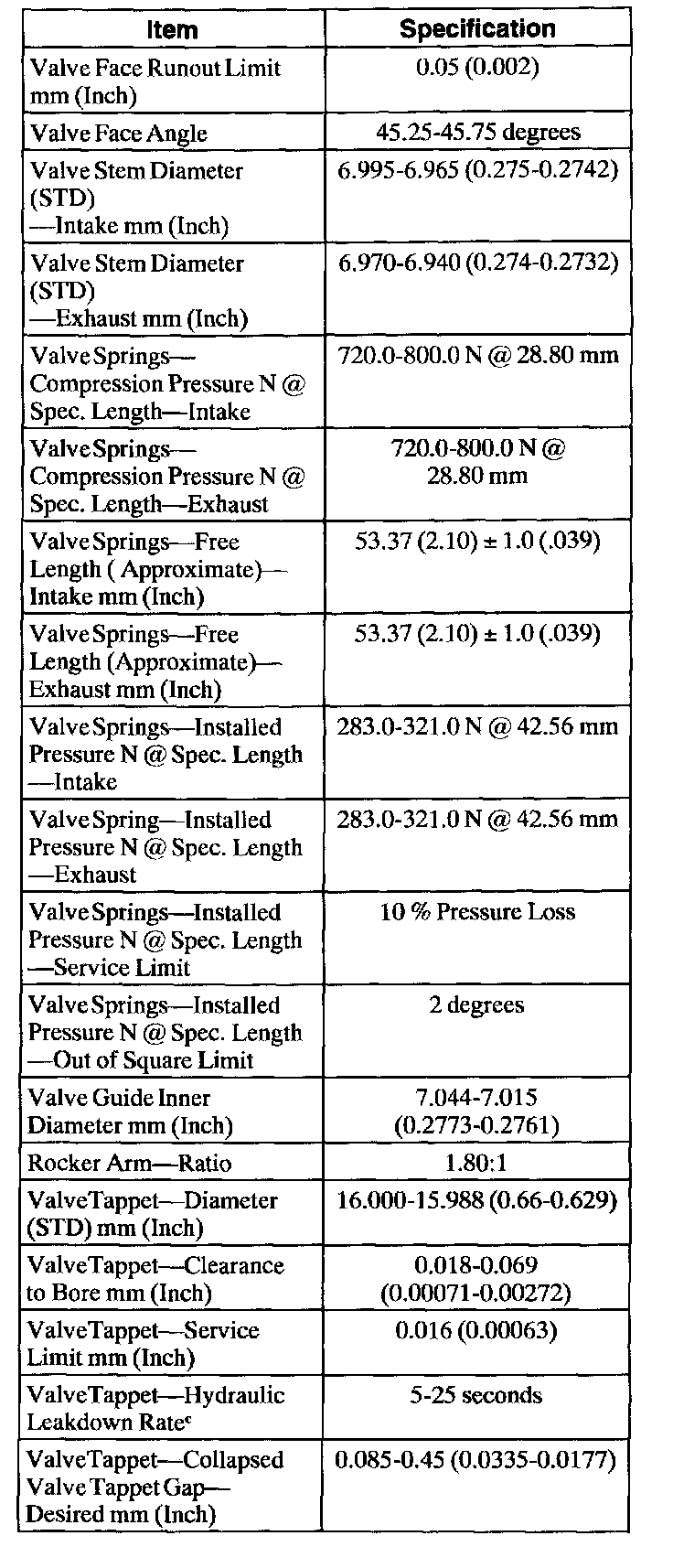

General Specifications





1 of 6





2 of 6





3 of 6





4 of 6





5 of 6





6 of 6

For exhaust manifold tightening sequence refer to procedure Service and Repair

For intake manifold tightening sequence refer to procedure Service and Repair

For camshaft bearing tightening sequence refer to procedure Service and Repair

For crankshaft main bearing tightening sequence refer to Assembly procedure Service and Repair

For flex plate tightening sequence refer to procedure Service and Repair
