System Specifications

Exhaust System Torque Specifications

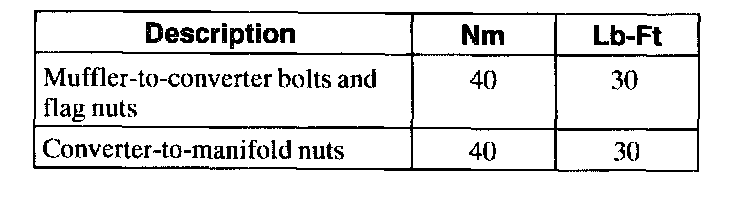

1 of 2

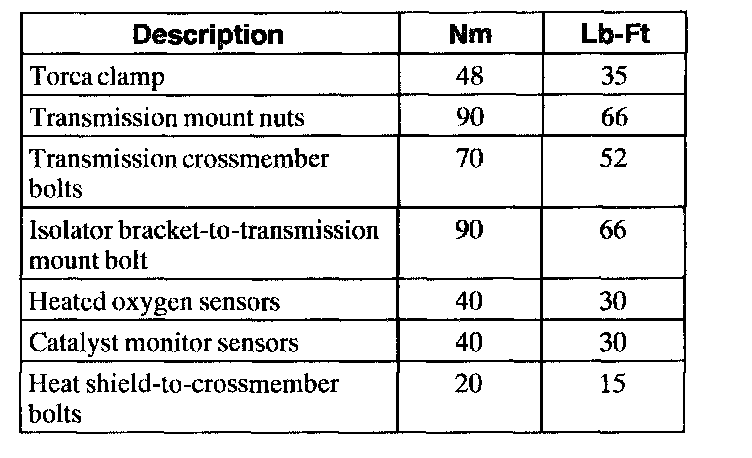

2 of 2

Additional Torque Specifications
Muffler-To-Converter Bolts And Flag Nuts 40 Nm (30 ft. lbs.)
Converter-To-Manifold Nuts 40 Nm (30 ft. lbs.)
Torca Clamp 48 Nm (35 ft. lbs.)
Transmission Mount Nuts 90 Nm (66 ft. lbs.)
Transmission Crossmember Bolts 70 Nm (52 ft. lbs.)
Isolator Bracket-To-Transmission 90 Nm (66 ft. lbs.)
Mount Bolt Heated Oxygen Sensors 40 Nm (30 ft. lbs.)
Catalyst Monitor Sensors 40 Nm (30 ft. lbs.)
Heat Shield-To-Crossmember Bolts 20 Nm (15 ft. lbs.)
