System Specifications

Driveline System - General Information

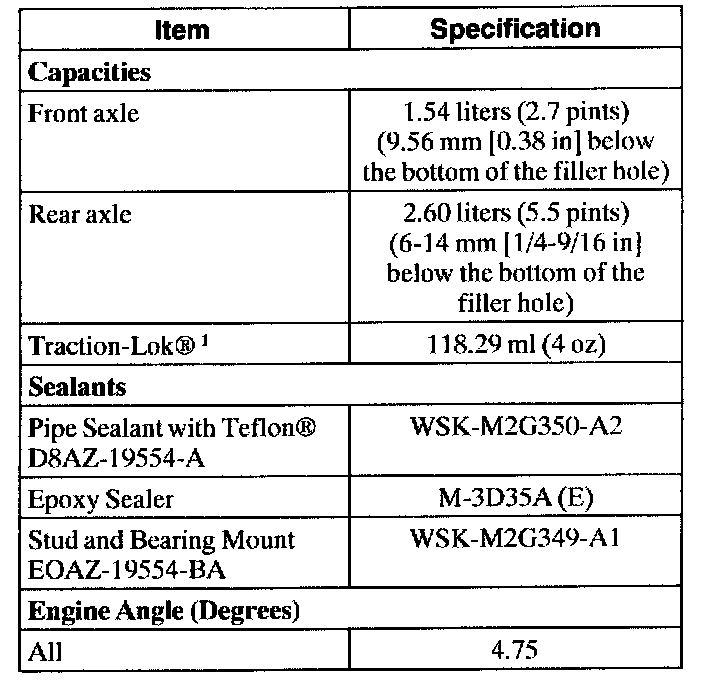

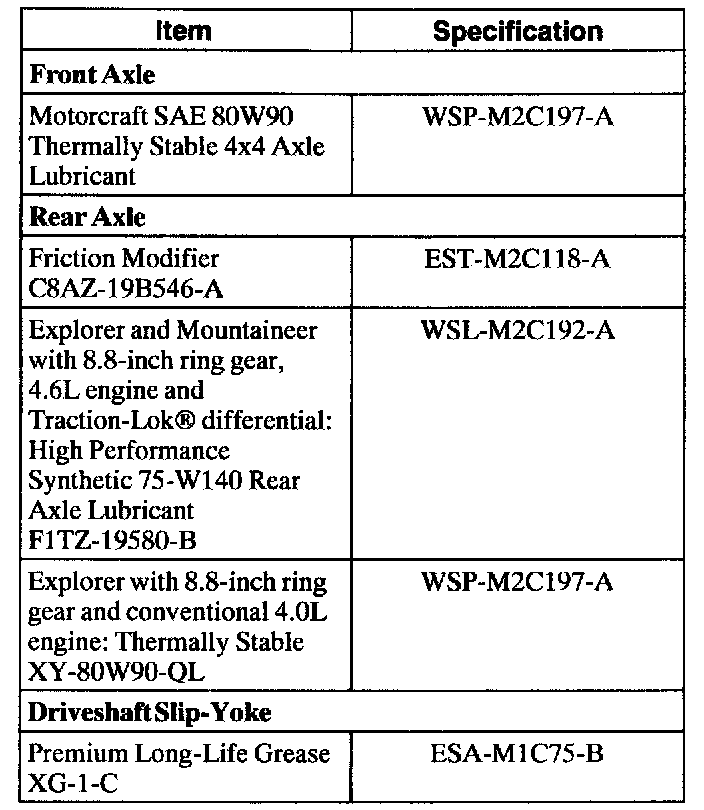

General Specifications

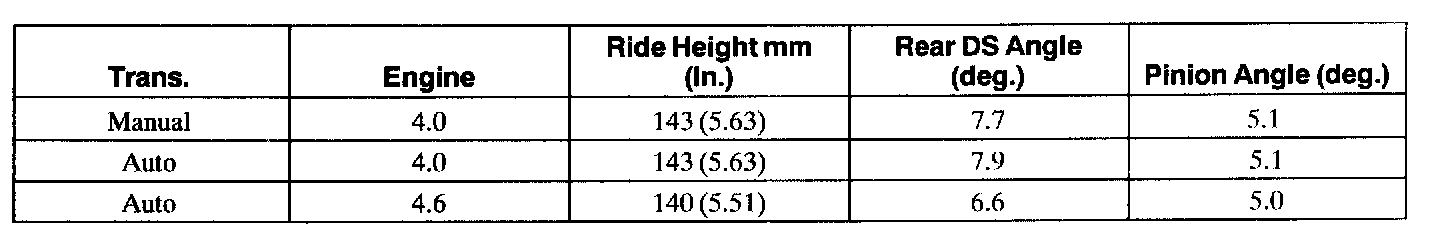

Explorer 4X2 Rear Driveline Angles @ Curb Specifications

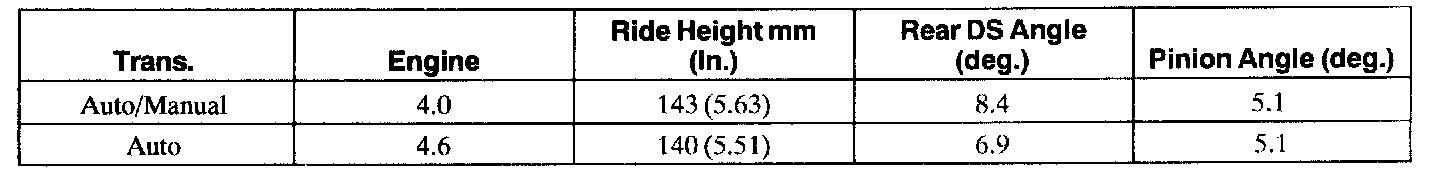

Explorer, Mountaineer 4X4 Rear Driveline Angles @ Curb Specifications
