Torque Specifications

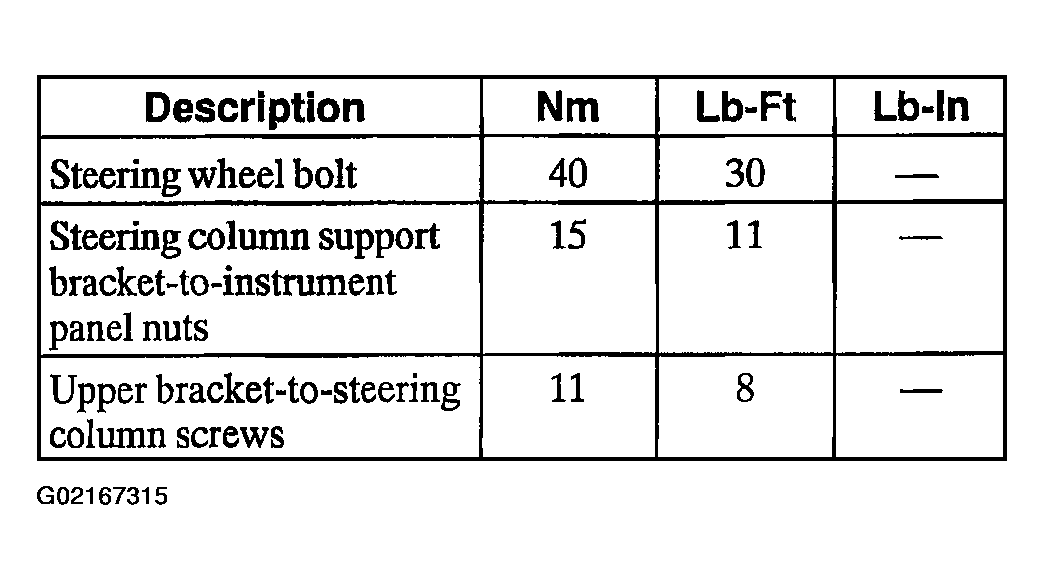

Fig 1: Steering Column Torque Specifications (1 Of 2)
G02167315Courtesy of FORD MOTOR CO.

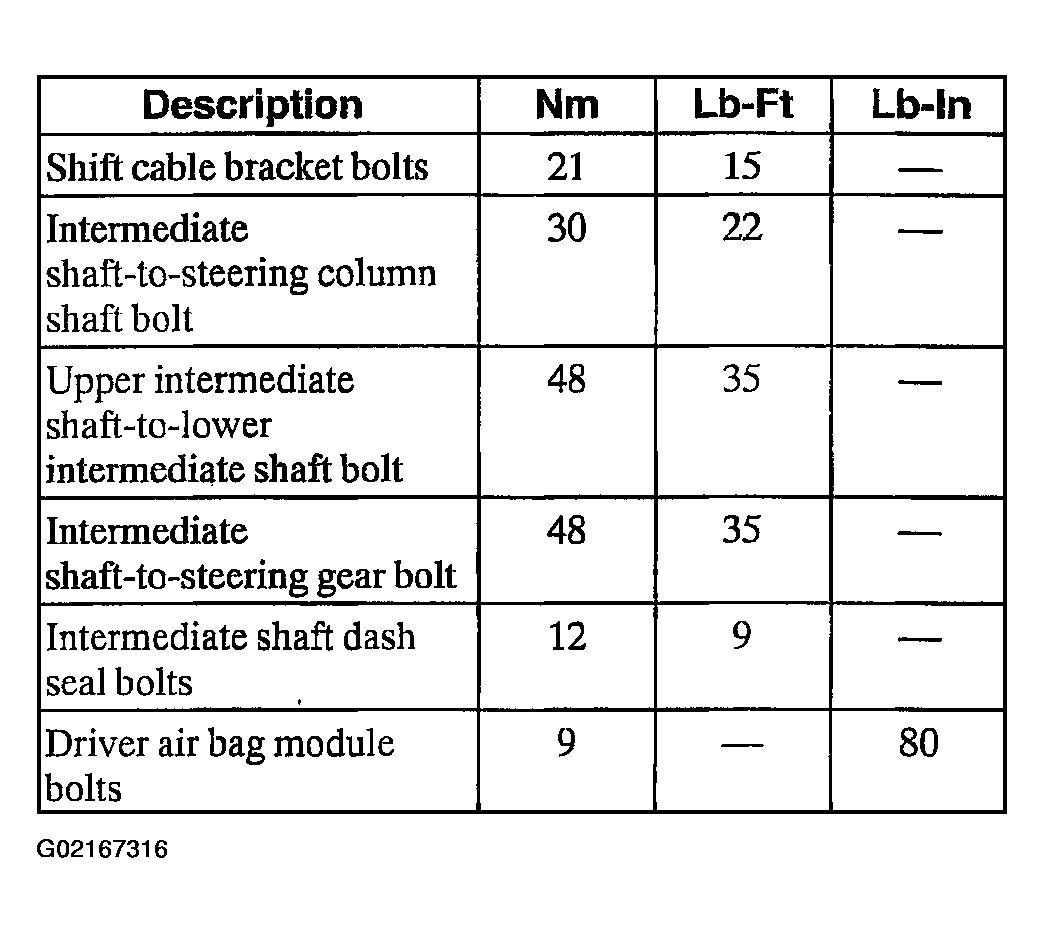

Fig 2: Steering Column Torque Specifications (2 Of 2)
G02167316Courtesy of FORD MOTOR CO.
