Overdrive (O/D) switch

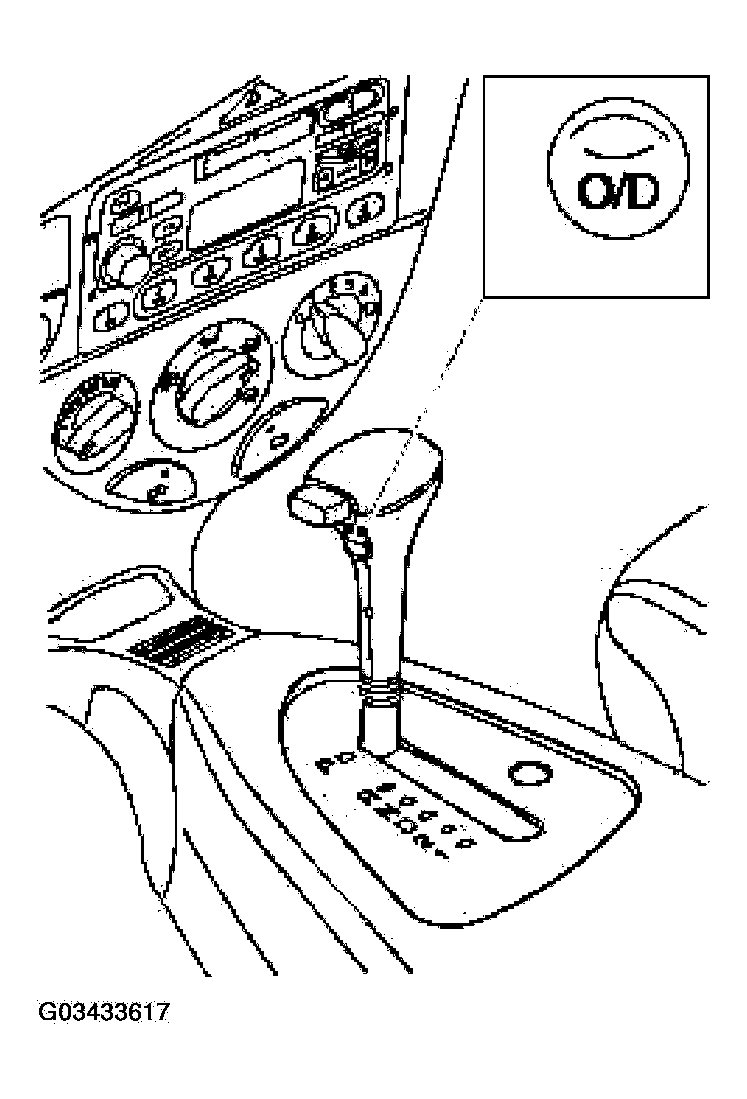

The O/D switch is located on the side of the selector lever.
The O/D switch transmits a signal to the PCM to select or suppress 4th gear in selector lever position "D".
The signal of the O/D switch is used for the following functions:
- as an input signal to convey the drivers' wishes to the PCM.
- to display the drivers' wishes with the O/D indicator in the instrument cluster.
No substitute signal is available for the O/D switch. If it should fail, it is always possible to shift into 4th gear in selector lever position "D".
